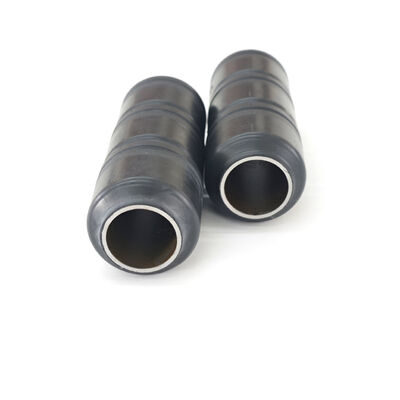

5.5 Inch V Type Oilfield Swab Cup for Light-Load Well Service
Royal Way 5-1/2 in light-load V-type swab cups pair a flexible NBR lip with a steel-core base for large-bore casing and tubing fluid-recovery programs. The 5.5 in cup adds a dedicated size reference for operators and service companies building swab strings for lighter-load well-service work, while the flexible V profile provides a clear replacement option for maintenance and repeat supply. Jiangsu Ruowei Energy Technology Co., Ltd. manufactures molded oilfield rubber products at its Haimen facility in Nantong, Jiangsu.
1. 5-1/2 in V-Cup Size and Dimensions
The nominal size identifies the product family, while the working-cup OD and core opening show the listed molded dimensions for this configuration.
| Dimension or feature |
Inch |
Metric |
Use in product identification |
| Nominal size |
5-1/2 in |
139.7 mm |
V-cup size family |
| Cup outside diameter |
4.970 in |
126.24 mm |
Molded working-cup OD |
| Cup inside diameter |
2.495 in |
63.37 mm |
Core opening |
| Profile |
V type |
— |
Flexible sealing lip |
| Load profile |
Light load |
— |
Well-service configuration |
2. Flexible-Lip Geometry for Light-Load Swabbing
The V-type cup’s flexible lip responds to fluid load as the tool operates. For lighter-load service programs, this 5-1/2 in profile gives buyers a size-specific cup option for casing and tubing equipment, service-tool preparation and replacement-parts planning.
| Design element |
Configuration |
Buyer reference |
| Working lip |
V-type flexible NBR lip |
Light-load fluid recovery profile |
| Nominal size |
5-1/2 in (139.7 mm) |
Large-bore service reference |
| Outer cup profile |
4.970 in OD |
Molded working-cup dimension |
| Core opening |
2.495 in ID |
Steel-core configuration reference |
3. NBR Cup and Steel-Core Assembly
The rubber working section is formed from NBR and assembled around a steel core. This combination presents the flexible cup lip and a metal center as one service component for a 5-1/2 in swab-tool configuration.
| Component detail |
Product configuration |
Buyer reference |
| Elastomer |
NBR rubber |
Specify hardness for the service program |
| Core |
Steel reinforced core |
Central mounting construction |
| Cup geometry |
V-type flexible lip |
Light-load swabbing configuration |
| Standard appearance |
Black |

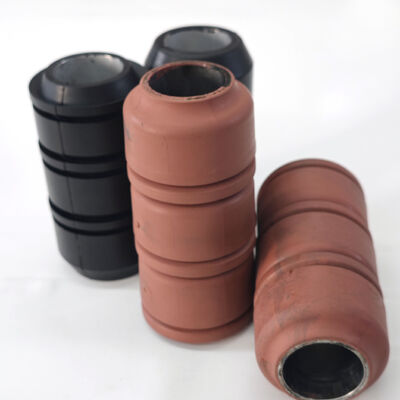

Custom color option available by order |
| Product family |
5-1/2 in swab cup |
Nominal size and cup dimensions |
4. Casing, Tubing and Well-Service Use
Use the 5-1/2 in V-type light-load cup for casing and large-bore tubing swab strings, service-tool maintenance and planned replacement programs. Its flexible-lip profile and steel-core center help buyers distinguish this configuration within a mixed swab-cup range.
| Application |
Configuration role |
RFQ reference |
| Large-bore casing work |
5-1/2 in V-type light-load cup |
Tool model and cup profile |
| Tubing swab strings |
Flexible-lip replacement component |
Mandrel and required dimensions |
| Well-service preparation |
Size-specific cup for planned field use |
Fluid and service details |
| Maintenance inventory |
Repeatable product configuration |
Quantity and order timing |
5. Factory Production for Molded Oilfield Cups
Jiangsu Ruowei Energy Technology Co., Ltd. coordinates compound preparation, core handling, molding, vulcanization, trimming, inspection and packing at its Haimen facility in Nantong. The factory’s oilfield rubber range includes swab cups, hammer union seals, O-rings, repair kits and custom molded components.
| Process stage |
Manufacturing activity |
Support for this cup |
| Compound preparation |
Rubber material processing |
NBR cup-body production |
| Core preparation |
Steel insert coordination |
Metal-core cup construction |
| Molding and vulcanization |
Forming and curing rubber parts |
V-profile and cup body production |
| Trimming and finishing |
Post-mold part preparation |
Finished lip and outer profile |

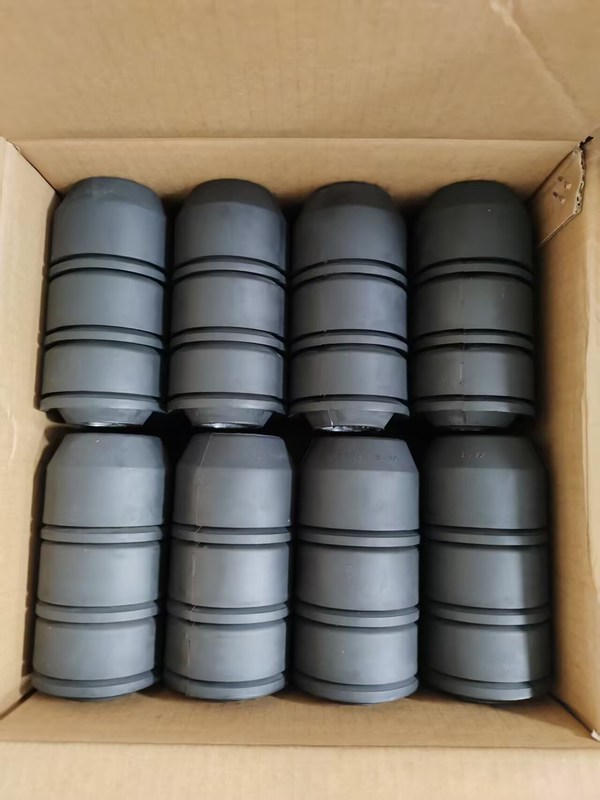

| Inspection and packing |
Production review and packing |
Ready supply for service and stock orders |
6. ISO 9001:2015 Quality System and Inspection
Jiangsu Ruowei’s ISO 9001:2015 quality management system covers rubber-seal production. Dimensional measurement, hardness and density testing, cure review and mechanical-property testing support the factory’s inspection processes for molded oilfield rubber components.
| Quality resource |
What it reviews |
Production support |
| Video measuring equipment |
Dimensions and molded profile |
Checks cup geometry |
| Hardness and density tests |
Rubber compound characteristics |
Supports batch material review |
| Moving-die rheometer |
Cure behavior |
Supports vulcanization-process review |
| Tensile and elongation tests |
Mechanical properties |
Adds rubber inspection data |
| ISO 9001:2015 system |
Rubber-seal manufacturing management |
Structured operational controls |
7. 5-1/2 in V-Type Cup Supply and Customization
Royal Way serves oilfield operators, well-service companies, equipment suppliers and distributors with size-specific swab cups and coordinated molded-rubber production. Share the 5-1/2 in size, cup dimensions, steel-core arrangement, NBR hardness, service fluid, quantity and tool reference to request a focused supply plan for replacement, stock or repeat orders.
| Supply option |
Product setup |
Information to send |
| Replacement cups |
5-1/2 in V type, NBR, steel core |
Equipment model or sample |
| Repeat supply |
Approved cup profile and material |
Quantity and required schedule |
| Custom color |
Black or agreed order color |
Color identification reference |
| OEM / sample program |
Tool-interface review |
Drawing, sample and service information |
8. Royal Way Oilfield Rubber Manufacturing
Royal Way | Jiangsu Ruowei Energy Technology Co., Ltd. supplies oilfield swab cups, rubber seals, repair kits and custom molded components manufactured in Haimen, Nantong, Jiangsu, China. Share the cup size, profile, tool model and service program with our team to plan a focused supply solution.
