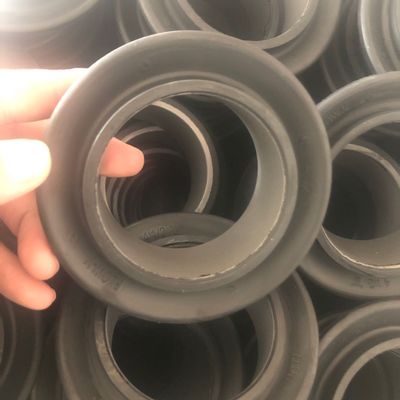

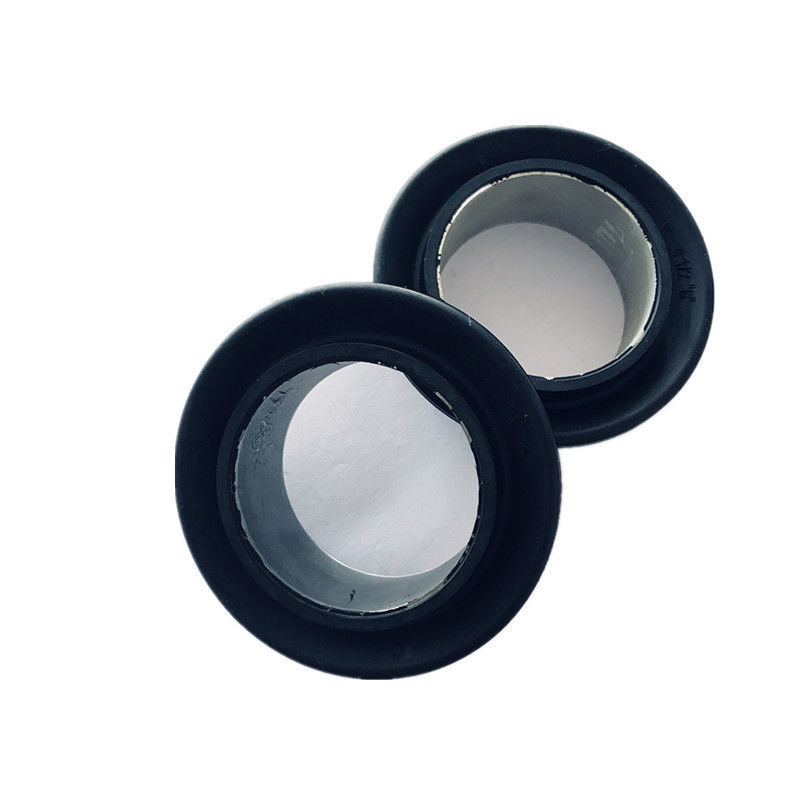

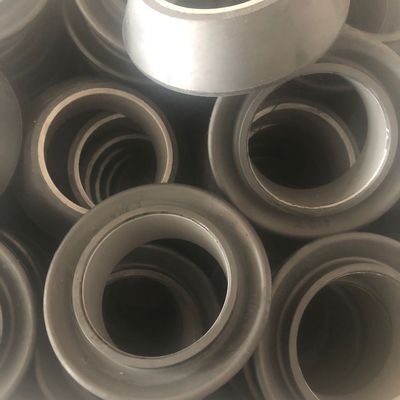

China Factory Supplier Provide Oil and Gas field use Rubber Aluminum bushing Swab Cups V type

China Factory Supplier Provide Oil and Gas field use Rubber Aluminum bushing Swab Cups V type

  • China Factory Supplier Provide Oil and Gas field use Rubber Aluminum bushing Swab Cups V type
  • China Factory Supplier Provide Oil and Gas field use Rubber Aluminum bushing Swab Cups V type
  • China Factory Supplier Provide Oil and Gas field use Rubber Aluminum bushing Swab Cups V type
China Factory Supplier Provide Oil and Gas field use Rubber Aluminum bushing Swab Cups V type
Product Details:
Place of Origin: Shanghai, China
Brand Name: SHQN
Certification: ISO 9001
Model Number: V types Swab cups
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: 1-3
Packaging Details: Carton packing
Delivery Time: 15days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000pcs per week
Contact Now
Detailed Product Description
Size:: Custom Zises Material:: Rubber+steel Core
Environment:: Oil, Gas, Gas Condensate Color: Black Or Custom Color
Original: Shanghai China Types:: MV Style, TA Style, TUF Style, NUF Style And V Style
Name: V Type Swab Cups
Highlight:

Rubber Oilfield Swab Cups

,

4 1/2" Oilfield Swab Cups

China Factory Supplier Provide Oil and Gas field use Rubber Aluminum bushing Swab Cups V type 0

Custom Made v Type Swab Cups For Oil or Gas Field

We Shanghai Qinuo Provide V Series Swab Cup in a light duty and heavy duty all rubber cup that is suited for use in fluids with high concentrations of suspended sand. The upturned lips pass easily through tight spots and will invert to dump excessive loads. The number of cups used will vary with conditions.
Our special Frac Fluid compound has excellent abrasion resistance high tensile strength and outstanding resistance to chemical attack.

Nom. OD (inch) Core and Description Cup OD Cup ID
1.900" ( 1-1/2" ) Steel Core Swab Cup 1.530" 0.902"
2-3/8" ( 2" ) Steel Core Swab Cup 1.980" 1.120"
2-7/8" ( 2-1/2" ) Steel Core Swab Cup 2.410" 1.334"
3.850" Steel Core Swab Cup 3.850" 2.495"
3.900" Steel Core Swab Cup 3.900" 2.495"
4-1/2" Steel Core Swab Cup 4.062" 2.495"
4.610" Steel Core Swab Cup 4.610" 2.495"
4.720" Steel Core Swab Cup 4.720" 2.495"
4.850" Steel Core Swab Cup 4.850" 2.495"
5-1/2" Steel Core Swab Cup 4.970" 2.495"
7" Steel Core Swab Cup 6.450" 3.500"
 4-1/2" Steel Core, Heavy Duty Swab Cup 4.062" 2.495"



China Factory Supplier Provide Oil and Gas field use Rubber Aluminum bushing Swab Cups V type 1

All Available types of Swab cups:
TA style: TA is a medium load Swab Cup built around a steel or aluminum bushing for use in most sizes of tubing or drill pipe. When under load, it will compress to form a solid rubber mass for maximum lifting capacity and minimum wear. Manufactured from a newly developed rubber compound, these cups provide our customers with a high quality North American product. Our special Frac Fluid compound is developed for the ultimate in durability and performance. These Frac Swab Cups are designed to perform under the toughest conditions.
MV style: Shanghai Qinuo offers the popular Guiberson* profile MV Swab Cup in both nitrile and frac fluid rubber compound. The cup has either an aluminum or steel bushing with multiple upturned lips which allows it to pass through tight spots and control the amount of load. It is very efficient in fluid with suspended sand.
V style: Shanghai Qinuo carries the V Series Swab Cup in a light duty and heavy duty all rubber cup that is suited for use in fluids with high concentrations of suspended sand. The upturned lips pass easily through tight spots and will invert to dump excessive loads. The number of cups used will vary with conditions.

Our special Frac Fluid compound has excellent abrasion resistance high tensile strength and outstanding resistance to chemical attack.
TUF style: The design of the GE-TUF cup, with its internal metal reinforcement which maintains the shape of the cup, makes this an excellent choice for deep hot wells or rough and corroded tubing and casing. Strong enough for heavy loads, its flexability also allows it to work in light load situations.
NUF style: The GE-NUF is a heavy load all rubber cup that provides maximum lifting capacity. Bonded to either standard steel or aluminum bushings, and available in a wide range of sizes, this cup is a good choice for deep well applications. This cup is designed for high performance and heavy loads. Made of our special Frac Fluid compound, it will perform under the toughest conditions.



China Factory Supplier Provide Oil and Gas field use Rubber Aluminum bushing Swab Cups V type 2

These cups are developed to perform in varying well conditions and provide maximum durability and sealability in the toughest of oilfield conditions.

China Factory Supplier Provide Oil and Gas field use Rubber Aluminum bushing Swab Cups V type 3
China Factory Supplier Provide Oil and Gas field use Rubber Aluminum bushing Swab Cups V type 4

Application environment: oil, gas, gas condensate.
Packing and shipment :
1: Express: S.F. ,DHL,UPS, TNT, FedEx ect, for urgent and small order.
2: Air shipment: air port to air port or air port to door.
3: Sea shipment: suitable for bulk goods. it will takes more longer time than air shipment

China Factory Supplier Provide Oil and Gas field use Rubber Aluminum bushing Swab Cups V type 5

China Factory Supplier Provide Oil and Gas field use Rubber Aluminum bushing Swab Cups V type 6
Welcome to contact us for more information about the swab cups.
