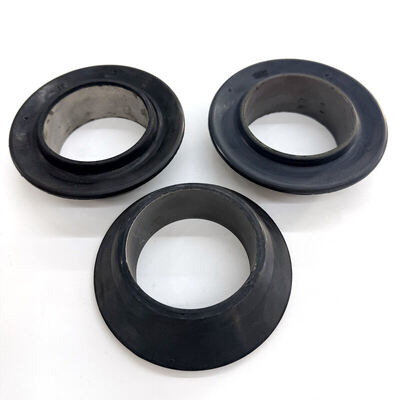

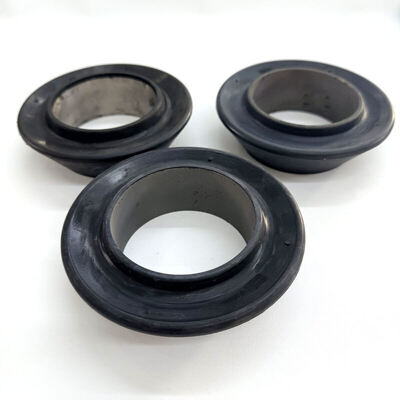

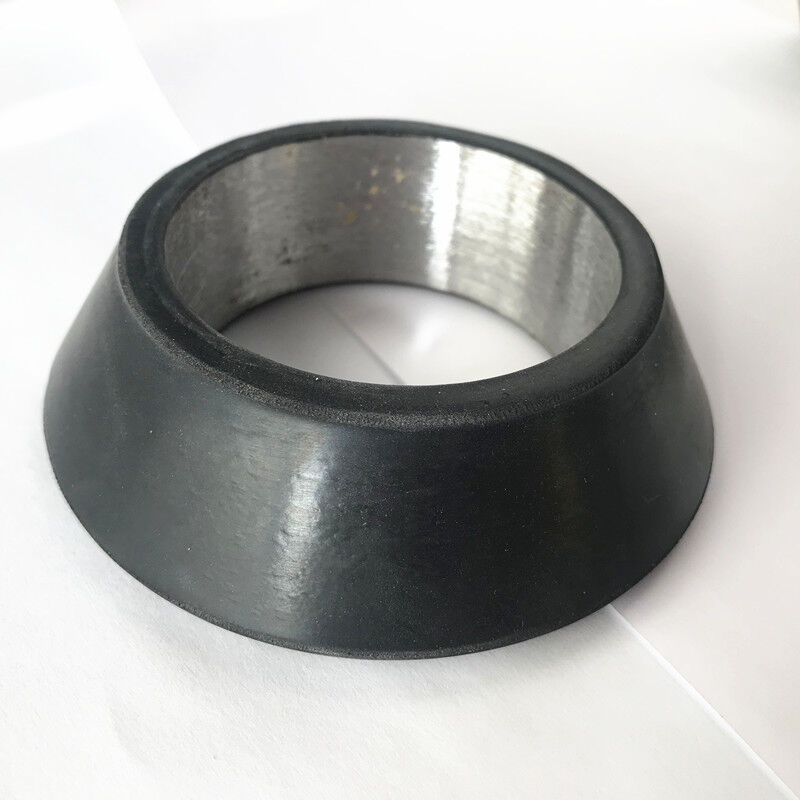

5-1/2 Inch Sand-Service Oilfield Swab Cup with Metal Core
Royal Way 5-1/2 in Sand-Service swab cup is a large-format V-type oilfield cup for tubing and casing swab-tool assemblies. Its molded elastomer body and metal-core opening bring the working cup profile and reinforced center into one field-service component for sand-bearing well operations, maintenance programs and replacement inventory.
Jiangsu Ruowei Energy Technology Co., Ltd. manufactures oilfield rubber products at its Haimen facility in Nantong, Jiangsu, China. Buyers can coordinate the 5-1/2 in cup with the equipment model, preferred compound, hardness and service plan for a focused product program.
Product Configuration and Technical Specifications
This listing focuses on the 5-1/2 in Sand-Service profile, metal-core construction and elastomer options used across oilfield swab-cup programs.
| Specification | Product configuration | Selection focus |
|---|
| Nominal size | 5-1/2 in | Large-format oilfield swab cup |
| Cup profile | V-type Sand-Service | Sand-bearing well swabbing programs |
| Body construction | Molded rubber cup | Flexible elastomer working profile |
| Center construction | Metal inner sleeve / core opening | Assembly interface for the swab tool |
| Compound options | NBR, HNBR or FKM | Compound selection by service conditions |
| Hardness options | 70 or 90 Shore A | Selected to match the tool and operating program |
| Primary application | Tubing and casing swab-tool assemblies | Well-service, maintenance and replacement supply |
V-Type Profile and Metal-Core Construction
The V-type cup shape gives the product a recognizable sand-service profile, while the metal inner sleeve provides a central mounting feature for the assembly. This combination creates a practical option for service teams sourcing a specific 5-1/2 in cup configuration alongside other tubing and casing tool components.
| Design element | Construction detail | Buyer value |
|---|
| V-type cup body | Profiled molded elastomer | Distinct Sand-Service cup geometry |
| Flexible cup lips | Integrated into the molded cup profile | Working contact feature for swab-tool service |

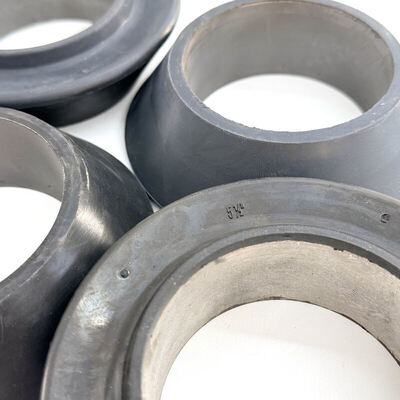

| Metal inner sleeve | Central reinforcement and mounting opening | Connects the rubber cup to the tool configuration |
| 5-1/2 in size family | Large-format cup configuration | Easy identification in service and stocking programs |
NBR, HNBR and FKM Compound Options
Royal Way supports multiple elastomer routes for oilfield rubber components. Choose a compound and hardness combination around the well fluids, temperature range, tool design and operating plan to align the cup with your application.
| Elastomer | Common selection strengths | Program options |
|---|
| NBR / Buna-N | Oilfield oil and hydrocarbon-fluid service | 70 or 90 Shore A |
| HNBR / HSN | Enhanced heat, aging and mechanical-property selection | 70 or 90 Shore A |
| FKM | Selected higher-temperature and chemical-media programs | 70 or 90 Shore A |
Tubing, Casing and Sand-Service Applications
Use the 5-1/2 in Sand-Service cup in tubing and casing swab-tool programs where buyers need a defined large-size cup profile for equipment upkeep, service-fleet replenishment or distributor inventory. Share the tool model and service conditions so the product configuration can be matched to the wider assembly.
| Application program | Product role | Useful order reference |
|---|
| Sand-service well swabbing | V-type cup for a swab-tool assembly | 5-1/2 in profile and tool model |
| Tubing service | Swab-cup component for tubing equipment | Tubing program and part reference |
| Casing service | Replacement cup for casing-oriented service plans | Casing/tool interface details |
| Service inventory | Planned replenishment for field teams and distributors | Compound, hardness and quantity |
Integrated Oilfield Rubber Production in Jiangsu

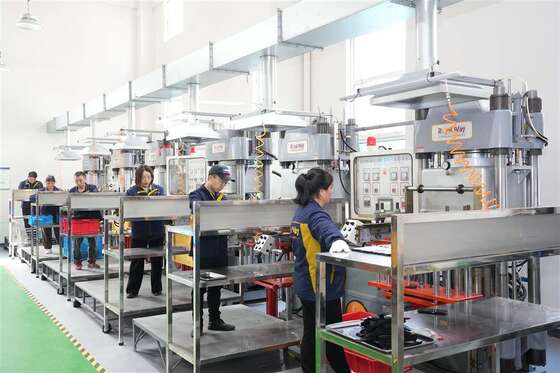

At the Haimen factory in Nantong, Jiangsu, production teams coordinate rubber mixing, molding, vulcanization, trimming, inspection and packing. This integrated workflow supports the manufacture of oilfield swab cups and a wider range of molded rubber products for equipment makers, service companies and distributors.
| Production stage | Factory capability | Support for swab-cup programs |
|---|
| Rubber mixing | Preparation of elastomer compounds | Supports NBR, HNBR and FKM product programs |
| Molding | Forming standard and custom rubber profiles | Creates the V-type Sand-Service cup geometry |
| Vulcanization | Controlled rubber curing operations | Integrated molded-part production |
| Trimming and finishing | Post-molding finishing for rubber components | Prepares the cup for inspection and packing |
| Order preparation | Inspection coordination and packing support | Supports repeat and bulk supply programs |
ISO 9001:2015 Quality System and Inspection Resources
Jiangsu Ruowei operates an ISO 9001:2015 quality management system for rubber-seal production. The factory's inspection resources support review of molded-part dimensions, rubber compound characteristics, cure behavior and mechanical properties across its product range.

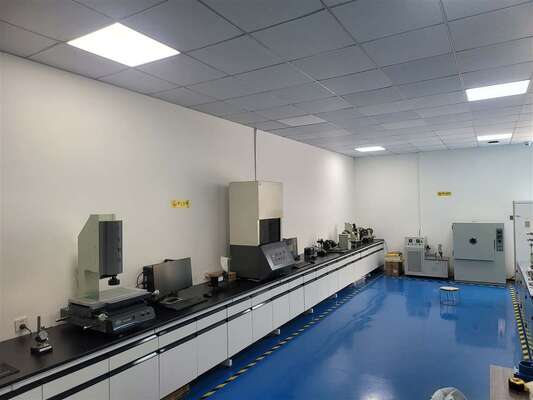

| Inspection resource | Review area | Quality capability |
|---|
| Video measuring system | Dimensions and molded profiles | Supports product-form inspection |
| Hardness and density equipment | Rubber material characteristics | Supports compound and batch checks |
| Moving-die rheometer | Rubber cure behavior | Supports material and curing review |
| Tensile and elongation testing | Mechanical properties | Supports rubber performance evaluation |
| ISO 9001:2015 quality management system | Quality processes for rubber-seal production | Organized manufacturing and inspection control |
Oilfield Product Experience and Supply Support
Royal Way's oilfield rubber portfolio includes swab cups, O-rings, hammer union seals, packer elements, valve and swivel-joint repair components, wireline rubbers and custom molded parts. Experience across these product families supports coordinated sourcing for equipment maintenance, redress work and recurring service demand.
For a 5-1/2 in Sand-Service cup quotation, share the tool model, tubing or casing application, preferred elastomer and hardness, order quantity and delivery destination. A part number, sample or drawing helps the Haimen team align the cup configuration with your equipment program.
Royal Way | Jiangsu Ruowei Energy Technology Co., Ltd.
Oilfield rubber manufacturing in Haimen, Nantong, Jiangsu, China.
