4'' 80D HNBR Oilfield Sealing Dust Plug Hammer Union Seal

4 Inch HNBR Hammer Union Replacement Seal Enquiries

Product Description

Hammer union seals are used in the connections between flexible hoses or pipes used in the oil drilling industry. The seal provides a critical fluid tight connection within the union hardware.

Hammer unions consist of a thread end, a nut end, and a hammer nut that when tightened seal the assembly with the assistance of an elastomer seal. Match the lip profile and retention features to the original groove and manufacturer drawing.

With brass ring: Specify the brass support geometry and alloy required by the original seal drawing. Review fluid compatibility and service conditions for the complete seal construction; a brass ring alone does not establish sealing performance or service life.

With stainless ring : Specify the stainless steel grade and support dimensions on the drawing. Review corrosion compatibility against the actual fluid, temperature and exposure conditions. Different stainless grades and support geometries are not automatically interchangeable.

Other nominal-size and material enquiries; confirm each figure and drawing separately

1'' 602/1002/1502, NBR/HNBR/FKM/PTFE

1-1/2'' 602/1002/1502, NBR/HNBR/FKM/PTFE

2'' 602/1002/1502, NBR/HNBR/FKM/PTFE

3'' 602/1002/1502, NBR/HNBR/FKM/PTFE

4'' 602/1002/1502, NBR/HNBR/FKM/PTFE

2'' FIG 206, NBR/HNBR/FKM/PTFE

3'' FIG 206, NBR/HNBR/FKM/PTFE

4'' FIG 206, NBR/HNBR/FKM/PTFE

2'' FIG 607, Guiberson style seal ring, FKM

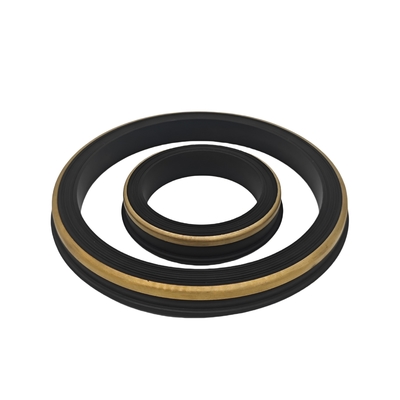

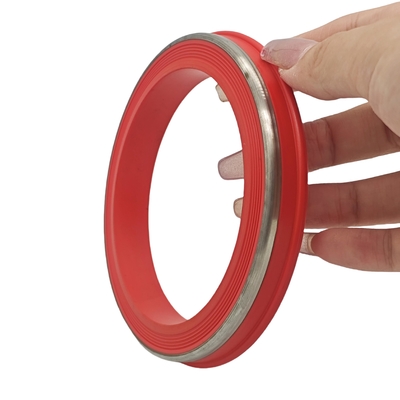

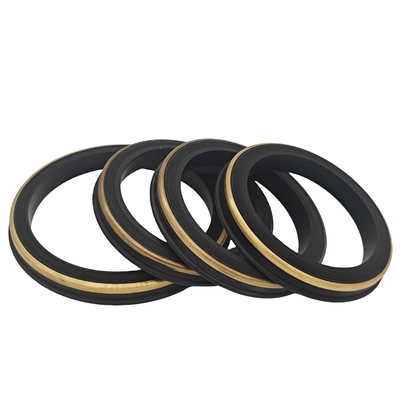

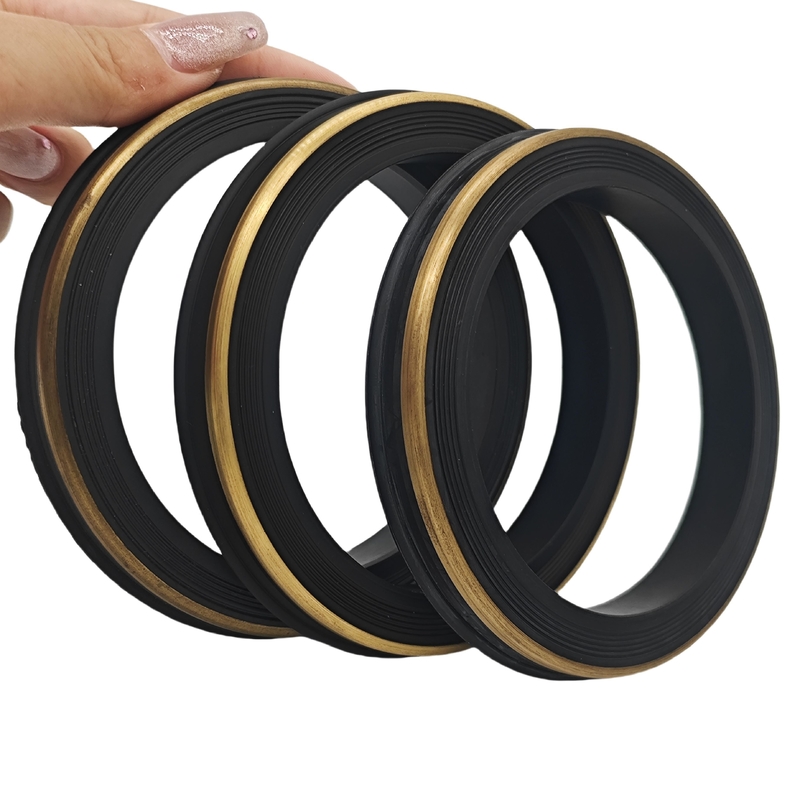

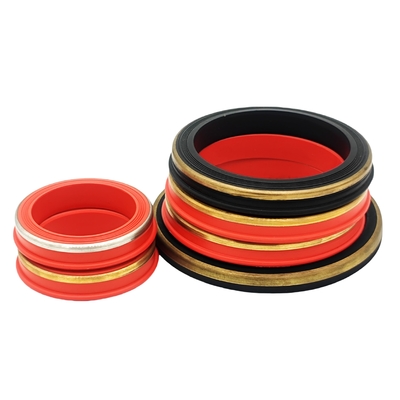

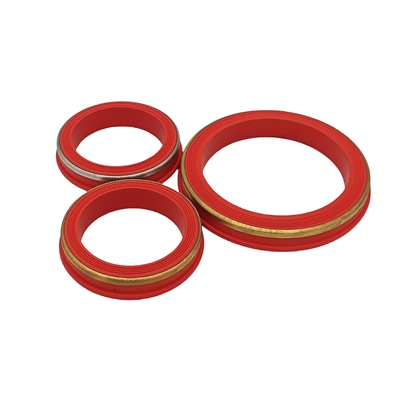

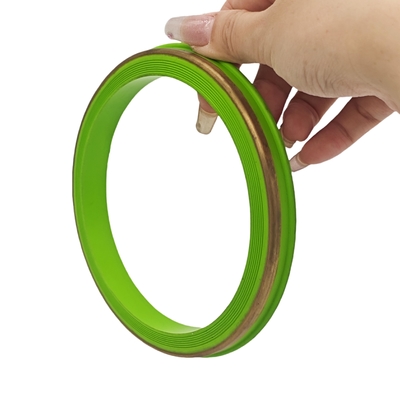

Product Detailed photo

Company and factory profile

Shanghai Qinuo Industry Co., Ltd was established in the year of 2013 at Shanghai Free Trade Zone, we are a professional rubber seal manufactory specialized in the Oil & Gas filed, Qinuo is a new and high-tech enterprise integrating R&D, production and sales. Since its inception, we adhering to the "Quality for Survival, Innovation Competes For Development " concept, continuous development and innovation, we won a good reputation at home and abroad, we are current using Royal Way & SHQN two brands to do the marketing in the energy industry.

Qinuo provides professional rubber parts, plastic parts and maching parts design and production services, products mainly used in oil & gas industry, automobiles, household appliances, machinery equipment etc. We have a professional production and sales team, "High-Quality, High Professionalism, High Efficiency" are the principles of doing things.

Under the Shanghai Qinuo, we have two wholly-owned factories in Nantong City, only an hour's drive to Shanghai Pudong Airport or Shanghai Sea port to ensure the quick delivery, we have more than 30 rubber vulcanizing machines and relevanted equipments, so that Qinuo can produce more than 20 kinds of rubber rings or other rubber products together to meet our customer's demands, our monthly rubber processing capability can upto 20 tons (about 40, 000 lbs) or more. And Qinuo is still in rapid growthing.

We adopt comprehensive quality management system based on the ISO9001, our products are mainly exported to the United States, Canada, Britain, Germany, Finland, Australia more than 100 countries extend all over the globe. Qinuo is sincerely wishing to cooperate with you.

If you need oil&gas rubber products, please contact us!

4 Inch HNBR Union Seal: Confirm Pressure-Seal or Dust-Protection Function

Identify whether the required part is a union pressure-sealing element or a separate dust-protection plug. These functions require different drawings and acceptance criteria. A dust plug must not be assumed to close a pressurized connection. Send the original part reference, union figure and a drawing showing where the part fits.

For the 4 inch HNBR seal enquiry, four inches is the nominal connection reference. Confirm the actual seal diameters, section and any brass or stainless support ring. State the exact HNBR compound, hardness scale and target; an unspecified hardness value is not enough to approve the replacement.

Provide fluid composition, temperature, pressure cycling and any gas exposure or decompression requirements. The complete union assembly determines working-pressure limits. HNBR identity alone does not establish sour-service qualification. Confirm dimensional, compound and application requirements with the quotation.
