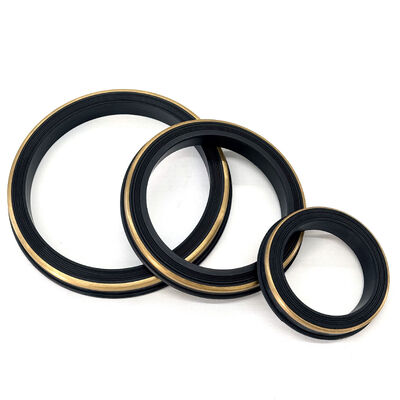

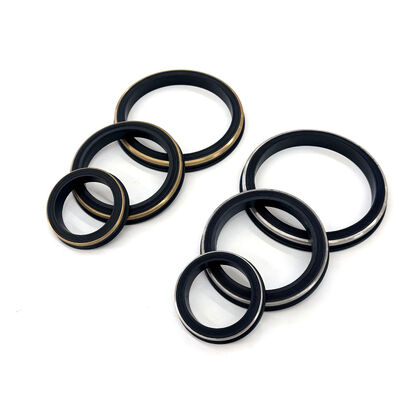

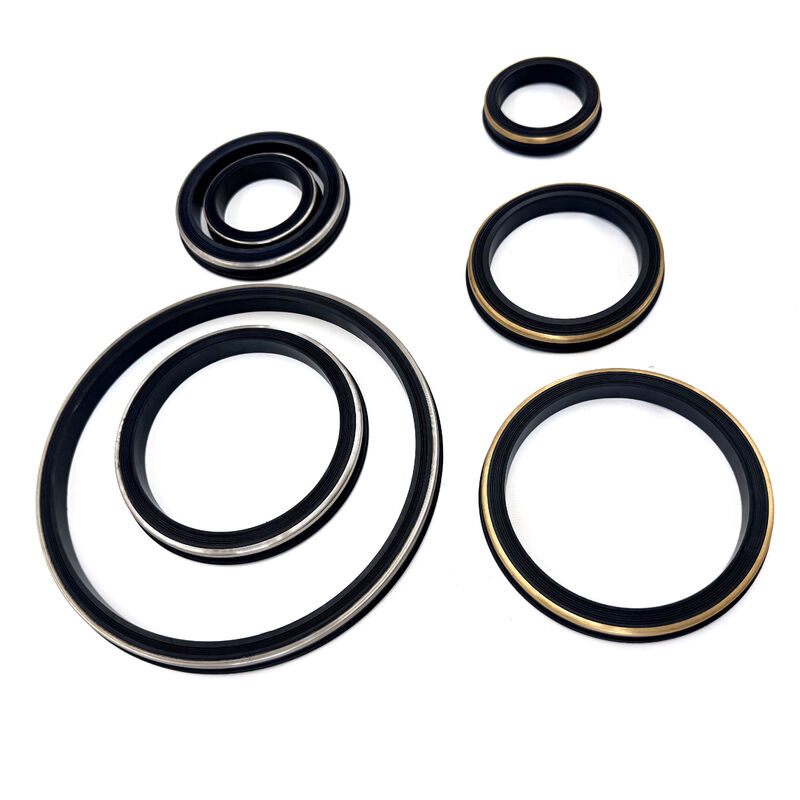

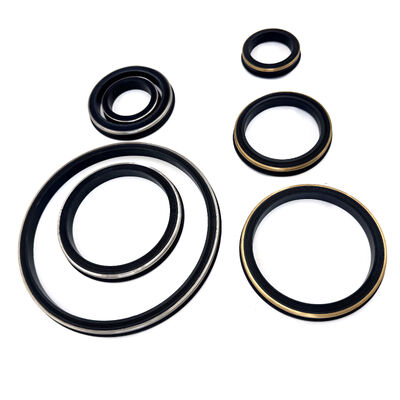

2 Inch FIG 1002 Hammer Union Seal with Brass Backup Ring - Oilfield Hammer Union Lip Seal

2 Inch FIG 1002 Hammer Union Seal with Brass Backup Ring for Oilfield Flowlines

Royal Way manufactures this 2-inch FIG 1002 hammer union seal with a replaceable lip profile and a brass anti-extrusion backup ring. The configuration is designed for oilfield flowline, pressure-pumping, fracturing, cementing and well-service equipment programs that specify a reinforced union seal construction.

The lip seal creates the primary sealing interface inside the union assembly, while the brass ring supports the elastomer in the nominated groove. Purchasing teams can define the complete build by size, union figure, lip profile, backup-ring material, elastomer and hardness, making repeat orders easier to identify across maintenance and equipment programs.

Product specifications

Brass backup ring construction for FIG 1002 sealing

This product is built around the brass backup-ring option requested for a 2-inch FIG 1002 union. The ring provides anti-extrusion support to the elastomer lip, pairing a replaceable sealing profile with a defined metallic support component. This construction gives equipment manufacturers and service teams a clear way to specify and replenish the seal assembly.

Material and hardness options for oilfield service

Royal Way offers a choice of oilfield elastomer families so the seal construction can be matched to service media and project requirements. For brass backup-ring builds, 85 and 90 Shore A options are available for applicable elastomer configurations. The selected material, hardness and ring arrangement are carried together in the product specification.

Applications across flowline and pressure-pumping equipment

The 2-inch FIG 1002 brass-ring hammer union seal supports equipment builders, distributors, repair shops and field-service teams supplying components for:

• Oilfield flowline and union connections
• Pressure-pumping and fracturing equipment
• Cementing and well-service assemblies
• Maintenance, repair and replenishment programs for replaceable hammer union seals

A clear size, figure, compound and ring specification supports consistent identification between the equipment drawing, maintenance record and purchase order. Standard product configurations can also be developed into drawing- or sample-based OEM supply programs.

Jiangsu manufacturing for oilfield rubber seals

Jiangsu Ruowei Energy Technology Co., Ltd. manufactures Royal Way oilfield rubber seals, repair kits and custom molded rubber parts. Our production workflow connects material preparation, mold setup, rubber molding, vulcanization, trimming, finishing and inspection for a coordinated manufacturing process.

Quality management and inspection capability

Rubber seal production operates within Jiangsu Ruowei's ISO 9001:2015 quality management system. Our in-house inspection capability supports the production and purchase-review process with compound, cure, mechanical-property and dimensional checks selected for the applicable product and order.

OEM and API-oriented project support

Royal Way supports API-oriented oilfield programs with product configuration and manufacturing coordination. Our team can review the FIG 1002 drawing or reference sample, brass-ring construction, elastomer family, hardness target, inspection scope and project documentation requirements to develop a clear supply specification.

Share the equipment details, service media, quantity and preferred material to start a focused review for 2-inch FIG 1002 hammer union seals. Drawing- and sample-based development is available for equipment makers, oilfield service companies and distributors.

Frequently asked questions

What is the featured product construction?
It is a 2-inch FIG 1002 replaceable lip-type hammer union seal with a brass anti-extrusion backup ring.

Which elastomers can be specified?
NBR, HNBR and FKM are available, with PTFE configurations reviewed for project specifications.

What hardness options apply to the brass-ring build?
Applicable elastomer builds are available in 85 or 90 Shore A.

What information supports an OEM quotation?
Provide the FIG type, nominal size, drawing or sample, material, hardness, brass-ring requirement, service media, quantity and inspection-document needs.

Can the seal be developed for an API-oriented project?
Yes. Our team can coordinate the seal configuration, manufacturing details and inspection scope with the project specification.

Specify your 2-inch FIG 1002 brass backup ring hammer union seal with Royal Way. Contact our team for oilfield flowline seals, material options and OEM rubber manufacturing support.
