2 Inch FIG 602 FIG 1002 Hammer Union Seal and Hammer Union Lip Seal for Oilfield Equipment

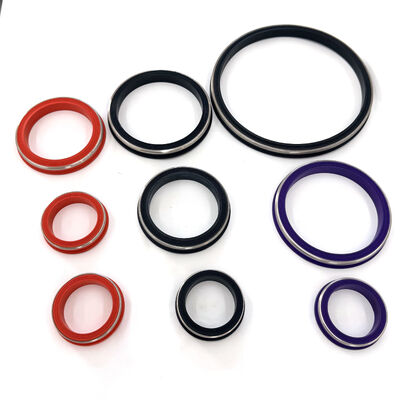

2 Inch FIG 602 / FIG 1002 / FIG 1502 Hammer Union Lip Seal

One versatile sealing platform for three common oilfield union figures. Royal Way 2-inch hammer union lip seals are developed for flowline, pressure-pumping, fracturing, cementing and well-service equipment. Configure the lip profile, compound and anti-extrusion construction for the equipment assembly and service plan, with OEM supply available against a drawing or reference sample.

For distributors, service companies and equipment builders, this multi-figure range brings practical configuration choices together: specify the union figure, material family, hardness and backup-ring construction, then align the supply to your maintenance or equipment program.

Product at a glance

Match the seal construction to your program

The lip geometry creates the sealing contact while the selected compound and support construction help shape the complete component. Royal Way offers material and ring choices for equipment makers and maintenance teams building a consistent specification across FIG 602, FIG 1002 and FIG 1502 union connections.

Manufactured for dependable oilfield supply

From compound preparation and tooling through molding, vulcanization, trimming and finishing, Jiangsu production teams focus on consistent seal profiles and clear configuration control. Each order can be organized around the customer’s nominated figure, material, hardness and backup-ring option to support repeat purchasing and equipment service planning.

OEM development and API-oriented programs

Royal Way supports drawing- and sample-based development for seal size, lip profile, compound, hardness and backup-ring construction. For API-oriented oilfield programs, our team can align the selected construction and inspection plan with the applicable project requirements. Share the equipment drawing, union figure, media, operating conditions and target compound to help us prepare a focused proposal.

Frequently asked questions

Which union figures are covered?
2-inch lip-seal configurations are available for FIG 602, FIG 1002 and FIG 1502 equipment programs.

Can I request different elastomers or support rings?

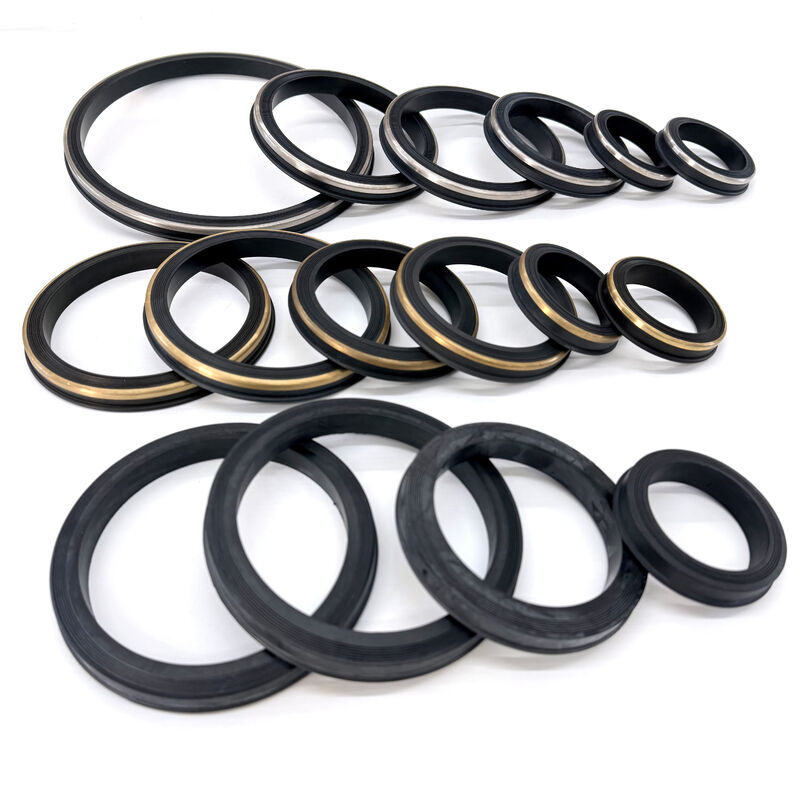

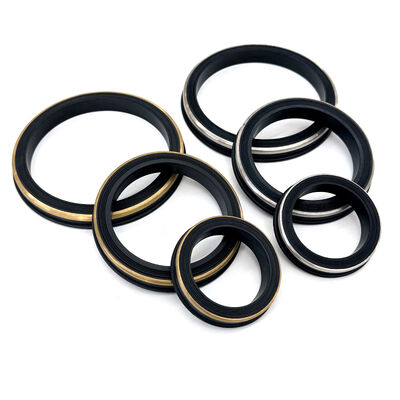

Yes. NBR, HNBR, FKM and PTFE options are available, along with plain elastomer, brass or stainless-steel ring constructions. Hardness options are available for applicable elastomer builds.

What information helps with a quotation?
Provide the nominal size, union figure, drawing or sample, compound preference, hardness, ring construction, service media and quantity. Our team can then review the intended configuration and OEM requirements.

Build your oilfield seal program with Royal Way. Contact our team for a 2-inch FIG 602 / FIG 1002 / FIG 1502 hammer union lip seal configuration matched to your equipment and supply needs.
