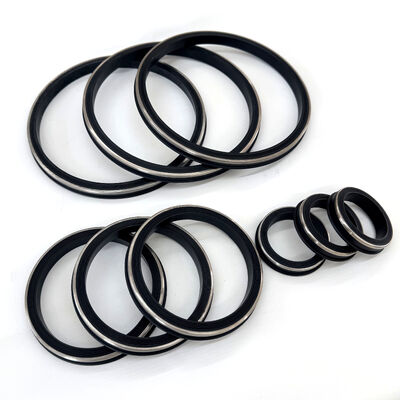

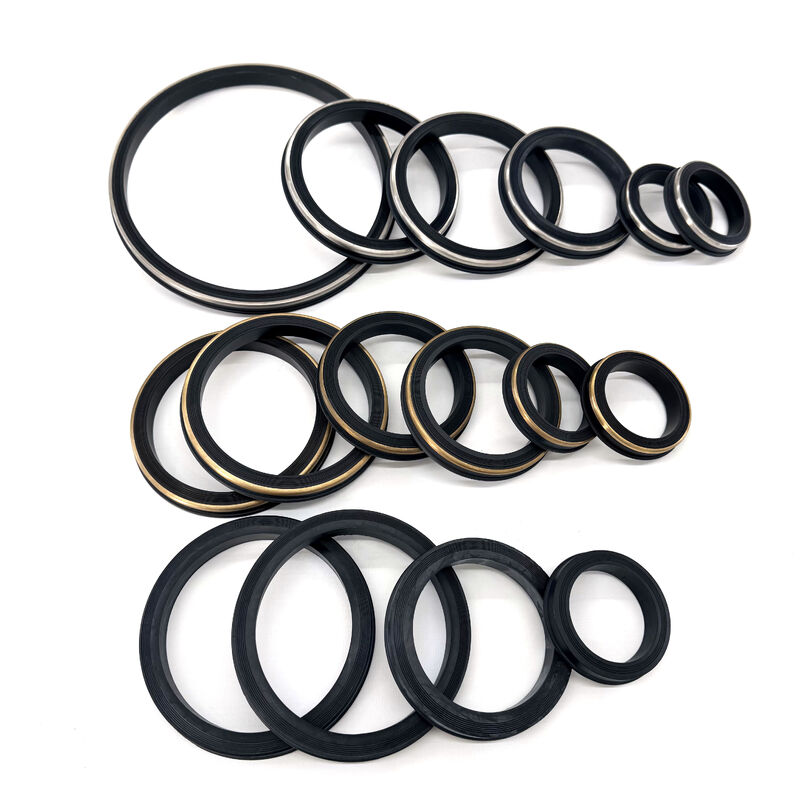

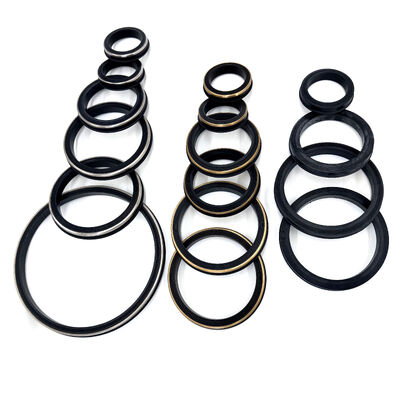

2 Inch FIG 1502 Hammer Union Seal with Stainless Steel Backup Ring Hammer Union Gasket for Oilfield Flowlines

2 Inch FIG 1502 Hammer Union Seal with Stainless Steel Backup Ring

Royal Way 2-inch FIG 1502 hammer union seals with stainless-steel backup rings are built for oilfield flowline and pressure-pumping assemblies where a defined union profile and service-ready replacement set simplify equipment maintenance. The molded elastomer seal and metal backup component work together as a coordinated configuration for the specified connection, supporting reliable installation planning across well-service lines, pump packages and field spare programs.

This configuration gives buyers a direct product reference: 2-inch size, FIG 1502 connection and stainless-steel backup ring. NBR, HNBR and FKM compound families provide material choices for different oilfield media and operating environments. Profile details can be produced from the equipment drawing or approved sample, keeping the rubber section and backup-ring arrangement connected to the project specification.

Royal Way supplies molded oilfield seals in multiple connection sizes and project configurations for maintenance, equipment assembly and spare inventory.

2-inch FIG 1502 hammer union seal specifications

Stainless-steel backup ring configuration for FIG 1502 equipment

The 2-inch FIG 1502 assembly is widely specified across oilfield flowline and pressure-pumping equipment. Adding a stainless-steel backup ring makes the material and assembly choice clear at the purchasing stage and helps maintenance teams identify the intended replacement set. Royal Way coordinates the ring arrangement with the union profile and seal drawing so the supplied configuration is easy to match to the equipment bill of materials.

Elastomer choices for operating conditions

Choose from NBR, HNBR and FKM compound families according to the service media, operating temperature, hardness requirement and customer equipment specification. Our team reviews the union connection and application details with the product drawing, then aligns compound selection and molded profile as one seal configuration. This drawing-led approach supports planned replacements, field replenishment and repeat orders across multi-unit equipment programs.

Manufacturing capacity from compound mixing to final inspection

Jiangsu Ruowei's Haimen facility carries out rubber-compound mixing, molding, vulcanization, trimming and inspection for rubber-seal production. Connecting these manufacturing steps in one workflow supports close coordination between compound preparation, molded seal geometry and finished-part review. Production teams work with the stated FIG 1502 reference and drawing requirements to prepare consistent product configurations for oilfield buyers.

Quality assurance and API project requirements

The ISO 9001:2015 quality management system covers rubber-seal production. Product inspection can include MDR cure analysis, hardness and density checks, video measurement of seal profile and dimensions, and tensile or elongation testing according to the project inspection plan. For assemblies designed to applicable API equipment requirements, our team aligns the referenced edition, connection configuration, controlled drawing and inspection documentation with the customer program.

Build the right 2-inch FIG 1502 replacement set

• FIG 1502 union make and equipment model
• 2-inch seal drawing, profile revision or approved sample
• Stainless-steel backup-ring drawing or assembly reference
• Service media and operating conditions
• Selected NBR, HNBR or FKM compound family and hardness
• Quantity, delivery plan and inspection-document requirements
