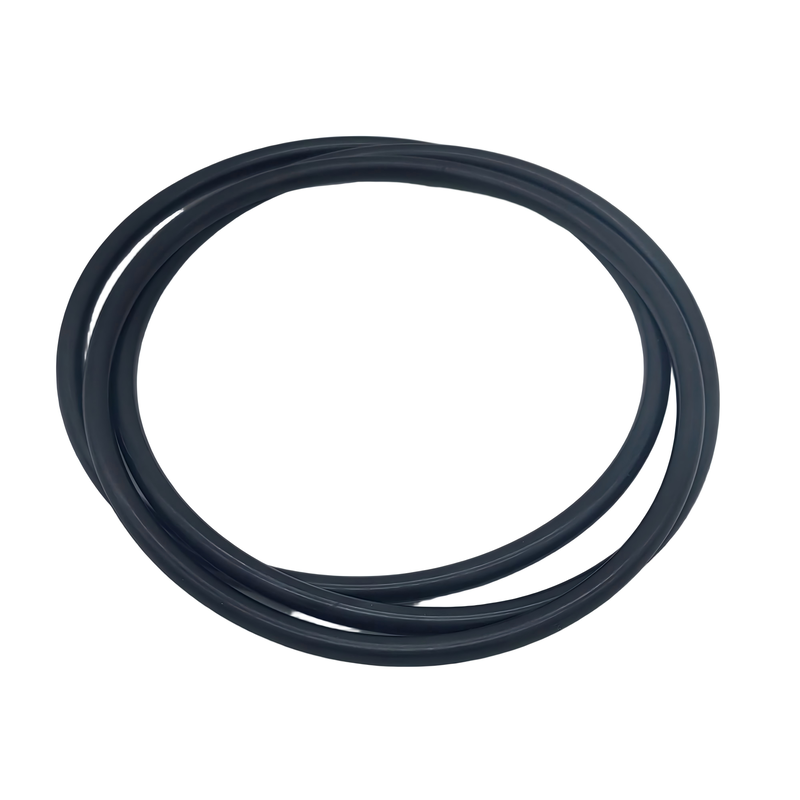

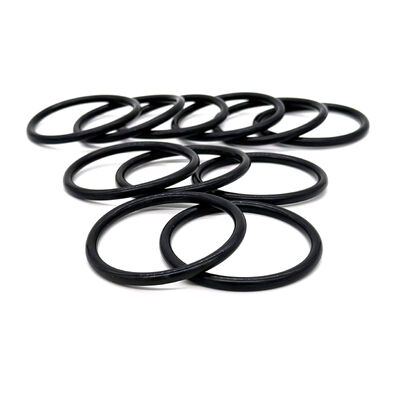

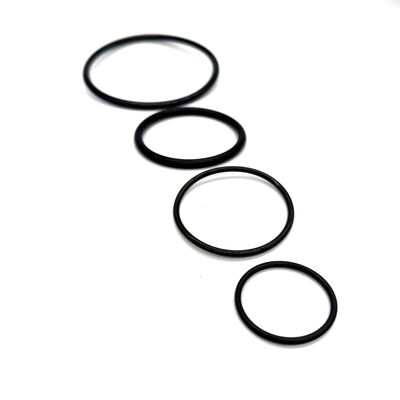

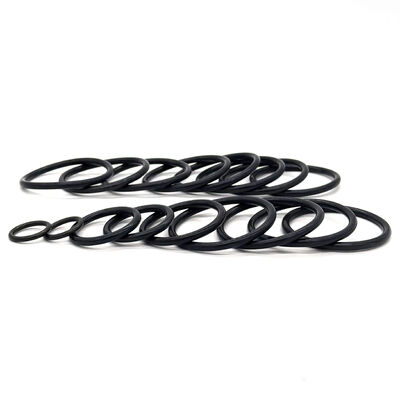

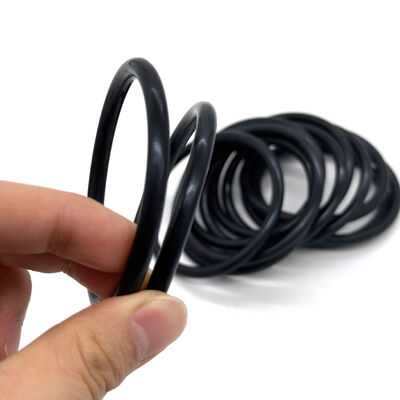

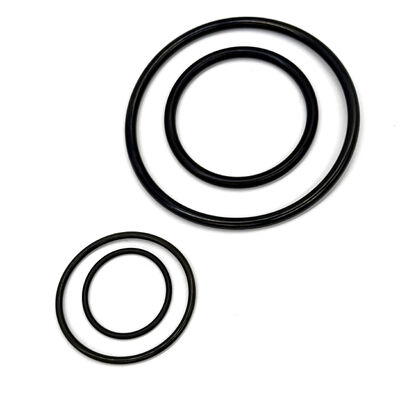

HNBR 70 Shore A O-Rings for Flexible Dynamic Seal Applications with H2S Resistance

HNBR 70 Shore A O-Rings for Flexible Dynamic Seal Applications with H2S Resistance

  • HNBR 70 Shore A O-Rings for Flexible Dynamic Seal Applications with H2S Resistance
  • HNBR 70 Shore A O-Rings for Flexible Dynamic Seal Applications with H2S Resistance
  • HNBR 70 Shore A O-Rings for Flexible Dynamic Seal Applications with H2S Resistance
  • HNBR 70 Shore A O-Rings for Flexible Dynamic Seal Applications with H2S Resistance
  • HNBR 70 Shore A O-Rings for Flexible Dynamic Seal Applications with H2S Resistance
  • HNBR 70 Shore A O-Rings for Flexible Dynamic Seal Applications with H2S Resistance
HNBR 70 Shore A O-Rings for Flexible Dynamic Seal Applications with H2S Resistance
Product Details:
Place of Origin: Shanghai, China
Brand Name: Royal Way
Certification: ISO 9001
Model Number: Standard
Payment & Shipping Terms:
Minimum Order Quantity: 10000PCS
Price: 0.1-1
Packaging Details: Carton packing
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union,PayPal
Supply Ability: 10000pcs per week
Contact Now
Detailed Product Description
Material: HNBR(HSN) Hardness: 70 Shore A
Color: Black Standard And Non-standard: Standard
Size: Standard Or Nonstandard Model No: AS568 And Customizable
Feature: Flexible H2S Resistant: Compound-specific Qualification Required
Usage: Oil And Gas Industry Sample: Available
Temperature: Confirm Range For Selected HNBR Compound
Highlight:

HNBR 70 Shore A O-Rings

,

Flexible dynamic seal O-Rings

,

Rubber O-Rings with warranty

HNBR 70 Shore A O-Rings for Flexible Dynamic Seal Applications

HNBR (hydrogenated nitrile / HSN) O-rings with nominal 70 Shore A hardness are offered for dynamic-seal requirements. For reciprocating or oscillating assemblies, specify the ring dimensions, stroke, speed, pressure and lubrication. Rotary use requires a review of the particular gland and operating conditions. Match the compound to the fluid and temperature rather than selecting from hardness alone.

Material HNBR (Hydrogenated Nitrile / HSN)
Hardness 70 Shore A
Temperature Confirm operating temperature limits for the selected compound
Color Black
Standards Specify AS568 dash size or metric inner diameter and cross-section
Sealed Media Provide fluid and gas composition for compound-specific review
Not Recommended Amines, ketones, strong polar solvents (compound dependent)

Features

  • Nominal 70 Shore A HNBR for the specified dynamic gland
  • Friction reviewed with squeeze, surface finish, speed and lubrication
  • Gas-service qualification reviewed for the selected HNBR compound
  • Compound selection includes heat, recovery and wear requirements
  • Review gland clearance and backup-ring requirements for the application

Applications
Reciprocating and oscillating sealing assemblies requiring HNBR O-rings, subject to the gland design and service conditions. Provide stroke or angular movement, operating speed, pressure and lubrication. Rotary, downhole and pressure-control use requires equipment-specific review.

FAQ

Q: Why 70 Shore A for dynamic seals instead of 90?
A: Select hardness together with compound properties and the dynamic gland. Compare squeeze, extrusion clearance, friction requirements and operating speed before substituting a 70 Shore A ring for a 90 Shore A specification.

Q: What dynamic applications suit 70 Shore A HNBR?
A: Assess reciprocating or oscillating assemblies using the equipment drawing, motion, pressure and lubrication. For rotating shafts or swivels, confirm the specific rotary gland design and operating speed.

Q: Is it rated for H2S and sour service?
A: The polymer name does not establish sour-service qualification. Specify gas composition, pressure, temperature, decompression conditions and required test criteria for compound review.

Q: How does 70 HNBR compare to NBR for dynamic duty?
A: Compare the actual HNBR and NBR compounds using temperature, fluid compatibility and dynamic-test requirements. Service life also depends on gland design, surface condition, speed and lubrication.

Q: What sizes and options are available?
A: Send the AS568 size or metric inner diameter and cross-section, quantity and drawing. Include hardness tolerance, dynamic service conditions and backup-ring requirements for quotation.
