| Place of Origin: | Shanghai, China |
| Brand Name: | SHQN |
| Certification: | ISO 9001 |
| Model Number: | Standard Size,Custom Size |
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Price: | 0.1-0.5 |
| Packaging Details: | Carton Packing |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100000pcs/day |
| Color: | Black, Red, Orange, Blue; Custom Colors On Request | Material: | NBR |
|---|---|---|---|
| Hardness: | 90 Shore A | Available Size: | Standard Size And Custom Size |
| Service: | OEM,ODM | MOQ: | 1000pcs |
| Port: | Shanghai | Shape: | O Shape,Custom Shape |
| Delivery Time: | 7-15 Days | Sample: | Available |
| Highlight: | NBR 90 Durometer O-Rings,high pressure hydraulic O-rings,rubber O-rings with warranty |
||

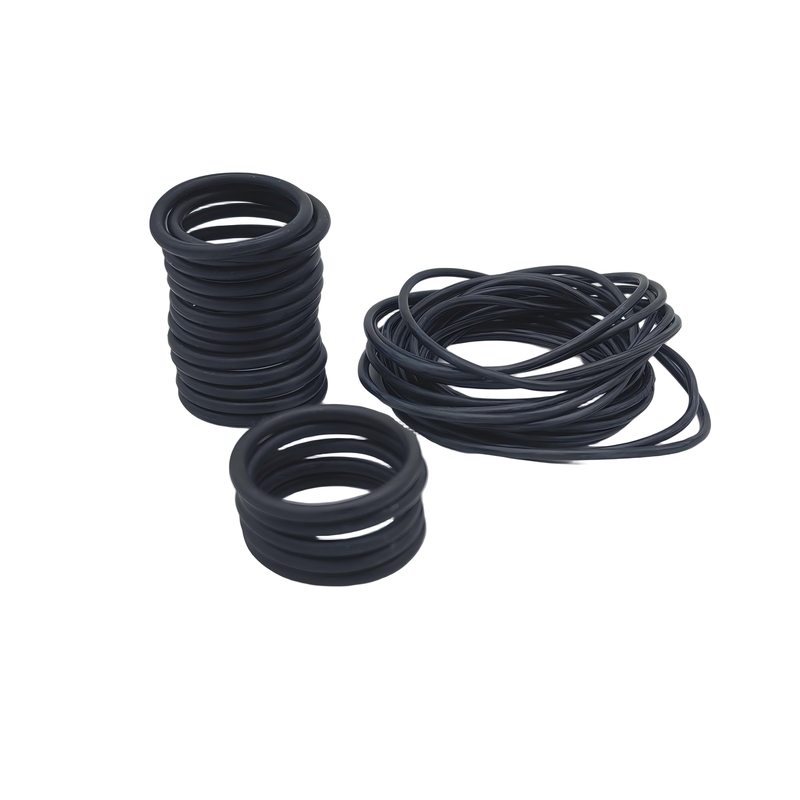

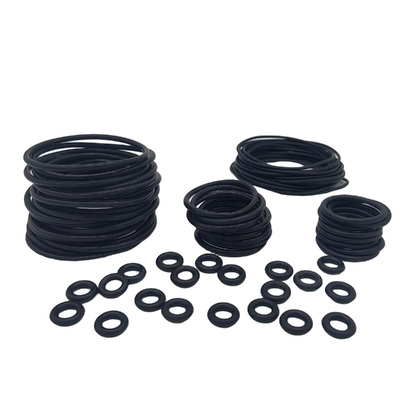

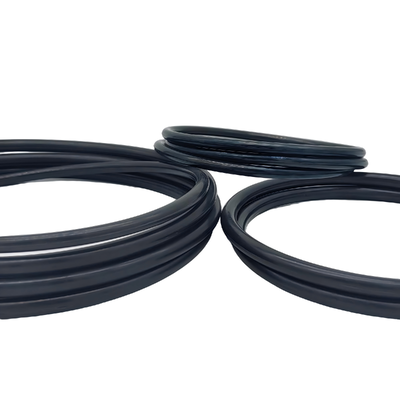

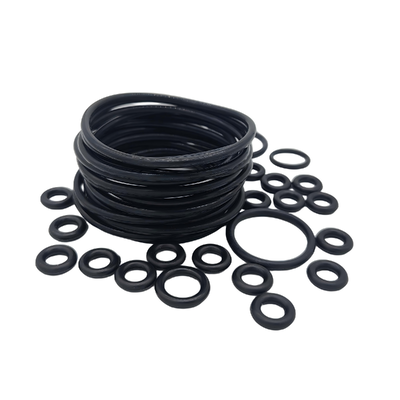

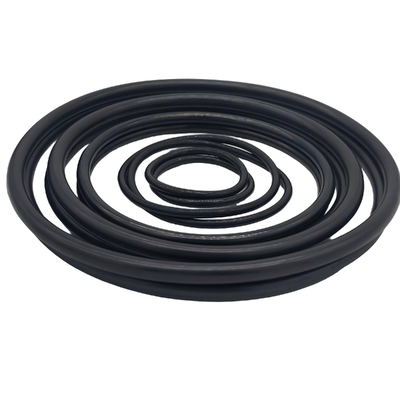

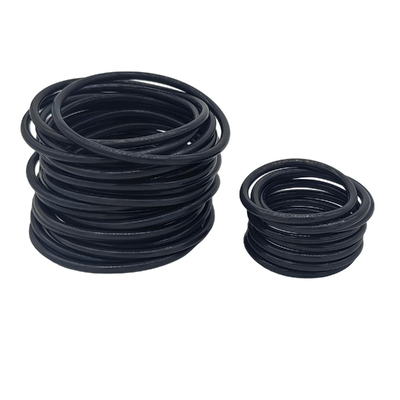

NBR 90 Shore A O-rings are specified for hydraulic glands where extrusion clearance and pressure cycling are key selection factors. Nominal hardness is one part of the design: provide maximum pressure, clearance at operating load, oil specification and temperature. Review the groove and any backup rings before selecting a seal for a cylinder, valve or manifold.
| Material | NBR (Nitrile / Buna-N) |
|---|---|
| Hardness | 90 Shore A (90 durometer, hard grade) |
| Temperature | Confirm service temperature limits for the selected NBR compound |
| Color | Black |
| Standards | Specify AS568 dash size or metric ID and cross-section, with agreed tolerance |
| Sealed Media | Specify hydraulic-fluid type and additives for compound compatibility review |
| Not Recommended | Ozone, ketones, esters, strong acids, aromatic hydrocarbons (long term), H2S |
High-pressure hydraulic cylinders, presses, power units, directional valves, manifolds, injection molding machines, and other equipment where the O-ring sees high pressure and a visible clearance gap.
Q: What pressure can a 90 durometer NBR O-ring handle?
A: There is no universal pressure rating based only on 90 Shore A hardness. Provide maximum pressure, transient peaks, temperature, groove geometry and operating clearance. Backup-ring requirements and the selected compound must be reviewed for the complete gland.
Q: Why 90 durometer instead of 70 Shore A for high pressure?
A: Higher hardness can improve extrusion resistance, but it also changes installation and compression force. Compare the specific compounds against clearance, pressure, squeeze and motion. A harder ring does not correct an unsuitable gland or damaged mating surface.
Q: What gland clearance should I design to?
A: AS568 identifies O-ring sizes; it is not a universal pressure-clearance rule. Provide the equipment gland drawing, diametral clearance under load, surface finish and relevant design specification. Review squeeze, groove fill and backup rings against the service requirements.
Q: What sizes and standards are available?
A: Send an AS568 dash number or metric inner diameter and cross-section. State dimensional tolerances, nominal hardness, quantity and inspection requirements. Confirm availability and tooling for the specified size in the quotation.
Q: Is this O-ring rated for sour gas (H2S)?
A: This page does not establish sour-service qualification. Specify gas composition, pressure, temperature and decompression conditions, together with required tests. Neither NBR nor HNBR should be accepted for sour service from the polymer name alone.
Q: Can you supply other NBR grades?
A: Specify alternative hardness, low-temperature performance or regulatory requirements with the application details. Food-contact requirements need the applicable regulation and compound documentation; do not infer compliance from NBR material or color.
