| Place of Origin: | Shanghai, China |
| Brand Name: | Royal Way |
| Certification: | ISO 9001 |
| Model Number: | Standard |
| Minimum Order Quantity: | 10000PCS |
|---|---|
| Price: | 0.1-1 |
| Packaging Details: | Carton packing |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 10000pcs per week |
| Material: | EPDM | Hardness: | 70 Shore A |
|---|---|---|---|
| Color: | Black And Others | Standard And Non-standard: | Standard |
| Size: | Standard Or Nonstandard | Model No: | AS568 And Customizable |
| Feature: | Aging-Resistant | Usage: | Outdoors |
| Sample: | Available | ||
| Highlight: | EPDM O-Rings for weather stripping,EPDM O-Rings for door gaskets,Rubber O-Rings with EPDM material |
||

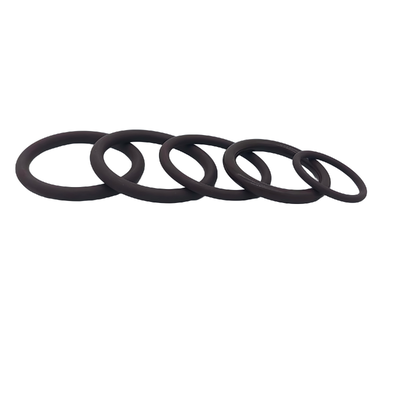

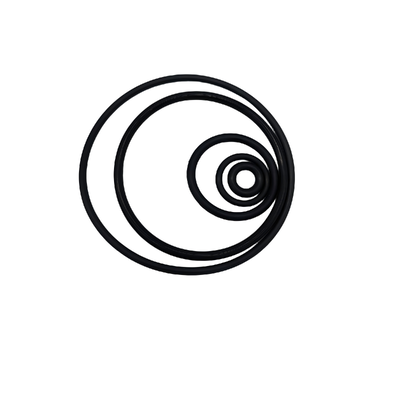

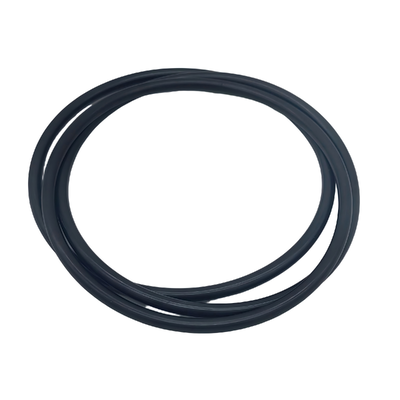

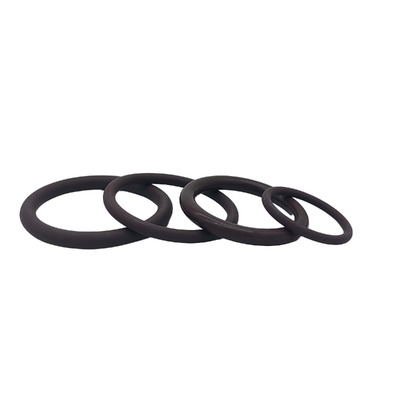

EPDM O-rings and round-section cord gaskets are used in outdoor cabinet doors, access covers and enclosure grooves. This 70 Shore A option focuses on the relationship between gasket cross-section, installed compression and door-closing force. Specify the groove, corner layout and operating temperature, and distinguish a molded closed ring from a joined cord loop when ordering.
| Material | EPDM (Ethylene Propylene) |
|---|---|
| Hardness | 70 Shore A nominal; specify tolerance and any alternative hardness requirement |
| Temperature | Confirm temperature limits for the selected EPDM compound |
| Color | Black |
| Form | Specify molded ring or cord-loop construction, cross-section and joint requirements |
| Sealed Media | Rain, water, air, dust, UV, ozone, outdoor weather |
| Not Recommended | Petroleum oils, fuel, grease, most hydrocarbons |
Electrical and telecom enclosures, outdoor cabinets, hatch and access-door seals, HVAC panels, marine compartments, and any door or cover exposed to weather where a round-section gasket does the job.
Q: Why use an EPDM O-ring for weather stripping instead of a profile gasket?
A: A round-section gasket is suitable when the enclosure provides a groove and controlled compression. Compare cross-section, corner radius and closure force with the mating design. A dedicated profile may be preferable for complex edges or where gasket retention is needed.
Q: Will it keep out rain and water?
A: Water ingress depends on the complete enclosure, including gasket squeeze, joints, latch spacing and mating surfaces. Specify the required enclosure test or ingress rating and validate the assembled design; the EPDM material name alone does not establish a rating.
Q: What temperature range does it handle?
A: Provide minimum outdoor temperature, normal operating temperature and short-term peaks. Compound-specific temperature and compression-set data should be reviewed for those conditions.
Q: Can I cut it to length from cord?
A: A joined cord loop must have an agreed joint method, finished length and joint strength requirement. Do not treat a bonded joint as equivalent to a molded continuous ring for pressure service. Include the enclosure drawing and leakage-test requirement.
Q: Is EPDM safe around oil or fuel?
A: No. EPDM is not compatible with petroleum oils, fuel, or most hydrocarbons. For oily or fuel-exposed door and gasket areas, use NBR or FKM instead.
Q: What hardness should I pick?
A: This option specifies nominal 70 Shore A. Choose hardness together with gasket cross-section, groove depth, squeeze and latch force. Provide any lighter closing-force requirement for review rather than selecting hardness alone.
