NBR 80 Shore A Hammer Union Seal with Brass Support Ring 2", 3", 4" Sizes for Fig 1502 Oilfield Grade High-Pressure Rubber Seals for Manifold Systems

Product Details:

Place of Origin:	Shanghai, China
Brand Name:	Royal Way
Certification:	ISO 9001
Model Number:	Fig 602/1002/1502

Payment & Shipping Terms:

Minimum Order Quantity:	500PCS
Price:	USD$0.5-$1.2/pc
Packaging Details:	404040cm carton packing
Delivery Time:	7-15days according to the quantity of order
Payment Terms:	T/T, Western Union, Paypal,Bank transfer
Supply Ability:	50000pcs per week

Contact Now

Detailed Product Description

Product Name:	High Pressure Hammer Union Seal (Lip Seal)	Compatible Figure:	Fig 602, Fig 1002, Fig 1502
Working Pressure:	6,000 PSI To 15,000 PSI CWP (Cold Working Pressure)	Material:	NBR+Brass
Hardness:	80-95 Shore A (High Durometer For High Pressure)	Reinforcement Ring:	Optional Brass Or Stainless Steel Backup Ring
Color Coding:	Black And Custom Clolor	Brand Name:	SHQN / Royal Way
Certification:	ISO9001	Country Of Origin:	China

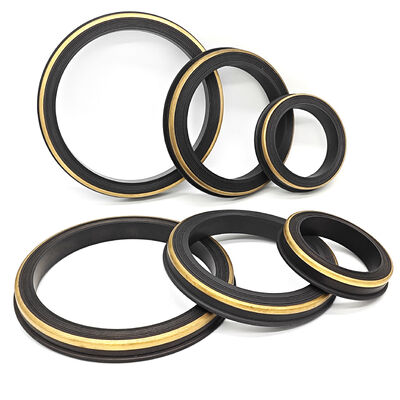

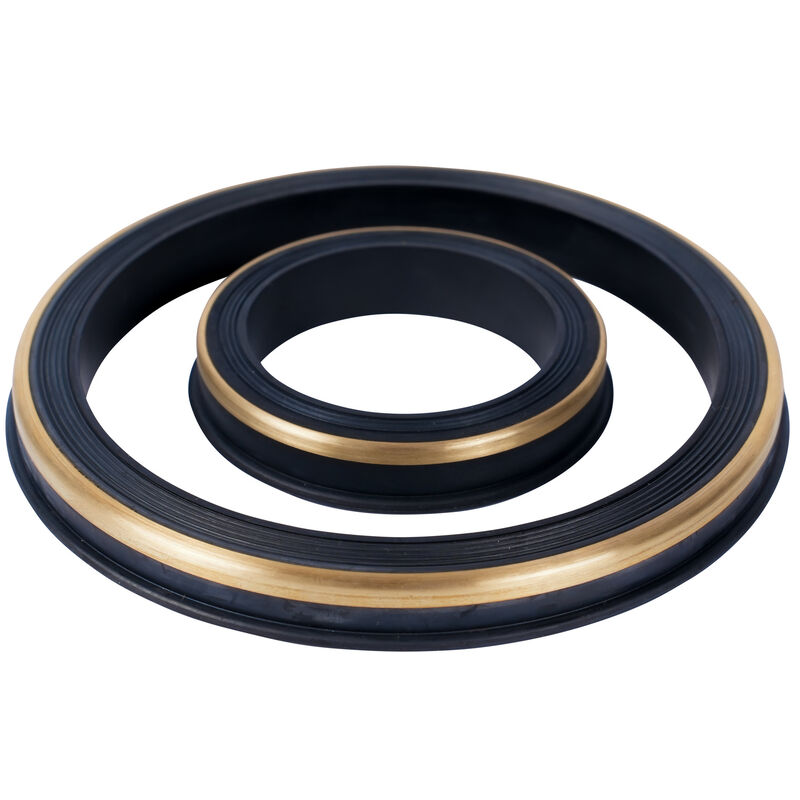

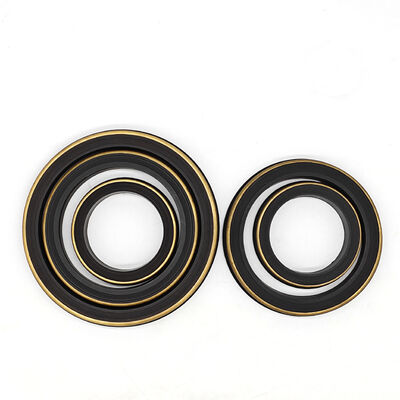

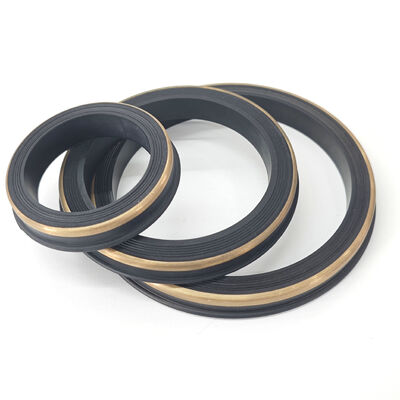

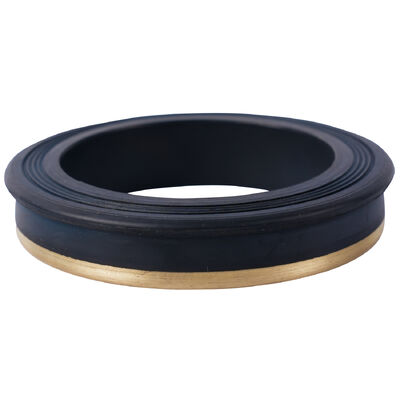

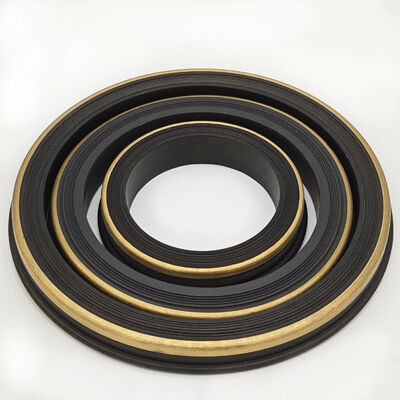

NBR 80 Shore A Hammer Union Seal with Brass Support Ring 2", 3", 4" Sizes for Fig 1502 Oilfield Grade High-Pressure Rubber Seals for Manifold Systems

Name: NBR 80 Shore A Hammer Union Seal with Brass Support Ring 2", 3", 4" Sizes for Fig 1502 Oilfield Grade High-Pressure Rubber Seals for Manifold Systems
Brand: Shanghai Qinuo Industry Co., Ltd.
SKU: Fig 602/1002/1502
Price: 0.50 USD
Availability: InStock

Overview: High-Performance Sealing Solutions for Oilfield Integrity

Product Introduction: High-Integrity Flowline Sealing
In high-pressure oilfield operations, the seal is the most critical link in your flowline. Our High-Pressure Hammer Union Seals are specifically engineered to provide a robust, leak-proof interface in the most punishing environments.

Constructed from premium 80 Shore A Nitrile (NBR) and reinforced with a precision-machined Brass Anti-Extrusion Ring, these seals are designed to replace standard OEM seals in Fig 602, 1002, and 1502 hammer unions.

Material Science: Why NBR 80 Shore A?

We don't use "generic" rubber. Our seals utilize a specialized Nitrile (Buna-N) compound optimized for the oilfield:

Optimal Hardness (80 Shore A): This specific durometer provides the perfect balance between flexibility for low-pressure sealing and high-modulus toughness to resist permanent deformation.
Hydrocarbon Resistance: Highly resistant to crude oil, refined petroleum products, and hydraulic fluids.
High Tear Strength: Resists "chunking" and damage during the high-impact hammering process (making the union).

Engineering Feature: The Brass Backup Ring

Standard rubber seals often fail at pressures exceeding 6,000 PSI due to "extrusion" (where the rubber is forced into the metal gaps).
Anti-Extrusion Shield: The Brass Backup Ring acts as a structural barrier. As pressure increases, the brass ring expands slightly to bridge the clearance gap, protecting the NBR element.
High-Pressure Stability: Essential for Fig 1502 applications where Cold Working Pressure (CWP) reaches 15,000 PSI.
Non-Galling Metal: Unlike steel rings, our brass rings are softer than the union iron, ensuring they provide a backup without scratching or damaging the seal grooves of your expensive manifolds.

Product Parameters and Specifications

Connection Compatibility:	Fig 602, Fig 1002, Fig 1502
Nominal Pipe Sizes:	2 inch, 3 inch, 4 inch and custom size
Material Composition:	Premium NBR (Nitrile) with brass ring
Hardness:	80 to 95 Shore A for the elastomeric component
Design Standard:	Fully interchangeable with standard high pressure iron and manifold seal grooves

FAQ

Q: Can I use NBR 80 seals for CO2 injection?
A: While NBR is excellent for oil, for high-concentration CO2 or Explosive Decompression (ED) environments, we recommend our HNBR or FKM variants.

Q: Why is 80 Shore A better than 90 Shore A for these seals?
A: 80 Shore A provides better "conformability" in worn or slightly pitted union seats, ensuring a seal at lower pressures, while the Brass Ring handles the high-pressure support that a 90 Shore A rubber would otherwise provide.

Q: How do you handle bulk shipping to North American hubs (Houston/Edmonton)?
A: We offer expedited air freight and sea freight options, with bulk packaging designed for distribution-level inventory management.
