| Place of Origin: | Shanghai, China |
| Brand Name: | Royal Way/SHQN |
| Certification: | ISO 9001 certificate |
| Model Number: | Fig 1502 |
| Document: | Hammer Union Seal TDS.pdf |
| Minimum Order Quantity: | 200PCS |
|---|---|
| Price: | USD$0.2/pc to $4/pc according to size and rubber material |
| Packaging Details: | 40*40*20cm carton packing |
| Delivery Time: | 7-15days according to the quantity of order |
| Payment Terms: | T/T, Western Union, Paypal,Bank transfer |
| Supply Ability: | 50000pcs per week |
| Compatible Figure Series: | Fig 602, Fig 1002, Fig 1502, Fig 2202 | Nominal Size: | 1", 2", 3", 4", Accept Custom Sizes |
|---|---|---|---|
| Material Type: | NBR (Buna-N), HNBR, FKM, PTFE | Hardness / Durometer: | 80 Shore A To 90 Shore A |
| Working Pressure Rating: | Use Confirmed Complete Union Assembly Rating And Service Limits | Operating Temperature Range: | Confirm Selected Compound Limits For Actual Medium And Exposure Duration |
| Service Environment: | Specify Gas And Fluid Conditions; Sour Service Requires Application-specific Qualification | Media Compatibility: | Confirm Exact Compound Against Fluid Identity, Concentration And Temperature |
| Seal Design Type: | Lip Seal, O-ring Style | Insert Material: | Stainless Steel, Brass |
| Abrasion Resistance: | Excellent, High | Manufacturing Process: | Compression Molding |
| Quality Standard: | ISO 9001 Certified | Country Of Origin: | China |
| Lead Time: | In-stock Items 3-5 Days; Custom Orders 2-3 Weeks | Packaging: | Individually Bagged, Bulk Packed, UV-Protected Packaging |
| MOQ: | 200pcs | Delivery Time: | 7-15days |
| Highlight: | 6000 PSI Hammer Union Seal,NBR Hammer Union Gasket,Fig 602 Compatible Flow Control Seal |
||

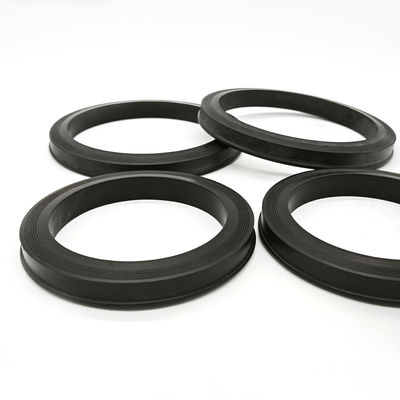

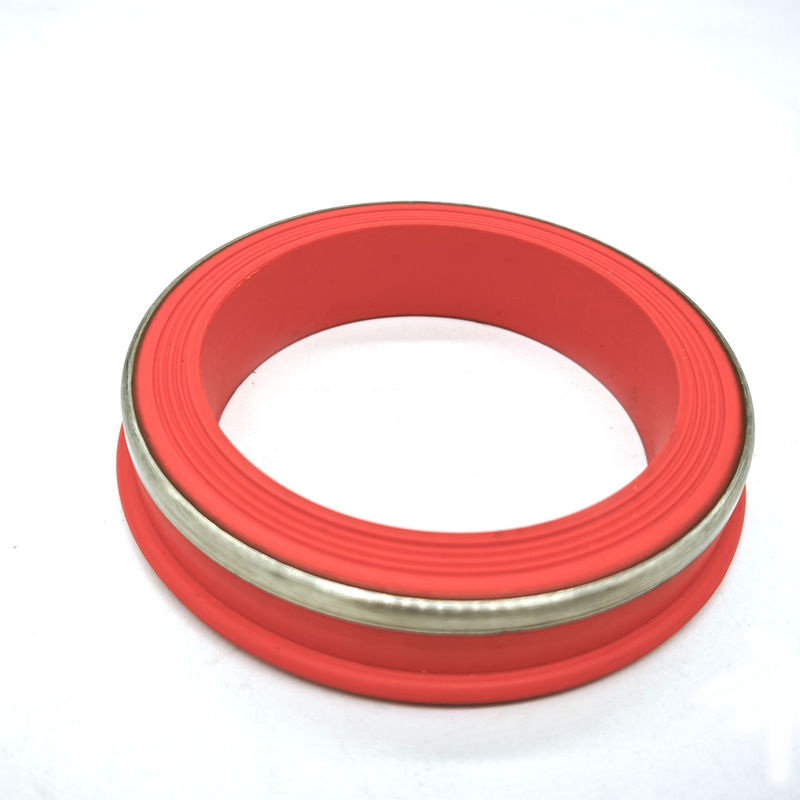

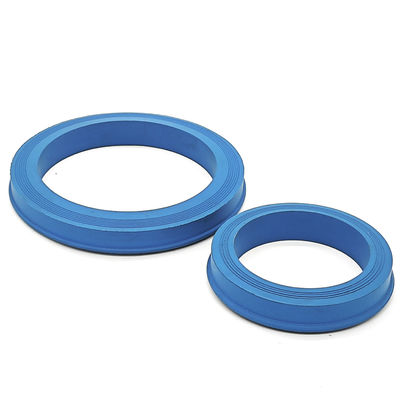

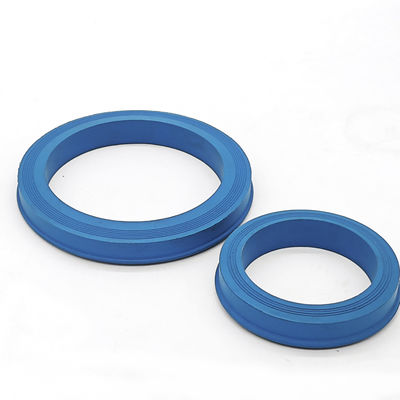

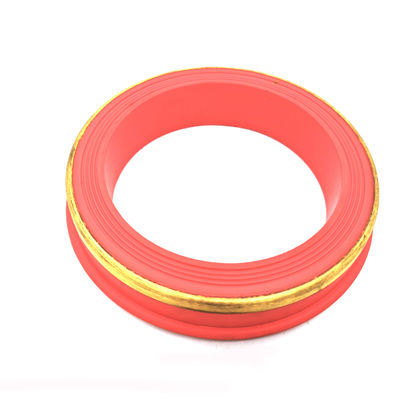

Precision Engineered Hammer Union Seals for Flow Control
Product Overview
Hammer union replacement seals must match the actual flowline connection, groove and fluid service. Provide union manufacturer, figure, nominal size and removed-seal dimensions or drawing. Inspect sealing surfaces and follow the equipment installation and pressure-test procedure before return to service.
Core Performance Features
Dimensional Precision: Engineered to exact tolerances to ensure consistent sealing performance across various "Figure" configurations.
Installed Profile: Confirm the seal seats in the specified groove without unintended intrusion into the fluid passage.
Pressure Cycles: Provide operating cycles and the complete union rating; the replacement seal has no independent universal pressure rating.
Extrusion Control: Review groove clearance, compound, hardness and any specified support ring against the equipment drawing.
Material Comparison & Selection Criteria
The efficiency of a flow control system depends heavily on selecting the correct seal material. We provide various high-grade elastomers tailored for specific media:
1. NBR (Nitrile):
Best for: Standard water, oil, and mud service.
Advantages: Excellent abrasion resistance and high elasticity for general-purpose applications.
2. HNBR (Hydrogenated Nitrile):
Selection: Exact HNBR compound qualification is required for actual H2S exposure, temperature and decompression conditions.
Advantages: Superior thermal stability and resistance to oil-based fluids at high temperatures.
3. FKM (Fluorocarbon):
Best for: High-temperature operations and aggressive chemical flow.
Advantages: Exceptional resistance to heat, ozone, and a wide array of chemicals and solvents.
4. PTFE (Polytetrafluoroethylene):
Best for: Maximum chemical compatibility and low-friction requirements.
Selection: Confirm PTFE grade, construction, creep allowance and medium-specific service limits.
Technical Specifications
Confirm the replacement specification against the actual equipment and service conditions:
1. Seal Sizes: 1", 2", 3", 4", and accept custom sizes
2. Working Pressure Range:
Standard Service: Use the complete union assembly rating.
Pressure Limits: Confirm equipment rating and applicable service limits.
Specialized Service: Confirm the complete qualified configuration before use.
3. Temperature Range:
NBR: Confirm selected compound limits for the actual medium and duration
HNBR: Confirm selected compound limits for the actual medium and duration
FKM: Confirm selected compound limits for the actual medium and duration
Application Scope
These precision seals are utilized globally in flow control and fluid transfer applications, including:
1. Hydraulic Fracturing: Managing high-velocity sand and fluid slurries at high pressure.
2. Drilling & Exploration: Mud manifold systems and standpipe sealing.
3. Well Completion: Cementing and acidizing flowlines.
4. Flowline Maintenance: Temporary pipework for well testing and fluid recovery.
5. Industrial Processing: High-pressure chemical and water transfer lines in refineries and plants.
Compatibility & Standardization
Figure references below identify enquiry families. Confirm each manufacturer, nominal size, groove profile and seal construction separately; universal interchangeability is not implied.
High Pressure: Fig 602, Fig 1002, Fig 1502.
Fig 2202 enquiries: confirm equipment and compound qualification for the intended service.
Contact Person: Gail Chen
Tel: +8618217653695
