| Place of Origin: | Shanghai, China |
| Brand Name: | Royal Way/SHQN |
| Certification: | ISO 9001 certificate |
| Model Number: | Fig 1502 |
| Document: | Hammer Union Seal TDS.pdf |
| Minimum Order Quantity: | 200PCS |
|---|---|
| Price: | USD$0.2/pc to $4/pc according to size and rubber material |
| Packaging Details: | 40*40*20cm carton packing |
| Delivery Time: | 7-15days according to the quantity of order |
| Payment Terms: | T/T, Western Union, Paypal,Bank transfer |
| Supply Ability: | 50000pcs per week |
| Compatible Figure Series: | Fig 602, Fig 1002, Fig 1502, Fig 2202 | Nominal Size: | 1", 2", 3", 4", Accept Custom Sizes |
|---|---|---|---|
| Material Type: | NBR (Buna-N), HNBR, FKM, PTFE | Hardness / Durometer: | 80 Shore A To 90 Shore A |
| Working Pressure Rating: | Use Confirmed Complete Union Assembly Rating And Service Limits | Operating Temperature Range: | Confirm Selected Compound Limits For Actual Medium And Exposure Duration |
| Service Environment: | Specify Gas And Fluid Conditions; Sour Service Requires Application-specific Qualification | Media Compatibility: | Confirm Exact Compound Against Fluid Identity, Concentration And Temperature |
| Seal Design Type: | Lip Seal, O-ring Style | Insert Material: | Stainless Steel, Brass |
| Abrasion Resistance: | Excellent, High | Manufacturing Process: | Compression Molding |
| Quality Standard: | ISO 9001 Certified | Country Of Origin: | China |
| Lead Time: | In-stock Items 3-5 Days; Custom Orders 2-3 Weeks | Packaging: | Individually Bagged, Bulk Packed, UV-Protected Packaging |
| MOQ: | 200pcs | Delivery Time: | 7-15days |
| Highlight: | High-Temperature Resistant Hammer Union Seal,High-Pressure Reliability Oilfield Seal,Chemical Resilience High-Temperature Resistant Seal |
||
For hot-fluid replacement enquiries, include operating and shutdown temperatures, time at temperature, pressure cycles and the condition of the removed seal. Keep the union reference and seal drawing revision with the enquiry so the thermal requirement can be reviewed for the actual installation.

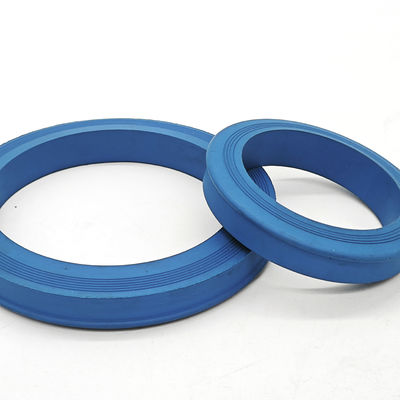

High-Temperature Resistant Hammer Union Seals for Oilfields
Product Overview
Elevated-temperature hammer union seal enquiries require the actual fluid temperature, continuous duty, short excursions and complete assembly limits. Identify the union manufacturer, figure, nominal size and groove dimensions. Review compound, support construction and any steam or gas exposure before selection.
![]()
![]()
![]()
Key Advantages for High-Temp Operations
Thermal Exposure: State continuous duty, peak temperatures, excursion duration and start-up or shutdown cycles. Confirm the compound against these conditions.
Pressure Selection: Confirm the complete assembly rating, groove clearance and support arrangement for the actual temperature and pressure cycles.
Chemical Selection: Specify fluid identity, concentration and duration. H2S use requires exact-compound qualification for the intended exposure and decompression.
Optimized Geometry: Precision-molded to fit industry-standard union grooves, ensuring a secure "metal-to-metal" assisted seal.
Material Comparison for Thermal Environments
Choosing the right material is critical for high-temperature success. We offer three primary compounds:
1. FKM (Fluorocarbon / High-Temp Polymer):
Heat Rating: Exceptional. Best for constant exposure to high heat.
Compatibility: Select the FKM formulation for the actual oil, additives, temperature and exposure duration; verify steam and gas requirements separately.
2. HNBR (Hydrogenated Nitrile):
Heat Rating: Superior to standard NBR.
HNBR Selection: Provide actual gas composition, fluid, continuous temperature and decompression conditions for compound-specific review.
3.PTFE (Polytetrafluoroethylene) with Elastomer Core:
Heat Selection: Confirm the complete PTFE and elastomer-core construction; the core can limit service temperature.
Compatibility: Confirm PTFE grade, core compound and actual fluid conditions. Universal compatibility is not implied.
Technical Specifications & Parameters
Confirm the required equipment specification, test method and acceptance limits for the selected configuration.
Seal Sizes: Available from 1" to 4" (Common sizes: 2", 3", 4").
Working Pressure Range:
Medium Pressure: 6,000 PSI (Fig 602)
High Pressure: 10,000 PSI (Fig 1002)
Ultra-High Pressure: 15,000 PSI (Fig 1502)
Fig 2202: Confirm equipment rating and exact-compound qualification; figure naming alone does not establish sour-service suitability.
Temperature Limits:
HNBR Seals: Confirm compound and complete construction limits for actual medium and duration
FKM Seals: Confirm compound and complete construction limits for actual medium and duration
Specialty PTFE: Confirm compound and complete construction limits for actual medium and duration
Application Scope
These high-temperature seals are the preferred choice for demanding oil and gas operations, including:
1. Steam Injection & EOR Enquiries: Provide steam temperature, pressure, exposure duration and cycling; confirm the complete seal construction and equipment suitability before selection.
2. Hot-Fluid Drilling Flowlines: Specify the hammer union location and actual fluid temperature; evaluate each connection separately from downhole equipment.
3. Fracturing (Frac) Manifolds: High-pressure fluid transfer where friction and environmental factors raise temperatures.
4. Well Testing & Production: Handling hot crude oil and gas directly from the wellhead.
5. Geothermal Energy: Sealing fluid lines in geothermal drilling and extraction.
Industry Compatibility
The following figure references identify enquiry families. Verify each manufacturer, nominal size and groove profile separately:
Standard High-Temp: Fig 602, Fig 1002.
Severe Service High-Temp: Fig 1502.
Fig 2202 Enquiries: Confirm manufacturer, groove dimensions, complete assembly rating and exact-compound qualification for the intended gas and temperature conditions.
Quality Standards & Ordering
We adhere to strict quality control protocols, testing for compression set, tensile strength, and hardness (Shore A) to ensure every seal performs in the field. When requesting a quote, please specify:
Figure Number: (e.g., Fig 1502)
Nominal Size: (e.g., 2 inch, 3 inch)
Maximum Operating Temperature: (Required for material recommendation)
Chemical Exposure: (e.g., H2S presence, CO2, or heavy aromatics)
Contact Person: Gail Chen
Tel: +8618217653695
