| Place of Origin: | Shanghai, China |
| Brand Name: | Royal Way/SHQN |
| Certification: | ISO 9001 certificate |
| Model Number: | Fig 1502 |
| Document: | Hammer Union Seal TDS.pdf |
| Minimum Order Quantity: | 200PCS |
|---|---|
| Price: | USD$0.2/pc to $4/pc according to size and rubber material |
| Packaging Details: | 40*40*20cm carton packing |
| Delivery Time: | 7-15days according to the quantity of order |
| Payment Terms: | T/T, Western Union, Paypal,Bank transfer |
| Supply Ability: | 50000pcs per week |
| Compatible Figure Series: | Fig 602, Fig 1002, Fig 1502, Fig 2202 | Nominal Size: | 1", 2", 3", 4" |
|---|---|---|---|
| Material Type: | NBR (Buna-N), HNBR, FKM, PTFE | Hardness / Durometer: | 80 Shore A To 90 Shore A |
| Working Pressure Rating: | Use Confirmed Complete Union Assembly Rating And Service Limits | Operating Temperature Range: | Confirm Selected Compound Limits For Actual Medium And Exposure Duration |
| Service Environment: | Specify Gas And Fluid Conditions; Sour Service Requires Application-specific Qualification | Media Compatibility: | Confirm Exact Compound Against Fluid Identity, Concentration And Temperature |
| Seal Design Type: | Lip Seal, O-ring Style | Insert Material: | Stainless Steel, Brass |
| Abrasion Resistance: | Excellent, High | Manufacturing Process: | Compression Molding |
| Quality Standard: | ISO 9001 Certified | Country Of Origin: | China |
| Lead Time: | In-stock Items 3-5 Days; Custom Orders 2-3 Weeks | Packaging: | Individually Bagged, Bulk Packed, UV-Protected Packaging |
| MOQ: | 200pcs | Delivery Time: | 7-15days |
| Highlight: | High-Pressure Hammer Union Seal,H2S Resistant Weco Seal,Multi-Material Oilfield Union Seal |
||

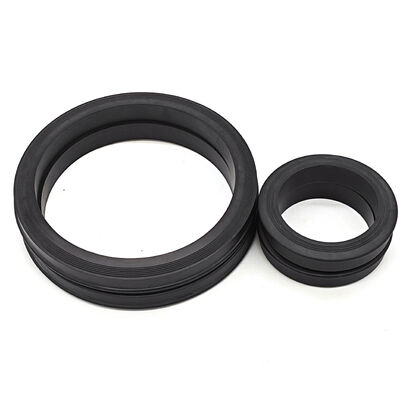

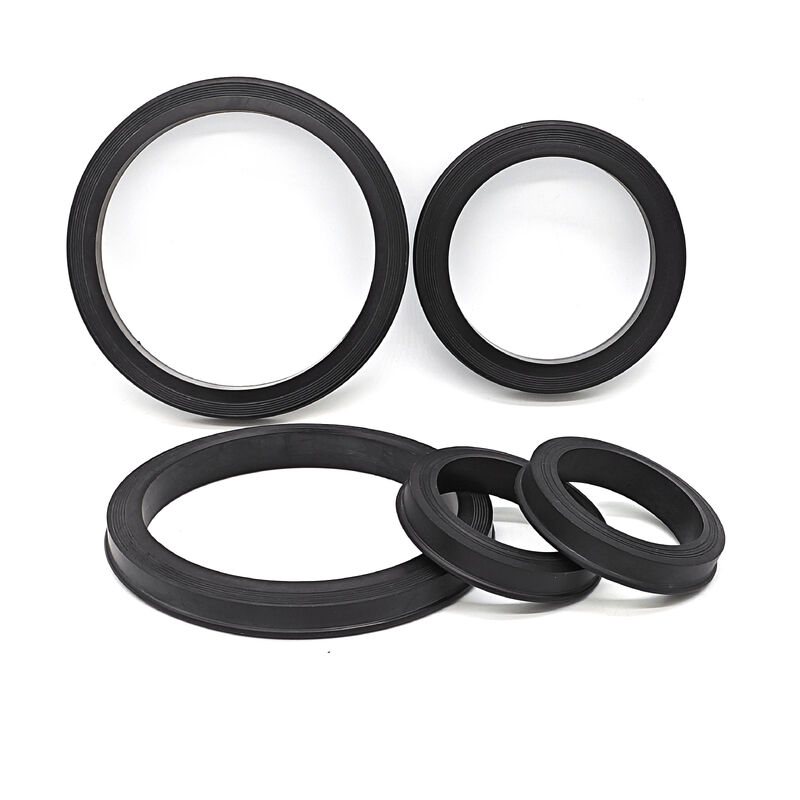

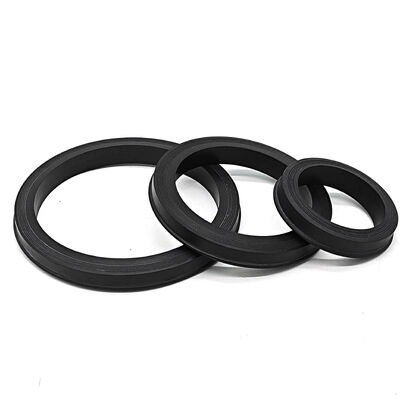

Hammer Union Seals for Drilling and Well Service Applications
Product Introduction
Hammer union seal enquiries for drilling, cementing and well service should identify the actual connection and operating medium. Provide the union manufacturer, figure, nominal size, groove or removed-seal dimensions and maintenance record. Confirm compound and complete assembly limits before installation; sour-gas use requires specific qualification.
Core Performance Features
1. Leak-Proof Engineering: Precision-molded geometry ensures a perfect fit within the union’s seal groove, preventing fluid bypass under high vibration.
2. Anti-Extrusion Properties: High-modulus materials resist extrusion and "nibbling" even during extreme pressure fluctuations.
3. Rugged Durability: Excellent resistance to abrasion from sand, proppants, and slurry mixtures commonly found in drilling mud and fracking fluids.
4. Replacement Match: Confirm the manufacturer, figure, size and groove profile separately; universal interchangeability is not implied.
Material Comparison & Selection
Selecting the correct elastomer is vital for maximizing the lifespan of your well service equipment. We offer several high-performance compounds:
NBR (Nitrile / Buna-N):
Best for: Standard water, oil, and mud service.
Pros: High abrasion resistance and cost-efficiency for general drilling.
HNBR (Hydrogenated Nitrile):
Selection: Confirm the exact HNBR compound for temperature, gas composition or partial pressures, and decompression conditions. Sour-service suitability requires application-specific qualification.
Pros: Superior mechanical strength and chemical stability compared to standard Nitrile.
FKM (Fluorocarbon):
Best for: Aggressive chemical exposure and extreme heat.
Selection: Confirm the specific FKM formulation for acid identity, concentration, steam conditions, temperature and duration.
PTFE:
Best for: Maximum chemical inertness.
Selection: Confirm PTFE grade, construction, creep allowance and actual chemical and temperature conditions.
Technical Specifications
Our seals are manufactured to meet the rigorous demands of high-pressure flow control systems.
Available Sizes: 1", 2", 3", 4"
Pressure Ratings:
Pressure Selection: Confirm the complete assembly rating for the actual Fig 1002 or 1502 equipment.
Fig 2202 Selection: Confirm complete equipment rating and intended service; the seal has no independent universal pressure rating.
Operating Temperature Ranges:
NBR: Confirm selected compound limits for the actual medium and duration
HNBR: Confirm selected compound limits for the actual medium and duration
FKM: Confirm selected compound limits for the actual medium and duration
Primary Application Scope
These seals are essential components in various "iron" and flowline configurations, including:
Drilling Systems: Mud pumps, standpipes, and suction lines.
Well Completion: Fracturing (Frac) manifolds and flow-back equipment.
Well Intervention: Acidizing, cementing units, and coiled tubing reels.
Testing & Production: Separators, choke manifolds, and well testing lines.
Offshore Operations: Marine risers and high-pressure fluid transfer on rigs.
Industry Standards & Compatibility
Figure references identify replacement enquiry families. Match the union manufacturer, nominal size, groove profile and seal construction to the equipment drawing or removed sample; confirm each configuration separately:
High-Pressure Service: Fig 602, Fig 1002, Fig 1502.
Sour Gas Enquiries: Specify gas composition or partial pressures, temperature and decompression conditions for exact-compound qualification.
Quality Control & Ordering Information
Agree dimensions, tolerances, inspection sampling and documentation for each replacement part. When ordering, provide the equipment drawing or removed sample alongside the following information:
Figure Number: (e.g., Fig 1502)
Nominal Pipe Size: (e.g., 3 inch)
Media Type: (e.g., Crude oil, Water-based mud, H2S gas)
Quantity: (Bulk discounts available for fleet maintenance)
Contact Person: Gail Chen
Tel: +8618217653695
