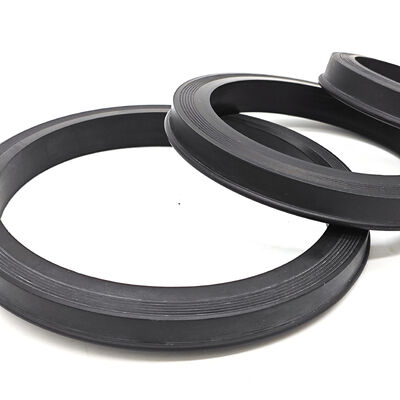

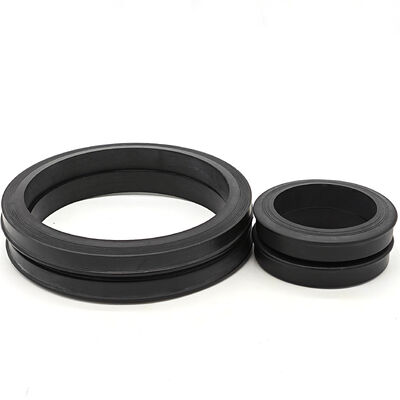

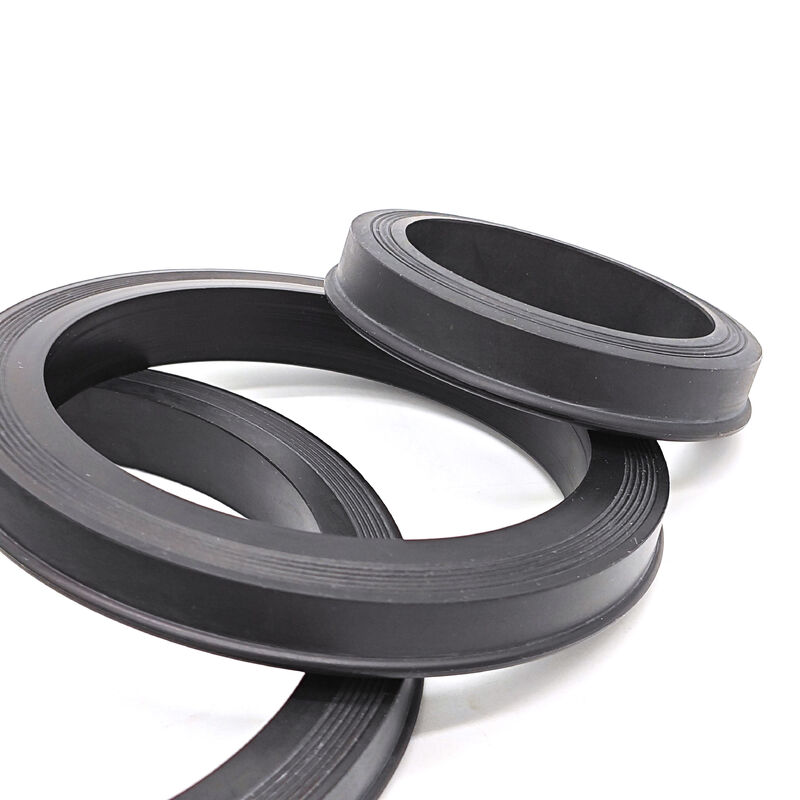

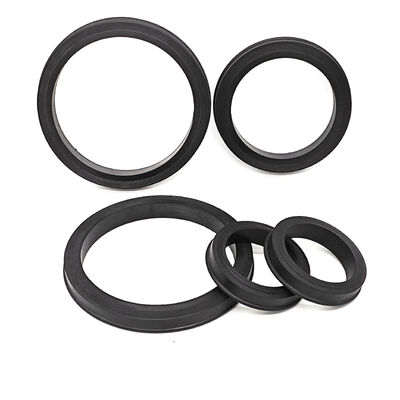

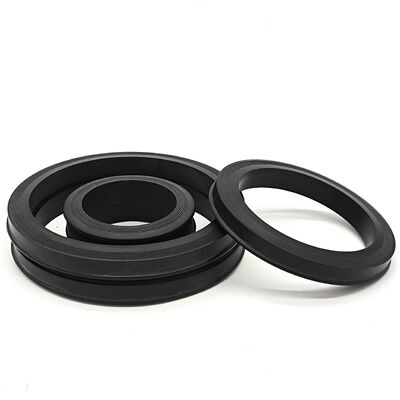

Chemical Resistant Hammer Union Seal with High Pressure Rating (20,000 PSI) and Extreme Temperature Range (-20°F to +400°F)

Chemical Resistant Hammer Union Seal with High Pressure Rating (20,000 PSI) and Extreme Temperature Range (-20°F to +400°F)

  • Chemical Resistant Hammer Union Seal with High Pressure Rating (20,000 PSI) and Extreme Temperature Range (-20°F to +400°F)
  • Chemical Resistant Hammer Union Seal with High Pressure Rating (20,000 PSI) and Extreme Temperature Range (-20°F to +400°F)
  • Chemical Resistant Hammer Union Seal with High Pressure Rating (20,000 PSI) and Extreme Temperature Range (-20°F to +400°F)
  • Chemical Resistant Hammer Union Seal with High Pressure Rating (20,000 PSI) and Extreme Temperature Range (-20°F to +400°F)
  • Chemical Resistant Hammer Union Seal with High Pressure Rating (20,000 PSI) and Extreme Temperature Range (-20°F to +400°F)
  • Chemical Resistant Hammer Union Seal with High Pressure Rating (20,000 PSI) and Extreme Temperature Range (-20°F to +400°F)
Chemical Resistant Hammer Union Seal with High Pressure Rating (20,000 PSI) and Extreme Temperature Range (-20°F to +400°F)
Product Details:
Place of Origin: Shanghai, China
Brand Name: Royal Way/SHQN
Certification: ISO 9001 certificate
Model Number: Fig 1502
Document: Hammer Union Seal TDS.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 200PCS
Price: USD$0.2/pc to $4/pc according to size and rubber material
Packaging Details: 40*40*20cm carton packing
Delivery Time: 7-15days according to the quantity of order
Payment Terms: T/T, Western Union, Paypal,Bank transfer
Supply Ability: 50000pcs per week
Contact Now
Detailed Product Description
Compatible Figure Series: Fig 602, Fig 1002, Fig 1502, Fig 2202 Nominal Size: 1", 2", 3", 4"
Material Type: NBR (Buna-N), HNBR, FKM, PTFE Hardness / Durometer: 80 Shore A To 90 Shore A
Working Pressure Rating: Use Confirmed Complete Union Assembly Rating And Service Limits Operating Temperature Range: Confirm Selected Compound Limits For Actual Medium And Exposure Duration
Service Environment: Specify Gas And Fluid Conditions; Sour Service Requires Application-specific Qualification Media Compatibility: Confirm Exact Compound Against Fluid Identity, Concentration And Temperature
Seal Design Type: Lip Seal, O-ring Style Insert Material: Stainless Steel, Brass
Abrasion Resistance: Excellent, High Manufacturing Process: Compression Molding
Quality Standard: ISO 9001 Certified Country Of Origin: China
Lead Time: In-stock Items 3-5 Days; Custom Orders 2-3 Weeks Packaging: Individually Bagged, Bulk Packed, UV-Protected Packaging
MOQ: 200pcs Delivery Time: 7-15days
Highlight:

Chemical Resistant Hammer Union Seal

,

High Pressure Rating Hammer Union Gasket

,

Extreme Temperature Range Hammer Union Ring

Chemical Resistant Hammer Union Seals for Harsh Environments


Product Overview



For chemical-transfer hammer union seal enquiries, identify the actual medium, concentration, additives, temperature and exposure duration. Match the compound and any metal support ring to these conditions and the equipment drawing. Include cleaning and flushing media, which can differ from the operating fluid.





Key Features & Benefits



Chemical Review: Confirm compatibility for each chemical and mixture using the specific compound and actual conditions; no universal acid or solvent compatibility is implied.
High-Pressure Integrity: Engineered to maintain a tight seal under extreme hydraulic and pneumatic pressure.
Anti-Extrusion Design: Robust geometry prevents seal deformation even during rapid pressure cycles.
Replacement Fit: Verify manufacturer, figure, nominal size, groove dimensions and seal profile separately.
Durability: Reduced wear and tear in abrasive flow-back and fracturing environments.





Material Selection & Comparison



Choosing the right material is critical for chemical compatibility and service life. We offer a variety of elastomers and polymers:
NBR (Nitrile/Buna-N): Best for general-purpose oil and water service. Cost-effective with good abrasion resistance.
FKM (Fluorocarbon): Excellent for high-temperature environments and resistance to aggressive chemicals and hydrocarbons.
HNBR (Hydrogenated Nitrile): Exact-compound qualification is required for actual gas composition, temperature and decompression conditions.
PTFE: Provides the highest level of chemical inertness and low friction; often used as a backup or for specialized chemical flow.
FKM with Brass or Stainless Steel Support: Confirm compound, metal grade and ring dimensions against the chemical and groove requirements.





Technical Specifications



To ensure the safety of your operations, please refer to the following standardized parameters:
Available Sizes: 1", 2", 3", 4", and custom sizes for specific pipe diameters.
Working Pressure: Confirm the complete union assembly rating and service limits; the replacement seal has no independent universal pressure rating.



Temperature Range:
Standard NBR: Confirm specified compound or grade limits for actual medium and duration
HNBR: Confirm specified compound or grade limits for actual medium and duration
FKM: Confirm specified compound or grade limits for actual medium and duration
PTFE: Confirm specified compound or grade limits for actual medium and duration
Figure Enquiries: Fig 206, Fig 602, Fig 1002, Fig 1502 and Fig 2202. Confirm union manufacturer, nominal size, groove profile and seal construction against the equipment drawing or removed sample; each configuration requires separate fit and service review.





Primary Applications



Our Hammer Union Seals are used globally across various sectors involving high-pressure fluid handling:
Oil & Gas Drilling: Mud systems, manifold systems, and standpipe connections.
Hydraulic Fracturing (Fracking): High-pressure flow-back and chemical injection lines.
Well Servicing: Cementing units and acidizing equipment.
Chemical Processing: Transporting aggressive media in industrial plants.
Mining & Marine: Slurry lines and heavy-duty offshore fluid transfer.





Quality Assurance



Agree critical dimensions, hardness, inspection sampling and any required tensile or compression-set tests for the specified compound. Include test conditions and acceptance limits in the order requirements.





How to Order



When requesting a quote, please specify:
Figure Number (e.g., Fig 1502)
Size (e.g., 2 inch)
Material Preference (e.g., HNBR or FKM)
Operational Environment (e.g., Sour Gas, High Temp, or Standard Oil)
