| Place of Origin: | Shanghai, China |
| Brand Name: | Royal Way/SHQN |
| Certification: | ISO 9001 certificate |
| Model Number: | Fig 1502 |
| Minimum Order Quantity: | 200PCS |
|---|---|
| Price: | USD$0.2/pc to $4/pc according to size and rubber material |
| Packaging Details: | 40*40*20cm carton packing |
| Delivery Time: | 7-15days according to the quantity of order |
| Payment Terms: | T/T, Western Union, Paypal,Bank transfer |
| Supply Ability: | 50000pcs per week |
| Nominal Size: | 1", 2", 3", 4" | Material Type: | NBR (Buna-N), HNBR, FKM, PTFE |
|---|---|---|---|
| Hardness / Durometer: | 80 Shore A To 90 Shore A | Working Pressure Rating: | Use Confirmed Complete Union Assembly Rating And Service Limits |
| Operating Temperature Range: | Confirm Selected Compound Limits For Actual Medium And Exposure Duration | Service Environment: | Specify Gas And Fluid Conditions; Sour Service Requires Application-specific Qualification |
| Media Compatibility: | Confirm Exact Compound Against Fluid Identity, Concentration And Temperature | Seal Design Type: | Lip Seal, O-ring Style |
| Abrasion Resistance: | Excellent, High | Manufacturing Process: | Compression Molding |
| Quality Standard: | ISO 9001 Certified | Country Of Origin: | China |
| Customization Support: | Available (OEM/ODM Based On Drawings) | Lead Time: | In-stock Items 3-5 Days; Custom Orders 2-3 Weeks |
| Highlight: | Leak-Proof Hammer Union Seal,High Pressure Resistance Oilfield Hammer Union Seal,Material Versatility Fracking Equipment Seal |
||

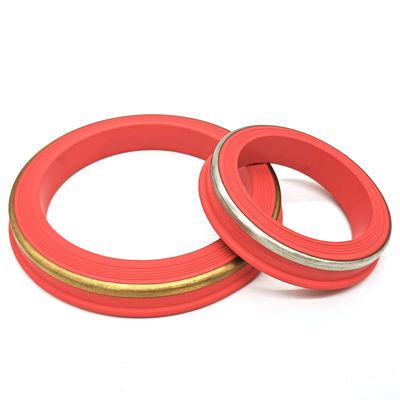

Oilfield Hammer Union Seals: Leak-Proof Fracking Equipment Seals
Product Overview
High-quality Hammer Union Seals are critical components in the oil and gas industry, specifically designed to provide a secure, leak-proof connection in high-pressure piping systems. These seals are used within hammer unions during hydraulic fracturing (fracking), acidizing, cementing, and other well-service applications.
For fracturing replacement enquiries, specify fluid additives, solids content, pressure cycles, temperature and the condition of the removed seal. Match the union manufacturer, figure, groove profile and any support ring before installation.
Key Features and Benefits
1. Superior Leak Prevention: Precision-molded to fit standard high-pressure union configurations, ensuring a tight seal even under fluctuating pressures.
2. High Pressure Resistance: Specifically designed for heavy-duty service environments.
3. Material Versatility: Available in various elastomers to suit different chemical and temperature requirements.
4. Extrusion Resistance: Some models feature a stainless steel or brass backup ring to prevent the seal from extruding under extreme pressure.
5. Easy Installation: Designed for quick replacement in the field to keep your fracking operations running smoothly.
Technical Specifications
Working Pressure:
Our hammer union seals are rated for various pressure classes, commonly used in:
Pressure Selection: Confirm complete assembly rating and service limits for the actual Fig 602, 1002 or 1502 union.
Fig 2202: Verify equipment rating and qualified construction; the replacement seal has no independent universal pressure rating.
Temperature Range:
Standard NBR: Confirm selected compound limits for the actual medium and duration
High-Temp FKM: Confirm selected compound limits for the actual medium and duration
Low-Temp HNBR: Confirm selected compound limits for the actual medium and duration
Material Comparison and Selection
1. Nitrile (NBR / Buna-N)
Best For: Standard oil and water service.
Advantages: Excellent abrasion resistance, cost-effective, good oil resistance.
Limitations: Poor resistance to high temperatures and harsh chemicals.
2. FKM ( Fluoroelastomer)
Best For: High-temperature and chemical-heavy environments.
Selection: Review the specific FKM formulation against acid or solvent identity, concentration, fuel additives, temperature and exposure duration.
Limitations: Not ideal for extreme low-temperature applications.
3. HNBR (Hydrogenated Nitrile)
HNBR Enquiries: Specify fracturing fluid, gas composition or partial pressures, pressure cycles and decompression conditions; sour-service suitability requires exact-compound qualification.
Selection: Review exact HNBR compound qualification for gas composition, temperature, duration and decompression conditions.
Limitations: Higher cost than standard Nitrile.
4. PTFE (Teflon) with Elastomer Core
Best For: Extreme chemical resistance.
Selection: Confirm PTFE grade and elastomer-core compatibility with the actual fluid and temperature.
Limitations: Less "memory" or elasticity than pure rubber seals.
Applications and Usage
Our Hammer Union Seals are essential for any high-pressure fluid transfer system in the oilfield, including:
Hydraulic Fracturing (Fracking)
Well Cementing and Acidizing
Manifold and Pipeline Connections
Hammer union connections on compatible equipment; not an internal BOP seal replacement
Water Flood Lines
Sour Gas Enquiries: Exact-compound and complete equipment qualification required.
Compatibility Information
These seals are designed to be compatible with industry-standard union configurations. We offer sizes for 1-inch, 2-inch, 3-inch, and 4-inch unions. Common cross-references include:
1502 Series (15,000 PSI)
1002 Series (10,000 PSI)
602 Series (6,000 PSI)
206 Series (2,000 PSI)
Why Choose Our Oilfield Seals?
In the oilfield, a seal failure is not just a leak—it is a safety hazard and a financial loss. Our manufacturing process involves rigorous quality control and batch testing to ensure every seal meets or exceeds industry standards. By selecting the right material for your specific well conditions, you extend the life of your equipment and protect your crew.
Contact us today for bulk pricing, material data sheets, or custom sizing for your specific oilfield equipment needs.
