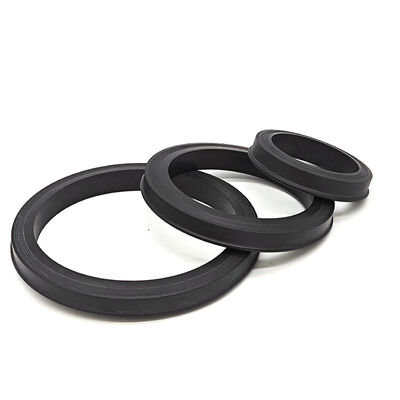

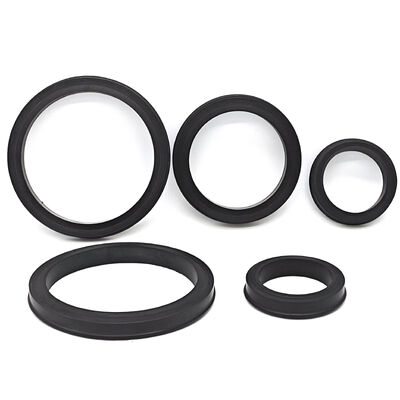

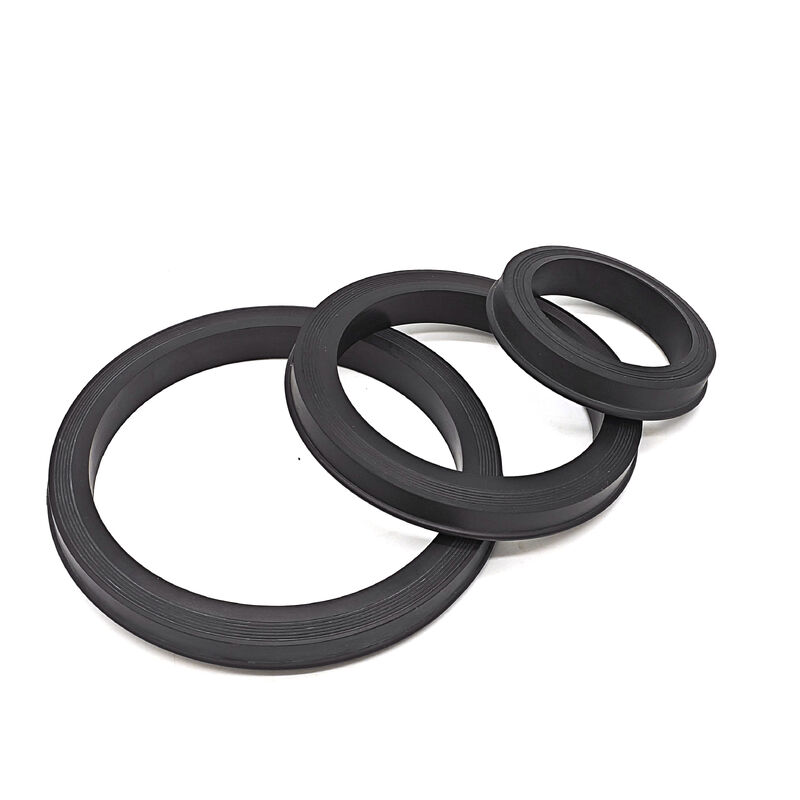

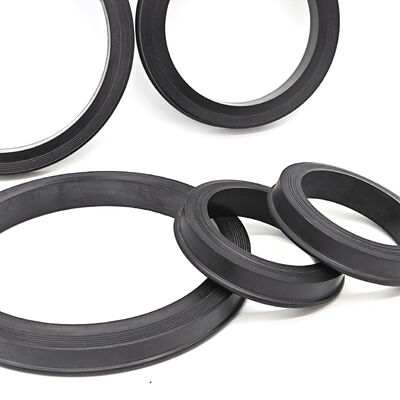

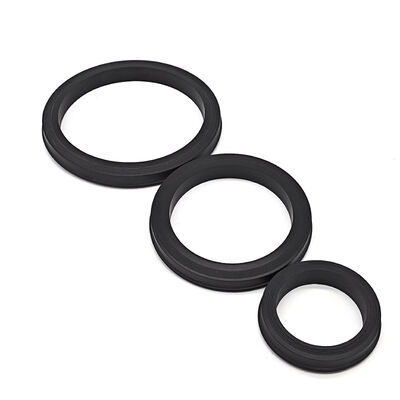

High-Pressure Hammer Union Lip Seals for Drilling and Well Service with NBR, HNBR, FKM, PTFE Materials Compatible with Fig 602, 1002, 1502

High-Pressure Hammer Union Lip Seals for Drilling and Well Service with NBR, HNBR, FKM, PTFE Materials Compatible with Fig 602, 1002, 1502

Product Details:
Place of Origin: Shanghai, China
Brand Name: Royal Way/SHQN
Certification: ISO 9001 certificate
Model Number: Fig 1502
Document: Hammer Union Seal TDS.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 200PCS
Price: USD$0.2/pc to $4/pc according to size and rubber material
Packaging Details: 40*40*20cm carton packing
Delivery Time: 7-15days according to the quantity of order
Payment Terms: T/T, Western Union, Paypal,Bank transfer
Supply Ability: 50000pcs per week
Contact Now
Detailed Product Description
Compatible Figure Series: Fig 602, Fig 1002, Fig 1502, Fig 2002 Nominal Size: 1", 2", 3", 4"
Material Type: NBR (Buna-N), HNBR, FKM, PTFE Hardness / Durometer: 80 Shore A To 90 Shore A
Working Pressure Rating: Use Confirmed Complete Union Assembly Rating And Service Limits Operating Temperature Range: Confirm Selected Compound Limits For Actual Medium And Exposure Duration
Service Environment: Specify Gas And Fluid Conditions; Sour Service Requires Application-specific Qualification Media Compatibility: Confirm Exact Compound Against Fluid Identity, Concentration And Temperature
Seal Design Type: Lip Seal, O-ring Style Abrasion Resistance: Excellent, High
MOQ: 200pcs Delivery Time: 7-15 Days
Highlight:

6000 PSI to 15000 PSI Hammer Union Seal

,

NBR HNBR FKM PTFE Lip Seal

,

Fig 602 1002 1502 Hammer Union Lip Seal

For drilling and well-service replacement, identify the union and removed seal before selecting material. Record groove condition, fluid additives, pressure cycles and any observed extrusion or wear. Compare the profile and support construction against the equipment specification before return to service.

Hammer Union Seals for Drilling and Well Service Applications



Product Introduction

Our high-performance Hammer Union Seals are specifically engineered to withstand the rigorous demands of global drilling and well service operations. These seals, also known as lip seals, provide a critical high-pressure barrier in hammer union connections, ensuring leak-free performance during fluid transfer. Designed for compatibility with standard industry figures, our seals are the preferred choice for service companies requiring reliability in manifolds, flowlines, and high-pressure pumping equipment.





Technical Specifications

Feature Details
Compatible Figures Fig 602, Fig 1002, Fig 1502, Fig 2202, Fig 206
Available Sizes 1", 2", 3", 4"
Working Pressure Determined by the complete union assembly rating and service conditions
Design Type Pressure-Energized Lip Seal
Reinforcement Optional Brass or Stainless Steel Anti-Extrusion Rings
Hardness Confirm hardness and tolerance for the specified compound and construction





Material Selection & Performance Comparison

Choosing the correct elastomer is vital for the safety and efficiency of well service applications. We provide specialized materials to suit diverse downhole and surface conditions:

  • NBR (Nitrile / Buna-N):

    • Application: Standard drilling mud, water transfer, and general oil service.

    • Temperature Range: Confirm selected compound limits for the actual medium and duration.

    • Benefits: Highly cost-effective with excellent abrasion resistance.

    •
    •
    •
    •
    •
    •
    •
  • HNBR (Hydrogenated Nitrile):

    • Application: Crude-oil or gas enquiries require actual fluid conditions; H2S use needs exact-compound qualification.

    • Temperature Range: Confirm selected compound limits for the actual medium and duration.

    • Benefits: Superior mechanical strength and high-temperature resilience compared to standard NBR.

    •
    •
    •
    •
    •
    •
    •
  • FKM (Fluorocarbon ):

    • Application: High-temperature well services and aggressive chemical processing.

    • Temperature Range: Confirm selected compound limits for the actual medium and duration.

    • Benefits: Review the specific FKM formulation for acid identity, concentration, aromatic content, temperature and exposure duration.

    •
    •
    •
    •
    •
    •
    •
  • PTFE :

    • Application: Extreme chemical exposure and specialized backup ring designs.

    • Benefits: Confirm PTFE grade, actual chemical conditions, construction and creep requirements.

    •
    •
    •
    •
    •
    •
    •
  •
  •
  •
  •
  •
  •
  •



Pressure Ratings by Connection Figure

The figures below identify equipment-class enquiries. Confirm the complete assembly rating, temperature limits and replacement drawing; seal dimensions alone do not establish pressure capacity:

  • Fig 602 Seals: Designed for pressures up to 6,000 PSI.

  • Fig 1002 Seals: Designed for pressures up to 10,000 PSI.

  • Fig 1502 Seals: Heavy-duty design for high-pressure service up to 15,000 PSI.

  •
  •
  •
  •
  •
  •
  •





Key Features & Advantages

  • Pressure-Energized Design: The lip seal geometry utilizes internal line pressure to increase sealing force against the union wall.

  • Anti-Extrusion Reinforcement: For high-pressure variants (Fig 1502), we offer seals with integrated metal rings to prevent the rubber from "washing out" under extreme flow.

  • Universal Compatibility: Confirm the union manufacturer, figure, nominal size and actual groove profile. Universal interchangeability is not implied.

  • Abrasion & Erosion Resistance: Specially formulated to resist the erosive nature of sand-laden fracking fluids and drilling mud.

  •
  •
  •
  •
  •
  •
  •





Application Scope

Our hammer union seals are essential for a wide range of Drilling and Well Service activities:

  • Hydraulic Fracturing: High-pressure pumping and fluid manifolds.

  • Cementing & Acidizing: Secure connections for stimulation chemicals and cement slurries.

  • Well Completion: Flowline connections and temporary piping systems.

  • Drilling Operations: Suction and discharge lines for mud pumps and standpipes.

  • Flowback Services: Safe containment of fluids during well cleanup.

  •
  •
  •
  •
  •
  •
  •





Quality Assurance & Ordering

Agree critical dimensions, compound, hardness, inspection sampling and documentation for each order. Provide the removed-seal profile or drawing revision and identify any brass or stainless steel support ring separately.

When ordering, please specify:

  1. Connection Figure Number (e.g., Fig 1502)

  2. Nominal Pipe Size (e.g., 3 Inch)

  3. Material Requirement (NBR, HNBR, or FKM)

  4. Ring Option (None, Brass, or Stainless Steel)

  5.
  6.
  7.
  8.
  9.
  10.
  11.
