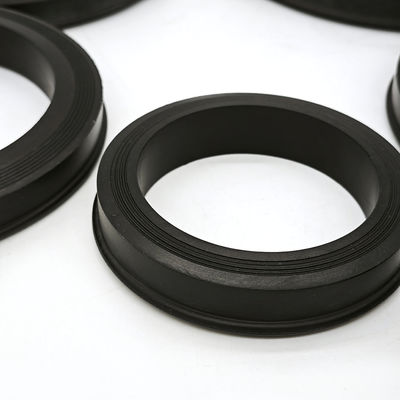

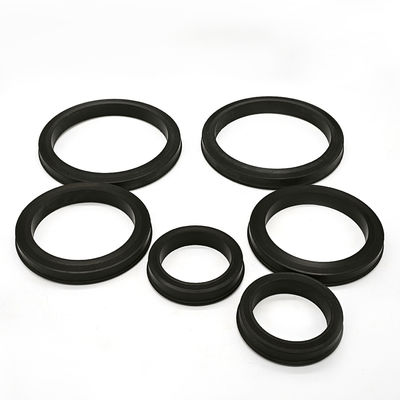

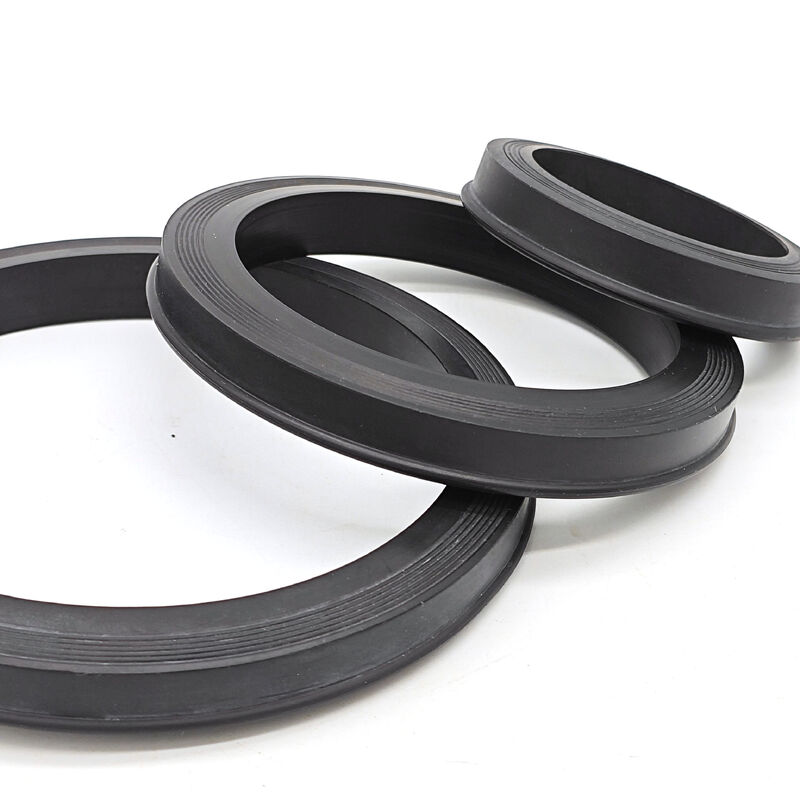

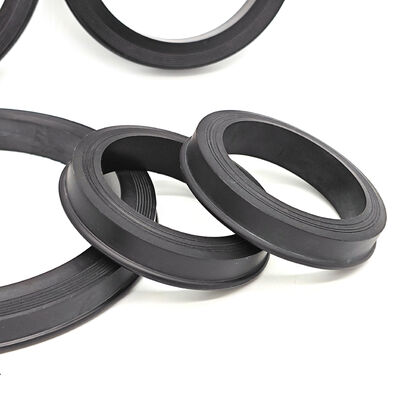

Chemical Resistant Hammer Union Seals for Harsh Environments

Product Overview

---

Our Chemical Resistant Hammer Union Seals are specifically engineered to maintain a secure, leak-proof connection in the most aggressive fluid-handling environments. Designed for high-pressure pipelines, these seals (also known as lip seals) are critical for operations involving corrosive chemicals, acidizing fluids, and sour gas (H2S). Whether in the oilfield or industrial chemical processing, our seals provide the durability and resilience needed to prevent hazardous leaks and minimize downtime.

Key Features & Benefits

---

• Superior Chemical Compatibility: Optimized to resist degradation from acids, salts, hydrocarbons, and stimulation fluids.

• High-Pressure Performance: Precision-molded to fit standard Figure 602, 1002, and 1502 unions, ensuring a tight seal up to 15,000 PSI.

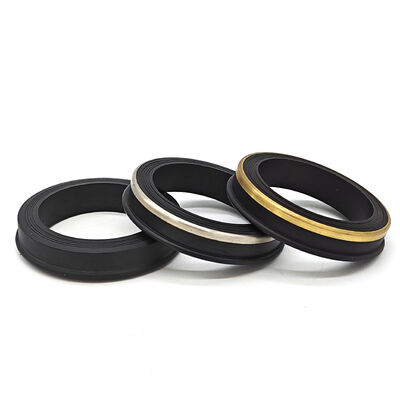

• Anti-Extrusion Technology: Available with stainless steel or brass reinforcement rings to prevent seal "wash-out" under high flow rates.

• Zero Leakage Design: The pressure-energized lip geometry ensures a tighter seal as internal pressure increases.

Material Selection Guide for Harsh Environments

---

In chemically aggressive applications, choosing the right elastomer is vital. We offer high-performance materials tailored to your specific media:

1. FKM (Fluorocarbon )

• Best For: High-temperature chemical processing and exposure to aggressive acids or aromatic hydrocarbons.

• Temperature Range: -20°C to +200°C (-4°F to +392°F).

• Advantage: Exceptional stability in hot, corrosive environments where other rubbers fail.

2. HNBR (Hydrogenated Nitrile)

• Best For: Sour gas (H2S) service, crude oil, and drilling muds.

• Temperature Range: -40°C to +150°C (-40°F to +302°F).

• Advantage: Excellent mechanical strength combined with heat and chemical resistance.

3. NBR (Nitrile / Buna-N)

• Best For: General oil and water service with moderate chemical exposure.

• Temperature Range: -30°C to +100°C (-22°F to +212°F).

• Advantage: Highly abrasion-resistant and cost-effective for standard operations.

4. PTFE (Polytetrafluoroethylene)

• Best For: Extreme chemical compatibility (near-universal resistance).

• Advantage: Often used as backup rings to provide a secondary barrier against chemical attack and extrusion.

Technical Specifications

---

Application Scope

---

Our chemical resistant seals are widely used across sectors requiring robust pipeline connections:

• Well Stimulation & Acidizing: Handling corrosive chemicals used to increase well productivity.

• Oil & Gas Exploration: Reliable sealing for manifolds, flowlines, and wellhead connections.

• Chemical Manufacturing: Safe transfer of aggressive industrial fluids and solvents.

• Hydraulic Fracturing (Fracking): Resistance to the erosive and chemical effects of fracking fluids.

• Industrial Mining: Durable sealing for slurry and acidic wastewater transport.

Why Choose Our Sealing Solutions?

---

1. Factory Direct Quality: Each batch is tested for dimensional accuracy and chemical resilience.

2. Universal Compatibility: Our seals follow industry-standard "Figure" dimensions, ensuring they fit all standard-compliant hammer unions globally.

3. Fast Global Shipping: We maintain a large inventory of standard sizes (2", 3", 4") for immediate dispatch.

4. Custom Engineering: We can customize material formulations based on your specific temperature and chemical exposure profile.

Ordering Information

---

To provide an accurate quote, please specify:

1. Figure Number (e.g., Fig 1502)

2. Pipe Diameter (e.g., 3 Inch)

3. Elastomer Material (e.g., FKM for high chemical resistance)

4. Quantity and Reinforcement Preference (With or without metal ring)
