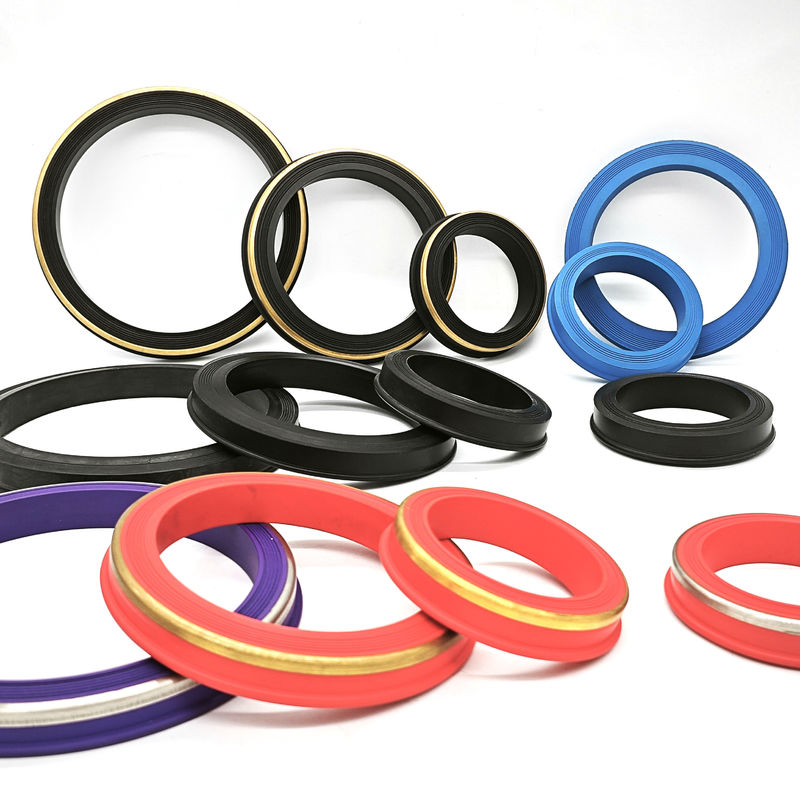

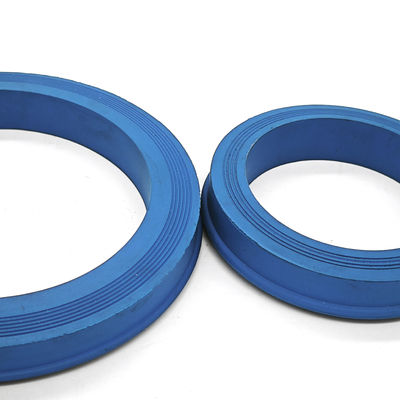

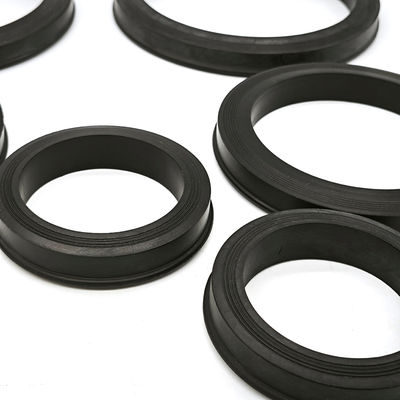

High-Pressure 20,000 PSI Hammer Union Seal with Corrosion Resistant NBR HNBR FKM PTFE Materials and Customizable Sizes

High-Pressure 20,000 PSI Hammer Union Seal with Corrosion Resistant NBR HNBR FKM PTFE Materials and Customizable Sizes

Product Details:
Place of Origin: Shanghai, China
Brand Name: Royal Way/SHQN
Certification: ISO 9001 certificate
Model Number: Fig 1502
Payment & Shipping Terms:
Minimum Order Quantity: 200PCS
Price: USD$0.2/pc to $4/pc according to size and rubber material
Packaging Details: 40*40*20cm carton packing
Delivery Time: 7-15days according to the quantity of order
Payment Terms: T/T, Western Union, Paypal,Bank transfer
Supply Ability: 50000pcs per week
Contact Now
Detailed Product Description
Material: NBR, Nitrile, Buna-N, HNBR, FKM, PTFE, PU Color: Black Or Customized Color
Size: 1" 2" 3" 4'', Accept Custom Sizes Compatible Figure Series: Fig 602, Fig 1002, Fig 1502, Fig 2002
Hardness / Durometer: Specify Compound Hardness And Tolerance With The Order Working Pressure Rating: Complete Union Assembly Rating; Confirm Service Conditions
Service Environment: Specify H2S / CO2 Content And Required Compound Qualification Operating Temperature Range: Compound And Fluid Dependent; Confirm Continuous And Peak Temperature
Media Compatibility: Review Actual Fluid Formulation, Concentration And Temperature Seal Design Type: Lip Seal, O-ring Style
Insert Material: Stainless Steel, Brass Manufacturing Process: Compression Molding
Highlight:

High-Pressure 20

,

000 PSI Hammer Union Seal

,

Corrosion Resistant Hammer Union Gasket

,

Customizable Sizes Hammer Union Ring

Replacement NBR HNBR FKM PTFE Hammer Union Seals for High-Pressure Manifolds



Product Overview


Replacement hammer union seals for manifold and flowline connections are selected by installed profile, compound and reinforcement. This listing covers NBR, HNBR, FKM and PTFE-related options. For a material change on an existing manifold, retain the approved connection dimensions and review the new compound against actual fluid, temperature and pressure cycling before ordering.







Application Scope








  1. High-Pressure Manifolds: Ensuring secure connections in choke and kill manifolds.

  2. Hydraulic Fracturing: Handling high-velocity fracking fluids and proppants.

  3. Acidizing and Cementing: Review actual chemical concentration and slurry exposure for the connection seal.

  4. Drilling Mud Systems: Sealing suction and discharge lines on mud pumps.

  5. Flowline Connections: Connecting pipes for water, oil, and gas transfer in both onshore and offshore environments.

  6.
  7.
  8.



Material Comparison and Performance



The performance of a hammer union seal is largely determined by its elastomer compound. We offer several material options to suit different environmental conditions:



NBR (Nitrile Rubber)
An option for compatible oil, water and hydraulic-fluid formulations. Confirm additives, solids and operating temperature for the selected NBR compound.
Temperature: Confirm continuous and peak limits for the selected NBR compound.

HNBR (Hydrogenated Nitrile)
Consider the selected HNBR compound where different thermal or mechanical properties are required. H2S and CO2 service need gas composition, pressure, decompression conditions and applicable qualification data.
Temperature: Confirm continuous and peak limits for the selected HNBR compound.

FKM (Fluorocarbon)
Select the FKM grade against fluid identity, acid concentration and exposure temperature. Steam compatibility requires grade-specific review and must not be assumed from the polymer name.
Temperature: Confirm the selected FKM grade against fluid and exposure duration.

PTFE (Polytetrafluoroethylene)
Confirm whether the PTFE option is a solid seal, envelope construction or separate support component. The complete construction, including any elastomer core, determines suitability.
Temperature: Confirm the complete PTFE-containing construction, including any core or reinforcement.



Working Pressure and Technical Parameters



The following figure classes are identification references; verify working pressure from the complete union assembly rating and service conditions:
Figure 602: Identify the installed connection and verify its manufacturer rating.
Figure 1002: Match manufacturer, nominal size and groove profile.
Figure 1502: Confirm assembly rating, support construction and service classification.
Figure 2202: Confirm the exact connection drawing and any required sour-service qualification.



Available Sizes: 1 inch, 2 inch, 3 inch, 4 inch.
Hardness: Specify compound hardness and tolerance with the order; review extrusion clearance and reinforcement together.

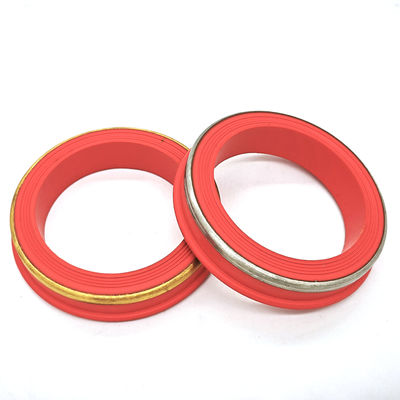

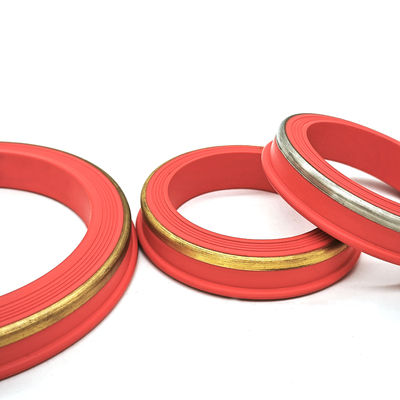

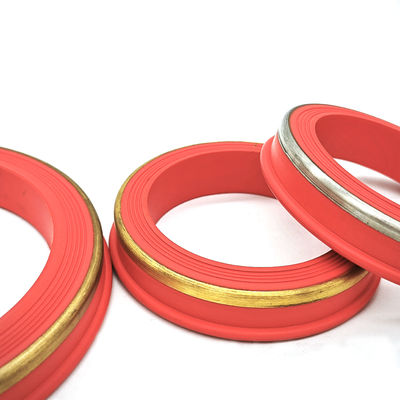

Reinforcement: High-pressure variants (especially Fig 1502) are available with brass or stainless steel anti-extrusion rings for enhanced durability.



Key Features



1. Lip Profile: Match the installed groove and pressure direction; sealing performance depends on the full connection design and assembly.
2. Reinforcement: Brass or stainless steel rings provide support in specified constructions. Confirm ring dimensions and operating clearance; a ring alone does not establish a pressure rating.
3. Replacement Fit: Verify manufacturer, figure, nominal size and seal profile. Do not assume interchangeability between union manufacturers.
4. Fluid Review: Include hydrocarbons, salts, cleaning chemicals and solids exposure when selecting the compound.





Why Choose Our Seals



Our ISO 9001 quality management system supports manufacturing and order control. Agree dimensions, compound, hardness and inspection requirements with the purchase order. Application-specific testing and documentation should be requested for the selected configuration.





Ordering Information



To ensure the correct fit for your manifold system, please specify:
The Figure Number (e.g., Fig 1502 or Fig 1002).
The Pipe Size (e.g., 2 inch or 3 inch).
The Required Material (NBR, HNBR, or FKM).
Whether a metal reinforcement ring is required.



Contact us today for a technical consultation or to receive a quote for your bulk replacement needs.

Changing the Compound on an Existing Manifold

Include the current compound designation, replacement reason, approved drawing revision and fluid changes with the inquiry. Identify continuous exposure, flushing chemicals and shutdown conditions separately. Keep the original lip and reinforcement configuration unless a revised design is approved. A polymer change does not by itself increase assembly pressure or qualify the connection for sour gas.
