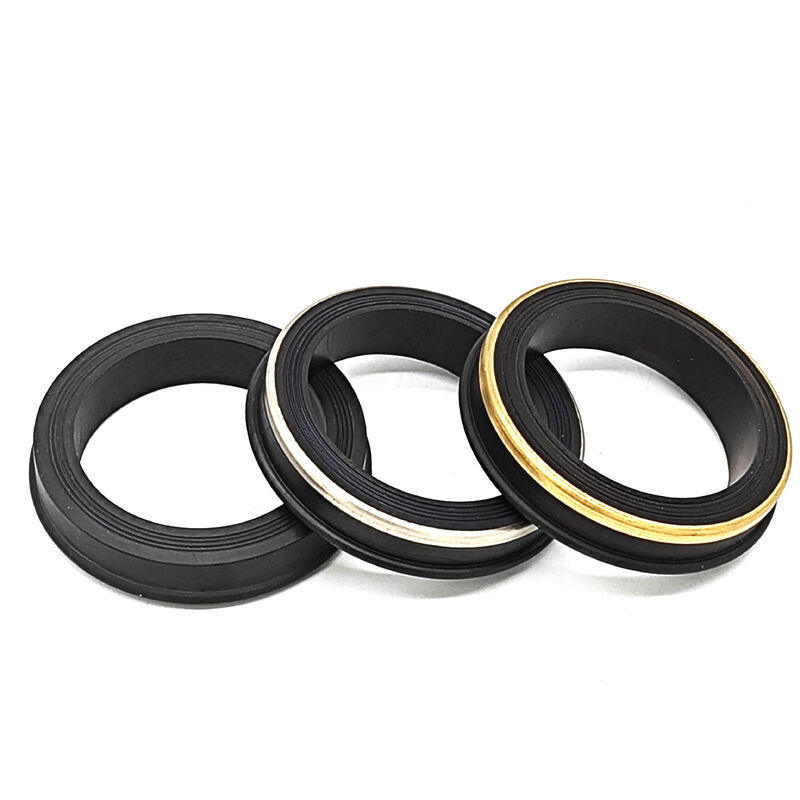

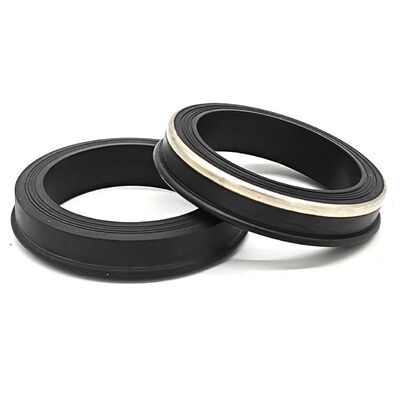

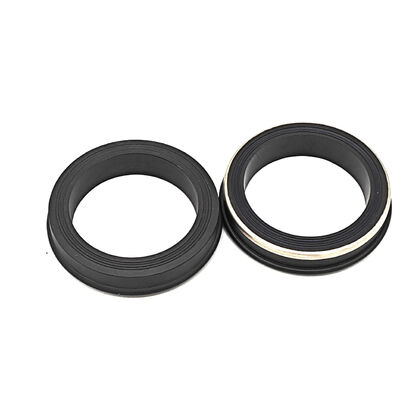

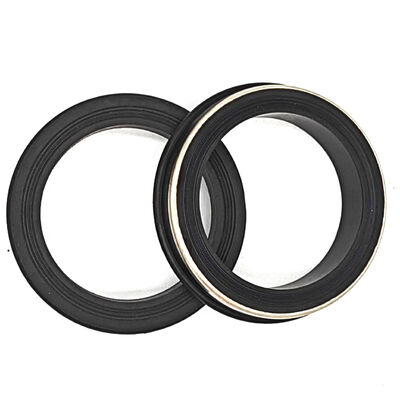

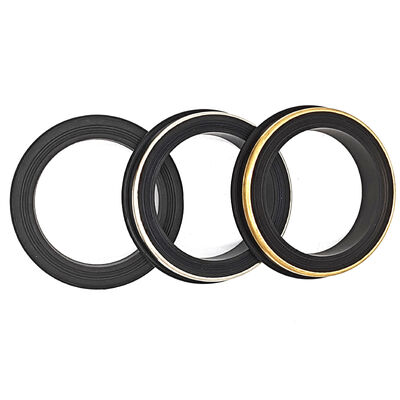

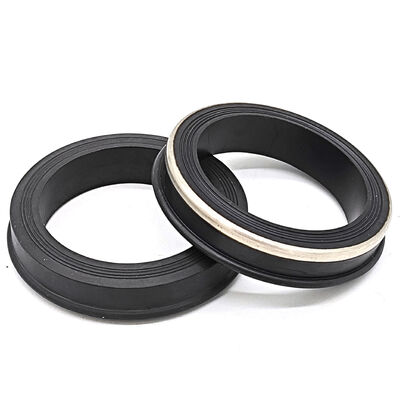

High-Pressure 20,000 PSI Hammer Union Seal and Gasket for Sour Service (H2S) with PTFE Material

High-Pressure 20,000 PSI Hammer Union Seal and Gasket for Sour Service (H2S) with PTFE Material

Product Details:
Place of Origin: Shanghai, China
Brand Name: Royal Way/SHQN
Certification: ISO 9001 certificate
Model Number: Fig 1502
Payment & Shipping Terms:
Minimum Order Quantity: 200PCS
Price: USD$0.2/pc to $4/pc according to size and rubber material
Packaging Details: 40*40*20cm carton packing
Delivery Time: 7-15days according to the quantity of order
Payment Terms: T/T, Western Union, Paypal,Bank transfer
Supply Ability: 50000pcs per week
Contact Now
Detailed Product Description
Material: NBR, Nitrile, Buna-N, HNBR, FKM, PTFE, PU Color: Black Or Customized Color
Size: 1" 2" 3" 4'', Accept Custom Sizes Compatible Figure Series: Specify Installed Figure And Manufacturer; Confirm Drawing
Hardness / Durometer: Specify Compound Hardness And Tolerance With The Order Working Pressure Rating: Complete Union Assembly Rating; Confirm Service Conditions
Service Environment: Specify H2S / CO2 Content And Required Compound Qualification Operating Temperature Range: Compound And Fluid Dependent; Confirm Continuous And Peak Temperature
Media Compatibility: Review Actual Fluid Formulation, Concentration And Temperature Seal Design Type: Lip Seal, O-ring Style
Insert Material: Stainless Steel, Brass Manufacturing Process: Compression Molding
Highlight:

20

,

000 PSI Hammer Union Seal

,

Sour Service Hammer Union Gasket

,

PTFE Material Lip Seal

High-Pressure Hammer Union Gaskets and Seals - Factory Direct

Product Overview



Our hammer union gaskets and lip seals are replacement components for specified flowline and manifold connections. For a factory-direct order, identify the installed union manufacturer, figure and nominal size, and supply the approved seal drawing or sample. The gasket profile, compound and reinforcement must match the connection; the general product name does not establish pressure rating or interchangeability.



High-Pressure 20,000 PSI Hammer Union Seal and Gasket for Sour Service (H2S) with PTFE MaterialHigh-Pressure 20,000 PSI Hammer Union Seal and Gasket for Sour Service (H2S) with PTFE MaterialHigh-Pressure 20,000 PSI Hammer Union Seal and Gasket for Sour Service (H2S) with PTFE Material

Material Selection and Temperature Ranges



We provide a variety of elastomer compounds to match your specific chemical and thermal requirements. Review the actual fluid, operating temperature and pressure cycles when selecting the compound.



  1. NBR (Nitrile Rubber)
    Best for: General purpose water, oil, and hydraulic fluid service.
    Temperature: Confirm continuous and peak limits for the selected NBR compound.
    Characteristics: High abrasion resistance and excellent sealing properties for standard operations.

  2. HNBR (Hydrogenated Nitrile)
    Selection: Review the selected HNBR compound against oilfield fluids. H2S and CO2 service require gas composition and compound-specific qualification.
    Temperature: Confirm continuous and peak limits for the selected HNBR compound.
    Characteristics: Superior mechanical strength and enhanced thermal stability compared to standard NBR.

  3. FKM (Fluorocarbon)
    Best for: High-temperature applications and exposure to aggressive chemicals or acids.
    Temperature: Confirm the selected FKM grade against fluid and exposure duration.
    Characteristics: Exceptional resistance to heat and a wide range of industrial chemicals.

  4. PTFE (Polytetrafluoroethylene)
    Best for: Specialized chemical compatibility and extreme temperature scenarios.
    Temperature: Confirm the complete PTFE-related construction, including any elastomer core.
    Construction: Specify solid PTFE, envelope or support-ring form and review the actual chemical conditions.



  5.
  6.
  7.

Working Pressure and Figure Compatibility



Figure and nominal size identify the connection. Verify pressure rating, service classification and temperature derating from the complete union assembly and equipment manufacturer. Match the seal profile to the actual groove.



  • Figure 602: Confirm installed connection markings and manufacturer rating.

  • Figure 1002: Confirm seal profile, nominal size and assembly rating.

  • Figure 1502: Confirm reinforcement and complete assembly service limits.

  • Figure 2202: Confirm the drawing and any required sour-service qualification.



  •
  •
  •

Key Features




  • Precision Lip Design: The lip geometry is optimized to utilize internal pressure to enhance the sealing force against the union wall.

  • Anti-Extrusion Rings: Brass or stainless steel reinforcement is available for specified profiles. Match ring dimensions and material to the operating clearance and fluid.

  • Factory Direct Quality: Manufactured under our ISO 9001 quality management system. Agree compound, drawing revision and inspection requirements with the order.

  • Replacement Fit: Confirm manufacturer, figure, nominal size and groove profile rather than assuming universal interchangeability.

  •
  •
  •



Application Scope



These seals are utilized across a broad spectrum of heavy-duty industries:



  • Hydraulic Fracturing (Fracking): Maintaining seals during high-pressure sand and fluid pumping.

  • Well Cementing and Acidizing: Resisting corrosive stimulation fluids.

  • Oil and Gas Drilling: Essential for mud pumps, standpipes, and flowline connections.

  • Mining and Industrial: High-pressure slurry transfer and large-scale water management.

  • Marine and Offshore: Review the actual hammer union connection and environmental requirements; subsea suitability requires equipment-specific qualification.

  •
  •
  •



Technical Parameters




  • Available Sizes: 1 inch, 2 inch, 3 inch, 4 inch, 5 inch, 6 inch.

  • Hardness: Specify selected elastomer hardness and tolerance with the order.

  • Media Compatibility: Review actual oil, water, mud, acid or solvent formulations; gas service requires separate qualification.

  • Reinforcement: Optional brass or stainless steel rings, subject to the approved profile and fluid review.

  •
  •
  •



Ordering Information



As a factory-direct supplier, we can accommodate bulk orders and custom material formulations. When ordering, please specify the union figure number (e.g., Fig 1502), the nominal pipe size (e.g., 3 inch), and the preferred elastomer material (NBR, HNBR, or FKM).





Contact us for competitive pricing and technical support on high-performance hammer union sealing solutions.

Factory-Direct Gasket Order Details

Include the equipment drawing revision, removed seal dimensions, union markings and required pack quantity. State whether the replacement is a lip seal or another gasket profile and identify the metal reinforcement. For custom sizes, confirm the mating groove and tolerances before manufacture. Specify labeling and inspection documentation so each supplied pack can be matched to its intended connection during maintenance.
