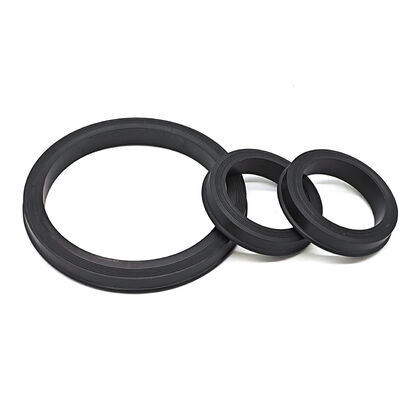

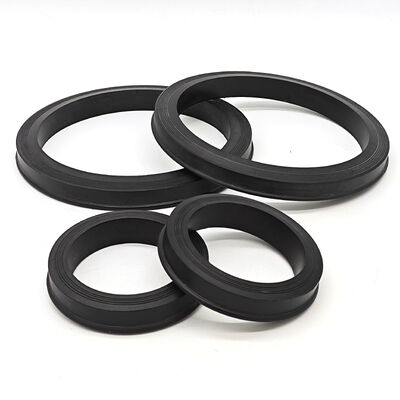

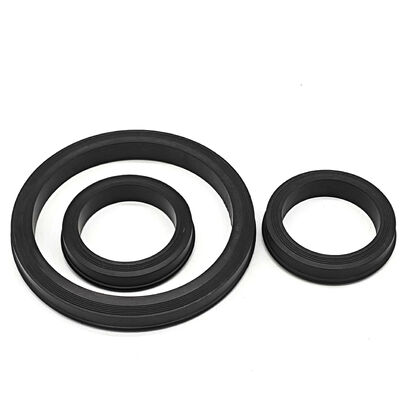

High Pressure Resistance Hammer Union Lip Seal with Multiple Sizes and Chemical Resilience

High Pressure Resistance Hammer Union Lip Seal with Multiple Sizes and Chemical Resilience

Product Details:
Place of Origin: Shanghai, China
Brand Name: Royal Way/SHQN
Certification: ISO 9001 certificate
Model Number: Fig 1502
Payment & Shipping Terms:
Minimum Order Quantity: 200PCS
Price: USD$0.2/pc to $4/pc according to size and rubber material
Packaging Details: 40*40*20cm carton packing
Delivery Time: 7-15days according to the quantity of order
Payment Terms: T/T, Western Union, Paypal,Bank transfer
Supply Ability: 50000pcs per week
Contact Now
Detailed Product Description
Material: NBR, Nitrile, Buna-N, HNBR, FKM, PTFE, PU Color: Black Or Customized Color
Size: 1" 2" 3" 4'', Accept Custom Sizes Compatible Figure Series: Specify Installed Figure And Manufacturer; Confirm Drawing
Hardness / Durometer: Specify Compound Hardness And Tolerance With The Order Working Pressure Rating: Complete Union Assembly Rating; Confirm Service Conditions
Service Environment: Specify H2S / CO2 Content And Required Compound Qualification Operating Temperature Range: Compound And Fluid Dependent; Confirm Continuous And Peak Temperature
Media Compatibility: Review Actual Fluid Formulation, Concentration And Temperature Seal Design Type: Lip Seal, O-ring Style
Insert Material: Stainless Steel, Brass Manufacturing Process: Compression Molding
Highlight:

High Pressure Resistance Hammer Union Lip Seal

,

Multiple Sizes Hammer Union Seal

,

Chemical Resilience Lip Seal

Heavy Duty Hammer Union Lip Seals: Multiple Sizes Available

Product Description



Heavy duty hammer union lip seals are replacement components for specified flowline and manifold connections. Match the lip profile, compound and reinforcement to the installed union. For maintenance orders covering multiple pipe sizes, identify each configuration separately rather than choosing by nominal diameter alone.





Technical Specifications and Compatibility



Figure 602, 1002 and 1502 are connection identifiers. Confirm the union manufacturer, nominal size, groove and approved drawing before ordering. Listed sizes include 1 inch, 2 inch, 3 inch and 4 inch; any 7 inch or other custom configuration requires drawing and fit confirmation.





Working Pressure Ratings



Pressure rating belongs to the complete union assembly. Confirm equipment manufacturer limits, service classification and temperature derating; the replacement seal alone does not establish the working pressure.




Figure 602 connections: Confirm manufacturer rating and installed profile
Figure 1002 connections: Confirm nominal size and assembly rating
Figure 1502 connections: Confirm reinforcement and service limits
Figure 2002 connections: Confirm the exact connection drawing and service classification



Material Selection and Temperature Ranges



Choosing the right material is critical for chemical compatibility and thermal endurance. We offer four primary material grades:



NBR (Nitrile Rubber): Ideal for general water, oil, and mud service.
Operating Temperature: Confirm continuous and peak limits for the selected NBR compound.

HNBR (Hydrogenated Nitrile): Review the selected compound against oilfield fluids; H2S service requires gas composition, decompression conditions and compound qualification.
Operating Temperature: Confirm continuous and peak limits for the selected HNBR compound.

FKM (Fluorocarbon): Best for high-temperature applications and aggressive chemical processing.
Operating Temperature: Confirm the selected FKM grade against the fluid and exposure duration.

PTFE (Polytetrafluoroethylene): Often used as a backup ring or in extreme chemical environments where elastomers may fail.
Operating Temperature: Confirm the complete PTFE-related construction, including any core or support material.



Key Features and Benefits



Precision Lip Design: The geometry of the lip seal ensures that internal fluid pressure actually helps to energize the seal, creating a tighter bond as pressure increases.
Metal Reinforcement Options: Brass or stainless steel rings are available for specified profiles. Review support dimensions, material compatibility and operating clearance.
Abrasion Resistance: Our elastomer compounds are specifically formulated to resist the wear and tear caused by abrasive drilling mud and fracking fluids.
Chemical Resilience: Review actual hydrocarbons, salts and stimulation chemicals for the selected compound.





Primary Application Scope



These heavy duty seals are widely used in the following sectors:
Hydraulic Fracturing (Fracking): Handling high-pressure fluids during well stimulation.
Acidizing and Cementing: Connection-seal selection for the specified chemicals, temperature and slurry exposure.
Oil and Gas Drilling: Used in mud pumps, standpipes, and manifold systems.
Industrial Fluid Transfer: Managing high-pressure water and chemical transport in mining and manufacturing.
Offshore Production: Reliable sealing for marine-based flowlines and production platforms.





Quality and Performance



Manufactured under our ISO 9001 quality management system. Agree drawing revision, compound, hardness and inspection requirements with the order. Verify replacement fit against the actual union; connection parts from different manufacturers must not be assumed interchangeable.





Ordering Guide



When requesting a quote, please specify the following information:



  1. Figure Number (e.g., Fig 1502)

  2. Pipe Size (e.g., 3 Inch)

  3. Material Preference (NBR, HNBR, or FKM)

  4. Reinforcement Requirement (With or without brass/stainless steel ring)

  5.
  6.
  7.
  8.
  9.
  10.
  11.



Contact our technical sales team today for more information on our heavy duty hammer union lip seals and to find the perfect sealing solution for your high-pressure pipeline connections.





Ordering Multiple Sizes for a Maintenance Kit

List each required seal by union manufacturer, figure, nominal pipe size, profile and reinforcement. Provide drawing revision or removed-part photographs with dimensions, and separate the quantity for each configuration. Keep different sizes and compounds in labeled packs. Include fluid formulation, pressure cycling and temperature so the supplied spare can be matched to the intended connection.
