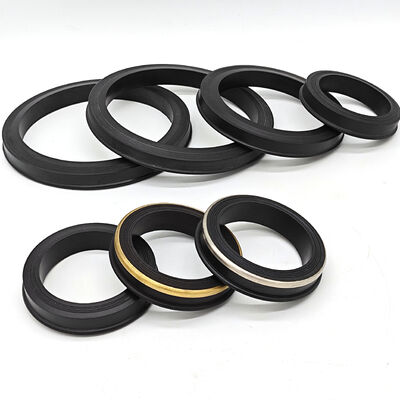

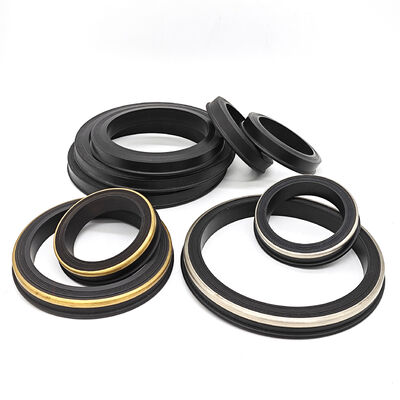

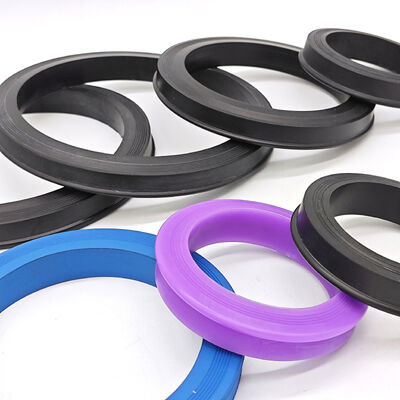

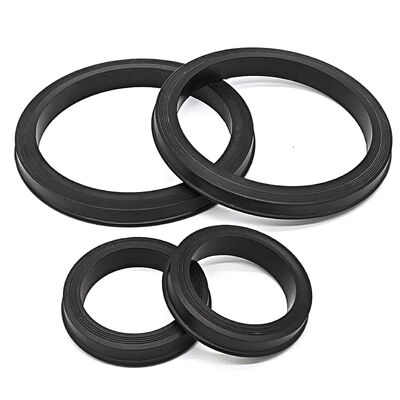

NBR Material Hammer Union Seal for 6000 PSI Applications in Fig 602 Connections

NBR Material Hammer Union Seal for 6000 PSI Applications in Fig 602 Connections

Product Details:
Place of Origin: Shanghai, China
Brand Name: Royal Way/SHQN
Certification: ISO 9001 certificate
Model Number: Fig 1502
Payment & Shipping Terms:
Minimum Order Quantity: 200PCS
Price: USD$0.2/pc to $4/pc according to size and rubber material
Packaging Details: 40*40*20cm carton packing
Delivery Time: 7-15days according to the quantity of order
Payment Terms: T/T, Western Union, Paypal,Bank transfer
Supply Ability: 50000pcs per week
Contact Now
Detailed Product Description
Material: NBR, Nitrile, Buna-N, HNBR, FKM, PTFE, PU Color: Black Or Customized Color
Size: 1" 2" 3" 4'', Accept Custom Sizes Compatible Figure Series: Specify Installed Figure And Manufacturer; Confirm Drawing
Hardness / Durometer: Specify Compound Hardness And Tolerance With The Order Working Pressure Rating: Complete Union Assembly Rating; Confirm Service Conditions
Service Environment: Specify H2S / CO2 Content And Required Compound Qualification Operating Temperature Range: Compound And Fluid Dependent; Confirm Continuous And Peak Temperature
Media Compatibility: Review Actual Fluid Formulation, Concentration And Temperature Seal Design Type: Lip Seal, O-ring Style
Insert Material: Stainless Steel, Brass Manufacturing Process: Compression Molding
Highlight:

NBR Material Hammer Union Seal

,

6000 PSI Hammer Union Seal

,

Fig 602 Lip Seal

Hammer Union Seals in NBR, HNBR, and FKM Materials

Product Overview

Hammer Union Seals (also known as lip seals) are replacement components for hammer union pipe connections. This page compares NBR, HNBR and FKM options for the specified profile. Match union manufacturer, figure, nominal size and reinforcement before selecting the compound for oil, water, mud or treatment-fluid exposure. Confirm installed Figure 602, 1002, and 1502 connections against the approved drawing or removed sample.

NBR Material Hammer Union Seal for 6000 PSI Applications in Fig 602 ConnectionsNBR Material Hammer Union Seal for 6000 PSI Applications in Fig 602 ConnectionsNBR Material Hammer Union Seal for 6000 PSI Applications in Fig 602 Connections



Material Comparison & Selection Guide

The performance of a hammer union seal depends heavily on its elastomer compound. We offer three primary materials to meet various operational needs:

1. NBR (Nitrile Rubber / Buna-N)

  • Best For: Compatible oil, water and hydraulic-fluid formulations, subject to compound and operating-condition review.

  • Key Feature: Excellent oil resistance and abrasion resistance at a cost-effective price.

  • Temperature Range: Confirm continuous and peak temperature for the selected NBR compound.

  •
  •
  •

2. HNBR (Hydrogenated Nitrile)

  • Best For: Oilfield service reviewed for the selected HNBR compound. H2S exposure requires gas composition, decompression conditions and qualification data.

  • Key Feature: Superior mechanical strength and better thermal stability than standard NBR.

  • Temperature Range: Confirm continuous and peak temperature for the selected HNBR compound.

  •
  •
  •

3. FKM (Fluorocarbon)

  • Best For: High-temperature pipelines and aggressive chemical processing.

  • Key Feature: Review the specific FKM grade against chemical identity, concentration, temperature and exposure duration.

  • Temperature Range: Confirm temperature limits for the selected FKM grade and fluid.



  •
  •
  •

Technical Parameters

Parameter Specification Details
Available Figures Fig 602, Fig 1002, Fig 1502, Fig 2202
Nominal Sizes 1", 2", 3", 4"
Working Pressure Confirm complete union assembly rating and service conditions
Material Hardness Specify compound hardness and tolerance with the order
Reinforcement Available with Brass or Stainless Steel Anti-Extrusion Rings
Media Review actual fluid and additives; gas and steam require grade-specific qualification





Key Advantages of Our Hammer Union Seals

  • Lip Profile and Assembly: Match the lip profile, groove and pressure direction. Verify leakage performance using the equipment assembly and test procedure.

  • Anti-Extrusion Technology: Specified profiles can include brass or stainless steel reinforcement. Confirm support dimensions and operating clearance rather than assigning a rating from the ring alone.

  • Replacement Compatibility: Confirm manufacturer, figure, nominal size and groove profile before treating a seal as a direct replacement.

  • Reduced Downtime: Choose the compound for the actual exposure and inspect the connection according to the equipment maintenance procedure.

  •
  •
  •



Application Scope



Our Hammer Union Seals are widely utilized in critical industrial sectors:

  • Oil & Gas Exploration: Wellhead connections, flowlines, and manifold systems.

  • Hydraulic Fracturing (Fracking): High-pressure pumping and fluid transfer.

  • Acidizing & Cementing: Handling corrosive stimulation fluids and cement slurries.

  • Industrial Pipelines: Safe connection points for chemical and water transport systems.

  • Offshore Drilling: Reliable sealing for marine-based drilling operations.

  •
  •
  •





Ordering Information

To ensure you receive the correct seal for your application, please provide the following details:

  1. Figure Number: (e.g., Fig 1502)

  2. Size: (e.g., 3 Inch)

  3. Material: (NBR, HNBR, or FKM)

  4. Option: With or without a metal (Brass/SS) reinforcement ring.

  5.
  6.
  7.



Why Choose Our Sealing Solutions?

As a professional manufacturer of rubber sealing components, we prioritize quality and reliability. Our Hammer Union Seals are manufactured under our ISO 9001 quality management system. Agree compound, drawing revision and inspection requirements with the order. Request any application-specific pressure, temperature or gas-service test documentation for the selected configuration. Confirm quantity and delivery requirements with the quotation.







Comparing NBR, HNBR and FKM for the Same Connection

Keep the installed seal profile and reinforcement fixed when comparing compound options. Provide the current material, fluid formulation, operating temperature and replacement reason, such as swelling, hardening or lip damage. Review the groove and mating surfaces as well as the removed seal; a different polymer cannot correct an incorrect profile or damaged connection. Specify required hardness and inspection documentation for the selected compound.
