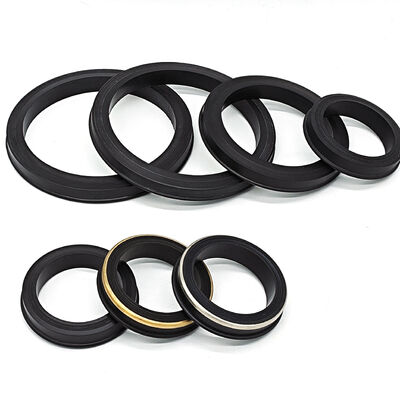

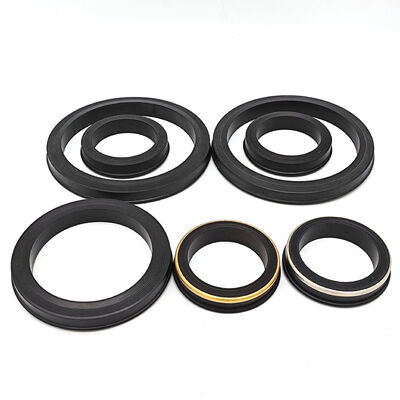

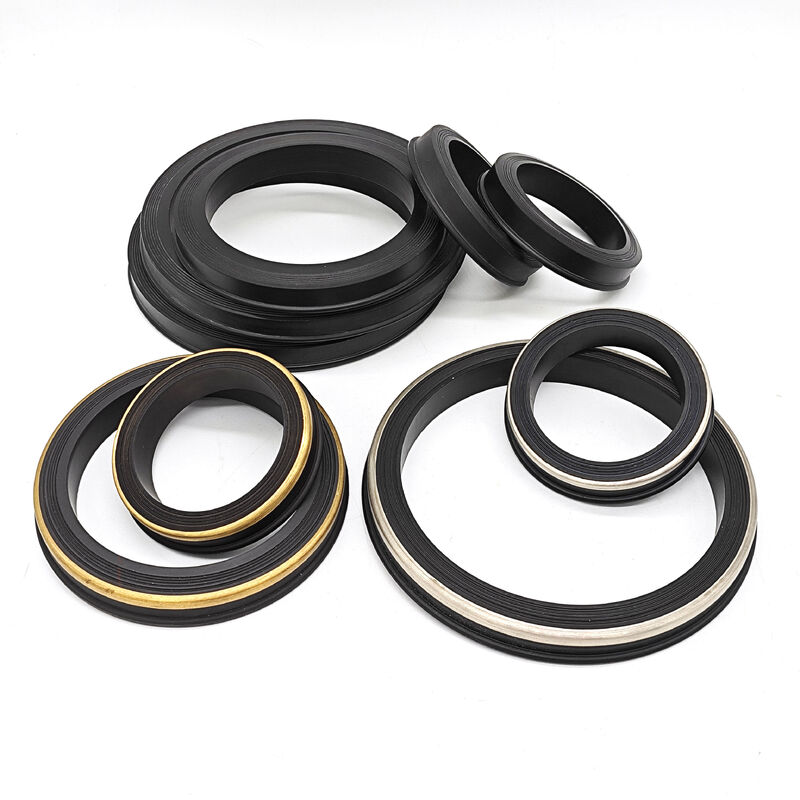

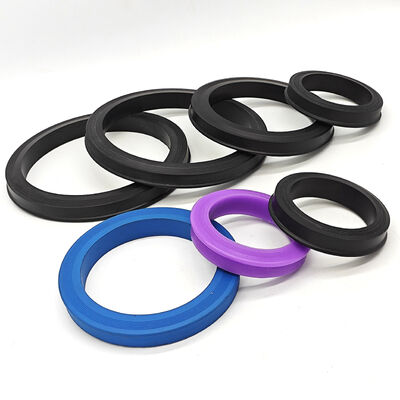

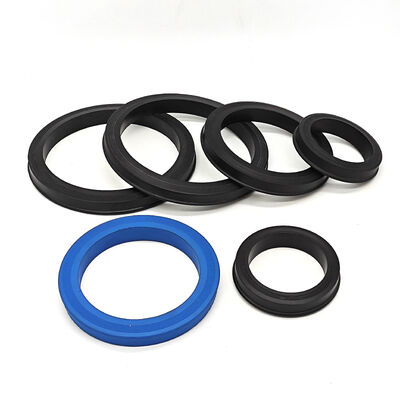

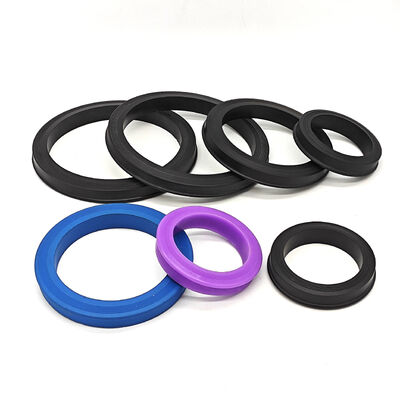

Standard Fig 602, 1002, 1502 Hammer Union Lip Seals with NBR HNBR FKM PTFE Materials for 6000-15000 PSI Applications

Standard Fig 602, 1002, 1502 Hammer Union Lip Seals with NBR HNBR FKM PTFE Materials for 6000-15000 PSI Applications

Product Details:
Place of Origin: Shanghai, China
Brand Name: Royal Way
Certification: ISO 9001 certificate
Model Number: Fig 1502
Document: Hammer Union Seal TDS.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 200PCS
Price: USD$0.2/pc to $4/pc according to size and rubber material
Packaging Details: 40*40*20cm carton packing
Delivery Time: 7-15days according to the quantity of order
Payment Terms: T/T, Western Union, Paypal,Bank transfer
Supply Ability: 50000pcs per week
Contact Now
Detailed Product Description
Name: Hammer Union Seal/ Hammer Union Lip Seal Ring Material: NBR HNBR FKM PTFE
Size: 1" 2" 3" 4'', Accept Custom Sizes Color: Black Or Customized Color
Hardness: Specify Compound Hardness And Tolerance With The Order Compatible Figure Series: Fig 602, Fig 1002, Fig 1502, Fig 2002
Working Pressure Rating: Complete Union Assembly Rating; Confirm Service Conditions Operating Temperature Range: Compound And Fluid Dependent; Confirm Continuous And Peak Temperature
Service Environment: Specify H2S / CO2 Content And Required Compound Qualification Media Compatibility: Review Actual Fluid Formulation, Concentration And Temperature
Seal Design Type: Lip Seal, O-ring Style, With Metal Back-up Ring Compression Set: Specify Compound Test Method And Conditions Where Required
Abrasion Resistance: Review Proppant Exposure And Inspection Requirements Manufacturing Process: Compression Molding
Highlight:

Fig 602 Hammer Union Seal

,

NBR HNBR FKM PTFE Weco Seal

,

6000-15000 PSI Hammer Union Lip Seal

Standard Fig 602, 1002, 1502 Hammer Union Seals for Sale NBR HNBR FKM PTFE



Product Introduction

High-performance Hammer Union Seals (also known as lip seals) are replacement components for specified hammer union pipe connections. Identify the union manufacturer, figure and nominal size, then match the seal profile to the approved drawing or sample. Figure 602, 1002 and 1502 are connection identifiers; the figure number alone does not confirm interchangeability or the rating of a loose seal.

Standard Fig 602, 1002, 1502 Hammer Union Lip Seals with NBR HNBR FKM PTFE Materials for 6000-15000 PSI ApplicationsStandard Fig 602, 1002, 1502 Hammer Union Lip Seals with NBR HNBR FKM PTFE Materials for 6000-15000 PSI ApplicationsStandard Fig 602, 1002, 1502 Hammer Union Lip Seals with NBR HNBR FKM PTFE Materials for 6000-15000 PSI Applications



Technical Specifications

Specification Details
Available Figures Fig 602, Fig 1002, Fig 1502, Fig 2002, Fig 206
Nominal Sizes 1", 2", 3", 4"
Pressure Ratings Confirm the complete union assembly rating and service conditions
Material Options NBR, HNBR, FKM (Fluorocarbon), PTFE
Insert Reinforcement Available with Brass or Stainless Steel rings
Standard Compliance Confirm manufacturer, figure, groove dimensions and approved seal profile





Material Performance Comparison

Selecting the correct elastomer is vital for the longevity of your hammer union seal. Below is a comparison based on working environments:

  • NBR (Nitrile / Buna-N):

    • Application: General purpose water, oil, and mud service.

    • Temperature Range: Confirm continuous and peak temperature for the selected NBR compound.

    • Pros: Cost-effective, excellent abrasion resistance.

    •
    •
    •
  • HNBR (Hydrogenated Nitrile):

    • Application: Oilfield fluids reviewed for the selected HNBR compound; specify sour-gas qualification requirements separately.

    • Temperature Range: Confirm continuous and peak temperature for the selected HNBR compound.

    • Pros: Review compound-specific mechanical, heat and gas-decompression data.

    •
    •
    •
  • FKM (Fluorocarbon ):

    • Application: High-temperature chemical processing and aggressive fluids.

    • Temperature Range: Confirm the selected FKM grade against fluid and exposure duration.

    • Pros: Exceptional chemical stability and heat resistance.

    •
    •
    •
  • PTFE :

    • Application: PTFE-containing configurations reviewed against the drawing, actual fluid and temperature.

    • Pros: Confirm solid PTFE, envelope or support-ring construction and the limits of any core or reinforcement.

    •
    •
    •
  •
  •
  •





Working Pressure by Figure Number

These pressure classes are figure-identification references. Verify the installed assembly rating, service classification and temperature derating with the equipment manufacturer:

  • Fig 602 Seals: Equipment class reference: 6,000 PSI.

  • Fig 1002 Seals: Equipment class reference: 10,000 PSI.

  • Fig 1502 Seals: Equipment class reference: 15,000 PSI.

  •
  •
  •





Key Features & Advantages

  • Precision Fit: Specify drawing revision, dimensions and tolerances. Confirm fit and leakage performance with the complete connection and equipment procedure.

  • Anti-Extrusion Design: Brass or stainless steel reinforcement is available for specified profiles; review support dimensions and operating clearance together.

  • Chemical Resilience: Review the selected compound against actual acids, salts, hydrocarbons and cleaning fluids.

  • Reliable Sealing: Provide pressure-cycle and decompression conditions when selecting compound and reinforcement.



Common Applications

Our Hammer Union Seals are widely used across global oilfields and industrial sectors:

  • Oil & Gas Flowlines: Connecting pipes during drilling and production.

  • Fracking Operations: High-pressure hydraulic fracturing fluid transport.

  • Acidizing & Cementing: Secure seals during well stimulation and casing.

  • Mud Systems: Handling abrasive drilling mud in suction and discharge lines.

  • Water Transfer: Large-diameter water pipelines in industrial sites.

  •
  •
  •





Why Order From Us?



  1. Quality Assurance: Manufactured under our ISO 9001 quality management system; agree hardness, dimensional inspection and any required assembly testing with the order.

  2. Replacement Compatibility: Match the union manufacturer, figure, nominal size and installed profile; confirm replacement fit before ordering.

  3. Global Shipping: Confirm selected size, compound, quantity and delivery date with the quotation.

  4. Custom Solutions: Need a specific Shore A hardness or AED (Anti-Explosive Decompression) grade? Contact our technical team.

  5.
  6.
  7.

Figure and Profile Identification for Replacement

Send clear photographs of the union markings and both sides of the removed seal. Add nominal pipe size, seal dimensions, metal ring construction and the equipment drawing where available. Keep similar-looking seals from different figure series separate until fit is confirmed. Include fluid formulation, pressure cycles, continuous and peak temperature, and required quantity for a replacement quote.
