Durable NBR HNBR FKM PTFE Hammer Union Seals for 6000-20000 PSI Pipeline Connections Compatible with Fig 602 1002 1502 2202

Durable NBR HNBR FKM PTFE Hammer Union Seals for 6000-20000 PSI Pipeline Connections Compatible with Fig 602 1002 1502 2202

Product Details:
Place of Origin: Shanghai, China
Brand Name: Royal Way
Certification: ISO 9001 certificate
Model Number: Fig 1502
Payment & Shipping Terms:
Minimum Order Quantity: 200PCS
Price: USD$0.2/pc to $4/pc according to size and rubber material
Packaging Details: 40*40*20cm carton packing
Delivery Time: 7-15days according to the quantity of order
Payment Terms: T/T, Western Union, Paypal,Bank transfer
Supply Ability: 50000pcs per week
Contact Now
Detailed Product Description
Compatible Figure Series: Specify Installed Figure And Manufacturer; Confirm Seal Drawing Nominal Size: 1", 2", 3", 4"
Material Type: NBR (Buna-N), HNBR, FKM, PTFE Hardness / Durometer: Specify Compound Hardness And Tolerance With The Order
Working Pressure Rating: Complete Union Assembly Rating; Confirm Service Conditions Operating Temperature Range: Compound And Fluid Dependent; Confirm Continuous And Peak Temperature
Service Environment: Specify H2S / CO2 Content And Required Compound Qualification Media Compatibility: Review Actual Fluid Formulation, Concentration And Temperature
Seal Design Type: Lip Seal, O-ring Style Insert Material: Stainless Steel, Brass
Abrasion Resistance: Review Proppant Exposure And Inspection Requirements Quality Standard: ISO 9001 Certified
Country Of Origin: China Customization Support: Available
Highlight:

NBR HNBR FKM PTFE Hammer Union Seal

,

6000-20000 PSI Pipeline Seal

,

Fig 602 1002 1502 2202 Union Lip Seal



Product Overview

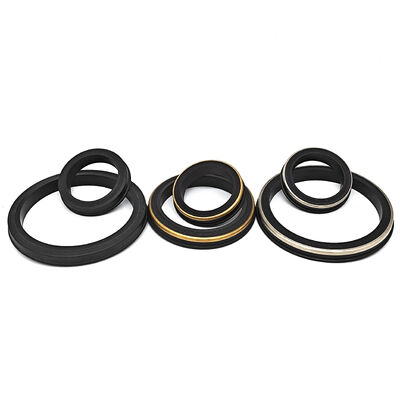

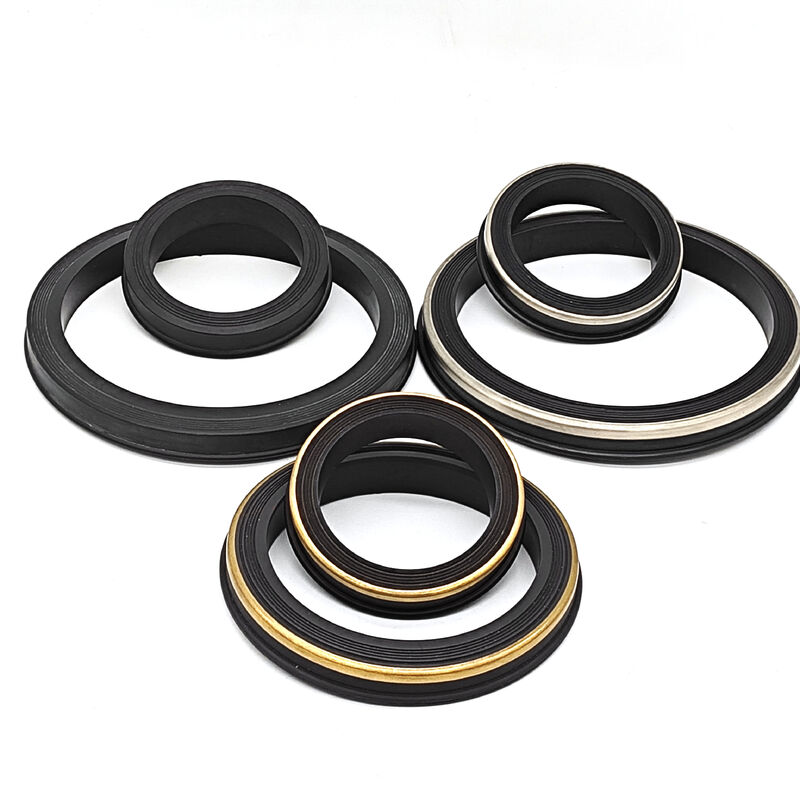

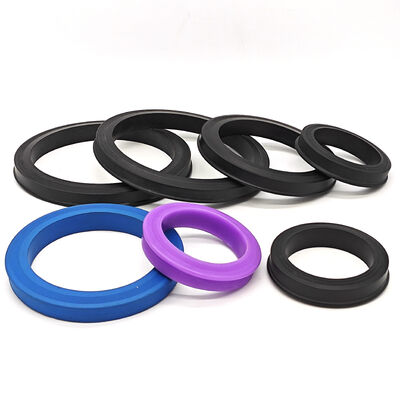

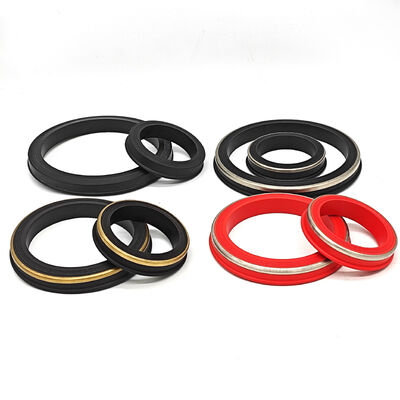

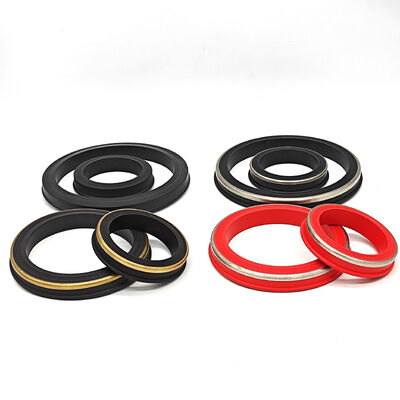

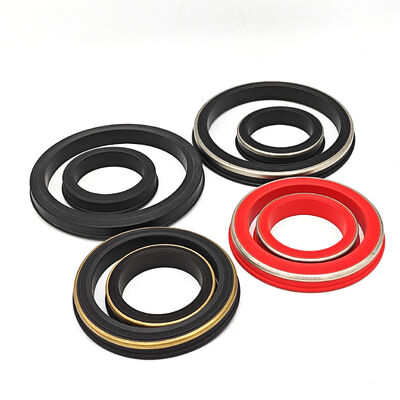

Our premium Hammer Union Seals are replacement components for specified hammer union flowline connections. Match union manufacturer, figure, nominal size and installed profile before selecting the compound. For gas exposure or treatment-fluid service, include the operating cycle and required qualification with the inquiry.



Key Features & Benefits

  • Connection Profile: Confirm manufacturer, figure, groove and nominal size against the drawing or removed seal.

  • Assembly Pressure: Verify the complete union assembly rating, service classification and temperature derating with the equipment manufacturer.

  • Material Versatility: Available in NBR, HNBR, FKM, and PTFE to suit specific chemical and thermal requirements.

  • Standard & Anti-Explosive Decompression (AED): Specify gas composition, pressure, temperature and decompression rate; request compound-specific test documentation before selecting an RGD-resistant grade.

  • High Durability: Brass or stainless steel reinforcement is available for specified profiles; confirm support dimensions, clearance and fluid compatibility.

  •
  •
  •





Technical Specifications

Feature Specification
Product Name Hammer Union Seal / Lip Seal Ring
Available Sizes 1", 1.5", 2", 3", 4", accept custom sizes
Applicable Figures Fig 206, Fig 602, Fig 1002, Fig 1502, Fig 2002
Working Pressure Complete union assembly rating; confirm manufacturer limits and service conditions
Media Compatibility Review actual fluid formulation and exposure; H2S and gas require compound qualification
Specification Requirements Specify applicable equipment requirements and required test documentation with the order





Material Comparison & Selection Guide




Choosing the right material is critical for the lifespan of your pipeline connection. Below is a professional comparison of our available elastomers:

1. NBR (Nitrile Rubber / Buna-N)

  • Best For: General purpose, water, oil, and hydraulic fluids.

  • Temperature Range: Confirm continuous and peak limits for the selected NBR compound.

  • Pros: Excellent abrasion resistance and cost-effective.

  •
  •
  •

2. HNBR (Hydrogenated Nitrile)

  • Best For: Modern oilfield applications, drilling mud, and crude oil.

  • Temperature Range: Confirm continuous and peak limits for the selected HNBR compound.

  • Pros: High mechanical strength, better heat and chemical resistance than NBR.

  •
  •
  •

3. FKM (Fluorocarbon)

  • Best For: High-temperature environments and aggressive chemical exposure.

  • Temperature Range: Confirm the selected FKM grade against fluid and exposure duration.

  • Pros: Review grade-specific heat and chemical compatibility; H2S qualification must be established for the selected compound.

  •
  •
  •

4. PTFE (Polytetrafluoroethylene)

  • Best For: Extreme chemical compatibility and low friction requirements.

  • Temperature Range: Confirm the complete PTFE-containing construction, including any core or support material.

  • Pros: Confirm solid PTFE, envelope or support-component construction against the drawing and actual fluid.

  •
  •
  •





Application Scope



Our Hammer Union Seals are widely used across various heavy-duty industries:

  • Oil & Gas Exploration: Flowlines, manifolds, and wellhead connections.

  • Fracking & Acidizing: High-pressure pumping and chemical injection.

  • Cementing & Drilling: Secure seals for mud pumps and standpipe systems.

  • Marine & Offshore: Saltwater resistant pipeline connections.

  • Industrial Mining: Slurry and waste water transport.

  •
  •
  •





Why Choose Our Seals?



  1. Strict Quality Control: Manufactured under our ISO 9001 quality management system; agree dimensions, compound and inspection requirements with the order.

  2. Replacement Compatibility: Figure markings help identify the connection; confirm manufacturer and profile before ordering a direct replacement.

  3. Delivery Planning: Confirm selected compound, size, quantity and required delivery date with the quotation.

  4. Custom Solutions: Provide H2S or steam exposure conditions and required qualification for compound-specific review.



  5.
  6.
  7.



Ordering Information



To provide you with the most accurate quote, please specify:

  1. Union Figure Number (e.g., Fig 1502)

  2. Pipe Size (e.g., 3 Inch)

  3. Material Required (e.g., NBR, HNBR or HNBR with Brass Backup Ring)

  4. Quantity

  5.
  6.
  7.

Gas-Decompression Information for Seal Selection

For a connection exposed to gas, specify composition, maximum pressure, continuous temperature, pressure cycling and depressurization rate. Include the equipment specification and required qualification method. RGD performance belongs to the tested compound and conditions, not simply the NBR, HNBR or FKM material family. Keep the approved lip profile and reinforcement identified when comparing candidate compounds.
