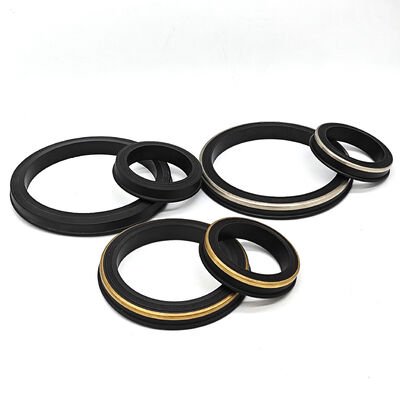

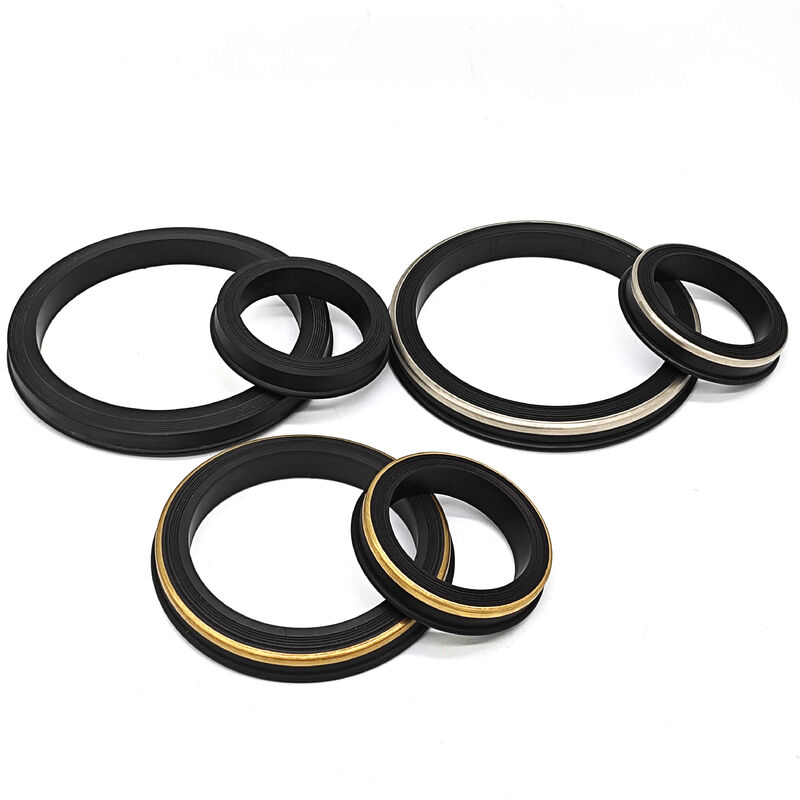

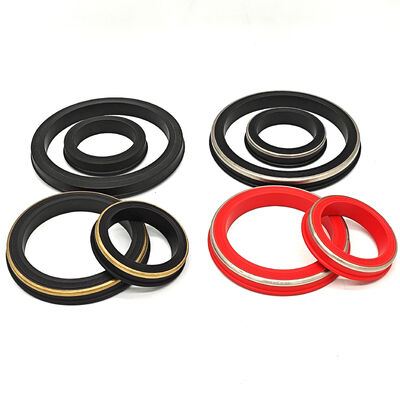

High-Pressure Corrosion Resistant Oilfield Grade Hammer Union Seal for Extreme Conditions

High-Pressure Corrosion Resistant Oilfield Grade Hammer Union Seal for Extreme Conditions

Product Details:
Place of Origin: Shanghai, China
Brand Name: Royal Way
Certification: ISO 9001 certificate
Model Number: Fig 1502
Document: Hammer Union Seal TDS.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 200PCS
Price: USD$0.2/pc to $4/pc according to size and rubber material
Packaging Details: 40*40*20cm carton packing
Delivery Time: 7-15days according to the quantity of order
Payment Terms: T/T, Western Union, Paypal,Bank transfer
Supply Ability: 50000pcs per week
Contact Now
Detailed Product Description
Compatible Figure Series: Specify Installed Figure And Manufacturer; Confirm Seal Drawing Nominal Size: 1", 2", 3", 4"
Material Type: NBR (Buna-N), HNBR, FKM , PTFE Hardness / Durometer: Specify Compound Hardness And Tolerance With The Order
Working Pressure Rating: Complete Union Assembly Rating; Confirm Service Conditions Operating Temperature Range: Compound And Fluid Dependent; Confirm Continuous And Peak Temperature
Service Environment: Specify H2S / CO2 Content And Required Compound Qualification Media Compatibility: Review Actual Fluid Formulation, Concentration And Temperature
Seal Design Type: Lip Seal, O-ring Style, With Metal Back-up Ring Insert Material: Stainless Steel, Brass
Abrasion Resistance: Review Proppant Exposure And Inspection Requirements
Highlight:

High-Pressure Hammer Union Seal

,

Corrosion Resistant Weco Seal

,

Oilfield Grade FMC Seal

Hammer Union Seal Manufacturer | High-Pressure Sealing Experts



Product Introduction



We manufacture replacement hammer union seals for specified oilfield flowline and manifold connections. For a manufacturer-direct inquiry, provide the union markings, approved drawing or removed sample, compound and reinforcement requirements. Match the installed connection before discussing quantity, inspection documentation and delivery.





Application Scope and Versatility



The application of our hammer union seals extends across various critical oilfield services including hydraulic fracturing, well cementing, acidizing, and drilling operations. They are widely used in manifold systems, pump suction lines, and high-pressure discharge lines. Furthermore, these seals are indispensable in flowback operations and well testing where reliable pressure containment is mandatory. For gas exposure, include H2S or CO2 content, pressure, temperature and decompression conditions; compound-specific qualification must be reviewed for the required service.





Comprehensive Material Comparison



We offer a diverse range of elastomers to meet specific site requirements. Nitrile (NBR) is the standard choice for general oil and water service due to its excellent oil resistance and cost-effectiveness. For more demanding conditions, Hydrogenated Nitrile (HNBR) provides enhanced strength and resistance to heat, abrasion, and ozone, making it ideal for modern drilling applications. For Fluorocarbon (FKM), review the specific grade against chemical identity, acid concentration, additives, continuous and peak temperature, and exposure duration before selection. For PTFE-related options, confirm solid PTFE, envelope or support-component construction and the limits of any core or reinforcement.





Pressure Ratings and Technical Standards



Figure markings identify the union series. Verify working pressure from the complete assembly rating, manufacturer service classification and temperature derating. Match figure, nominal size, groove and reinforcement; the seal material or a figure number alone does not establish a pressure rating or sour-service qualification.





Operating Temperature Ranges



Confirm continuous temperature, maximum excursions and cold-start conditions for the selected NBR, HNBR or FKM compound. Include fluid formulation and pressure cycling. For PTFE-containing seals, review the complete construction, including any elastomer core. Polymer-family temperature ranges must not be treated as verified ratings for every finished seal.



Why Source From Our Manufacturing Facility



Our ISO 9001 quality management system supports manufacturing and order control. Agree drawing revision, compound identification, hardness tolerance and inspection requirements with the quotation. For H2S, CO2 or abrasive-fluid service, provide exposure conditions and required qualification documentation. Listed nominal sizes include 1 inch, 2 inch, 3 inch and 4 inch; confirm each configuration, quantity and delivery date.





Request for Quotation and Technical Support



If you require high-quality hammer union seals for your next project, our technical team is available to provide material compatibility consultations and bulk pricing. We support global logistics and offer custom packaging solutions to protect seals from UV degradation during transit and storage. Contact us today to discuss your specific pressure, temperature, and chemical resistance requirements to find the most cost-effective sealing solution for your operations.



Manufacturer Inquiry and Inspection Requirements

Include part drawing revision, union manufacturer and figure, nominal size, profile dimensions and reinforcement grade. Specify compound, hardness tolerance, required pack quantity and identification labels. State which inspection results or material documents are needed with delivery so these requirements can be agreed before production. A sample identifies the part geometry; service qualification still depends on the selected compound and operating conditions.
