Premium NBR HNBR FKM PTFE Hammer Union Seal Rings: 6000 PSI Durable Sealing Solutions ISO 9001 Certified

Premium NBR HNBR FKM PTFE Hammer Union Seal Rings: 6000 PSI Durable Sealing Solutions ISO 9001 Certified

  • Premium NBR HNBR FKM PTFE Hammer Union Seal Rings: 6000 PSI Durable Sealing Solutions ISO 9001 Certified
  • Premium NBR HNBR FKM PTFE Hammer Union Seal Rings: 6000 PSI Durable Sealing Solutions ISO 9001 Certified
  • Premium NBR HNBR FKM PTFE Hammer Union Seal Rings: 6000 PSI Durable Sealing Solutions ISO 9001 Certified
  • Premium NBR HNBR FKM PTFE Hammer Union Seal Rings: 6000 PSI Durable Sealing Solutions ISO 9001 Certified
  • Premium NBR HNBR FKM PTFE Hammer Union Seal Rings: 6000 PSI Durable Sealing Solutions ISO 9001 Certified
  • Premium NBR HNBR FKM PTFE Hammer Union Seal Rings: 6000 PSI Durable Sealing Solutions ISO 9001 Certified
Premium NBR HNBR FKM PTFE Hammer Union Seal Rings: 6000 PSI Durable Sealing Solutions ISO 9001 Certified
Product Details:
Place of Origin: Shanghai, China
Brand Name: Royal Way
Certification: ISO 9001 certificate
Model Number: Fig 1502
Payment & Shipping Terms:
Minimum Order Quantity: 200PCS
Price: USD$0.2/pc to $4/pc according to size and rubber material
Packaging Details: 40*40*20cm carton packing
Delivery Time: 7-15days according to the quantity of order
Payment Terms: T/T, Western Union, Paypal,Bank transfer
Supply Ability: 50000pcs per week
Contact Now
Detailed Product Description
Compatible Figure Series: Specify Installed Figure And Manufacturer; Confirm Seal Drawing Nominal Size: 1", 2", 3", 4"
Material Type: NBR (Buna-N), HNBR, FKM, PTFE Hardness / Durometer: Specify Compound Hardness And Tolerance With The Order
Working Pressure Rating: Complete Union Assembly Rating; Confirm Service Conditions Operating Temperature Range: Compound And Fluid Dependent; Confirm Continuous And Peak Temperature
Service Environment: Specify H2S / CO2 Content And Required Compound Qualification Media Compatibility: Review Actual Fluid Formulation, Concentration And Temperature
Seal Design Type: Lip Seal, O-ring Style, With Metal Back-up Ring Insert Material: Stainless Steel, Brass
Abrasion Resistance: Review Proppant Exposure And Inspection Requirements Manufacturing Process: Compression Molding
Quality Standard: ISO 9001 Certified Color: Black
Country Of Origin: China Customization Support: Available (OEM/ODM Based On Drawings)
Highlight:

6000 PSI Hammer Union Seal Ring

,

NBR HNBR FKM PTFE Hammer Union Seal

,

ISO 9001 Certified Hammer Union Gasket

Premium NBR HNBR FKM PTFE Hammer Union Seal Rings: Durable Sealing Solutions



Product Overview

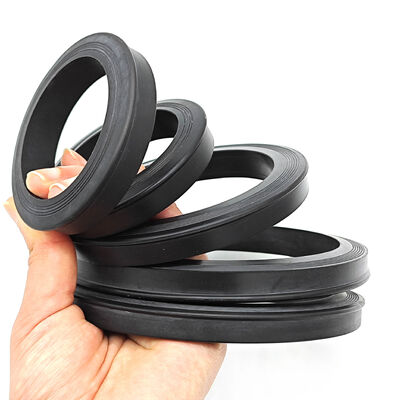

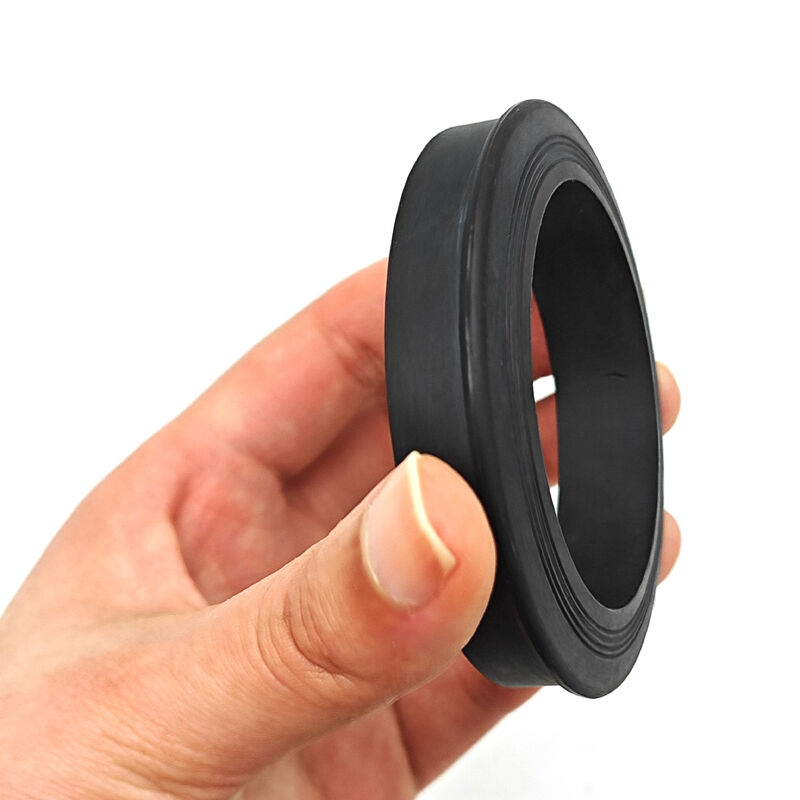

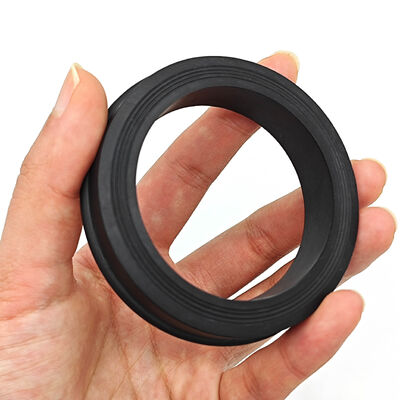

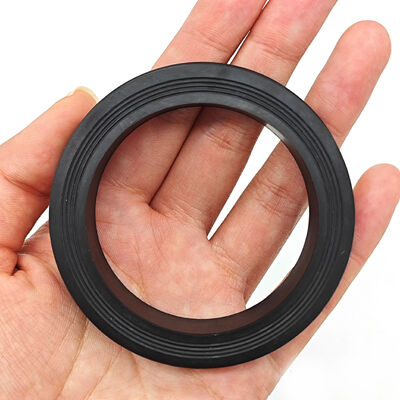

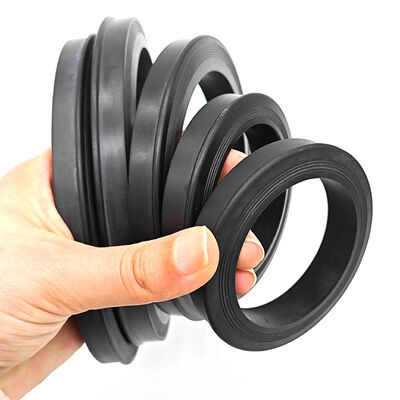

Hammer union seal rings are replacement parts for specified oilfield flowline connections. This listing covers NBR, HNBR, FKM and PTFE-related configurations with optional brass or stainless steel support. Identify the installed profile and reinforcement before choosing the compound. Supply the union markings, drawing or removed-part dimensions with the inquiry.





Application Scope



Applications include hammer union connections on fracking manifolds, cementing units, acidizing lines and mud-service piping. A connection seal must not be treated as an internal blowout preventer (BOP) seal. For H2S or CO2 exposure, specify gas composition, pressure, temperature and decompression conditions, together with the required compound qualification.





Material Comparison and Features



1. Nitrile (NBR): The most common material for general oil and water service, offering excellent resistance to petroleum-based fluids and a cost-effective solution for standard operations.
2. Hydrogenated Nitrile (HNBR): Engineered for superior mechanical strength and improved resistance to heat and abrasion, making it ideal for high-pressure drilling and modern oilfield chemicals.
3. Fluorocarbon (FKM): Review the specific FKM grade against fluid identity, acid concentration, additives, continuous and peak temperature, and exposure duration before selection.
4. Polytetrafluoroethylene (PTFE): Confirm solid PTFE, envelope or support-component construction. Review actual chemicals and the limits of any elastomer core or reinforcement.





Working Pressure Ratings



Working pressure is determined by the complete union assembly and service conditions. Figure markings identify the connection series but do not establish a loose seal rating. Confirm manufacturer limits, temperature derating and service classification for the installed equipment before specifying pressure.





Operating Temperature Ranges



NBR Seals: Confirm continuous and peak limits for the selected compound and fluid.
HNBR Seals: Confirm continuous and peak limits for the selected compound and fluid.
FKM Seals: Review the selected grade against fluid identity, concentration and temperature.
PTFE Seals: Confirm limits for the complete construction rather than transferring a polymer-family range to the finished seal.





Why Choose Our Sealing Solutions



Precision Manufacturing: Specify drawing revision, dimensions and tolerances; verify the replacement against the actual connection profile.
Service Review: Provide compression-set requirements, extrusion clearance and pressure cycling for compound and reinforcement selection.
Customization: We offer various profiles, including standard rings and lip-style seals with stainless steel or brass inserts for high-velocity flow environments.
Factory Direct Supply: Manufactured under our ISO 9001 quality management system. Confirm quantity, inspection documentation and delivery date with the quotation.





Technical Support and Ordering



Listed nominal sizes include 1 inch to 4 inches; confirm the manufacturer, figure and groove profile for each required configuration. Our technical team is available to assist you in selecting the optimal material based on your specific pressure, temperature, and chemical exposure requirements. Contact us today to receive a detailed quote or to discuss custom sealing requirements for your oilfield operations.



Confirming a Metal-Backed Replacement Ring

Identify whether the removed seal has brass or stainless steel reinforcement and provide photographs of both sides with dimensions. Match ring position, lip profile and groove before ordering. Include actual fluid and cleaning exposure when selecting reinforcement material; a support ring does not by itself increase the complete connection rating. Specify compound, hardness, drawing revision and quantity for each configuration.
