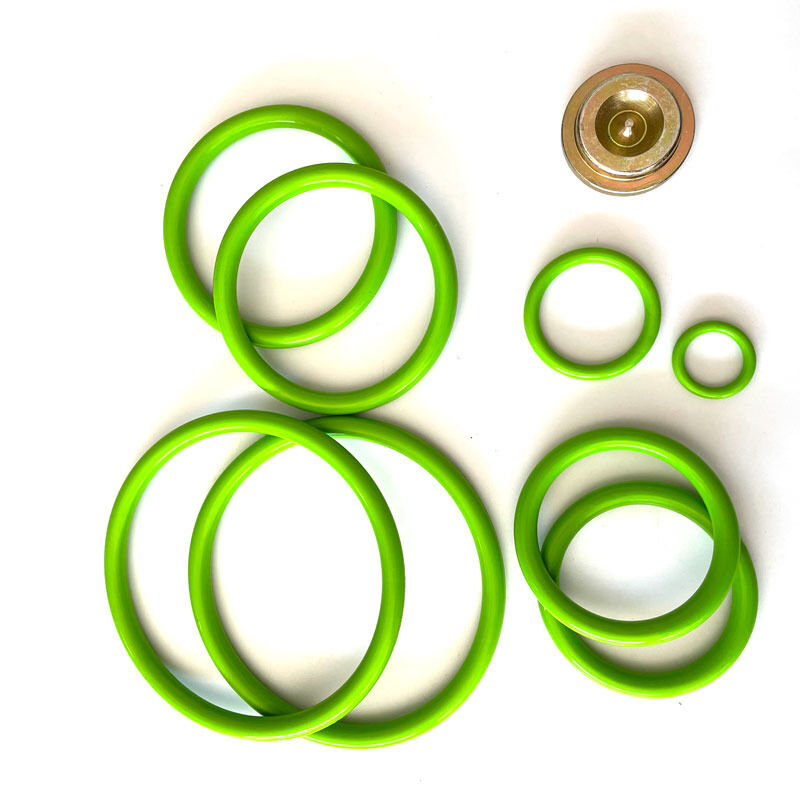

Hammer Union Seal with Temperature Range -40°F to 400°F Shore A Hardness 80-90 and Pressure Rating 602/1002/1502

Hammer Union Seal with Temperature Range -40°F to 400°F Shore A Hardness 80-90 and Pressure Rating 602/1002/1502

  • Hammer Union Seal with Temperature Range -40°F to 400°F Shore A Hardness 80-90 and Pressure Rating 602/1002/1502
Hammer Union Seal with Temperature Range -40°F to 400°F Shore A Hardness 80-90 and Pressure Rating 602/1002/1502
Product Details:
Brand Name: Royal Way
Certification: ISO9001
Model Number: Hammer Union Seals
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: EXW$0.2/PC-$3/PC
Packaging Details: Custom Packing Or Standard Packing
Delivery Time: 7-15days
Payment Terms: T/T, Paypal
Supply Ability: 50000pcs Per Week
Contact Now
Detailed Product Description
Pressure Rating: Fig. 602 / 1002 / 1502 References; Pressure Per Complete Union Documentation Free Samples: Available
Keyward: NBR Rubber Union Seal Temperaturerange: Confirm Selected NBR Compound Limits For Actual Fluid And Service
Shape: Match Union Manufacturer, Figure And Seal Groove Chinese Factory Supplier: Yes, We Are Factory
Nearest Port: Shanghai Size: 1, 1.5, 2, 3, 4-inch Nominal Union Range; Confirm Figure And Drawing
Highlight:

Temperature Range Hammer Union Seal

,

Shore A Hardness Weco Seal

,

Pressure Rating Rubber Union Seal

Product Description:

Royal Way supplies NBR rubber hammer union seals for replacement orders identified by union figure, nominal connection size and seal drawing. The existing range references Fig. 602, 1002 and 1502 with nominal sizes 1, 1.5, 2, 3 and 4 inches. Confirm the required combination before ordering; this range does not establish interchangeability between figures or manufacturers.

Temperature limits depend on the selected NBR compound and the actual fluid, exposure time and operating duty. Specify the continuous and peak exposure temperatures, exposure duration and service fluid for the selected compound. Provide minimum and maximum service temperatures when requesting a compound recommendation.

Match the replacement seal to the union seat and groove. A standard-looking ring or the same nominal connection size does not establish fit. Check profile, seal dimensions and any metal reinforcement against the original part or drawing.

602, 1002 and 1502 are hammer union figure identifiers, not pressure values. Working pressure must come from the documentation for the complete union in its specified service configuration. Include the complete union working-pressure rating, pressure cycles and specified backup arrangement with the replacement enquiry.

These hammer union seals use NBR rubber. FKM and HNBR are alternative compound options requiring separate selection for the fluid and temperature conditions; their properties should not be assigned to an NBR part. For a Weco-type replacement request, provide the original manufacturer, figure, size and part reference.

Rubber union seal rings work with the mating metal sealing surfaces. Correct seating, compound selection and the specified backup arrangement help control leakage. Inspect the groove and replacement seal before assembly and follow the union manufacturer’s installation procedure.

Express courier, air, sea and suitable road transport can be discussed for the destination and shipment size. Confirm packing and dispatch arrangements with the order quotation.

For a multi-size hammer union seal order, list each figure and nominal connection size separately. Include the seal profile, NBR grade or service conditions, required hardness and backup-ring configuration so similar-looking seals are packed against the correct order line.



Multi-size NBR Union Seal Orders: Keep Figure and Size on Each Line

Use separate purchase-order lines for each figure and nominal size. Record the original union maker and part number, finished seal dimensions, rubber-only or metal-reinforced construction, compound grade and quantity. Color alone is insufficient to identify the compound. For brass-backed seals, confirm whether the metal is bonded into the seal or supplied as a separate component.

Features:

  • Product Name: Hammer Union Seal
  • Shape: Match the specified union seal profile
  • Pressure Rating: Refer to the complete union documentation
  • Temperature Range: Confirm for the selected compound and service
  • Material: NBR Rubber Union Seal
  • Hardness: 80–90 Shore A range reference; specify grade and tolerance
  • Fit: Confirm manufacturer, figure, size and groove
  • Backup Ring: Brass reinforcement or separate backup only when specified in the drawing


Technical Parameters:

Free Samples Available
Union Figure References 602 / 1002 / 1502
Temperature Range Compound- and service-specific; confirm before ordering
Hardness 80–90 Shore A range reference; grade and tolerance to be agreed
Keyword NBR Rubber Union Seal
Nearest Port Shanghai
Custom Service OEM ODM
In Stock Confirm availability for the specified size and compound
Size 1", 1.5", 2", 3", 4"
Pressure Use the complete union rating and service documentation


Applications:

Royal Way manufactures in China under an ISO 9001 quality management system. The existing 1, 1.5, 2, 3 and 4-inch range identifies nominal union connection sizes, not finished seal diameters. Confirm the exact figure, manufacturer and groove for each replacement. Specify drawing revision, compound grade, hardness tolerance and inspection dimensions with the order.

NBR hammer union seals may be specified for suitable oilfield fluid-transfer connections after checking the compound against the actual medium. Natural gas, aggressive chemicals, elevated temperatures and sour service require their own compatibility and qualification review; suitability cannot be inferred from the NBR material name alone.

Custom or standard packing can be specified. Request a quotation for each figure, size, compound and quantity. Confirm current price, payment terms, packing, production availability and dispatch schedule on the quotation.

OEM and ODM requests should include the drawing or sample and intended service conditions. Ask about sample availability for the specified seal. Agree inspection dimensions, compound and hardness tolerance before placing a replacement order.
