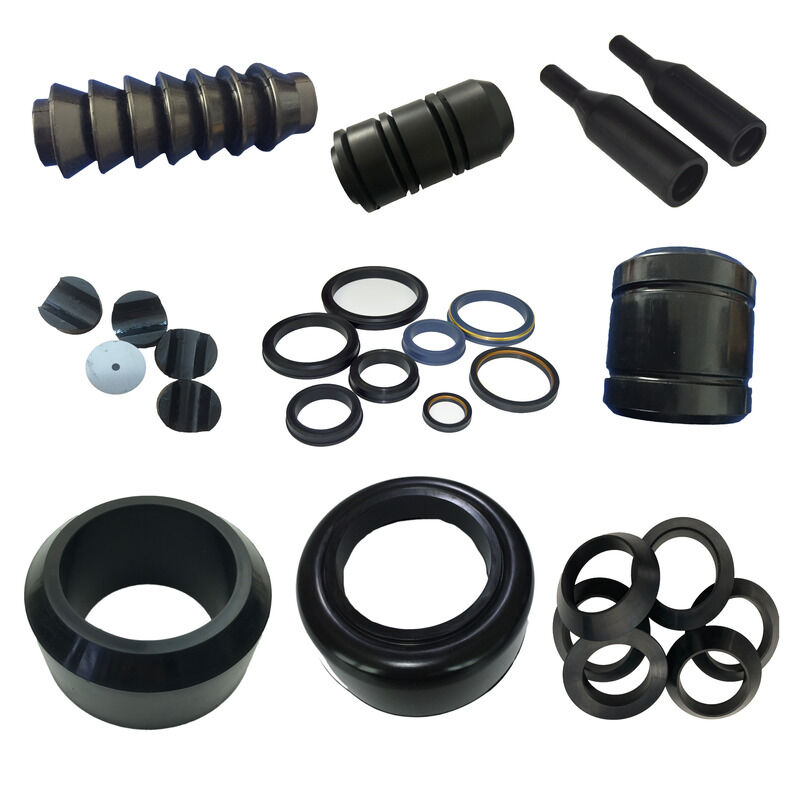

Shore A 80-90 Hardness Hammer Union Seal with 10000-15000Psi Pressure and NBR/FKM/HNBR Material Options

Shore A 80-90 Hardness Hammer Union Seal with 10000-15000Psi Pressure and NBR/FKM/HNBR Material Options

  • Shore A 80-90 Hardness Hammer Union Seal with 10000-15000Psi Pressure and NBR/FKM/HNBR Material Options
Shore A 80-90 Hardness Hammer Union Seal with 10000-15000Psi Pressure and NBR/FKM/HNBR Material Options
Product Details:
Brand Name: Royal Way
Certification: ISO9001
Model Number: Hammer Union Seals
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: EXW$0.2/PC-$3/PC
Packaging Details: Custom Packing Or Standard Packing
Delivery Time: 7-15days
Payment Terms: T/T, Paypal
Supply Ability: 50000pcs Per Week
Contact Now
Detailed Product Description
Nearest Port: Shanghai Keyward: NBR Rubber Union Seal
Size: 1, 1.5, 2, 3, 4-inch Nominal Union Range; Confirm Drawing Shipping Method: By Express, By Air, By Sea, By Car
In Stock: Confirm Specified Part And Compound Availability Chinese Factory Supplier: Yes, We Are Factory
Pressure: Per Complete Union Documentation; No Independent Seal Rating Pressure Rating: Fig. 602 / 1002 / 1502 References; Confirm Replacement Fit
Highlight:

Shore A 80-90 Hardness Hammer Union Seal

,

10000-15000Psi Pressure Hammer Union Seal

,

NBR/FKM/HNBR Material Options Weco Seal Rings

Product Description:

Royal Way supplies NBR rubber hammer union seals with FKM and HNBR options available for separate material selection. The existing nominal union range is 1, 1.5, 2, 3 and 4 inches. Identify the original union maker, figure and seal drawing before ordering; nominal connection sizes do not establish finished seal dimensions.

Temperature capability belongs to the selected compound and service conditions. Specify the continuous and peak temperatures, exposure duration and thermal cycling for each selected compound grade. Provide the fluid and minimum, normal and peak temperatures when requesting a grade.

The existing hardness range reference is 80–90 Shore A. Agree the target hardness and tolerance for the selected grade. Hardness alone does not prove compression-set performance, fluid resistance, service life or pressure capability.

NBR, FKM and HNBR describe different polymer families, with properties that depend on the formulation and exposure conditions. Select the compound for the actual fluid, additives and operating duty. Material names alone do not establish suitability for aggressive chemicals, sour gas or rapid decompression.

For Weco-type replacement requests, provide the original maker, figure and part number. Royal Way replacement seals should be matched to the specified seat and groove; provide the component dimensions and original part drawing so the replacement fit can be checked for the identified assembly.

OEM and ODM enquiries can be based on a drawing or sample. Include finished seal dimensions, rubber profile, selected grade and any brass backup arrangement. Agree dimensional inspection and material requirements before manufacture.

Shanghai is the existing port reference. Express, air, sea or suitable road transport can be discussed for shipment quantity and destination. Confirm packing and dispatch arrangements with the quotation.

When comparing NBR, FKM and HNBR union seals, keep the figure, size and drawing reference fixed while evaluating the compound. A change of rubber grade does not change the union’s mechanical rating or establish fit in a different figure.



NBR, FKM and HNBR Union Seals: Keep the Compound Grade Traceable

Specify the rubber family and approved compound reference on the order and packing label. Include the fluid composition, temperatures and gas-pressure cycling when requesting a material recommendation. Color and hardness do not uniquely identify a formulation; confirm the grade before substituting one polymer family for another.

Features:

  • Product Name: Hammer Union Seal
  • Shape: Match specified union seal profile
  • Available Sizes: 1", 1.5", 2", 3", 4"
  • Material Options: NBR; FKM and HNBR grades subject to separate service selection
  • Hardness: 80–90 Shore A range reference; agree grade and tolerance
  • Nearest Port: Shanghai
  • Brass Backup: Only as specified by the drawing and order
  • Order Identification: Maker, figure, nominal size, compound grade and backup construction


Technical Parameters:

Chinese Factory Supplier Yes, We Are Factory
Size 1", 1.5", 2", 3", 4"
Custom Service OEM ODM
Hardness 80–90 Shore A range reference; specify grade and tolerance
Keyword NBR Rubber Union Seal
Shape Match the seal groove and drawing
In Stock Confirm availability for the specified part and grade
Union Figure References 602/1002/1502
Pressure Per complete union documentation; no independent seal rating
Temperature Range Confirm the selected compound for the actual service

Applications:

This listing concerns rubber hammer union seals; brass backup rings or reinforcement are included only when specified by the drawing and order. Confirm the seal and backup configuration for Fig. 602, 1002 or 1502. Pressure limits come from the complete union documentation, not an independent seal rating.

Replacement enquiries may relate to drilling fluid-transfer lines or other hammer union connections. Check the actual mating groove and service medium. Do not substitute this part for a flange gasket merely because both applications involve pipe joints.

Royal Way manufactures in China under an ISO 9001 quality management system. Custom and standard packing can be requested. Request a quotation by figure, nominal size, seal construction, compound grade and quantity. Confirm current price, payment terms, production availability and dispatch schedule for the specified order.

OEM and ODM requests should include the intended service and an agreed drawing. Ask about sample availability for the selected part and compound, and confirm the dispatch date with the quotation rather than relying on the general 7–15-day reference.

For repeat orders, record the compound grade alongside the union figure, nominal size, seal profile and backup construction. Keep replacement packages identified by these details so similar-looking NBR, FKM and HNBR seals are not mixed during maintenance.
