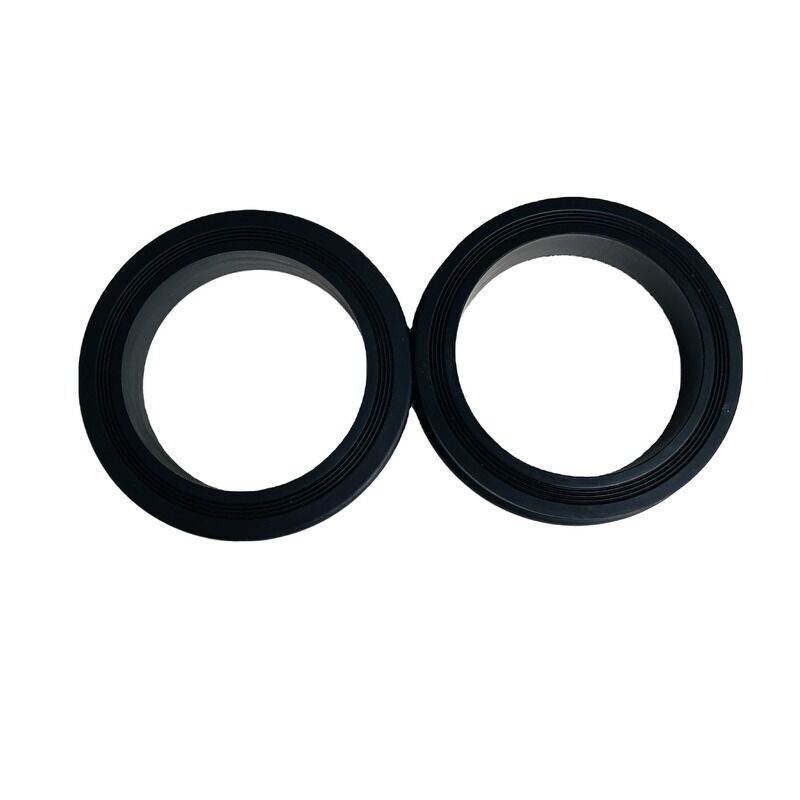

NBR Rubber Union Seal with Temperature Range -40°F to 400°F and Pressure Rating 10,000-15,000 Psi for Industrial Hydraulic Systems

NBR Rubber Union Seal with Temperature Range -40°F to 400°F and Pressure Rating 10,000-15,000 Psi for Industrial Hydraulic Systems

  • NBR Rubber Union Seal with Temperature Range -40°F to 400°F and Pressure Rating 10,000-15,000 Psi for Industrial Hydraulic Systems
NBR Rubber Union Seal with Temperature Range -40°F to 400°F and Pressure Rating 10,000-15,000 Psi for Industrial Hydraulic Systems
Product Details:
Brand Name: Royal Way
Certification: ISO9001
Model Number: Hammer Union Seals
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: EXW$0.2/PC-$3/PC
Packaging Details: Custom Packing Or Standard Packing
Delivery Time: 7-15days
Payment Terms: T/T, Paypal
Supply Ability: 50000pcs Per Week
Contact Now
Detailed Product Description
Keyward: NBR Rubber Union Seal Hardness: 80–90 Shore A Range Reference; Agree Compound Grade And Tolerance
Size: 1, 1.5, 2, 3, 4-inch Nominal Union Range; Confirm Drawing Nearest Port: Shanghai
In Stock: Confirm Specified Part And Compound Availability Chinese Factory Supplier: Yes, We Are Factory
Shape: Match Union Maker, Figure And Seal Groove Shipping Method: By Express, By Air, By Sea, By Car
Highlight:

Temperature Range -40°F to 400°F Hammer Union Seal

,

Pressure Rating 10

,

000-15

,

000 Psi NBR Rubber Union Seal

,

Shore A 80-90 Hardness Weco Seal Rings

Product Description:

Royal Way supplies NBR rubber union seals for hammer union replacement orders. Fig. 602, 1002 and 1502 are union figure references, not pressure ratings. Identify the original union manufacturer, figure, nominal size and seal drawing before selecting a part.

Working pressure is determined by the complete union and its approved service configuration. Specify the complete union working-pressure rating, fluid composition, temperatures and pressure cycles with the replacement enquiry. Follow the original union documentation for pressure limits, assembly and inspection requirements.

NBR is the rubber family identified for this listing. Select the compound for the actual oil, fuel, additives, cleaning medium and operating temperature. A material name alone does not establish compatibility with every chemical or prove service life.

Confirm whether the specified seal is rubber-only, contains bonded brass reinforcement or requires a separate backup component. Do not add a second Weco-type seal ring unless the assembly drawing calls for it. A backup ring supports the specified seal arrangement and does not independently increase the union rating.

For Fig. 1502 or 602 replacement requests, provide the maker and original part reference together with the nominal size. Check profile and groove dimensions; similarly named seals or the same connection size do not establish interchangeability.

Shanghai is the existing port reference. Discuss the required quantity, destination and delivery date with the quotation, and ask about sample availability for the selected part and compound.

For a complete replacement enquiry, distinguish the rubber seal from any metal backup part. Include the union identification and a drawing or sample showing the actual arrangement, so the quoted package contains the components required by the assembly.



NBR Union Seal and Brass Backup: Specify the Assembly Arrangement

State whether brass is bonded into the rubber seal or supplied as a separate ring. Include the component quantity, orientation and drawing reference with the order. Confirm the existing groove and backing arrangement before substituting a rubber-only or reinforced seal; an extra metal ring is not a general upgrade.

Features:

  • Product Name: Hammer Union Seal
  • Union Figure References: 602 / 1002 / 1502
  • Shipping Method: By Express, By Air, By Sea, By Car
  • Material: NBR Rubber Union Seal
  • Hardness: 80–90 Shore A range reference; agree grade and tolerance
  • In Stock: Confirm specified part availability
  • Replacement Fit: Confirm union maker, figure, size and drawing
  • Compound Options: NBR; FKM and HNBR require separate selection
  • Rubber Union Seal Rings: Order against the specified profile


Technical Parameters:

Temperature Range Confirm the selected compound for fluid and temperature duty
Custom Service OEM ODM
In Stock Confirm selected part and compound availability
Nearest Port Shanghai
Union Figure References 602/1002/1502
Shipping Method By Express, By Air, By Sea, By Car
Pressure Per complete union documentation; no independent seal rating
Shape Match the specified union groove and seal drawing
Size 1", 1.5", 2", 3", 4"
Free Samples Available

Applications:

Royal Way manufactures in China under an ISO 9001 quality management system. The 1, 1.5, 2, 3 and 4-inch range refers to nominal union connection sizes. Confirm finished seal dimensions against the drawing. Include the approved seal drawing revision, compound grade, hardness tolerance and inspection dimensions with the order.

NBR replacement seals may be requested for hammer union pipeline maintenance when the compound is suitable for the actual fluid and service. For Weco-type enquiries, confirm the original figure and part number; include the finished seal dimensions and backup construction so the replacement can be matched to the identified assembly.

During replacement, inspect the metal sealing surfaces and groove and follow the union manufacturer’s procedure. Installing a new rubber seal does not restore a damaged joint or increase its rated pressure. Sour service, aggressive chemicals and gas-decompression duty need separate qualification.

Custom or standard packing can be requested. Request a quotation by union figure, nominal size, NBR grade, backup arrangement and quantity. Confirm current price, payment terms, stock or production availability and dispatch schedule for the specified order.

The existing payment options are T/T and Paypal, with express, air, sea or suitable road transport. Confirm the route, packing and dispatch date for the destination. Keep figure, size, compound and backup identification on each order line and package.
