NBR HNBR FKM PTFE Rubber Lip Seal Ring for Hammer Union - Oil and Chemical Resistant Weco Seal

NBR HNBR FKM PTFE Rubber Lip Seal Ring for Hammer Union - Oil and Chemical Resistant Weco Seal

  • NBR HNBR FKM PTFE Rubber Lip Seal Ring for Hammer Union - Oil and Chemical Resistant Weco Seal
  • NBR HNBR FKM PTFE Rubber Lip Seal Ring for Hammer Union - Oil and Chemical Resistant Weco Seal
  • NBR HNBR FKM PTFE Rubber Lip Seal Ring for Hammer Union - Oil and Chemical Resistant Weco Seal
  • NBR HNBR FKM PTFE Rubber Lip Seal Ring for Hammer Union - Oil and Chemical Resistant Weco Seal
  • NBR HNBR FKM PTFE Rubber Lip Seal Ring for Hammer Union - Oil and Chemical Resistant Weco Seal
  • NBR HNBR FKM PTFE Rubber Lip Seal Ring for Hammer Union - Oil and Chemical Resistant Weco Seal
  • NBR HNBR FKM PTFE Rubber Lip Seal Ring for Hammer Union - Oil and Chemical Resistant Weco Seal
NBR HNBR FKM PTFE Rubber Lip Seal Ring for Hammer Union - Oil and Chemical Resistant Weco Seal
Product Details:
Place of Origin: Shanghai, China
Brand Name: SHQN
Certification: ISO 9001
Model Number: Figure 1502 reference; confirm union manufacturer and seal drawing
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: EXW USD$0.1/pc-$4/pc
Packaging Details: plastic bags+carton
Delivery Time: 7-15 days
Payment Terms: L/C, T/T, Western Union, Western Union,Bank transfer
Supply Ability: 50000pcs per week
Contact Now
Detailed Product Description
Material: NBR, HNBR Or FKM Grade; PTFE Design Specified Separately Size: 1, 1.5, 2, 3 And 4 Inch Nominal References; Verify Seal-pocket Dimensions
Color: Black, Red, Purple, White,etc Hardness: 80-90 Shore A Rubber Range Reference; Agree Grade And Target

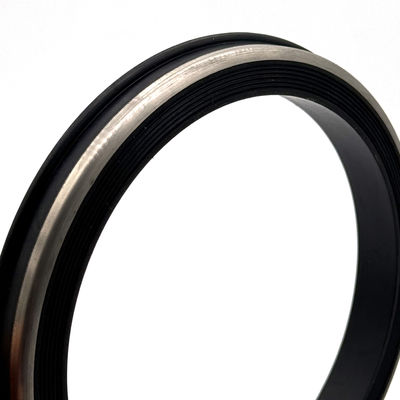

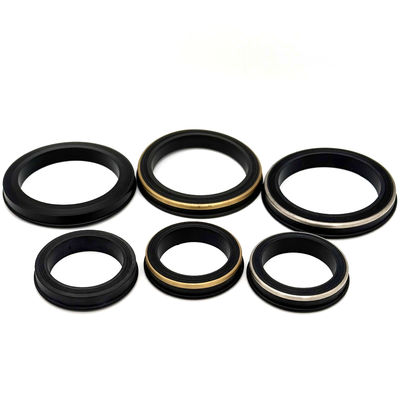

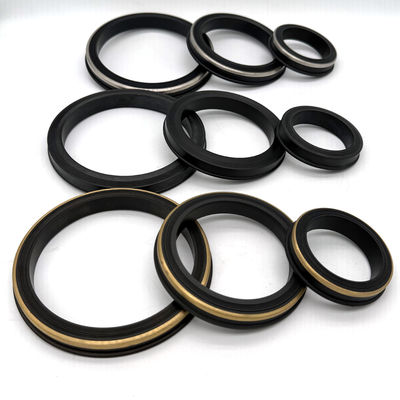

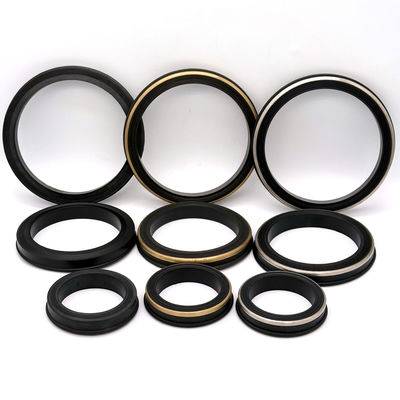

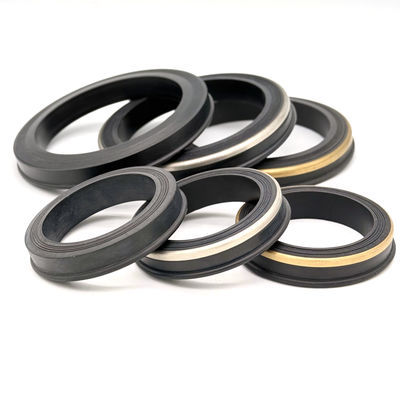

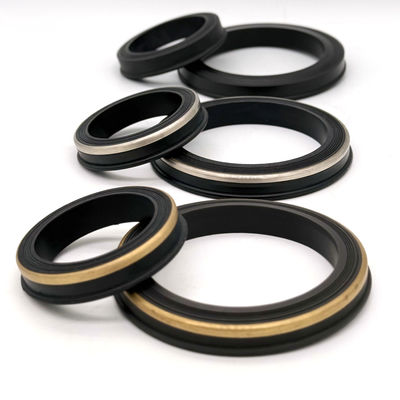

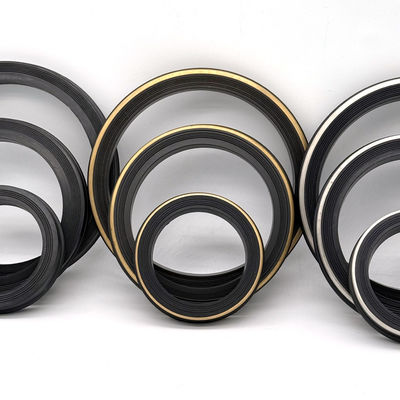

Type: Rubber, Rubber With Brass Ring, Rubber With Ss Ring Temperature: Confirm Selected Material Grade For Operating Media And Temperatures
Moq: 500pcs Delivery Time: 7-15days
Samples: Available Feature: Lip Retention And Sealing Depend On Profile, Compound And Union Fit
Usage: For Hammer Union Application: Oilfield, Oil And Gas Industry
Certification: ISO 9001 Quality Management System
Highlight:

NBR hammer union seal ring

,

HNBR rubber lip seal

,

PTFE hammer union gasket





NBR, HNBR and FKM Hammer Union Lip Seals; PTFE Designs by Specification



Product introduction


Hammer union lip seals fit the designated seal pocket in pipe or hose union connections. The union hardware locates and compresses the seal when assembled to the equipment procedure. A retaining lip helps retain the seal in its pocket during handling; confirm the lip profile and seating dimensions against the mating union.



For oilfield fluid-transfer connections, identify the union manufacturer, Figure number, nominal size and seal-pocket dimensions before selecting a replacement. A lip seal is a component of the complete union assembly and has no independent working-pressure rating. Fluid compatibility, temperature limits and pressure duty must be reviewed for the selected compound and equipment.



Shanghai Qinuo supplies replacement hammer union seals with catalogue references from 1 to 4 inches and Figures 602, 1002 and 1502. These are separate fitment references, not interchangeable sizes. NBR, HNBR and FKM compound options and PTFE designs require their own material and profile specifications. PTFE is not a rubber elastomer. Sour-fluid or rapid-decompression service requires specific qualification; HNBR alone does not establish suitability.



NBR HNBR FKM PTFE Rubber Lip Seal Ring for Hammer Union - Oil and Chemical Resistant Weco SealNBR HNBR FKM PTFE Rubber Lip Seal Ring for Hammer Union - Oil and Chemical Resistant Weco SealNBR HNBR FKM PTFE Rubber Lip Seal Ring for Hammer Union - Oil and Chemical Resistant Weco Seal

NBR HNBR FKM PTFE Rubber Lip Seal Ring for Hammer Union - Oil and Chemical Resistant Weco SealNBR HNBR FKM PTFE Rubber Lip Seal Ring for Hammer Union - Oil and Chemical Resistant Weco SealNBR HNBR FKM PTFE Rubber Lip Seal Ring for Hammer Union - Oil and Chemical Resistant Weco Seal



Hammer Union Lip Seal Fit: Check Retention and Seating Dimensions

For a replacement enquiry, provide the lip orientation, outside diameter, inside diameter and axial height from the drawing or a new approved sample. A worn seal can be distorted and should not be the only dimensional reference. Specify whether the arrangement is rubber-only, rubber with a brass backup or rubber with a stainless-steel backup.

Order detail Required information
Union fit Manufacturer, Figure, nominal pipe size and seal-pocket drawing
Lip profile Orientation, seating dimensions, height and tolerances
Material Approved compound grade, target hardness and operating media
Backup arrangement Rubber-only or specified brass/stainless backup; bonded or separate construction

Color is an identification choice, not proof of compound or pressure capability. Follow the union manufacturer’s inspection and assembly procedure. Confirm each seal reference separately when ordering mixed sizes.

About package and shipping


NBR HNBR FKM PTFE Rubber Lip Seal Ring for Hammer Union - Oil and Chemical Resistant Weco SealNBR HNBR FKM PTFE Rubber Lip Seal Ring for Hammer Union - Oil and Chemical Resistant Weco SealNBR HNBR FKM PTFE Rubber Lip Seal Ring for Hammer Union - Oil and Chemical Resistant Weco Seal

NBR HNBR FKM PTFE Rubber Lip Seal Ring for Hammer Union - Oil and Chemical Resistant Weco SealNBR HNBR FKM PTFE Rubber Lip Seal Ring for Hammer Union - Oil and Chemical Resistant Weco SealNBR HNBR FKM PTFE Rubber Lip Seal Ring for Hammer Union - Oil and Chemical Resistant Weco Seal



Company and factory


Shanghai Qinuo Industry Co., Ltd supplies replacement oilfield seals under Royal Way and SHQN. Hammer union seal enquiries can be discussed from the exact union reference and seal drawing.



Qinuo provides rubber, plastic and machined-part enquiries for industrial applications. For hammer union seals, agree the profile dimensions, compound grade and inspection requirements.



Confirm tooling, order quantity, production availability and dispatch with the quotation. Keep each union Figure, nominal size and compound reference separately identified in the package.



We operate an ISO 9001 quality management system. Agree drawing revision and material and dimensional inspection requirements with the order. Include the approved seal drawing revision, compound grade, hardness tolerance, finished dimensions and service-specific qualification requirements.



NBR HNBR FKM PTFE Rubber Lip Seal Ring for Hammer Union - Oil and Chemical Resistant Weco SealNBR HNBR FKM PTFE Rubber Lip Seal Ring for Hammer Union - Oil and Chemical Resistant Weco SealNBR HNBR FKM PTFE Rubber Lip Seal Ring for Hammer Union - Oil and Chemical Resistant Weco SealNBR HNBR FKM PTFE Rubber Lip Seal Ring for Hammer Union - Oil and Chemical Resistant Weco SealNBR HNBR FKM PTFE Rubber Lip Seal Ring for Hammer Union - Oil and Chemical Resistant Weco SealNBR HNBR FKM PTFE Rubber Lip Seal Ring for Hammer Union - Oil and Chemical Resistant Weco Seal
