| Place of Origin: | Shanghai, China |
| Brand Name: | SHQN |
| Certification: | ISO 9001 |
| Model Number: | Figure 1502 reference; confirm union manufacturer and seal drawing |
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | EXW USD$0.1/pc-$2/pc |
| Packaging Details: | plastic bags+carton |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, T/T, Western Union, Western Union,Bank transfer |
| Supply Ability: | 50000pcs per week |
| Material: | NBR, HNBR Or FKM Grade; PTFE Design Specified Separately | Size: | 1, 1.5, 2, 3 And 4 Inch Nominal References; Verify Seal-pocket Dimensions |
|---|---|---|---|
| Color: | Black, Red, Purple, White,etc | Hardness: | 80-85 Shore A Rubber Range Reference; Agree Grade And Target |

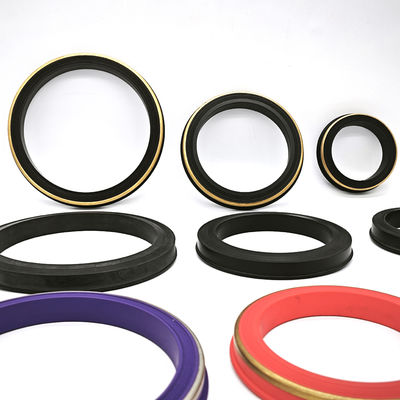

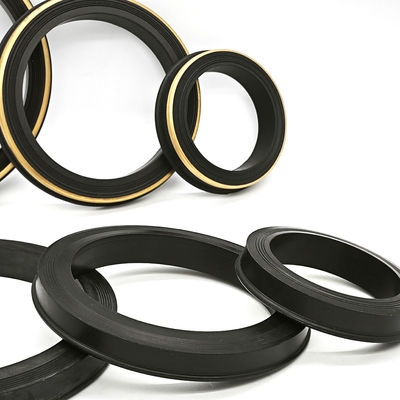

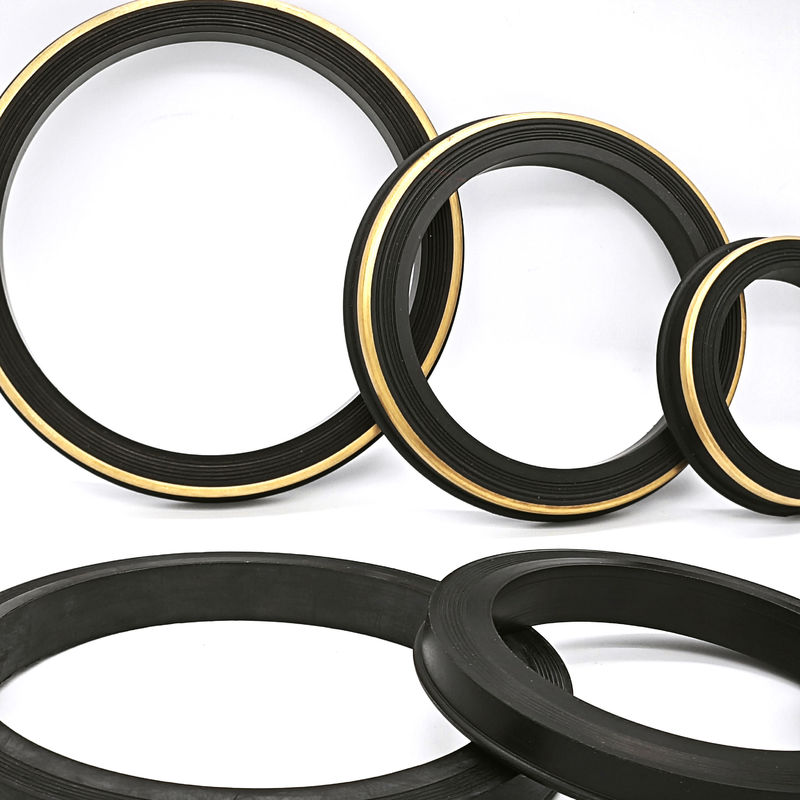

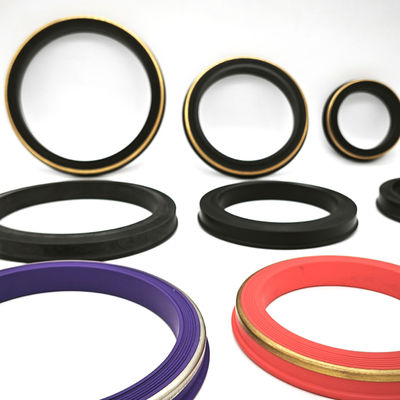

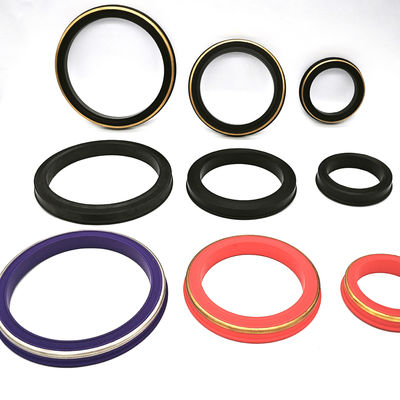

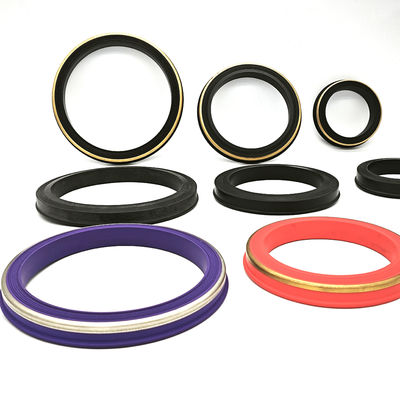

| Type: | Rubber, Rubber With Brass Ring, Rubber With Ss Ring | Temperature: | Confirm Selected Material Grade For Operating Media And Temperatures |
| Moq: | 500pcs | Delivery Time: | 7-15days |
| Samples: | Available | Feature: | Lip Retention And Sealing Depend On Profile, Compound And Union Fit |
| Usage: | For Hammer Union | Application: | Oilfield, Oil And Gas Industry |
| Certification: | ISO 9001 Quality Management System | ||
| Highlight: | 80-85 shore NBR rubber hammer union seal,HNBR hammer union seal for oilfield,oilfield hammer union seal with warranty |
||
Replacement Hammer Union Seals: Figure 602, 1002 and 1502 Fitment References
Product introduction
Hammer union lip seals fit the designated seal pocket in pipe or hose union connections. The union hardware locates and compresses the seal when assembled to the equipment procedure. A retaining lip helps retain the seal in its pocket during handling; confirm the lip profile and seating dimensions against the mating union.
Shanghai Qinuo supplies replacement hammer union seals with catalogue references from 1 to 4 inches for Figures 602, 1002 and 1502. Select the exact Figure, size and manufacturer seal profile for each order line. NBR, HNBR and FKM are alternative rubber compound options; PTFE designs require separate specifications. Review the actual fluid, additives, cleaning media and temperatures with the selected grade. Sour service cannot be established from the polymer name alone.
![]()
![]()
![]()
A nominal pipe size does not define the seal dimensions, and the same nominal size does not make different Figures interchangeable. Send the union marking and seal-pocket drawing with the quotation request. Identify the rubber-only or brass/stainless backup arrangement and whether the backup is separate or bonded.
| Order line | Reference to provide |
|---|---|
| Fitment | Union manufacturer, Figure, nominal size and drawing revision |
| Dimensions | Seal profile, inside/outside diameters, height and tolerances |
| Rubber specification | Compound grade and target Shore A hardness; catalogue reference 80-85 Shore A |
| Operating duty | Fluid composition, temperatures and complete union pressure requirements |
The seal alone does not establish a working-pressure rating. Keep each Figure, size and compound separately labelled for maintenance stores, and follow the union manufacturer’s inspection and assembly procedure. Color is not proof of material compatibility.
About package and shipping
![]()
![]()
![]()
![]()
![]()
![]()
Company and factory
Shanghai Qinuo Industry Co., Ltd supplies replacement oilfield seals under Royal Way and SHQN. Hammer union seal enquiries can be discussed from the exact union reference and seal drawing.
Qinuo provides rubber, plastic and machined-part enquiries for industrial applications. For hammer union seals, agree the profile dimensions, compound grade and inspection requirements.
Confirm tooling, order quantity, production availability and dispatch with the quotation. Keep each union Figure, nominal size and compound reference separately identified in the package.
We operate an ISO 9001 quality management system. Agree drawing revision and material and dimensional inspection requirements with the order. Include the approved seal drawing revision, compound grade, target hardness and tolerance, finished dimensions and service-specific qualification requirements.
![]()
![]()
![]()
![]()
![]()
![]()
