| Place of Origin: | Shanghai, China |
| Brand Name: | SHQN/Royal Way |
| Certification: | ISO 9001 |
| Model Number: | Figure 602 / 1002 / 1502 references; verify manufacturer and drawing |
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | EXW USD$0.1/pc-$2/pc |
| Packaging Details: | plastic bags+carton |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, T/T, Western Union, Western Union,Bank transfer |
| Supply Ability: | 50000pcs per week |
| Material: | NBR, HNBR Or FKM Grade; PTFE/PU Designs By Specification | Size: | 1 To 4 Inch Nominal References; Verify Actual Seal Dimensions |
|---|---|---|---|
| Hardness: | 80-85 Shore A Rubber Range Reference; Agree Target And Tolerance | Color: | Black, Red, Purple, White |
| Temperature: | Confirm Selected Grade For Operating Media And Temperatures | Feature: | Performance Depends On Compound, Seal Profile And Union Assembly |
| Application: | Oilfield, Oil And Gas Industry | Usage: | For Hammer Union |
| Moq: | 500pcs | Delivery Time: | 7-15days |
| Samples: | Available | Custom Service: | Oem Odm Service |
| Package: | Carton Or Wooden Carton | Certificate: | ISO 9001 Quality Management System |
| Highlight: | NBR hammer union seal for oilfield,HNBR rubber hammer union lip seal,FKM PTFE hammer union seal ring |
||
1 to 4 Inch Nominal Hammer Union Lip Seals: Rubber-only and Backup Arrangements
Hammer union lip seals fit the designated seal pocket in oilfield pipe and hose connections. The union hardware locates and compresses the seal during assembly. A retaining lip helps keep the seal in place during handling; confirm the lip orientation and seating profile against the exact union drawing. The complete union assembly determines its working-pressure rating.
Nominal size references: 1, 1.5, 2, 3 and 4 inches. Specify the union manufacturer, Figure 602, 1002 or 1502 reference and actual seal-pocket dimensions separately.

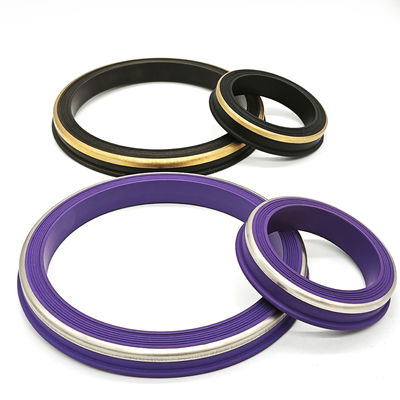

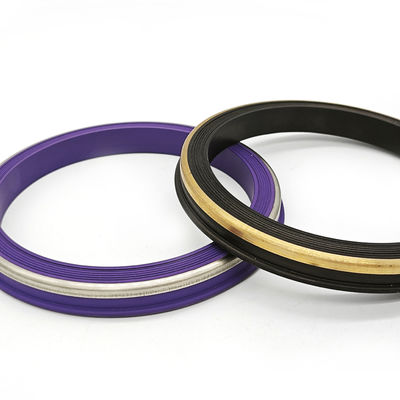

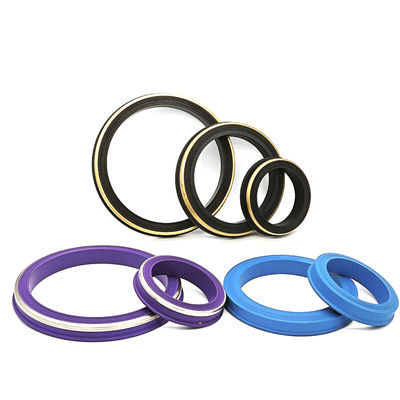

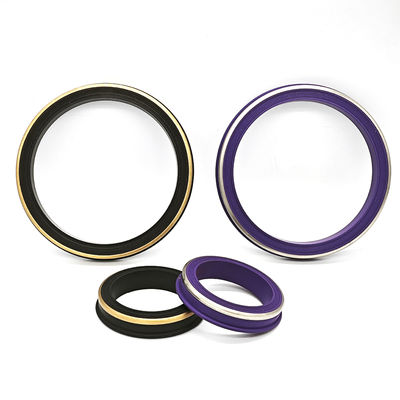

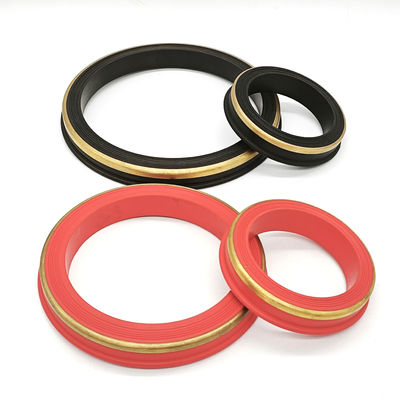

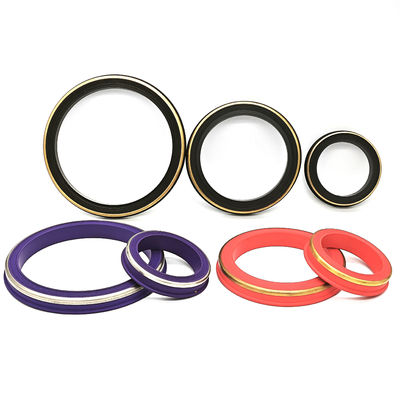

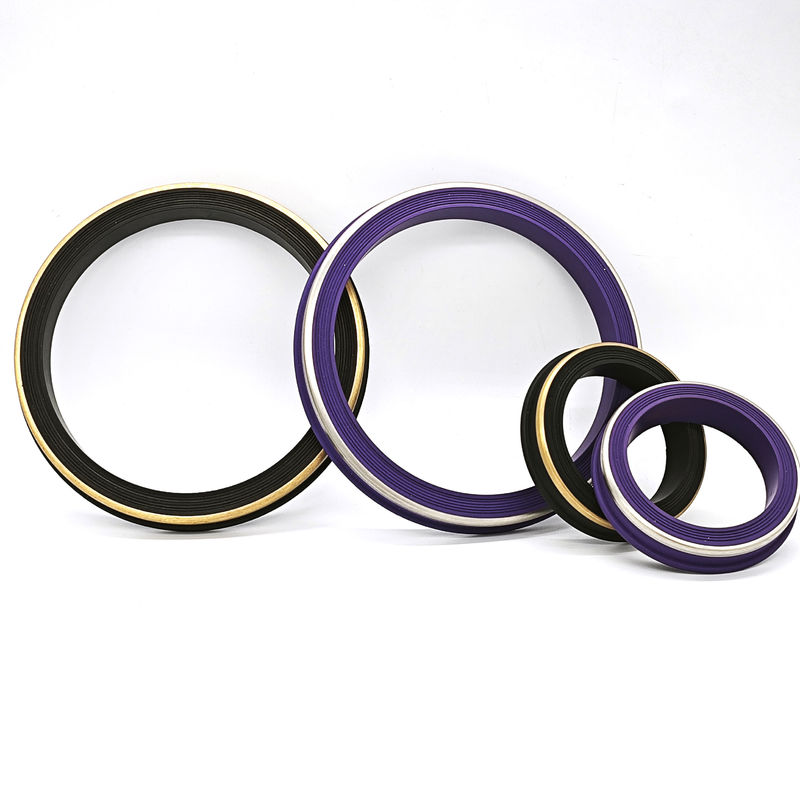

Construction options: rubber-only, rubber with a specified brass backup, or rubber with a specified stainless-steel backup. Confirm the backup geometry and whether it is bonded or supplied separately.
Material options: NBR, HNBR and FKM rubber compounds; PTFE and PU designs by specification. PTFE is not a rubber elastomer. Review fluid, additives, cleaning media and temperatures with the selected grade; polymer names alone do not establish sour-fluid or rapid-decompression suitability.
Custom enquiries can be discussed from a drawing, approved new sample and material specification. Agree dimensions, tolerances, hardness and inspection criteria with the order.
Shanghai Qinuo supplies oilfield rubber-part enquiries under SHQN and Royal Way, including hammer union seals, O-rings, swab cups, wireline oil saver rubber and packer elements. We operate an ISO 9001 quality management system. Confirm tooling, production availability and delivery for the specified part and quantity.
Record the backup arrangement on each order line. Similar-looking rings can have different profiles or seating heights. A backup option does not establish fit or pressure capability without the specified union assembly.
| Enquiry item | Required information |
|---|---|
| Union | Manufacturer, Figure, nominal size and drawing revision |
| Seal and backup | Profile dimensions, backup material and bonded/separate arrangement |
| Compound | Grade, operating media, temperatures and hardness target |
| Hardness | 80-85 Shore A catalogue reference for rubber; agree target and tolerance |
Color is not a material qualification. Keep different Figures, sizes and compound grades separately identified. Follow the equipment maker’s inspection and assembly procedure.
