| Place of Origin: | Shanghai, China |
| Brand Name: | SHQN |
| Certification: | ISO 9001 |
| Model Number: | Figure 1502 reference; confirm manufacturer and seal drawing |
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | EXW USD$0.1/pc-$2/pc |
| Packaging Details: | plastic bags+carton |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, T/T, Western Union, Western Union,Bank transfer |
| Supply Ability: | 50000pcs per week |
| Material: | NBR, HNBR Or FKM Grade; PTFE/PU Designs By Specification | Size: | 1 To 4 Inch Nominal References; Verify Actual Seal Dimensions |
|---|---|---|---|
| Hardness: | 80-85 Shore A Rubber Range Reference; Agree Target And Tolerance | Color: | Black, Red, Purple, White |
| Temperature: | Confirm Selected Grade For Operating Media And Temperatures | Feature: | Fluid Compatibility Depends On Selected Compound And Exposure Conditions |
| Application: | Oilfield, Oil And Gas Industry | Usage: | For Hammer Union |
| Moq: | 500pcs | Delivery Time: | 7-15days |
| Samples: | Available | Custom Service: | Oem Odm Service |
| Package: | Carton Or Wooden Carton | ||
| Highlight: | NBR hammer union seal ring,HNBR rubber lip seal,FKM PTFE hammer union seal |
||
Figure 1502 Hammer Union Lip Seal Enquiries: Compound Selection for Operating Media

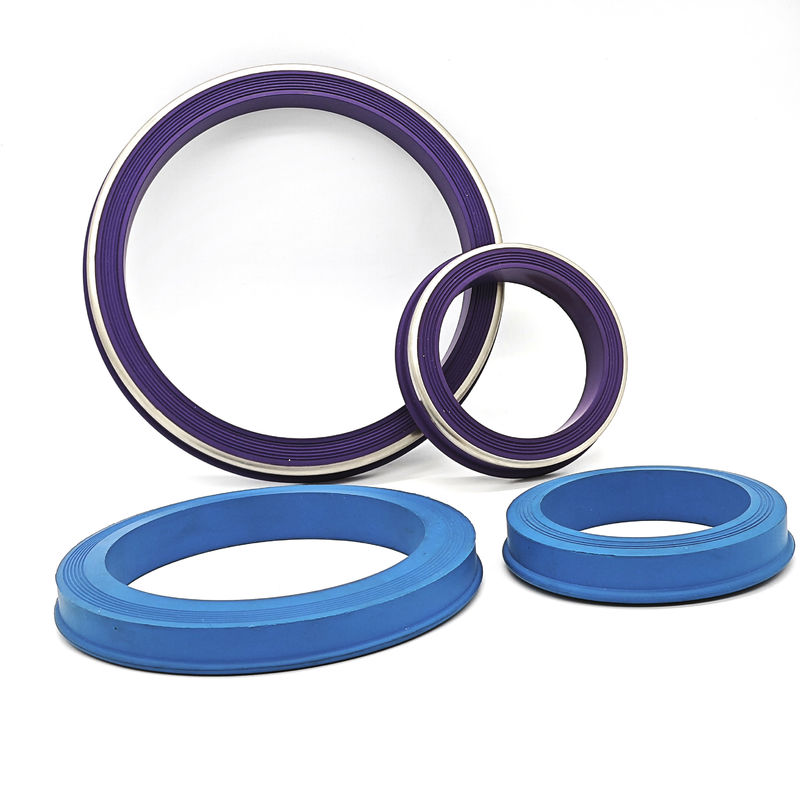

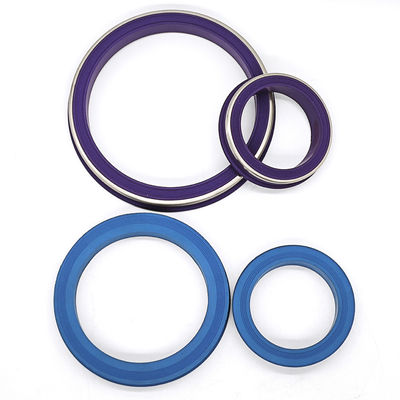

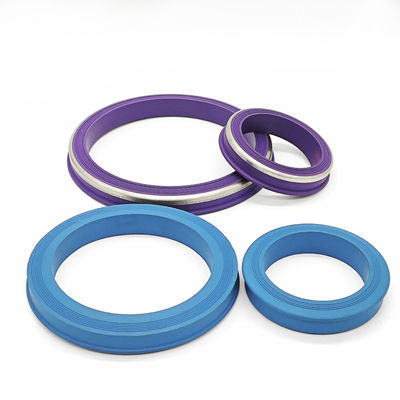

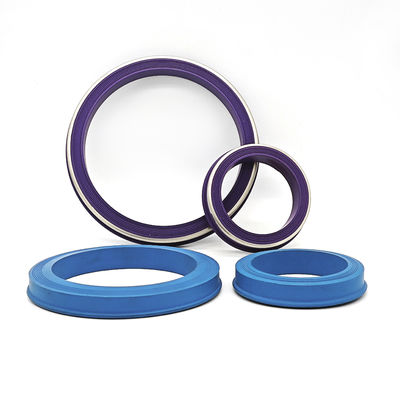

Hammer union lip seals fit the designated seal pocket in oilfield pipe and hose connections. The union hardware locates and compresses the seal during assembly. A retaining lip helps keep the seal in place during handling; confirm the lip orientation and seating profile against the exact union drawing. The complete union assembly determines its working-pressure rating.
Nominal size references: 1, 1.5, 2, 3 and 4 inches. Confirm the Figure 1502 union manufacturer and actual seal-pocket drawing for the required size.

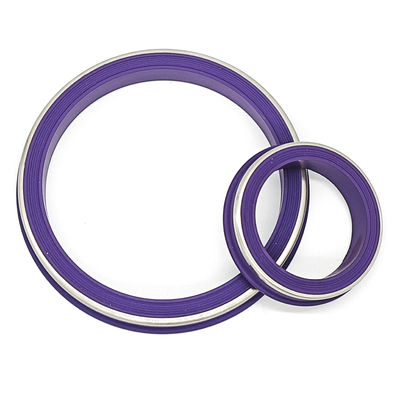

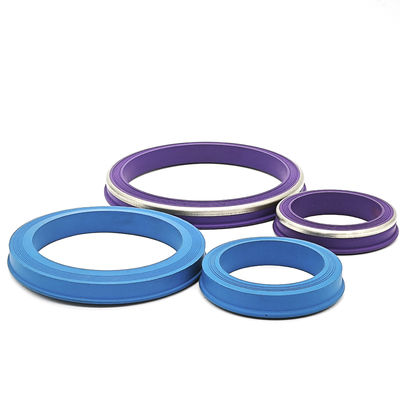

Construction options: rubber-only, rubber with a specified brass backup, or rubber with a specified stainless-steel backup. Confirm the backup geometry and whether it is bonded or supplied separately.
Material options: NBR, HNBR and FKM compounds, with PTFE or PU designs specified separately. Select the grade for the actual process fluid, additives and cleaning agents. A general oil-resistant or chemical-resistant description does not establish compatibility with every medium. Sour-fluid and rapid-decompression duty require specific qualification.
Custom enquiries can be discussed from a drawing, approved new sample and material specification. Agree dimensions, tolerances, hardness and inspection criteria with the order.
Shanghai Qinuo supplies oilfield rubber-part enquiries under SHQN and Royal Way, including hammer union seals, O-rings, swab cups, wireline oil saver rubber and packer elements. We operate an ISO 9001 quality management system. Confirm tooling, production availability and delivery for the specified part and quantity.
![]()
![]()
![]()
![]()
![]()
![]()
Provide both the operating medium and any fluid used to flush or clean the connection. A seal selected for one fluid may need a different compound for another exposure. Specify normal and maximum temperatures together with the equipment duty.
| Enquiry item | Required detail |
|---|---|
| Operating medium | Fluid composition, additives and any gas exposure |
| Cleaning | Flushing agents, cleaning media and exposure conditions |
| Rubber grade | Compound reference and hardness target; 80-85 Shore A is a catalogue range |
| Fit | Union manufacturer, Figure 1502, nominal size and seal-pocket drawing |
Confirm the rubber-only or brass/stainless backup construction. Color and hardness alone do not establish chemical compatibility. The complete union assembly sets the permitted pressure; follow its inspection and installation procedure.
