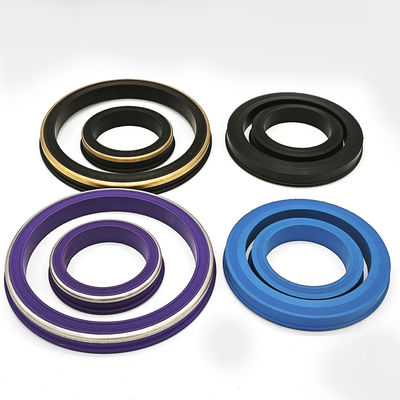

Figure 1502 Replacement Hammer Union Lip Seals: 1 to 4 Inch Nominal Sizes
Hammer union lip seals fit the designated seal pocket in pipe and hose union connections. The union hardware locates and compresses the seal during assembly. A retaining lip helps keep the seal seated during handling; match its profile and dimensions to the exact union manufacturer and drawing.
For oilfield fluid-transfer maintenance, confirm the Figure 1502 union reference, nominal size, fluid composition and temperatures before ordering. The replacement seal has no independent working-pressure rating. The specified compound and complete union assembly must be suitable for the duty; sour-fluid or rapid-decompression service requires specific qualification.

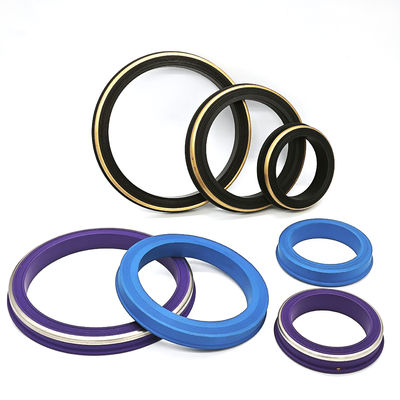

Nominal size references: 1, 1.5, 2, 3 and 4 inches. Confirm actual seal diameters, lip profile and axial height from the mating union drawing.
Material options: NBR (nitrile/Buna-N), HNBR and FKM compounds. PTFE and PU designs require their own specifications; PTFE is not a rubber elastomer.

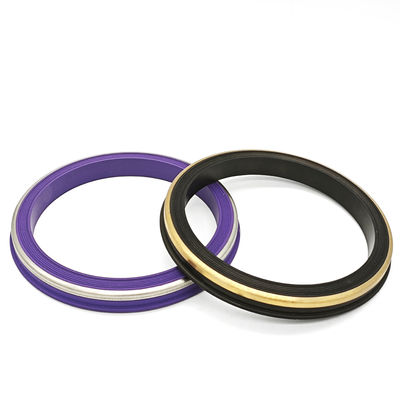

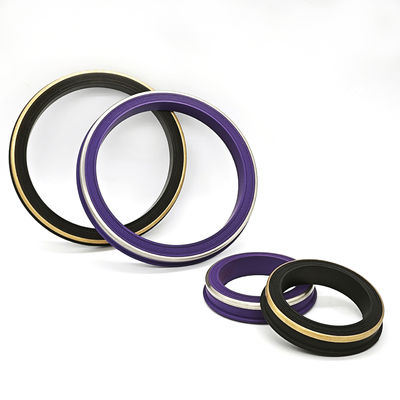

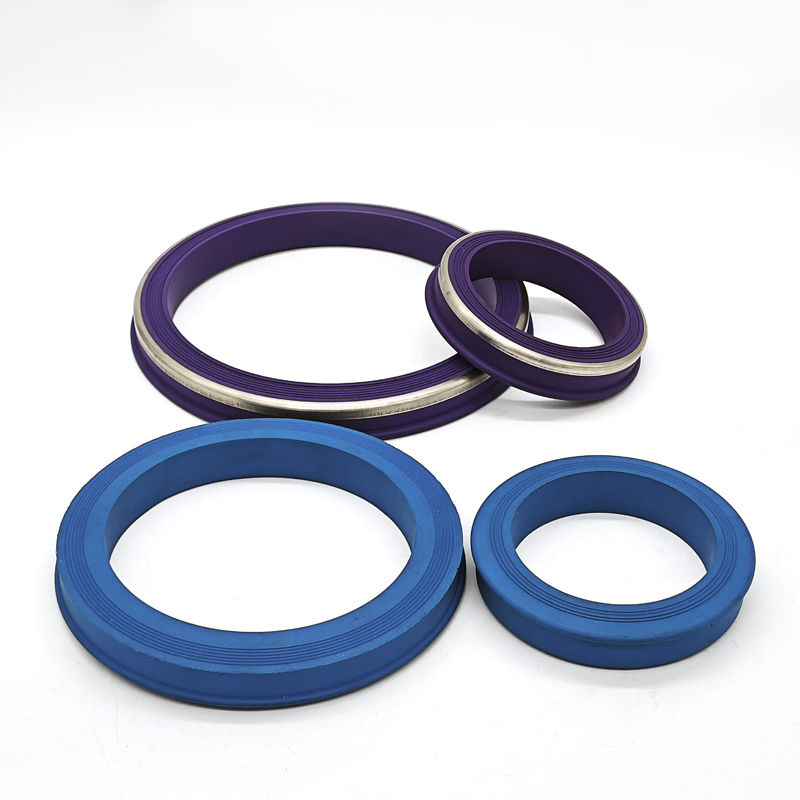

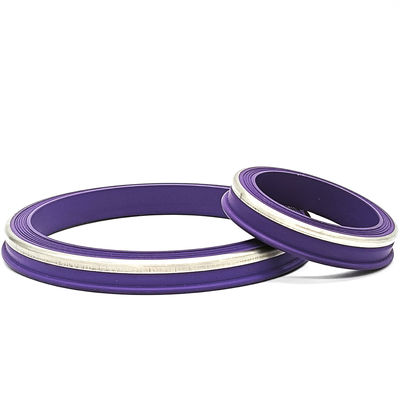

Construction: rubber-only, rubber with a specified brass backup, or rubber with a specified stainless-steel backup. Confirm the backup profile and bonded or separate arrangement.
Rubber hardness catalogue reference: 80-85 Shore A. Agree the target, tolerance and compound grade for the ordered seal.
Figure 1502 Replacement Seal: Match a New Sample to the Drawing
When supplying a sample for replacement, identify whether it is new or used. A worn seal can be stretched, swollen or permanently compressed and should not define the production dimensions by itself. Provide the approved drawing or seal-pocket reference alongside the sample.
| Reference |
Information to provide |
| Fitment |
Union manufacturer, Figure 1502 and nominal size |
| Dimensions |
Inside/outside diameters, lip geometry, height and tolerance |
| Sample |
New/used condition and approved drawing revision |
| Material |
Compound grade, hardness target, media and temperatures |
Keep each size and backup arrangement separately identified. Inspect the union pocket and follow the equipment manufacturer’s assembly procedure. Color does not establish compound or pressure capability.
Shanghai Qinuo Industry Co., Ltd supplies replacement oilfield seals under Royal Way and SHQN. Hammer union seal enquiries can be discussed from the exact union reference and seal drawing.
Qinuo provides rubber, plastic and machined-part enquiries for industrial applications. For hammer union seals, agree the profile dimensions, compound grade and inspection requirements.
Confirm tooling, order quantity, production availability and dispatch with the quotation. Keep each union Figure, nominal size and compound reference separately identified in the package.
We operate an ISO 9001 quality management system. Agree drawing revision and material and dimensional inspection requirements with the order. Include the approved seal drawing revision, compound grade, target hardness and tolerance, finished dimensions and service-specific qualification requirements.
