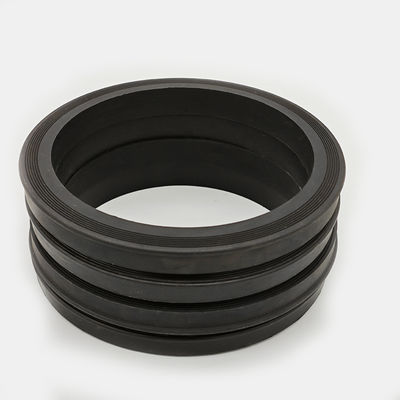

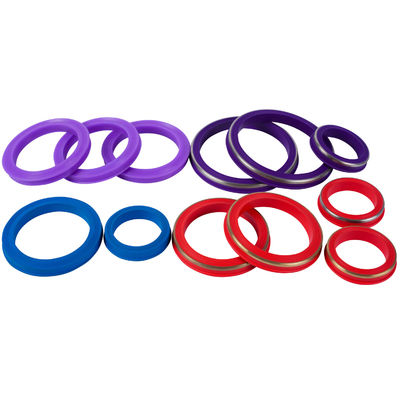

High Pressure 15000PSI Fig 1502 Hammer Union Seal with 80-90 Shore A Hardness for Weco Wing Unions

High Pressure 15000PSI Fig 1502 Hammer Union Seal with 80-90 Shore A Hardness for Weco Wing Unions

Product Details:
Place of Origin: Shanghai, China
Brand Name: Royal Way
Certification: ISO9001: 1005
Model Number: Weco Hammerless Union Seals
Payment & Shipping Terms:
Minimum Order Quantity: 500PCS
Price: 0.1-2usd/pcs
Packaging Details: 40*40*40cm carton packing
Delivery Time: 5-20days
Payment Terms: T/T,Western Union,L/C,Paypal
Supply Ability: 50,000pcs per week
Contact Now
Detailed Product Description
Material:: NBR (Buna-N), HNBR Or FKM; PTFE/FFKM By Separate Review Size: 1" 1.5" 2" 3" 4" 6" 7"
MOQ: 500PCS Types: Rubber Or Rubber+brass Back-up
Hardness: 80-90 Shore A Rubber Reference; Exact Compound Target To Confirm Feature: Hammer Union Replacement Sealing; Fluid And Pressure Duty To Confirm
Color: Black Or Custom Color Brand: Royal Way
Temperature Range: Compound-specific Continuous And Peak Temperature Limits To Confirm Pressure: 15000 Psi Assembly Reference; Confirm FIG 1502 Service Specification
Using: FIG 1502 Flowline Union Sealing; Exact Assembly Fit To Confirm
Highlight:

FKM sour gas union seal

,

HNBR gasket high pressure

,

Weco wing unions seals

What we supply:

FIG 1502 hammer union seals are replacement sealing components for the specified union assembly in drilling, fracturing, cementing and well servicing. Match the seal profile, nominal connection size and backing construction to the union maker and part number. Correct seating and installation are required for the assembled connection.

Weco and FMC references identify potential mating equipment; confirm the exact FIG 1502 assembly and drawing before ordering. NBR (Buna-N), HNBR and FKM compounds must be selected for the fluid, temperature and pressure duty. Sour gas or H₂S service requires compound-specific qualification and agreed test requirements.

The original size range is 1, 1.5, 2, 3, 4, 6 and 7 inches, with rubber-only, brass-backed or stainless-backed constructions listed. The 15,000 psi reference applies only where supported by the complete union assembly specification and service conditions; it is not a standalone seal rating. Confirm the ordered FIG, size and backing material together.

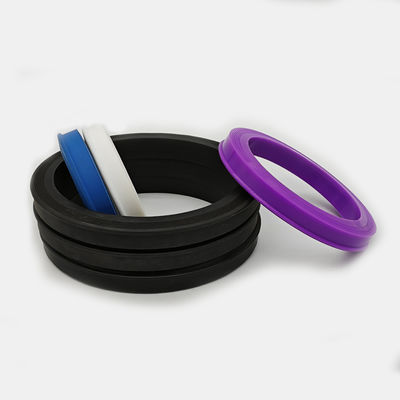

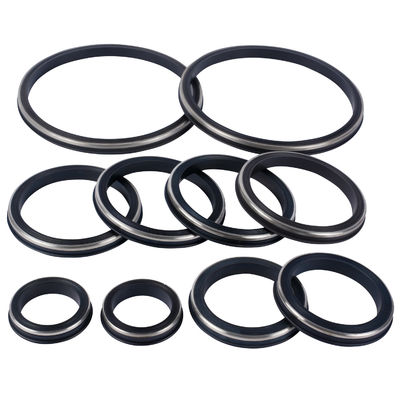

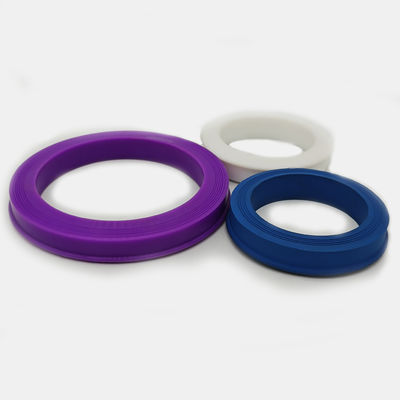

High Pressure 15000PSI Fig 1502 Hammer Union Seal with 80-90 Shore A Hardness for Weco Wing Unions

High Pressure 15000PSI Fig 1502 Hammer Union Seal with 80-90 Shore A Hardness for Weco Wing Unions



High Pressure 15000PSI Fig 1502 Hammer Union Seal with 80-90 Shore A Hardness for Weco Wing Unions



Size: 1" 1.5" 2" 3" 4" 6" 7"
Material: Buna/FKM/HNBR/PTFE
Types: Pure rubber/ rubber+brass back-up/rubber+304 ss back-up

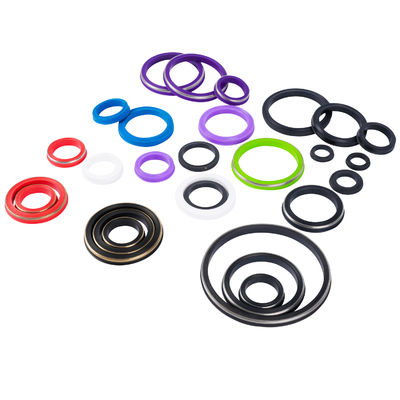

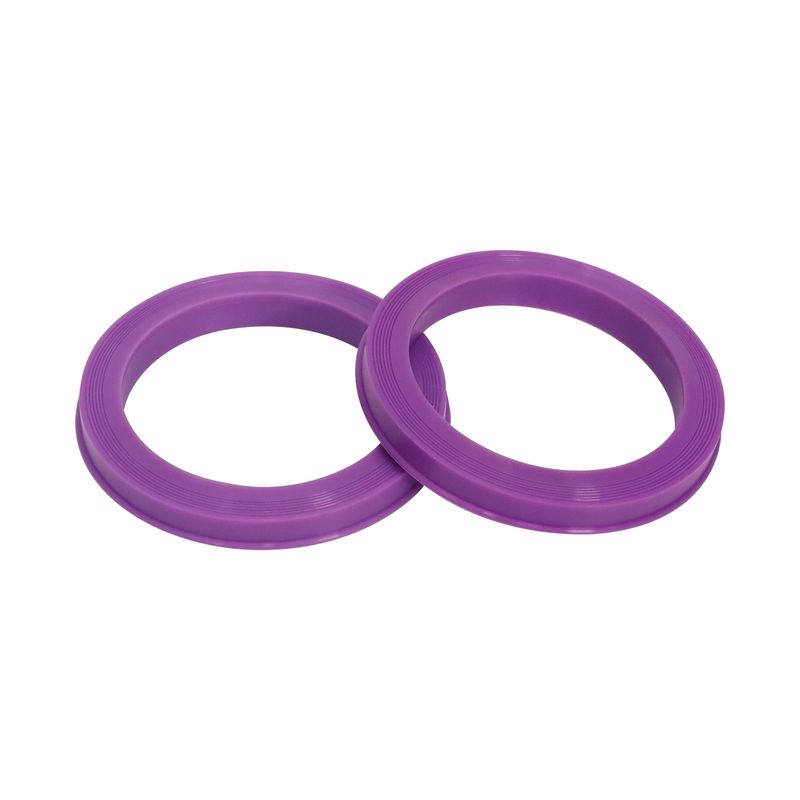

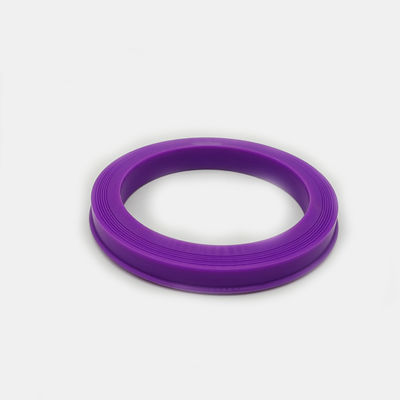

High Pressure 15000PSI Fig 1502 Hammer Union Seal with 80-90 Shore A Hardness for Weco Wing Unions

High Pressure 15000PSI Fig 1502 Hammer Union Seal with 80-90 Shore A Hardness for Weco Wing Unions

High Pressure 15000PSI Fig 1502 Hammer Union Seal with 80-90 Shore A Hardness for Weco Wing Unions

Who we are:
Shanghai Qinuo Industry Co., Ltd, founded in 2013, has more than a decade of experience in producing and supplying rubber fittings for the oil and gas industry. With annual sales exceeding $10 million and a strict ISO9001 quality system, our wholly owned Nantong Ruowei Seal factory is equipped with 30+ vulcanizing machines and advanced facilities. We manufacture over 20 types of seals, O-rings, and customized rubber components for demanding applications. With a monthly capacity of over 40 tons, our products are trusted by customers in more than 100 countries worldwide.

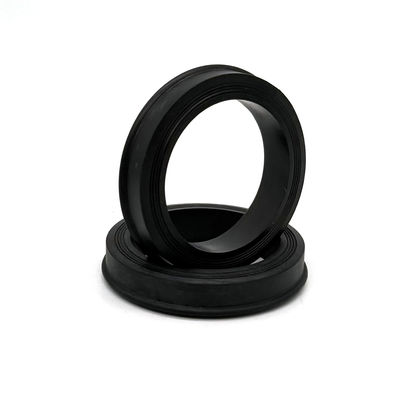

High Pressure 15000PSI Fig 1502 Hammer Union Seal with 80-90 Shore A Hardness for Weco Wing UnionsHigh Pressure 15000PSI Fig 1502 Hammer Union Seal with 80-90 Shore A Hardness for Weco Wing Unions

What we Provide:
Rubber O rings
  • Rubber O rings -As568 series rubber o rings/JB standard rubber o rings.
  • Encapsulated rubber o rings- silicone/ FKM rubber o rings
  • PTFE coating rubber o rings-kinds of color rubber o ringsHigh Pressure 15000PSI Fig 1502 Hammer Union Seal with 80-90 Shore A Hardness for Weco Wing Unions
Hammer Union seals- 1" 1.5" 2" 3" 4" 6" 7"
  • Rubber hammer union seals-Buna/FKM/HNBR rubber type
  • Rubber w/brass or stainless steel back up types
Swab cups
  • V types 4" 5.5" ect.
  • TA type
  • MV type
  • NUF type
  • TUF type

High Pressure 15000PSI Fig 1502 Hammer Union Seal with 80-90 Shore A Hardness for Weco Wing Unions

Rubber seal kits- custom packing or lable is available
  • #10 setting tool - With burst disk
  • #20 setting tool - With burst disk
  • AP Compact Setting Tool Kit
  • Grease Tubes Seal Kit
  • 3 1/2” Shorty Kits
  • 3 - 1/8" Weight Bar Kit
  • #10 Baker Firing Head Kit
  • #20 Firing Head Kit
  • #20 BP3.SEC kits
  • #10 BP3.SEC kits
  • T-BRT redress kit
  • T-1 Set
  • GC Stripper Head Redress Kits
Wireline Component Parts:

1) Pressure Relief Disc, ZD Plated (application:rupture(bleeder) Disc)

2) Rubber Push Pin -black

3) Nylon Push Pin -natural

4) Retainer Nut, Steel, ZD Plated (application: retainer nut)

5) Threaded Steel Plug, w/ Lathe Cut (application:5" port plug)

6) Threaded Brass Plug (application: setting tool plug )

High Pressure 15000PSI Fig 1502 Hammer Union Seal with 80-90 Shore A Hardness for Weco Wing Unions

More pictures of our products for reference:

High Pressure 15000PSI Fig 1502 Hammer Union Seal with 80-90 Shore A Hardness for Weco Wing Unions

High Pressure 15000PSI Fig 1502 Hammer Union Seal with 80-90 Shore A Hardness for Weco Wing Unions

Corner View of our factory:

High Pressure 15000PSI Fig 1502 Hammer Union Seal with 80-90 Shore A Hardness for Weco Wing Unions

High Pressure 15000PSI Fig 1502 Hammer Union Seal with 80-90 Shore A Hardness for Weco Wing Unions

High Pressure 15000PSI Fig 1502 Hammer Union Seal with 80-90 Shore A Hardness for Weco Wing Unions

Our Service capability:
Customized services Plastic & Rubber bonding Mold Design
Customized extrusion Extrusion and bonded gaskets Mold Production
Injection Molding Self Adhesive rubber profile Customized Package
Sheet Cutting Rubber Complex Intake Hose Problem Solving
Standard Size extrusion Reinforced rubber tubes Assembly
Special Compound design Rubber Solution Suggestion Sourcing
Rubber& Metal bonding
FAQ:

Q1: What is Hammer Union Seal?

A1: It is a replacement sealing component for a hammer union connection. For this listing, confirm FIG 1502, nominal connection size, manufacturer and the exact seal profile.

Q2: What is the packaging of Hammer Union Seal?

A2: The packaging of Hammer Union Seal can be customized or standard packing.

Q3: What is the delivery time of Hammer Union Seal?

A3: Confirm delivery time in the quotation for the required size, compound, backing construction and quantity.

Q4: What is the material of Hammer Union Seal?

A4: Specify the selected NBR, HNBR or FKM compound and required hardness. PTFE or FFKM requests require separate construction and service review; material families do not share one operating range.

Q5: Are you manufacture or trading company?

We are manufacture. Our factory located in Haimen District, Nantong City, Jiangsu Province.

Send us message

Tel: +86 21 38258692

Web: https://www.unionseal.com

FIG 1502 Seal: Hardness and Backing Selection

The listed 80-90 Shore A range is a rubber hardness reference, not a pressure qualification. Specify the exact target and tolerance for the chosen compound; PTFE constructions require their own material specification.

Send the union maker, FIG 1502 part number, nominal size and a drawing or original seal sample. Identify rubber-only, brass-backed or stainless-backed construction and confirm the backing dimensions and grade. Matching nominal size alone is insufficient to select a seal.

Include fluid composition, normal and peak temperatures, working pressure, pressure cycles and required inspection documents. Review the complete union service rating and the selected compound together before approving the replacement.
