| Place of Origin: | Shanghai, China |
| Brand Name: | Royal Way |
| Certification: | ISO 9001 |
| Model Number: | Hammer union replacement seals; exact figure and maker to confirm |
| Minimum Order Quantity: | 500PCS |
|---|---|
| Price: | 0.1-2usd/pcs |
| Packaging Details: | 40*40*40cm carton packing |
| Delivery Time: | 5-20days |
| Payment Terms: | T/T,Western Union,L/C,Paypal |
| Supply Ability: | 50,000pcs per week |
| Material:: | NBR (Buna-N), HNBR Or FKM; PTFE/FFKM By Separate Review | Size: | 1" 1.5" 2" 3" 4" 6" 7" |
|---|---|---|---|
| MOQ: | 500PCS | Types: | Rubber Or Rubber+brass Back-up |
| Hardness: | 80-90 Shore A Rubber Reference; Exact Compound Target To Confirm | Feature: | Hammer Union Replacement Sealing; Fluid And Pressure Duty To Confirm |
| Color: | Black Or Custom Color | Brand: | Royal Way |
| Temperature Range: | Compound-specific Continuous And Peak Temperature Limits To Confirm | Pressure: | Confirm Manufacturer Working-pressure Rating For Each Exact Union Figure |
| Using: | Flowline Union Replacement Sealing; Figure And Assembly Fit To Confirm | ||
| Highlight: | H₂S resistant hammer union seal,high-compression resistant FKM NBR seal,steel or brass backup ring seal |
||
What we supply:

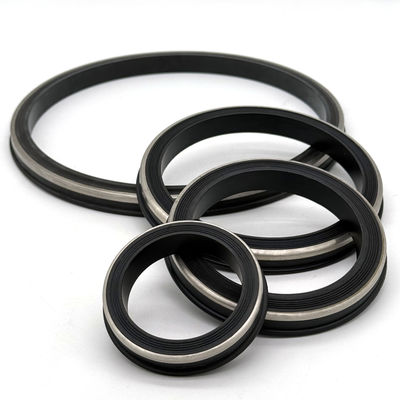

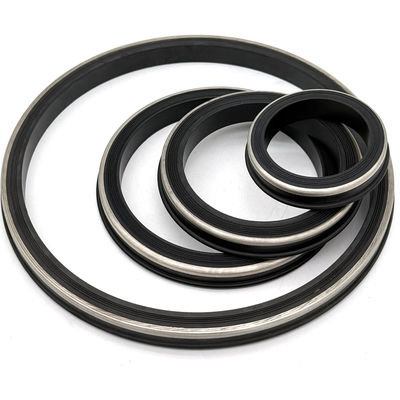

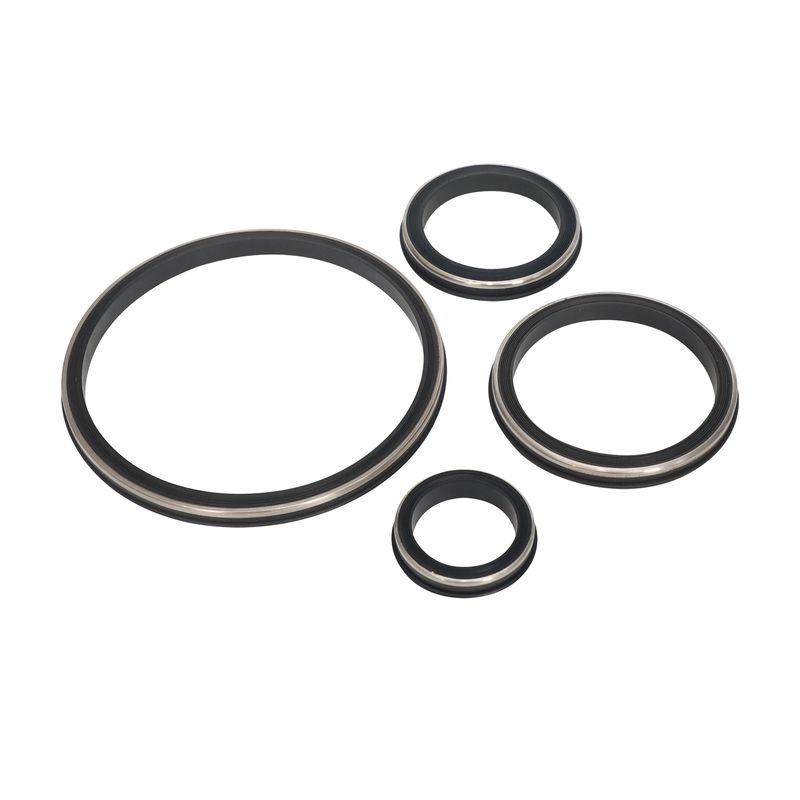

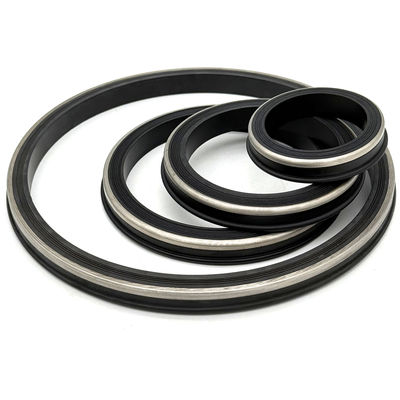

This listing covers hammer union replacement seals selected by union figure, nominal connection size and seal construction. Match the lip profile and seating dimensions to the exact assembly used in drilling, well servicing or flowline equipment. Specify the union maker and part number for fit review.
The original range includes FIG 602, FIG 1002, FIG 1502 and FIG 2002 references. Each figure requires its own assembly specification and seal fit confirmation. Select NBR (Buna-N), HNBR or FKM against the exact fluid and temperature duty. H₂S, sour gas, acids or steam require compound-specific compatibility and qualification evidence.
Nominal sizes listed are 1, 1.5, 2, 3, 4, 6 and 7 inches. Rubber-only, brass-backed and stainless-backed constructions must be matched to the specified union. The 15,000 psi reference is conditional on the complete assembly rating; adding a backing ring does not establish a pressure rating for every figure or material.
![]()
![]()
![]()
| Size: | 1" 1.5" 2" 3" 4" 6" 7" |
| Material: | Buna/FKM/HNBR/PTFE |
| Types: | Pure rubber/ rubber+brass back-up/rubber+304 ss back-up |
![]()
![]()
![]()
![]()
![]()
![]()
1) Pressure Relief Disc, ZD Plated (application:rupture(bleeder) Disc)
2) Rubber Push Pin -black
3) Nylon Push Pin -natural
4) Retainer Nut, Steel, ZD Plated (application: retainer nut)
5) Threaded Steel Plug, w/ Lathe Cut (application:5" port plug)
6) Threaded Brass Plug (application: setting tool plug )
![]()
![]()
![]()
![]()
![]()
![]()
| Customized services | Plastic & Rubber bonding | Mold Design | ||||||
| Customized extrusion | Extrusion and bonded gaskets | Mold Production | ||||||
| Injection Molding | Self Adhesive rubber profile | Customized Package | ||||||
| Sheet Cutting | Rubber Complex Intake Hose | Problem Solving | ||||||
| Standard Size extrusion | Reinforced rubber tubes | Assembly | ||||||
| Special Compound design | Rubber Solution Suggestion | Sourcing | ||||||
| Rubber& Metal bonding | ||||||||
Q1: What is Hammer Union Seal?
A1: It is a replacement sealing component for a hammer union connection. For this listing, confirm the exact union figure, nominal connection size, manufacturer and the exact seal profile.
Q2: What is the packaging of Hammer Union Seal?
A2: The packaging of Hammer Union Seal can be customized or standard packing.
Q3: What is the delivery time of Hammer Union Seal?
A3: Confirm delivery time in the quotation for the required size, compound, backing construction and quantity.
Q4: What is the material of Hammer Union Seal?
A4: Specify the selected NBR, HNBR or FKM compound and required hardness. PTFE or FFKM requests require separate construction and service review; material families do not share one operating range.
Q5: Are you manufacture or trading company?
We are manufacture. Our factory located in Haimen District, Nantong City, Jiangsu Province.
Tel: +86 21 38258692
Web: https://www.unionseal.com
For mixed-figure procurement, list each union figure and nominal size separately with the maker and seal part number. Confirm any FIG 206 request against its own drawing rather than applying a FIG 1502 seal or pressure reference.
Specify the operating fluid, additives, continuous and peak temperatures and pressure cycles for each line item. NBR, HNBR, FKM, PTFE and FFKM do not share one temperature range; request limits for the exact compound and construction.
Identify rubber-only or metal-backed construction, backing grade and dimensions, target rubber hardness and inspection documents. Sample or drawing approval should establish the replacement fit before a production order.
