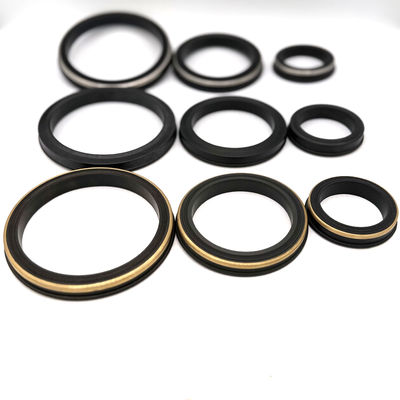

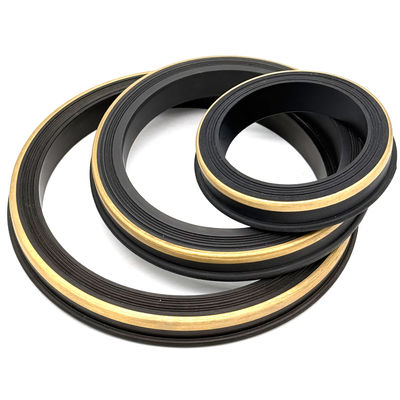

Sour Gas Resistant FKM HNBR Steel or Brass Sleeve Figure 1502 602 Hammer Union Seal for Oil Rig

Sour Gas Resistant FKM HNBR Steel or Brass Sleeve Figure 1502 602 Hammer Union Seal for Oil Rig

Product Details:
Place of Origin: Shanghai, China
Brand Name: Royal Way
Certification: ISO 9001
Model Number: Hammer union replacement seals; exact figure and maker to confirm
Payment & Shipping Terms:
Minimum Order Quantity: 500PCS
Price: 0.1-2usd/pcs
Packaging Details: 40*40*40cm carton packing
Delivery Time: 5-20days
Payment Terms: T/T,Western Union,L/C,Paypal
Supply Ability: 50,000pcs per week
Contact Now
Detailed Product Description
Material:: NBR (Buna-N), HNBR Or FKM; PTFE/FFKM By Separate Review Size: 1" 1.5" 2" 3" 4" 6" 7"
MOQ: 500PCS Types: Rubber-only, Brass-backed Or Stainless-backed; Exact Grade And Design To Confirm
Hardness: 80-90 Shore A Rubber Reference; Exact Compound Target To Confirm Feature: FKM/HNBR Union Seal; Sour-service Qualification By Exact Compound Required
Color: Black Or Custom Color Brand: Royal Way
Temperature Range: Compound-specific Continuous And Peak Temperature Limits To Confirm Pressure: Confirm Manufacturer Working-pressure Rating For Each Exact Union Figure
Using: Flowline Union Replacement Sealing; Figure And Assembly Fit To Confirm
Highlight:

Sour gas resistant FKM HNBR union seal

,

Weco wing union seals for oil rig

,

Brass sleeve hammer union seal

What we supply:

This listing covers FKM or HNBR hammer union replacement seals with brass or steel backing requests for oilfield flowlines. Select the exact FIG 1502 or FIG 602 assembly, nominal size and seal profile from the union maker drawing. Applications may include drilling mud circulation, cementing and well servicing when the complete assembly and compound are specified for that duty.

Confirm the sealing lip, backing dimensions and selected rubber compound against the original part. FKM and HNBR are material families; sour gas or H₂S resistance requires evidence for the exact compound under the specified gas composition, pressure, temperature and decompression conditions.

The original range lists 1 to 7 inch nominal sizes and brass or stainless-steel backing options. FIG 602 and FIG 1502 have separate assembly specifications. Use the manufacturer working-pressure rating for the exact union and service; neither a polymer name nor a metal sleeve establishes a rating above 15,000 psi.

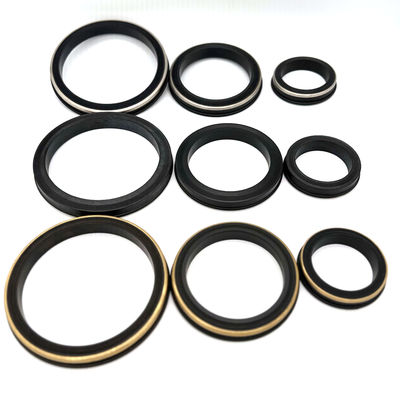

Sour Gas Resistant FKM HNBR Steel or Brass Sleeve Figure 1502 602 Hammer Union Seal for Oil Rig

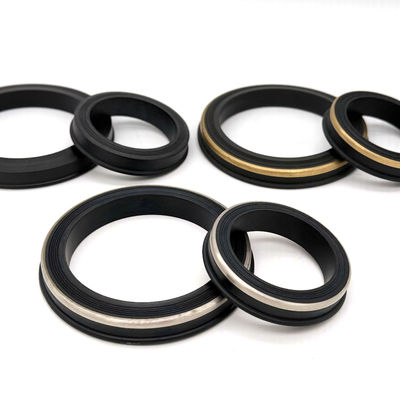

Sour Gas Resistant FKM HNBR Steel or Brass Sleeve Figure 1502 602 Hammer Union Seal for Oil Rig

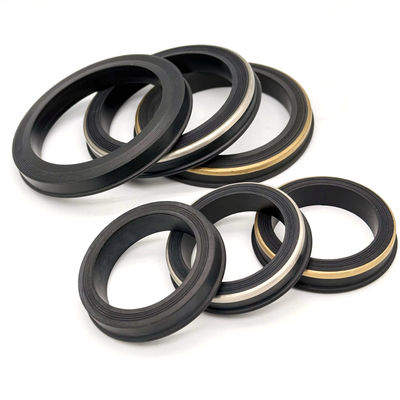

Sour Gas Resistant FKM HNBR Steel or Brass Sleeve Figure 1502 602 Hammer Union Seal for Oil Rig

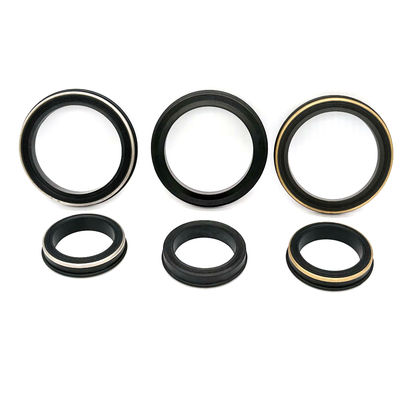

Size: 1" 1.5" 2" 3" 4" 6" 7"
Material: Buna/FKM/HNBR/PTFE
Types: Pure rubber/ rubber+brass back-up/rubber+304 ss back-up

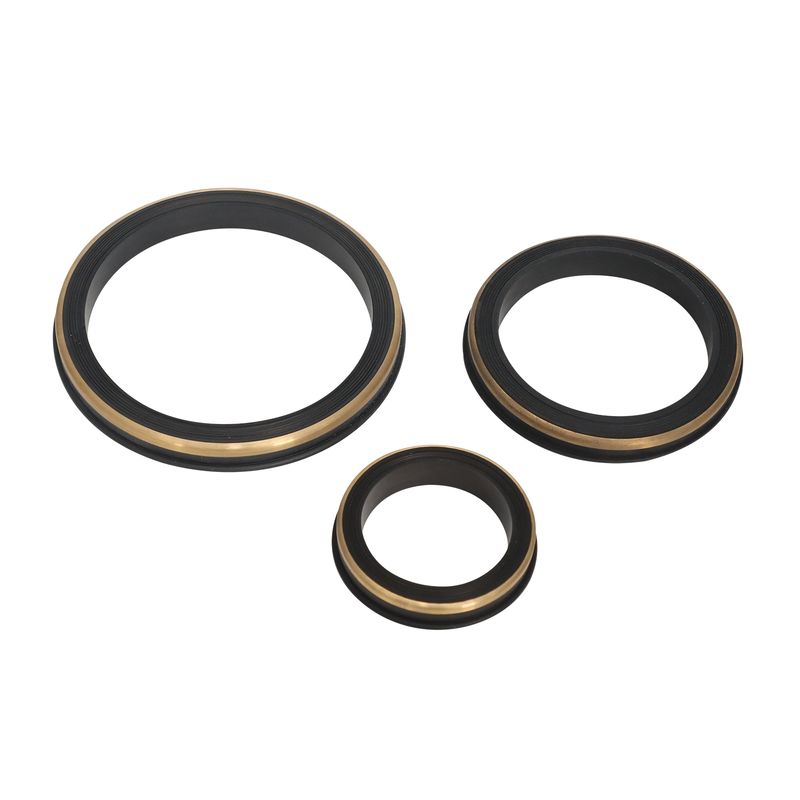

Sour Gas Resistant FKM HNBR Steel or Brass Sleeve Figure 1502 602 Hammer Union Seal for Oil Rig

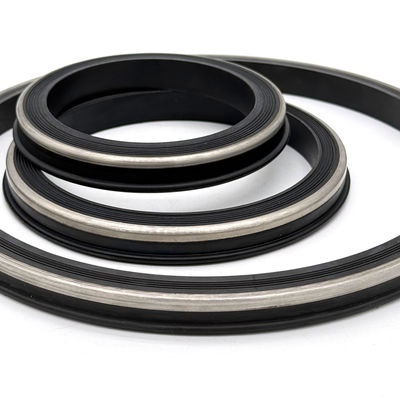

Sour Gas Resistant FKM HNBR Steel or Brass Sleeve Figure 1502 602 Hammer Union Seal for Oil Rig

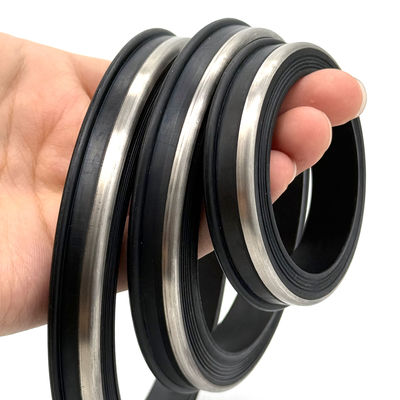

Sour Gas Resistant FKM HNBR Steel or Brass Sleeve Figure 1502 602 Hammer Union Seal for Oil Rig

Who we are:
Shanghai Qinuo Industry Co., Ltd, founded in 2013, has more than a decade of experience in producing and supplying rubber fittings for the oil and gas industry. With annual sales exceeding $10 million and a strict ISO9001 quality system, our wholly owned Nantong Ruowei Seal factory is equipped with 30+ vulcanizing machines and advanced facilities. We manufacture over 20 types of seals, O-rings, and customized rubber components for demanding applications. With a monthly capacity of over 40 tons, our products are trusted by customers in more than 100 countries worldwide.

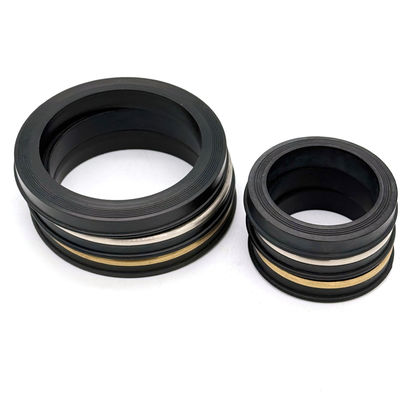

Sour Gas Resistant FKM HNBR Steel or Brass Sleeve Figure 1502 602 Hammer Union Seal for Oil RigSour Gas Resistant FKM HNBR Steel or Brass Sleeve Figure 1502 602 Hammer Union Seal for Oil Rig

What we Provide:
Rubber O rings
  • Rubber O rings -As568 series rubber o rings/JB standard rubber o rings.
  • Encapsulated rubber o rings- silicone/ FKM rubber o rings
  • PTFE coating rubber o rings-kinds of color rubber o ringsSour Gas Resistant FKM HNBR Steel or Brass Sleeve Figure 1502 602 Hammer Union Seal for Oil Rig
Hammer Union seals- 1" 1.5" 2" 3" 4" 6" 7"
  • Rubber hammer union seals-Buna/FKM/HNBR rubber type
  • Rubber w/brass or stainless steel back up types
Swab cups
  • V types 4" 5.5" ect.
  • TA type
  • MV type
  • NUF type
  • TUF type

Sour Gas Resistant FKM HNBR Steel or Brass Sleeve Figure 1502 602 Hammer Union Seal for Oil Rig

Rubber seal kits- custom packing or lable is available
  • #10 setting tool - With burst disk
  • #20 setting tool - With burst disk
  • AP Compact Setting Tool Kit
  • Grease Tubes Seal Kit
  • 3 1/2” Shorty Kits
  • 3 - 1/8" Weight Bar Kit
  • #10 Baker Firing Head Kit
  • #20 Firing Head Kit
  • #20 BP3.SEC kits
  • #10 BP3.SEC kits
  • T-BRT redress kit
  • T-1 Set
  • GC Stripper Head Redress Kits
Wireline Component Parts:

1) Pressure Relief Disc, ZD Plated (application:rupture(bleeder) Disc)

2) Rubber Push Pin -black

3) Nylon Push Pin -natural

4) Retainer Nut, Steel, ZD Plated (application: retainer nut)

5) Threaded Steel Plug, w/ Lathe Cut (application:5" port plug)

6) Threaded Brass Plug (application: setting tool plug )

Sour Gas Resistant FKM HNBR Steel or Brass Sleeve Figure 1502 602 Hammer Union Seal for Oil Rig

More pictures of our products for reference:

Sour Gas Resistant FKM HNBR Steel or Brass Sleeve Figure 1502 602 Hammer Union Seal for Oil Rig

Sour Gas Resistant FKM HNBR Steel or Brass Sleeve Figure 1502 602 Hammer Union Seal for Oil Rig

Corner View of our factory:

Sour Gas Resistant FKM HNBR Steel or Brass Sleeve Figure 1502 602 Hammer Union Seal for Oil Rig

Sour Gas Resistant FKM HNBR Steel or Brass Sleeve Figure 1502 602 Hammer Union Seal for Oil Rig

Sour Gas Resistant FKM HNBR Steel or Brass Sleeve Figure 1502 602 Hammer Union Seal for Oil Rig

Our Service capability:
Customized services Plastic & Rubber bonding Mold Design
Customized extrusion Extrusion and bonded gaskets Mold Production
Injection Molding Self Adhesive rubber profile Customized Package
Sheet Cutting Rubber Complex Intake Hose Problem Solving
Standard Size extrusion Reinforced rubber tubes Assembly
Special Compound design Rubber Solution Suggestion Sourcing
Rubber& Metal bonding
FAQ:

Q1: What is Hammer Union Seal?

A1: It is a replacement sealing component for a hammer union connection. For this listing, confirm FIG 602 or FIG 1502 as ordered, nominal connection size, manufacturer and the exact seal profile.

Q2: What is the packaging of Hammer Union Seal?

A2: The packaging of Hammer Union Seal can be customized or standard packing.

Q3: What is the delivery time of Hammer Union Seal?

A3: Confirm delivery time in the quotation for the required size, compound, backing construction and quantity.

Q4: What is the material of Hammer Union Seal?

A4: Specify the selected NBR, HNBR or FKM compound and required hardness. PTFE or FFKM requests require separate construction and service review; material families do not share one operating range.

Q5: Are you manufacture or trading company?

We are manufacture. Our factory located in Haimen District, Nantong City, Jiangsu Province.

Send us message

Tel: +86 21 38258692

Web: https://www.unionseal.com

FKM or HNBR Backed Union Seal: Sour-Service Inquiry

For a sour-service inquiry, provide gas composition including H₂S and CO₂, liquid composition, working pressure, continuous and peak temperatures, exposure time and decompression profile. Specify the qualification and acceptance requirements for the exact compound before ordering.

State brass or steel backing with the required grade and dimensions. The original table lists a 304 stainless-backed option; confirm the grade actually ordered and its suitability for the service. Check bonding or retention construction against the approved seal drawing.

Separate FIG 602 and FIG 1502 line items by union maker, part number, size and compound. Include hardness and tolerance, sample-fit requirements and the requested test documentation with the quotation inquiry.
