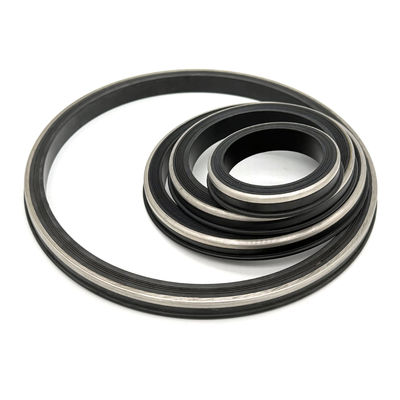

Fig 602 Fig 1002 Fig 1502 Hammer Union Seal for Oil Rig Anti-Leak Pipeline Systems

Fig 602 Fig 1002 Fig 1502 Hammer Union Seal for Oil Rig Anti-Leak Pipeline Systems

Product Details:
Place of Origin: Shanghai, China
Brand Name: Royal Way
Certification: ISO 9001
Model Number: Hammer union replacement seals; exact figure and maker to confirm
Payment & Shipping Terms:
Minimum Order Quantity: 500PCS
Price: 0.1-2usd/pcs
Packaging Details: 40*40*40cm carton packing
Delivery Time: 5-20days
Payment Terms: T/T,Western Union,L/C,Paypal
Supply Ability: 50,000pcs per week
Contact Now
Detailed Product Description
Material:: NBR (Buna-N), HNBR Or FKM; PTFE/FFKM By Separate Review Size: 1" 1.5" 2" 3" 4" 6" 7"
MOQ: 500PCS Types: Rubber Or Rubber+brass Back-up
Hardness: 80-90 Shore A Rubber Reference; Exact Compound Target To Confirm Feature: Hammer Union Replacement Sealing; Fluid And Pressure Duty To Confirm
Color: Black Or Custom Color Brand: Royal Way
Temperature Range: Compound-specific Continuous And Peak Temperature Limits To Confirm Pressure: Confirm Manufacturer Working-pressure Rating For Each Exact Union Figure
Using: Oil-rig Pipeline Union Replacement; Figure And Part Number To Confirm
Highlight:

FKM HNBR oil rig seals

,

sour gas resistant pipeline seals

,

steel sleeve hammer union seals

What we supply:

This listing covers replacement hammer union seals for oil-rig pipeline maintenance. Match the sealing lip and seat dimensions to the union assembly, and confirm the nominal size, figure and manufacturer part number before ordering. Proper seating depends on the complete connection and installation procedure.

The original range includes FIG 602, FIG 1002, FIG 1502 and FIG 2002 references, with sizes from 1 to 7 inches. Weco-style or FMC-style references require exact assembly fit confirmation. Select NBR (Buna-N), HNBR or FKM against the fluid, temperature and operating duty; sour-gas use requires compound-specific qualification.

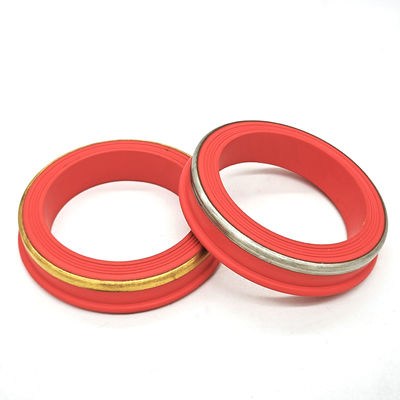

Brass or stainless-steel backing options are listed for the appropriate seal design. Confirm backing grade and dimensions against the union drawing. Working pressure follows the exact assembly manufacturer specification and service conditions; a 15,000 psi reference cannot be applied across all figures and compounds.

Fig 602 Fig 1002 Fig 1502 Hammer Union Seal for Oil Rig Anti-Leak Pipeline Systems

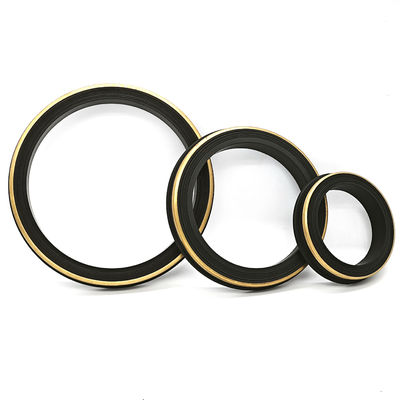

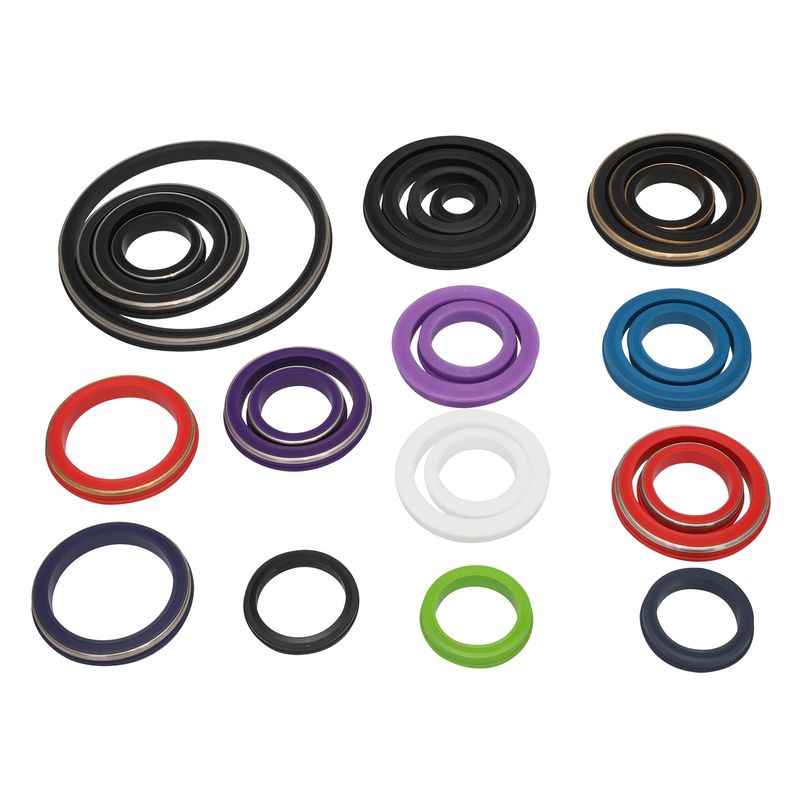

Size: 1" 1.5" 2" 3" 4" 6" 7"
Material: Buna/FKM/HNBR/PTFE

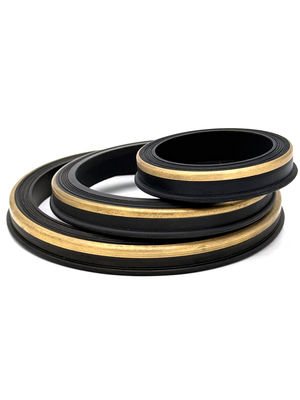

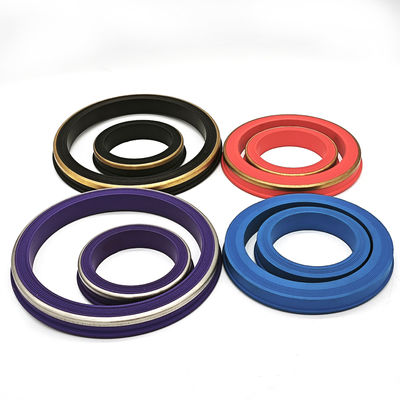

Types: Pure rubber/ rubber+brass back-up/rubber+304 ss back-up

Fig 602 Fig 1002 Fig 1502 Hammer Union Seal for Oil Rig Anti-Leak Pipeline Systems

Fig 602 Fig 1002 Fig 1502 Hammer Union Seal for Oil Rig Anti-Leak Pipeline Systems

Fig 602 Fig 1002 Fig 1502 Hammer Union Seal for Oil Rig Anti-Leak Pipeline Systems

Who we are:
Shanghai Qinuo Industry Co., Ltd, founded in 2013, has more than a decade of experience in producing and supplying rubber fittings for the oil and gas industry. With annual sales exceeding $10 million and a strict ISO9001 quality system, our wholly owned Nantong Ruowei Seal factory is equipped with 30+ vulcanizing machines and advanced facilities. We manufacture over 20 types of seals, O-rings, and customized rubber components for demanding applications. With a monthly capacity of over 40 tons, our products are trusted by customers in more than 100 countries worldwide.

Fig 602 Fig 1002 Fig 1502 Hammer Union Seal for Oil Rig Anti-Leak Pipeline SystemsFig 602 Fig 1002 Fig 1502 Hammer Union Seal for Oil Rig Anti-Leak Pipeline Systems

What we Provide:
Rubber O rings
  • Rubber O rings -As568 series rubber o rings/JB standard rubber o rings.
  • Encapsulated rubber o rings- silicone/ FKM rubber o rings
  • PTFE coating rubber o rings-kinds of color rubber o ringsFig 602 Fig 1002 Fig 1502 Hammer Union Seal for Oil Rig Anti-Leak Pipeline Systems

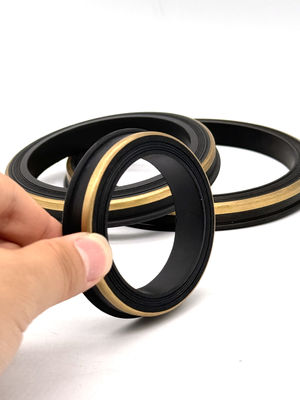

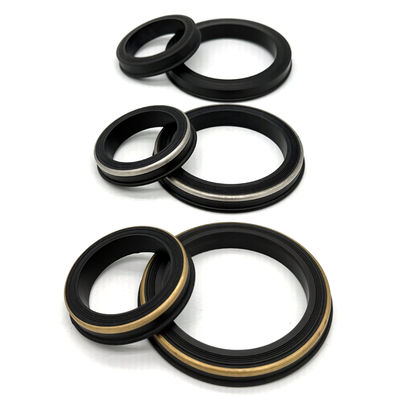

Hammer Union seals- 1" 1.5" 2" 3" 4" 6" 7"
  • Rubber hammer union seals-Buna/FKM/HNBR rubber type
  • Rubber w/brass or stainless steel back up types
Swab cups
  • V types 4" 5.5" ect.
  • TA type
  • MV type
  • NUF type
  • TUF type

Fig 602 Fig 1002 Fig 1502 Hammer Union Seal for Oil Rig Anti-Leak Pipeline Systems

Rubber seal kits- custom packing or lable is available
  • #10 setting tool - With burst disk
  • #20 setting tool - With burst disk
  • AP Compact Setting Tool Kit
  • Grease Tubes Seal Kit
  • 3 1/2” Shorty Kits
  • 3 - 1/8" Weight Bar Kit
  • #10 Baker Firing Head Kit
  • #20 Firing Head Kit
  • #20 BP3.SEC kits
  • #10 BP3.SEC kits
  • T-BRT redress kit
  • T-1 Set
  • GC Stripper Head Redress Kits
Wireline Component Parts:

1) Pressure Relief Disc, ZD Plated (application:rupture(bleeder) Disc)

2) Rubber Push Pin -black

3) Nylon Push Pin -natural

4) Retainer Nut, Steel, ZD Plated (application: retainer nut)

5) Threaded Steel Plug, w/ Lathe Cut (application:5" port plug)

6) Threaded Brass Plug (application: setting tool plug )

Fig 602 Fig 1002 Fig 1502 Hammer Union Seal for Oil Rig Anti-Leak Pipeline Systems

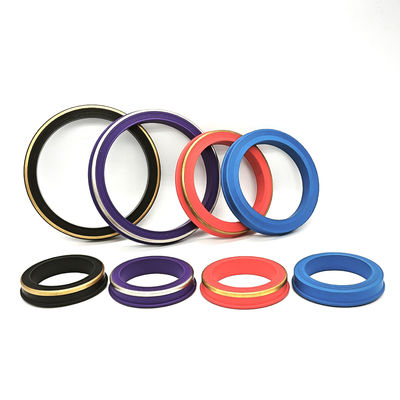

More pictures of our products for reference:

Fig 602 Fig 1002 Fig 1502 Hammer Union Seal for Oil Rig Anti-Leak Pipeline Systems

Fig 602 Fig 1002 Fig 1502 Hammer Union Seal for Oil Rig Anti-Leak Pipeline Systems

Corner View of our factory:

Fig 602 Fig 1002 Fig 1502 Hammer Union Seal for Oil Rig Anti-Leak Pipeline Systems

Fig 602 Fig 1002 Fig 1502 Hammer Union Seal for Oil Rig Anti-Leak Pipeline Systems

Fig 602 Fig 1002 Fig 1502 Hammer Union Seal for Oil Rig Anti-Leak Pipeline Systems

Our Service capability:
Customized services Plastic & Rubber bonding Mold Design
Customized extrusion Extrusion and bonded gaskets Mold Production
Injection Molding Self Adhesive rubber profile Customized Package
Sheet Cutting Rubber Complex Intake Hose Problem Solving
Standard Size extrusion Reinforced rubber tubes Assembly
Special Compound design Rubber Solution Suggestion Sourcing
Rubber& Metal bonding
FAQ:

Q1: What is Hammer Union Seal?

A1: It is a replacement sealing component for a hammer union connection. For this listing, confirm FIG 602, FIG 1002 or FIG 1502 as ordered, nominal connection size, manufacturer and the exact seal profile.

Q2: What is the packaging of Hammer Union Seal?

A2: The packaging of Hammer Union Seal can be customized or standard packing.

Q3: What is the delivery time of Hammer Union Seal?

A3: Confirm delivery time in the quotation for the required size, compound, backing construction and quantity.

Q4: What is the material of Hammer Union Seal?

A4: Specify the selected NBR, HNBR or FKM compound and required hardness. PTFE or FFKM requests require separate construction and service review; material families do not share one operating range.

Q5: Are you manufacture or trading company?

We are manufacture. Our factory located in Haimen District, Nantong City, Jiangsu Province.

Send us message

Tel: +86 21 38258692

Web: https://www.unionseal.com

Oil-Rig Pipeline Seal Replacement: Separate Each Union Figure

For maintenance stock, record each union maker, FIG 602, FIG 1002 or FIG 1502 reference, nominal size and seal part number as a separate line item. Include a drawing or original sample and keep identification labels with the supplied parts.

Confirm the sealing profile, rubber hardness and any metal backing required by the assembly. A matching nominal pipe size does not establish seal interchangeability, and backing construction must follow the approved part specification.

Supply fluid composition, normal and peak temperature, working pressure and pressure cycles for compound review. Request dimensional and material inspection documents, and follow the union maker installation and testing procedure when returning the line to service.
