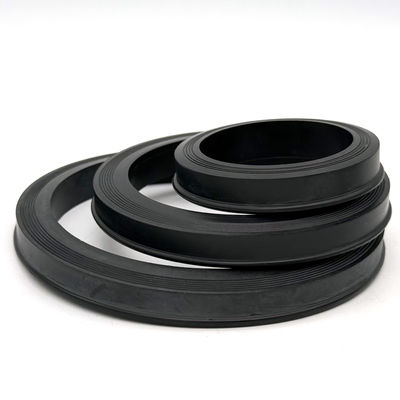

These wing union replacement seal inquiries cover Figure 602, 1002 and 1502 equipment references with FKM or HNBR rubber and a specified steel insert. Match the union manufacturer, figure, nominal connection size and seal part drawing. A figure number or Weco-style reference alone does not establish interchangeability.
The union compresses the elastomer sealing profile within the matched connection. Specify the insert grade and dimensions, rubber hardness and compound for the actual fluid and temperature. Sour-gas service requires compound-specific qualification and the complete union rating; FKM or HNBR polymer name alone is insufficient.
| Size: |
1" 1.5" 2" 3" 4" 6" 7" |
| Material: |
Buna/FKM/HNBR/PTFE |
| Types: |
Pure rubber/ rubber+brass back-up/rubber+304 ss back-up |
Who we are:
Shanghai Qinuo Industry Co., Ltd, founded in 2013, has more than a decade of experience in producing and supplying rubber fittings for the oil and gas industry. With annual sales exceeding $10 million and a strict ISO9001 quality system, our wholly owned Nantong Ruowei Seal factory is equipped with 30+ vulcanizing machines and advanced facilities. We manufacture over 20 types of seals, O-rings, and customized rubber components for demanding applications. With a monthly capacity of over 40 tons, our products are trusted by customers in more than 100 countries worldwide.
What we Provide:
Rubber O rings
- Rubber O rings -As568 series rubber o rings/JB standard rubber o rings.
- Encapsulated rubber o rings- silicone/ FKM rubber o rings
- PTFE coating rubber o rings-kinds of color rubber o rings
Hammer Union seals- 1" 1.5" 2" 3" 4" 6" 7"
- Rubber hammer union seals-Buna/FKM/HNBR rubber type
- Rubber w/brass or stainless steel back up types
Swab cups
- V types 4" 5.5" ect.
- TA type
- MV type
- NUF type
- TUF type
Rubber seal kits- custom packing or lable is available
- #10 setting tool - With burst disk
- #20 setting tool - With burst disk
- AP Compact Setting Tool Kit
- Grease Tubes Seal Kit
- 3 1/2” Shorty Kits
- 3 - 1/8" Weight Bar Kit
- #10 Baker Firing Head Kit
- #20 Firing Head Kit
- #20 BP3.SEC kits
- #10 BP3.SEC kits
- T-BRT redress kit
- T-1 Set
- GC Stripper Head Redress Kits
Wireline Component Parts:
1) Pressure Relief Disc, ZD Plated (application:rupture(bleeder) Disc)
2) Rubber Push Pin -black
3) Nylon Push Pin -natural
4) Retainer Nut, Steel, ZD Plated (application: retainer nut)
5) Threaded Steel Plug, w/ Lathe Cut (application:5" port plug)
6) Threaded Brass Plug (application: setting tool plug )
More pictures of our products for reference:
Corner View of our factory:
Our Service capability:
| Customized services |
Plastic & Rubber bonding |
Mold Design |
| Customized extrusion |
Extrusion and bonded gaskets |
Mold Production |
| Injection Molding |
Self Adhesive rubber profile |
Customized Package |
| Sheet Cutting |
Rubber Complex Intake Hose |
Problem Solving |
| Standard Size extrusion |
Reinforced rubber tubes |
Assembly |
| Special Compound design |
Rubber Solution Suggestion |
Sourcing |
| Rubber& Metal bonding |
FAQ:
Q1: What is Hammer Union Seal?
A1: It is a replacement sealing element for a matched wing union connection. Provide the maker, figure, nominal size and seal drawing to identify the correct profile.
Q2: What is the packaging of Hammer Union Seal?
A2: The packaging of Hammer Union Seal can be customized or standard packing.
Q3: What is the delivery time of Hammer Union Seal?
A3: The delivery time of Hammer Union Seal is about 15 days.
Q4: What is the material of Hammer Union Seal?
A4: FKM or HNBR compounds and steel-insert details are selected against the order specification. Confirm fluid compatibility, hardness, temperature limits and any sour-service test requirements.
Q5: Are you manufacture or trading company?
We are manufacture. Our factory located in Haimen District, Nantong City, Jiangsu Province.
Send us message
Specify Figure 602, 1002 or 1502 as separate order items with their own maker and size references. Confirm the steel-insert cross-section, seal OD/ID and sealing-face dimensions before approving a replacement sample.
For H2S-containing gas, provide gas composition, pressure, normal and peak temperature, exposure duration and decompression cycles. Identify the required compound qualification and applicable test procedure in the purchase specification.
Use the equipment maker's assembly pressure rating and installation instructions. The seal alone has no independently established 15,000 psi rating, and pressure capability must not be transferred between different figures or service conditions.
