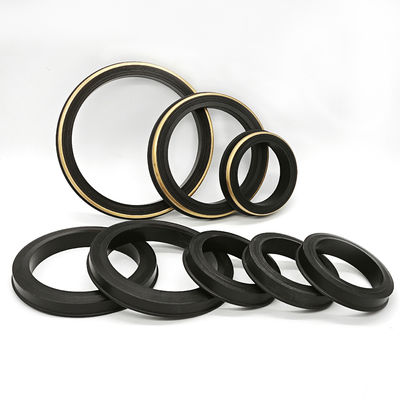

Name: Weco Wing Hammer Union Seal with 15000PSI Pressure Resistance and -200°C to 250°C Temperature Range
Brand: Shanghai Qinuo Industry Co., Ltd.
SKU: Wing union replacement seals; exact maker, figure and size
Price: 0.10 USD
Availability: InStock

Home Products Hammer Union Seal

Weco Wing Hammer Union Seal with 15000PSI Pressure Resistance and -200°C to 250°C Temperature Range

Product Details:

Place of Origin:	Shanghai, China
Brand Name:	Royal Way
Certification:	ISO 9001
Model Number:	Wing union replacement seals; exact maker, figure and size

Payment & Shipping Terms:

Minimum Order Quantity:	500PCS
Price:	0.1-2usd/pcs
Packaging Details:	404040cm carton packing
Delivery Time:	5-20days
Payment Terms:	T/T,Western Union,L/C,Paypal
Supply Ability:	50,000pcs per week

Contact Now

Detailed Product Description

Material::	HNBR Reference; Alternative Compounds By Fluid And Temperature Review	Size:	1" 1.5" 2" 3" 4" 6" 7"
MOQ:	Confirm Quantity And Quotation Minimum For The Selected Seal	Types:	Rubber Or Metal-backed Seal; Exact Profile By Union Drawing
Hardness:	Specify Selected Compound Hardness And Tolerance	Feature:	Fluid Sealing In A Matched Union; Compatibility By Compound
Color:	Black Or Custom Color	Brand:	Royal Way
Temperature Range:	Confirm Limits For The Selected Compound And Fluid	Pressure:	By Complete Union Figure, Size And Service Rating
Using:	Replacement Sealing Element For A Matched Wing Union
Highlight:	15000PSI Hammer Union Seal , -200°C to 250°C Weco Wing Seal , 80-90 Shore A Rubber Hammer Union Seal

HNBR Wing Union Replacement Seals: Figure and Service Specification

These hammer union seals are replacement sealing elements for matched oilfield flowline connections. Select the exact manufacturer, union figure, connection size and seal profile before ordering. Pressure and temperature capability depend on the complete union and selected sealing compound.

Each hammer union typically includes a threaded end, a nut end, and a hammer nut, which compresses the elastomeric seal to form a secure connection. Confirm lip geometry and backup-ring requirements against the equipment drawing and installation procedure.

Size:	1" 1.5" 2" 3" 4" 6" 7"
Material:	Buna/FKM/HNBR/PTFE
Types:	rubber/ rubber+brass back-up/rubber+ss back-up

Product Range from Shanghai Qinuo Industry

Rubber O Rings

Rubber O rings - As568 series rubber o rings/JB standard rubber o rings
Encapsulated rubber o rings - silicone/FKM rubber o rings
PTFE coating rubber o rings - kinds of color rubber o rings

Hammer Union Seals (1" - 7")

Rubber hammer union seals - Buna/FKM/HNBR rubber type
Rubber w/brass or stainless steel back up types

Swab Cups

V types 4" 5.5" etc.
TA type
MV type
NUF type
TUF type

Rubber Seal Kits

#10 setting tool - With burst disk
#20 setting tool - With burst disk
AP Compact Setting Tool Kit
Grease Tubes Seal Kit
3 1/2" Shorty Kits
3 - 1/8" Weight Bar Kit
#10 Baker Firing Head Kit
#20 Firing Head Kit
#20 BP3.SEC kits
#10 BP3.SEC kits
T-BRT redress kit
T-1 Set
GC Stripper Head Redress Kits

Wireline Component Parts

Pressure Relief Disc, ZD Plated (application: rupture(bleeder) Disc)
Rubber Push Pin - black
Nylon Push Pin - natural
Retainer Nut, Steel, ZD Plated (application: retainer nut)
Threaded Steel Plug, w/ Lathe Cut (application:5" port plug)
Threaded Brass Plug (application: setting tool plug)

Product Gallery

Factory Overview

Our Service Capabilities

Customized services	Plastic & Rubber bonding	Mold Design
Customized extrusion	Extrusion and bonded gaskets	Mold Production
Injection Molding	Self Adhesive rubber profile	Customized Package
Sheet Cutting	Rubber Complex Intake Hose	Problem Solving
Standard Size extrusion	Reinforced rubber tubes	Assembly
Special Compound design	Rubber Solution Suggestion	Sourcing
Rubber & Metal bonding

Frequently Asked Questions

Q1: What is Hammer Union Seal?

A1: Hammer union seal is a sealing device used for pipeline connection, available in various model numbers. Manufactured from high-quality rubber compounds.

Q2: What is the packaging of Hammer Union Seal?

A2: Available in standard packing or customized packaging options.

Q3: What is the delivery time of Hammer Union Seal?

A3: Typical delivery time is approximately 15 days.

Q4: What is the material of Hammer Union Seal?

A4: Manufactured from high-quality rubber compounds including Buna, FKM, HNBR, and PTFE materials.

Q5: Are you manufacturer or trading company?

A5: We are the manufacturer with our factory located in Haimen District, Nantong City, Jiangsu Province.

Tel: +86 21 38258692

Web: https://www.unionseal.com

Wing Union Seal Operating Limits: Compound Temperature and Assembly Pressure

Provide the precise union figure and manufacturer reference with the required seal dimensions. Identify any brass or stainless-steel backup ring and confirm the profile against the mating union. Similar nominal sizes do not establish interchangeable sealing surfaces.

Specify normal and peak fluid temperature, chemical composition and pressure cycles. The broad -200 to +250 degrees C range is not an established operating range for this seal; confirm limits for the exact HNBR or alternative compound.

A 15,000 psi value requires the complete union rating for the selected size and service. For sour-gas exposure, provide gas composition and decompression conditions with required qualification documents before compound approval.
