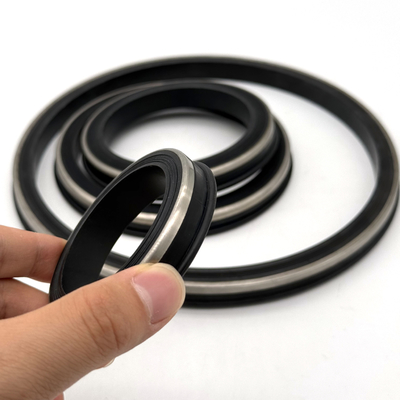

FKM Hammer Union Seals FIG 602 1002 1502 for Oil and Gas Industry

FKM Hammer Union Seals FIG 602 1002 1502 for Oil and Gas Industry

Product Details:
Place of Origin: Shanghai,China
Brand Name: SHQN, Royal Way
Certification: ISO9001
Model Number: Standard Size
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: 0.3-1.2$
Packaging Details: Carton Packing
Delivery Time: 7-15 days
Payment Terms: L/C, T/T, Western Union,
Supply Ability: 2000pcs per week
Contact Now
Detailed Product Description
Application: Oil And Gas Industry Material: FKM; Compound By Fluid And Operating Conditions
Available Size: Listed Nominal Sizes 1, 2, 3 And 4 Inch; Match Exact Union Drawing Hardness: 70-90 Shore A Options; Specify Nominal Grade And Tolerance
Pressure Rating: FIG 602/1002/1502 References; Pressure By Complete Union Assembly Nearest Port: Shanghai
Color: Black Or Custom Packing: Carton Packing
Style: Replacement Elastomer Seal For Hammer Union Keyward: FKM Hammer Union Seal, FIG 602, FIG 1002, FIG 1502
Sample: Available Service: OEM/ODM
Highlight:

FKM Hammer Union Seals for oilfield

,

FIG 602 Hammer Union Seals

,

Oil and Gas industry FKM seals


FKM Hammer Union Seals for FIG 602, 1002 and 1502


This FKM hammer union seal page covers replacement-seal selection for oil and gas connections identified by FIG 602, 1002 or 1502. Match the seal to the specific union manufacturer, nominal size and seal-pocket geometry. Select the FKM compound against the actual fluid and operating conditions before ordering.

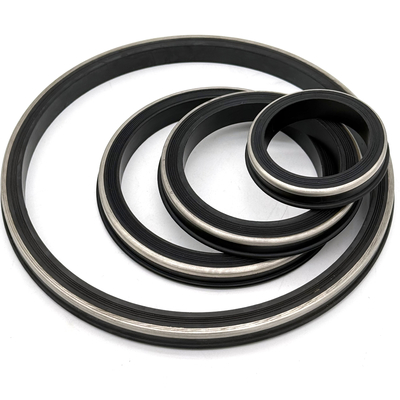

FKM Hammer Union Seals FIG 602 1002 1502 for Oil and Gas IndustryFKM Hammer Union Seals FIG 602 1002 1502 for Oil and Gas Industry


Product Specification



1. Pressure Selection: FIG numbers identify union configurations; they are not standalone seal pressure ratings. Specify the complete union rating, operating pressure, pressure cycles and temperature for replacement-seal review.



2. Fluid Compatibility: Provide the oil, gas, treatment chemicals and cleaning fluids in contact with the seal. Chemical compatibility and service limits must be reviewed for the selected FKM compound.



3. Replacement Fit: Verify seal dimensions and pocket condition before installation. Follow the union manufacturer’s maintenance procedure and inspect sealing surfaces before returning the assembly to service.



4. Size and Construction: The reference table lists several union sizes and rubber options. This page focuses on FKM; confirm the exact seal drawing and any brass or stainless anti-extrusion construction for the selected union.



5. Assembly Verification: A replacement seal must be checked within the complete union assembly. Define inspection and test requirements with the equipment owner; material designation alone does not establish leak-free operation or a pressure rating.





FKM Union Seal Ordering: Figure, Pocket Geometry and Compound

Send the union manufacturer, FIG designation, nominal connection size and the replacement-seal part number or drawing. Include seal inner diameter, outer diameter and section profile where available. Similar nominal sizes should be checked against their own seal-pocket dimensions.

Specify one nominal Shore A hardness and its tolerance within the listed 70–90 Shore A options. Provide normal and peak temperature, fluid composition and pressure changes for compound review. Gas or sour-service requirements need separate compound qualification and the required test conditions.

Where the reference table mentions brass or stainless anti-extrusion parts, identify the required construction on the drawing and confirm whether the quotation includes those parts. The FIG 206 entries and related swivel kits below remain separate reference items and require their own equipment identification.

1" 1502, Buna / FKM/ HSN
1-1/2" 1502, Buna / FKM / HSN

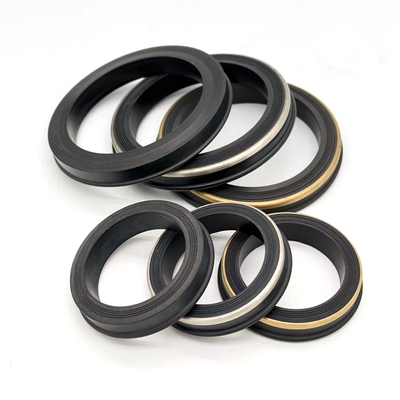

2" 602/1502, Buna / FKM/ HSN(Brass/Stainless Anti-Ext)
3" 602/1502, Buna / FKM / HSN(Brass/Stainless Anti-Ext)
4" 602/1002/1502, Buna / FKM / HSN(Brass/Stainless Anti-Ext)
2" FIG 206, Buna / FKM / HSN
3" FIG 206, Buna / FKM / HSN
4" FIG 206, Buna / FKM / HSN

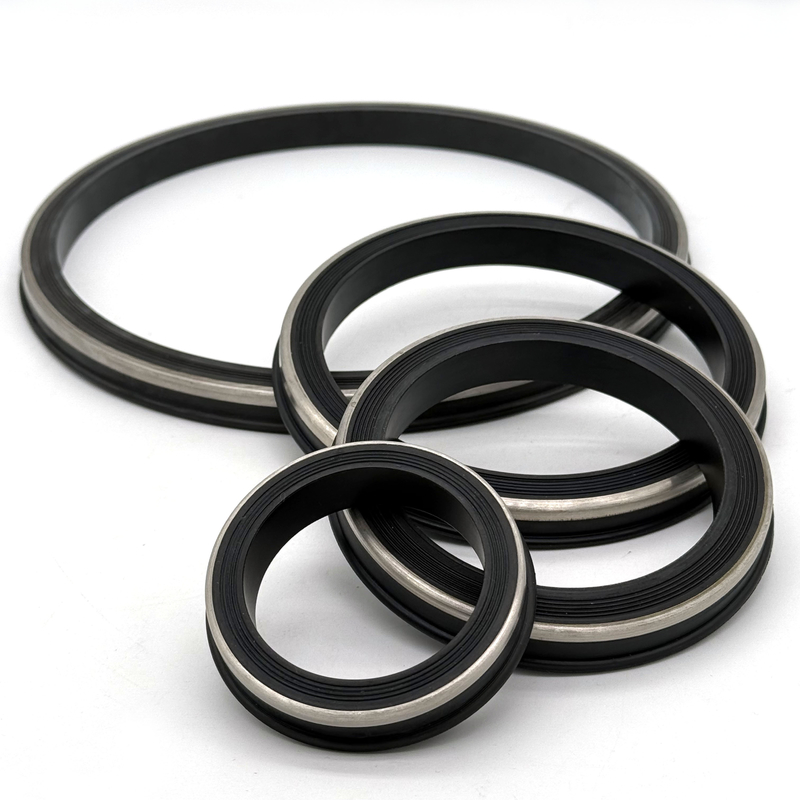

FKM Hammer Union Seals FIG 602 1002 1502 for Oil and Gas IndustryFKM Hammer Union Seals FIG 602 1002 1502 for Oil and Gas Industry










Bulk Production

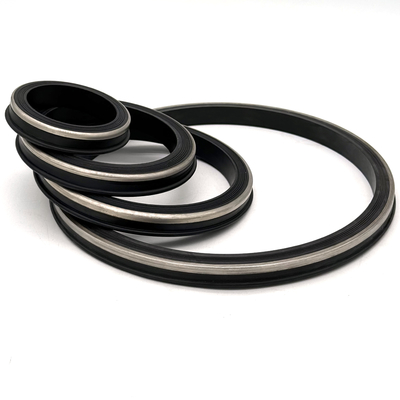

FKM Hammer Union Seals FIG 602 1002 1502 for Oil and Gas IndustryFKM Hammer Union Seals FIG 602 1002 1502 for Oil and Gas Industry
