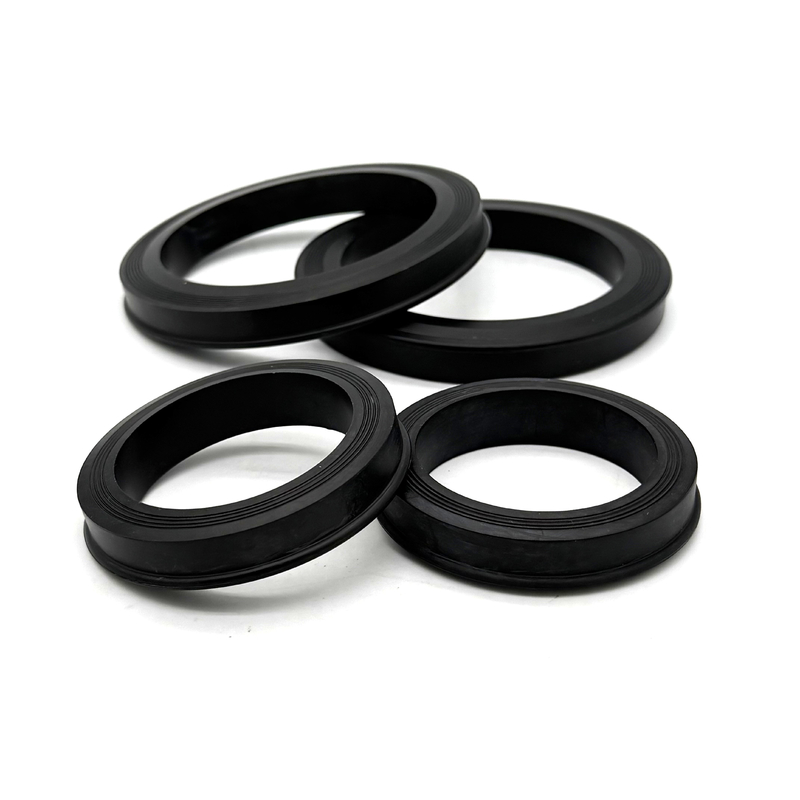

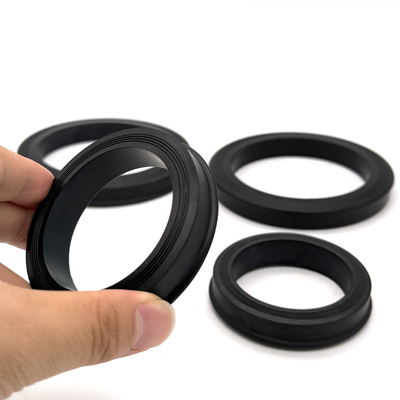

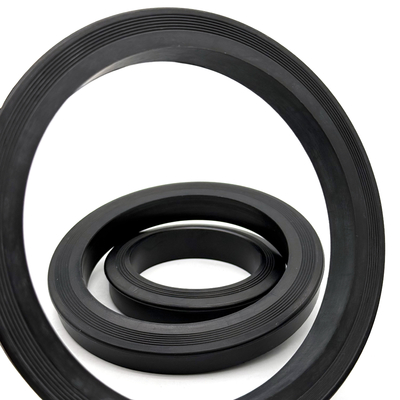

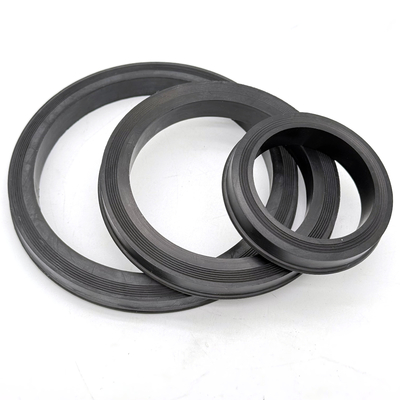

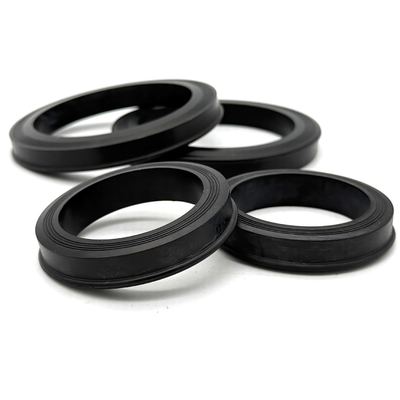

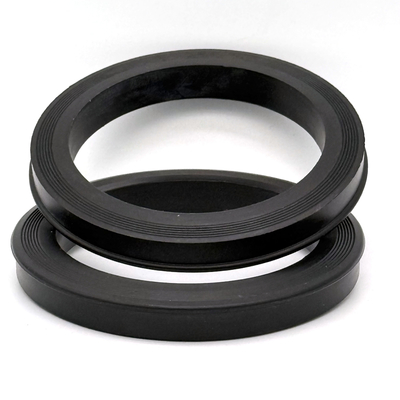

80 Shore A Nitrile Hammer Union Seals for FIG 602, 1002 and 1502

This nitrile (NBR / Buna-N) hammer union seal listing focuses on a nominal 80 Shore A grade for FIG 602, 1002 and 1502 replacement enquiries. Specify the original union manufacturer and seal drawing together with the fluid, temperature and pressure-cycle conditions. Confirm the required hardness tolerance before manufacture.

Product Specification

1. Pressure and Hardness: Select the 80 Shore A compound within the complete union design. FIG designation and hardness do not provide a standalone pressure rating; supply the assembly rating and maximum operating conditions.

2. Contact Media: State the exact process fluid, additives and cleaning chemicals. The selected nitrile compound requires compatibility and temperature review for that combination of conditions.

3. Fitting Procedure: Confirm the seal profile and pocket condition before assembly. Use the equipment maker’s installation method and define the inspection and test required after replacement.

4. Size References: The table below retains the original nominal-size and material references. Order the nitrile grade and any anti-extrusion construction by a confirmed drawing rather than by connection diameter alone.

5. Service Verification: Define leakage acceptance and operating limits for the assembled union. Gas, sour-service and decompression requirements need specific compound qualification.

Ordering an 80 Shore A Nitrile Union Seal

Specify 80 Shore A nominal hardness with the required tolerance and compound identification. When comparing an existing 80 Shore A seal with a 90 Shore A option, ask for review against the union drawing and service conditions before changing grade. Hardness selection should be part of the approved seal specification.

Provide the seal section drawing, inner and outer diameters and any locating or sealing features. Include the FIG number, union brand, nominal size and assembly revision. Where a brass or stainless anti-extrusion part is required, identify it separately and state whether it is included in the replacement order.

For sample approval, agree the dimensional checks, hardness acceptance and assembly test requirements. Include fluid exposure and temperature conditions with the sample request. Maintain the approved part number and compound identification on subsequent orders to keep replacement seals consistent.
