| Place of Origin: | Shanghai,China |
| Brand Name: | SHQN, Royal Way |
| Certification: | ISO9001 |
| Model Number: | Standard Size |
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | 1-4$ |
| Packaging Details: | Carton Packing |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, T/T, Western Union, |
| Supply Ability: | 2000pcs per week |
| Application: | Oil And Gas Industry | Material: | NBR, FKM And HSN References; Confirm Specified Compound |
|---|---|---|---|
| Available Size: | 1, 2, 3 And 4 Inch Nominal Union References; Seal Dimensions By Drawing | Hardness: | 70-90 Shore A Options; Nominal Grade And Tolerance By Drawing |
| Pressure Rating: | FIG 602/1002/1502 References; Pressure By Complete Union Assembly | Nearest Port: | Shanghai |
| Color: | Black Or Custom | Packing: | Carton Packing |
| Style: | Replacement Hammer Union Seal With Specified Elastomer | Keyward: | NBR FKM HSN Hammer Union Seal, 1-4 Inch Union Seal, FIG 602 1002 1502 |
| Sample: | Available | Service: | OEM/ODM |
| Highlight: | High Pressure Hammer Union Seal,NBR FKM Hammer Union Seal,1-4 Inch Hammer Union Seal |
||

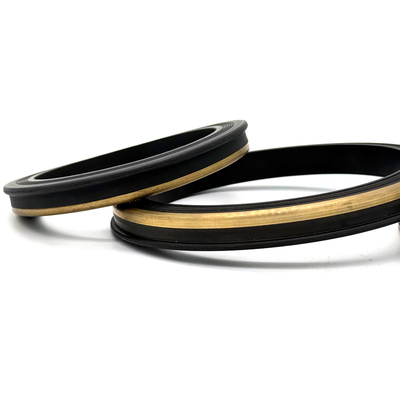

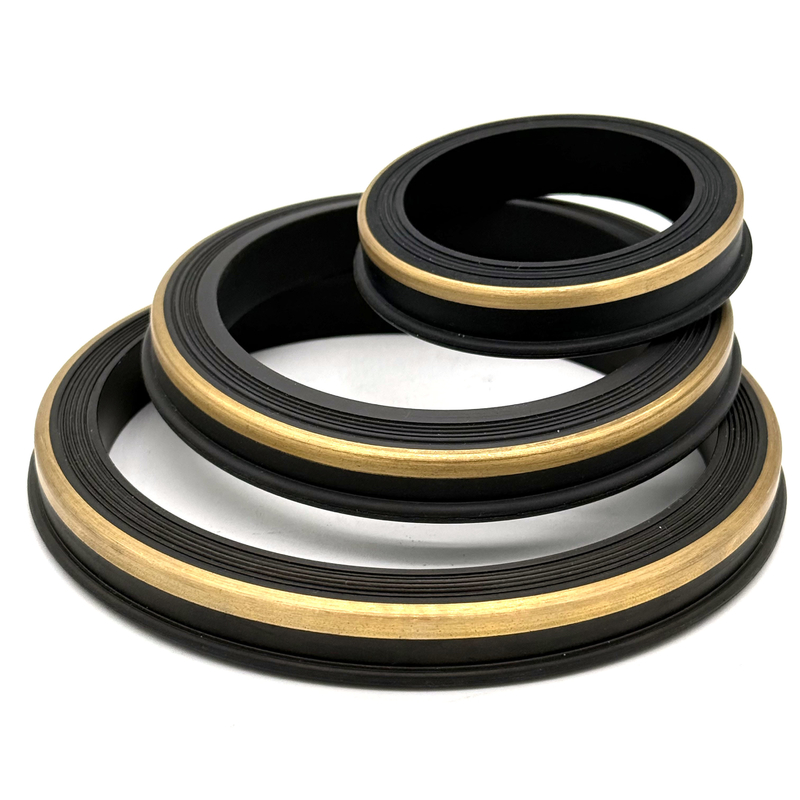

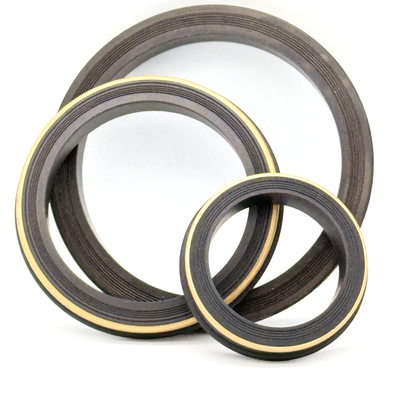

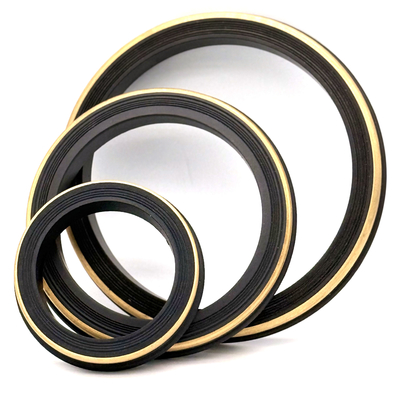

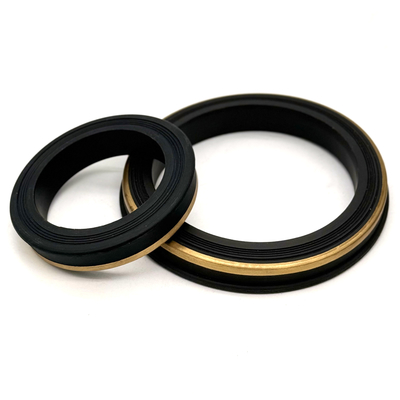

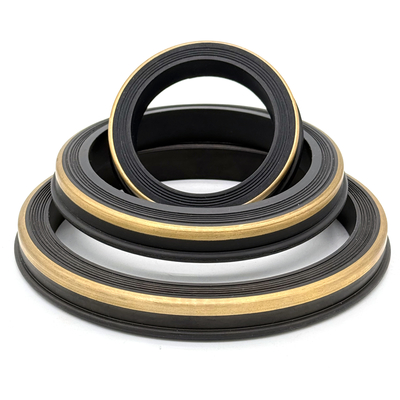

Royal Way® hammer union seal enquiries cover the NBR, FKM and HSN material references retained in the original size table. Specify the 1-4 inch nominal union size, FIG designation and manufacturer drawing before selecting the replacement seal construction.
Review each material option against the actual service specification. Confirm the supplier compound reference behind the HSN designation, as well as the NBR or FKM formulation. Nominal size and material-family names alone do not establish pressure capability or interchangeability.
![]()
![]()
Product Specification
1. Pressure Assessment: Use the rating and service limits of the complete union assembly. Record working pressure, pressure cycling and the relevant union drawing; do not treat a FIG number as an individual seal pressure rating.
2. Material Identification: Confirm the specified NBR, FKM or HSN compound and nominal hardness. Provide operating fluids and cleaning exposure for review against that formulation.
3. Construction Match: Compare the seal profile and any brass or stainless anti-extrusion parts with the assembly drawing. Follow the equipment installation and inspection procedure.
4. Reference Sizes: Retain the size table as an enquiry reference. Agree exact ring dimensions and tolerances for the union manufacturer and selected FIG construction.
5. Qualification: Define the inspection and assembly acceptance requirements for the intended operating conditions. Gas-service or sour-service claims require qualification for the specified material and construction.
When an equipment parts list uses HSN, include the original part number and approved compound specification in the enquiry. Confirm the required polymer, formulation and hardness with the replacement drawing rather than accepting an abbreviation as a complete material specification.
Compare candidate NBR, FKM and HSN-labelled options using the same fluid composition, temperature exposure, pressure cycle and cleaning conditions. State any required material test and assembly qualification documents for the chosen option. Approval of one compound does not extend automatically to another.
Identify the union size, FIG and manufacturer separately for every order line. Include the required support components and agreed inspection checks. The retained 1-1/2 inch and FIG 206 rows below are additional references requiring their own drawing and service approval.
| 1" 1502, Buna / FKM/ HSN |
| 1-1/2" 1502, Buna / FKM / HSN |
| 2" 602/1502, Buna / FKM/ HSN(Brass/Stainless Anti-Ext) |
| 3" 602/1502, Buna / FKM / HSN(Brass/Stainless Anti-Ext) |
| 4" 602/1002/1502, Buna / FKM / HSN(Brass/Stainless Anti-Ext) |
| 2" FIG 206, Buna / FKM / HSN |
| 3" FIG 206, Buna / FKM / HSN |
| 4" FIG 206, Buna / FKM / HSN |
![]()
![]()
