Product Description

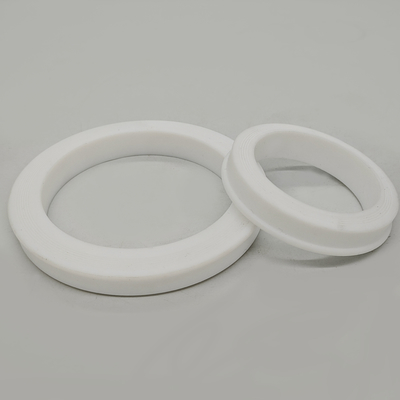

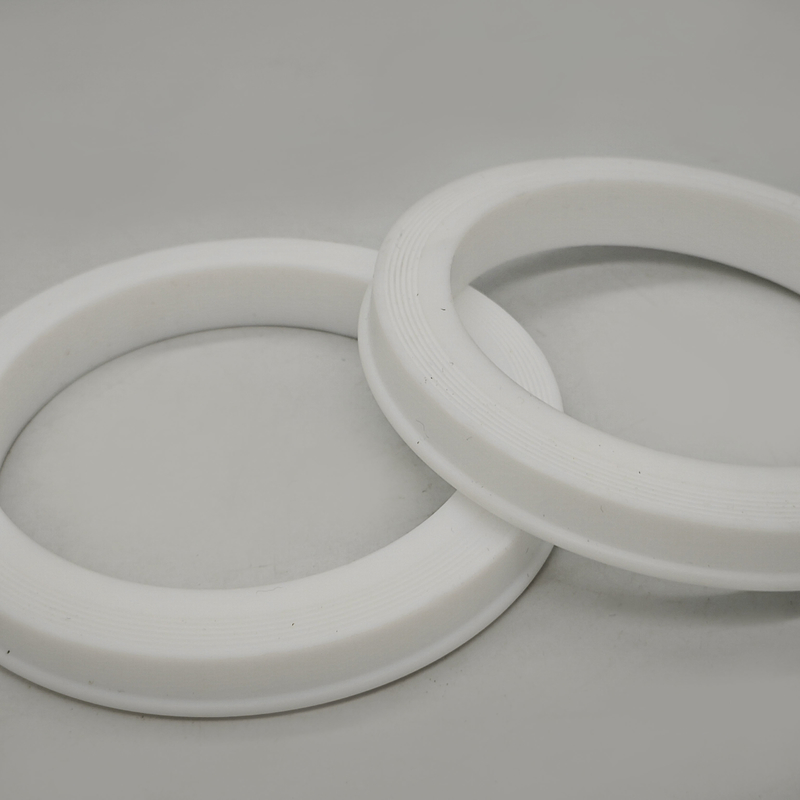

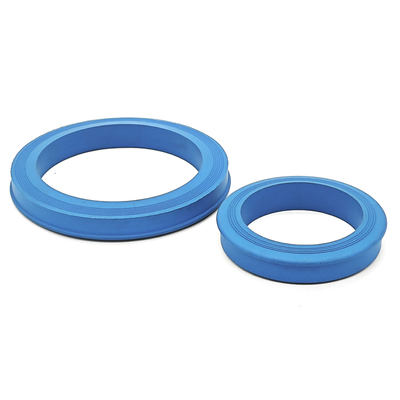

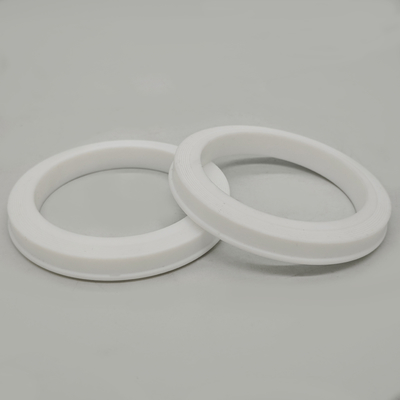

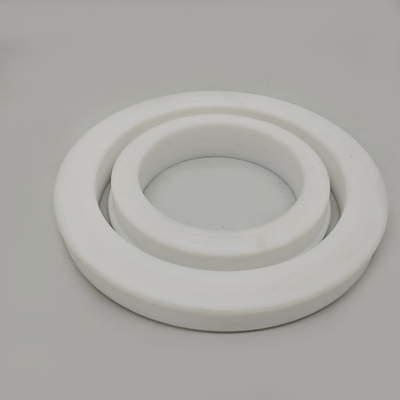

Royal Way®Hammer union seals are critical components used in high-pressure environments, particularly in the oil and gas industry. These seals are designed to provide robust and reliable sealing solutions for hammer union connections, which are commonly found in pipelines and high-pressure applications. The seals are known for their durability and ability to perform under extreme conditions, including high temperatures and pressures.
All available Hammer Union seals list :
1" HAMMER UNION LIP SEAL RING, BUNA
1-1/2" HAMMER UNION LIP SEAL RING, BUNA
2" HAMMER UNION LIP SEAL RING, BUNA
3" HAMMER UNION LIP SEAL RING, BUNA
1" HAMMER UNION LIP SEAL RING,
1-1/2" HAMMER UNION LIP SEAL RING,
2" HAMMER UNION LIP SEAL RING,
3" HAMMER UNION LIP SEAL RING,
2" HAMMER UNION SEAL RING, BUNA W/ BRASS BACKING
3" HAMMER UNION SEAL RING, BUNA W/ BRASS BACKING
4" HAMMER UNION SEAL RING, BUNA W/ BRASS BACKING
2" HAMMER UNION SEAL RING, W/ BRASS BACKING
3" HAMMER UNION SEAL RING, W/ BRASS BACKING
4" HAMMER UNION SEAL RING, W/ BRASS BACKING
2" HAMMER UNION SEAL RING, BUNA W/ STAINLESS STEEL BACKING
3" HAMMER UNION SEAL RING, BUNA W/ STAINLESS STEEL BACKING
4" HAMMER UNION SEAL RING, BUNA W/ STAINLESS STEEL BACKING
| Size: |
1" 1.5" 2" 3" 4" 6" 7" |
| Material: |
Buna/FKM/HNBR/PTFE |
| Types: |
rubber/ rubber+brass back-up/rubber+ss back-up |
Material Introduction
| Material name |
Temperature range |
Advantage |
Deficiency |
| NBR(Buna) |
-40ºC to 120ºC
-40ºF to 248ºF |
1.Presently the most widely used rubber in the seal industry
2.Exceptional balance of good mechanical properties, wear properties, and chemical resistance
3.Resistance to most mineral oils and greases |
don't used with gly-based brake fluids and strong acids |
| HNBR(Hydrogenated Nitrile) |
-40ºC to 160ºC
-40ºF to 320ºF |
1.Chemical resistance
2.Wider temperature range than standard nitrile
3.High strength material that resists extrusion, abrasion, and wear
4.Water and steam resistance to +149ºC(+300ºF)
5.H2S resistance up to 10%
6.Commonly used with petroleum oils and co2 |
don't use with chlorinated hydrocarbons, polar solvents, or strong acids |
| FKM(Fluorocarbon) |
-26ºC to 230ºC
-15ºF to 446ºF |
1.Excellent resistance to higher temperature, petroleum, and gasoline
2.Good chemical resistance, including to refrigerants(R12)
3.Great mechanical properties are retained over a wide temperature range
4.Commonly used with ammonia
|
Poor resistance to aromatic hydrocarbons, polar solvents, and toluene |
| PTFE(Plyetrafuoroethylene) |
-268ºC to 250ºC
-450ºF to 483ºF |
Vitually universal chemical resistance |
Generally more expensive than other plastics or elastomers, which can be a limitation for cost-sensitive applications. |
PU (Polyurethane)
|
-54°C to 105°C
-65°F to 220°F |
1.Thermoplastic elastomer with higher tensile strength, toughness, and wear resistance
2.Great combination of hardness and elasticity
3.Excellent low temperature flexibility
4.Commonly used in high pesure hydraulic systems where parts are subject to wear
|
Can degrade when exposed to UV light over prolonged periods unless specifically formulated with additives for protection. |
Best Selling
Company Profile
Shanghai Qinuo Industry Co., Ltd, established in 2013 within the Shanghai Free Trade Zone, is a pioneering high-tech enterprise specializing in the integration of research and development, production, and sales. Embracing the ethos of "Quality for Survival, Innovation for Development," we have garnered a stellar reputation domestically and internationally under the esteemed brand names of "Royal Way®" and "SHQN®".
Our company provides professional plastic parts, rubber parts and maching parts design and production services, products mainly used in automobiles, household appliances, machinery equipment and oil industry and other fields. We have a professional production and sales team, "High-Quality, High Professionalism, High Efficiency" are the principles of doing things.
We have two factories, more than 30 injection molding machines, molding machines and CNC lathes. Our company is located in Pudong New Area, Shanghai. Elegant environment, convenient transportation, Only need 30 minutes from our company to Pudong Airport.
We adopt comprehensive quality management system, all components passed ROHS certification, our products are mainly exported to the United States, Canada, Britain, Germany, Finland, New Zealand, Australia and other countries and regions.
Packing and shipping:
1: Express: S.F. ,DHL,UPS, TNT, FedEx ect, for urgent and small order.
2: Air shipment: air port to air port or air port to door.
3: Sea shipment: suitable for bulk goods. it will takes more longer time than air shipment.
