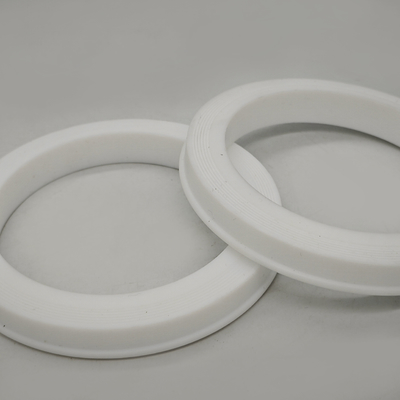

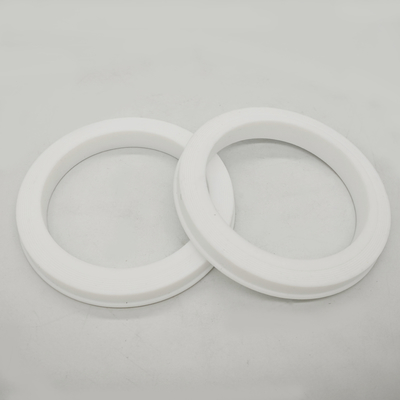

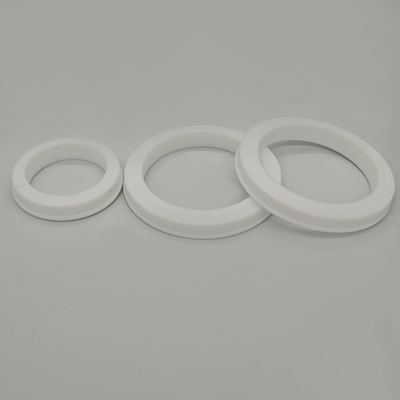

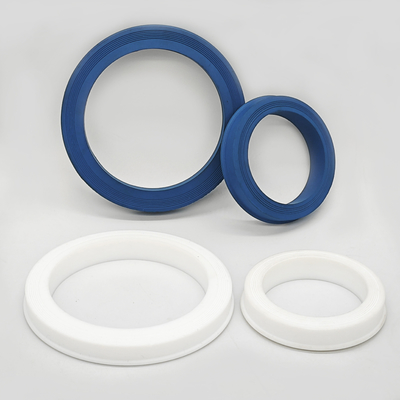

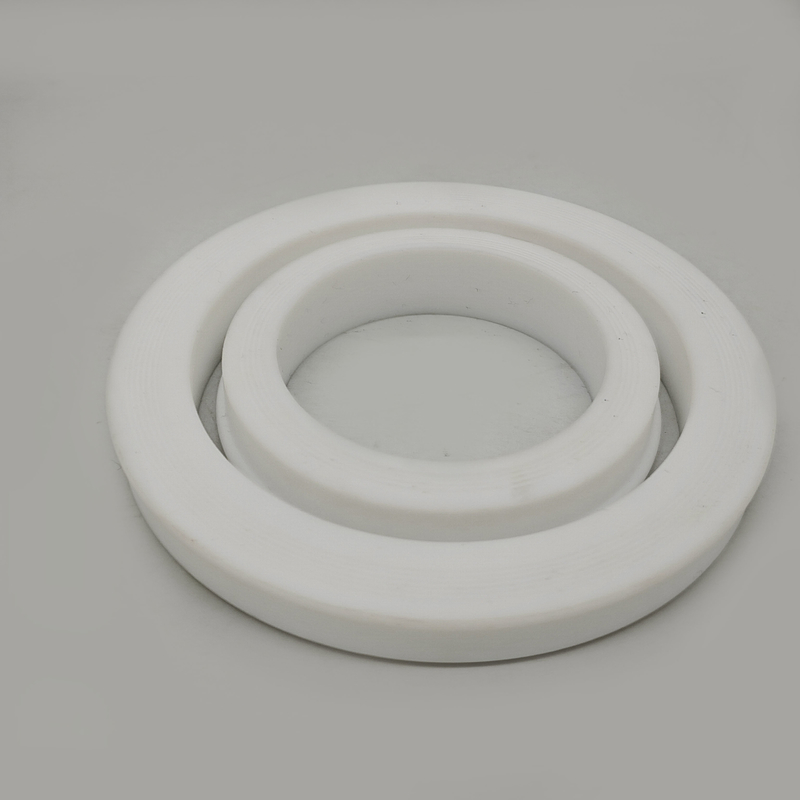

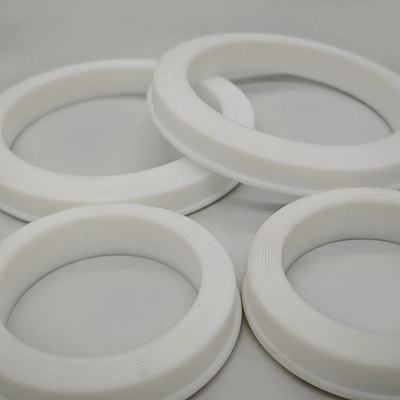

PTFE Hammer Union Seal Rings for Chemical Pipeline Connections
Royal Way®PTFE hammer union seal rings are specified for chemical pipeline replacement enquiries using the union drawing and process-fluid conditions. Identify the PTFE grade, finished seal profile and any required support components. Confirm compatibility for the actual chemical mixture and cleaning exposure before selecting the construction.
1" 1502, Buna / FKM/ HSN
1-1/2" 1502, Buna / FKM/ HSN
1-1/2" 1502, Buna / FKM/ HSN
3" 602/1502, Buna / FKM/ HSN(Brass/Stainless Anti-Ext)
4" 602/1002/1502, Buna / FKM/ HSN(Brass/Stainless Anti-Ext)
2" FIG 206, Buna / FKM/ HSN
3" FIG 206, Buna / FKM/ HSN
4" FIG 206, Buna / FKM/ HSN
Chemical Mixtures and Cleaning Cycles for a PTFE Seal Enquiry
Provide the chemical names, concentrations and mixture composition together with normal operating conditions. Include cleaning liquids, rinse stages and any changes in temperature or pressure during those stages. Review compatibility against the specified PTFE grade and complete seal construction.
Identify the pipeline union manufacturer, figure, nominal size and drawing revision. Confirm finished ring dimensions, profile tolerances and required supporting parts. The retained elastomer and other figure references below need separate approval and do not establish interchangeability with this PTFE item.
Agree the required material documents and finished-part checks before supply. Where hardness is included in acceptance, use the test method specified for the PTFE grade. Confirm the assembly installation and test requirements with the equipment specification.
| Size: |
1" 1.5" 2" 3" 4" 6" 7" |
| Material: |
Buna/FKM/HNBR/PTFE |
| Types: |
rubber/ rubber+brass back-up/rubber+ss back-up |
Material Introduction
| Material name |
Temperature range |
Advantage |
Deficiency |
| NBR(Buna) |
NBR service temperature by approved compound
Confirm operating exposure |
1.Presently the most widely used rubber in the seal industry
2.Exceptional balance of good mechanical properties, wear properties, and chemical resistance
3.Resistance to most mineral oils and greases |
don't used with gly-based brake fluids and strong acids |
| HNBR(Hydrogenated Nitrile) |
HNBR service temperature by approved compound
Confirm operating exposure |
1.Chemical resistance
2.Wider temperature range than standard nitrile
3.High strength material that resists extrusion, abrasion, and wear
4.Water and steam exposure requires compound-specific review
5.H2S exposure requires specific compound qualification
6.Commonly used with petroleum oils and co2 |
don't use with chlorinated hydrocarbons, polar solvents, or strong acids |
| FKM(Fluorocarbon) |
FKM service temperature by approved compound
Confirm operating exposure |
1.Excellent resistance to higher temperature, petroleum, and gasoline
2.Good chemical resistance, including to refrigerants(R12)
3.Great mechanical properties are retained over a wide temperature range
4.Ammonia exposure requires specific compound compatibility review
|
Check compatibility against the specific FKM formulation and complete fluid composition |
| PTFE (Polytetrafluoroethylene) |
PTFE service temperature by grade and assembly
Confirm operating exposure |
Confirm compatibility for the selected PTFE grade and process fluid |
Generally more expensive than other plastics or elastomers, which can be a limitation for cost-sensitive applications. |
PU (Polyurethane)
|
PU service temperature by approved grade
Confirm operating exposure |
1.Thermoplastic elastomer with higher tensile strength, toughness, and wear resistance
2.Great combination of hardness and elasticity
3.Excellent low temperature flexibility
4.Commonly used in high pesure hydraulic systems where parts are subject to wear
|
Can degrade when exposed to UV light over prolonged periods unless specifically formulated with additives for protection. |
