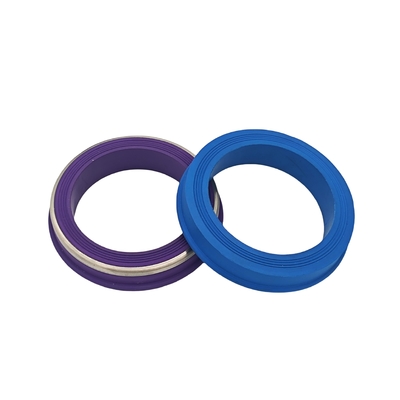

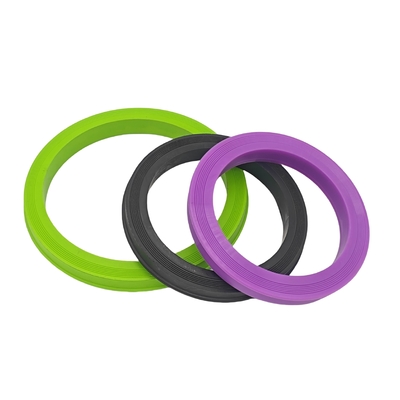

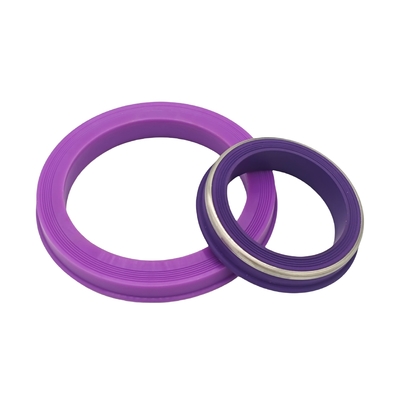

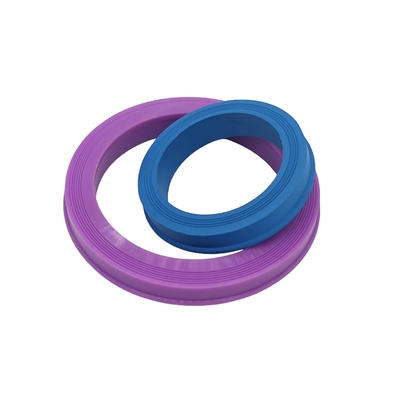

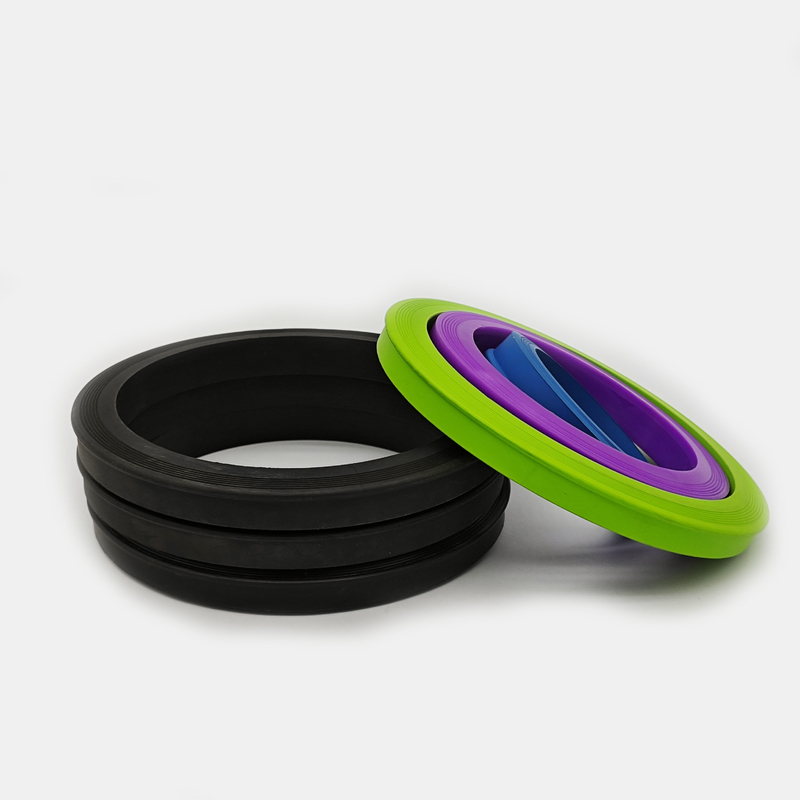

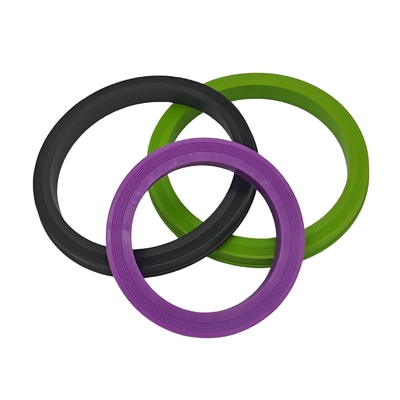

Product Description:
NBR, HNBR, FKM and PTFE Hammer Union Seal Options:
Hammer union seals are selected for the specified union figure, nominal size, seat geometry and service temperatures,
pressure cycles and process fluids in oil and gas flowlines. Compare the listed
NBR, HNBR, FKM and PTFE material options against the required compound grade and seal configuration; the material family alone does not establish the
rated performance of a complete union assembly.
Features:
- Product Name: Hammer Union Seal
- Available Size: 1" 1.5" 2" 3" 4" 6" 7"
- Color: Black, White, Blue, Green, Red And Custom Color
- Type: With Brass/ Stainless Steel Back-up Rings
Technical Parameters:
| Product Category |
Hammer Union Seal |
| MOQ |
500pcs |
| Size |
1" 1.5" 2" 3" 4" 6" 7" |
| Color |
Black, White, Blue, Green, Red And Custom Color |
| Feature |
Fluid and temperature suitability depends on the selected material grade |
| Chemical Resistance |
Confirm compatibility for the exact fluid, concentration and temperature |
| Temperature |
Confirm continuous and peak temperature limits for the selected grade |
| Material Choice |
NBR HNBR FKM PTFE |
| Application |
Oil Drilling Industry |
| Hardness |
Specify elastomer hardness by compound; PTFE requires a separate material specification
|
PTFE and Elastomer Union Seals: Specify the Actual Configuration
Identify whether the requested part is an elastomer sealing ring, a PTFE component or a seal with a metal back-up ring. Provide the union manufacturer, figure, nominal size and seal drawing or part number. Do not assume that a PTFE option has the same profile, hardness specification or installation requirements as an NBR, HNBR or FKM ring.
For material selection, include fluid composition, additives, cleaning media, normal and peak temperatures and required assembly rating. State any H2S exposure and qualification requirements separately; a polymer name does not establish sour-service suitability. Confirm the grade and dimensions of every sealing and back-up component in the quotation.
Packing and Shipping:
Packaging:
Shipping:
FAQ:
Q1: What is Hammer Union Seal?
A1: Hammer union seal, produced by SHQN, is a kind of sealing device used for pipeline connection, whose model number is Hammer union seals which is made in China.
Q2: What is the packaging of Hammer Union Seal?
A2: The packaging of Hammer Union Seal can be customized or standard packing.
Q3: What is the delivery time of Hammer Union Seal?
A3: The delivery time of Hammer Union Seal is about 15 days.
Q4: What is the material of Hammer Union Seal?
A4: Listed options include NBR, HNBR and FKM elastomer compounds and PTFE configurations. Confirm the material grade, seal profile and any brass or stainless steel back-up element for the exact union.
Q5: Are you manufacture or trading company?
We are manufacture. Our factory located in Haimen District, Nantong City, Jiangsu Province.
