HNBR and FKM Union Seals for Sour-Service Enquiries
Provide the union manufacturer, figure, nominal size and seal part number, together with H2S and CO2 concentrations, fluid composition, pressure, temperature and decompression conditions. HNBR, HSN or FKM naming alone does not establish sour-service qualification. Specify the compound grade, required tests and metal back-up configuration before confirming supply.
The material overview below describes general family information, not guaranteed operating limits for every supplied seal. Confirm all listed temperature and chemical properties with the selected grade and actual service conditions.
Product Description
Hammer union seals are used in the connections between flexible hoses or pipes used in the oil drilling industry. The seal provides a critical fluid tight connection within the union hardware.
Hammer unions consist of a thread end, a nut end, and a hammer nut that when tightened seal the assembly with the assistance of an elastomeric seal. Lip and retention geometry depend on the exact union design; confirm the part drawing.
Common Hammer Union Types include Threaded Hammer Unions (40, 50, and 602 to 1502),Butt Weld Hammer Unions (602, 1502, and 2202),Threaded & Butt Weld Hammer Unions (100 to 400)
We currently mainly provide union seals suitable for FIG1502, FIG1002, FIG602, FIG 206, FIG607 styles. And other types we can customize according to samples or drawings
About Union Seal, we can provide:
| TYPES |
FEATURE |
|
Union seal with brass ring
|
Specify the brass back-up ring grade and dimensions together with the rubber seal profile. Confirm compatibility with the process fluid and approved union configuration; brass does not provide a universal corrosion or leakage guarantee.
|
|
Union seal with stainless steel ring
|
Specify the stainless steel grade and back-up ring dimensions required by the union drawing. Compatibility depends on the alloy, fluid chemistry and temperature; confirm the approved configuration rather than substituting an unspecified stainless ring.
|
|
Rubber union seal
|
Rubber-only configurations require the specified seal profile, compound and hardness for the union seat. Confirm operating temperatures, fluid compatibility and the complete assembly rating; performance cannot be inferred from rubber material alone.
|

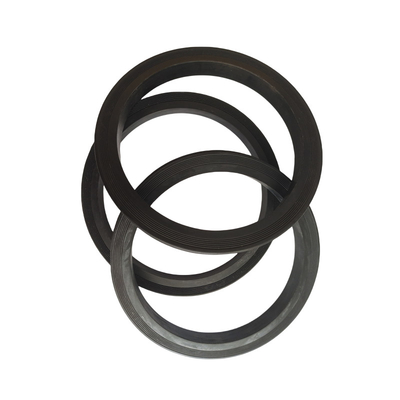

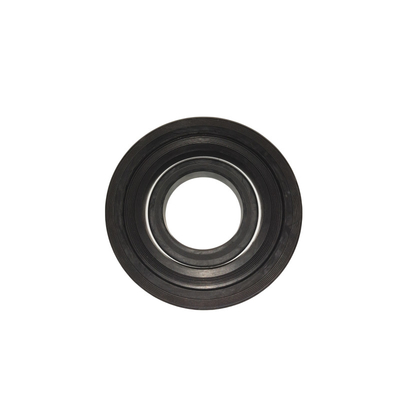

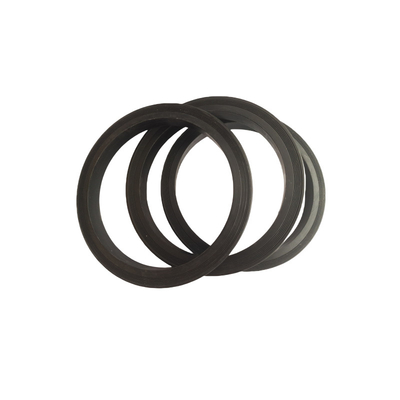

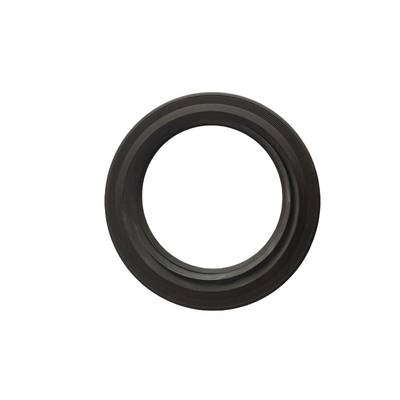

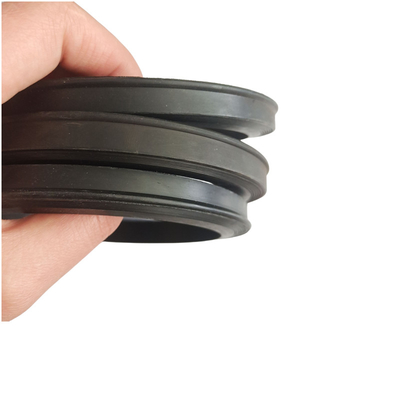

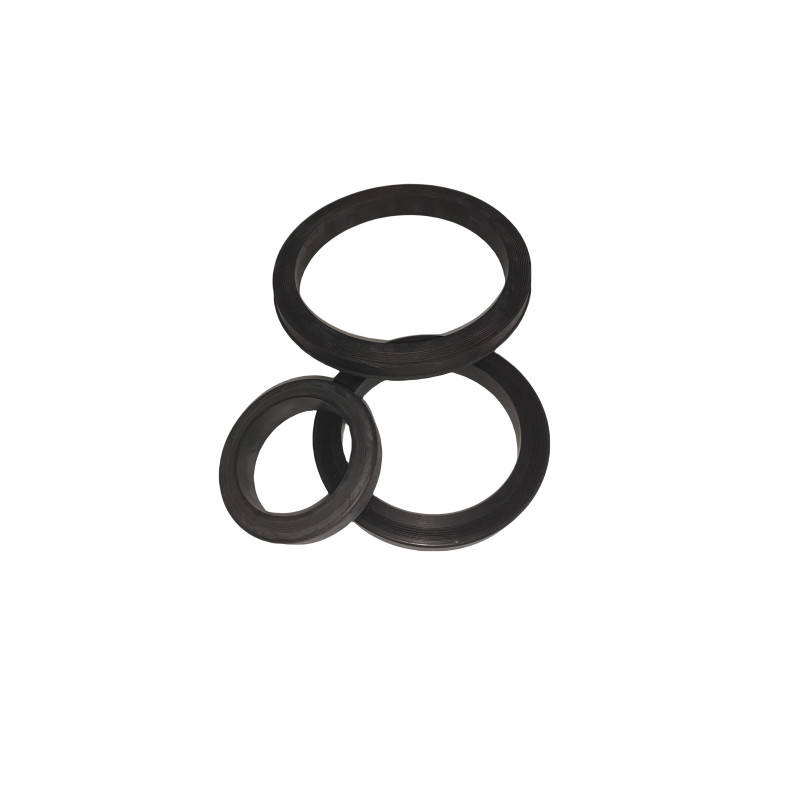

Detailed Photos
Material Introduction
|
Material
|
Temperature range
|
Temperature range
|
|
Nitrile
|
-40ºC to 120ºC
-40ºF to 248ºF
|
1.Presently the most widely used rubber in the seal industry
2.Exceptional balance of good mechanical properties, wear properties, and chemical resistance
3.Resistance to most mineral oils and greases
|
|
HNBR
|
-40ºC to 160ºC
-40ºF to 320ºF
|
1.Chemical resistance
2.Wider temperature range than standard nitrile
3.High strength material that resists extrusion, abrasion, and wear
4.Water and steam resistance to +149ºC(+300ºF)
5.H2S resistance up to 10%
6.Commonly used with petroleum oils and CO2
|
|
FKM
|
-26ºC to 230ºC
-15ºF to 446ºF
|
1.Excellent resistance to higher temperature, petroleum, and gasoline
2.Good chemical resistance, including to refrigerants
3.Great mechanical properties are retained over a wide temperature range
4.Commonly used with ammonia
|
| PTFE |
-268ºC to 250ºC
-450ºF to 483ºF
|
Vitually universal chemical resistance
|
| PU |
-54°C to 105°C
-65°F to 220°F
|
1.Thermoplastic elastomer with higher tensile strength, toughness, and wear resistance
2.Great combination of hardness and elasticity
3.Excellent low temperature flexibility
4.Commonly used in high pressure hydraulic systems where parts are subject to wear
|
Best Selling
