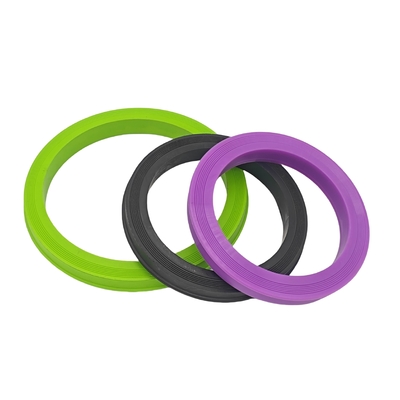

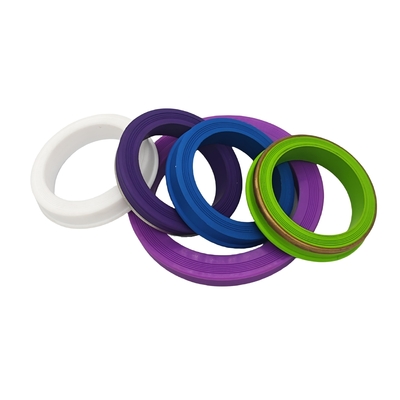

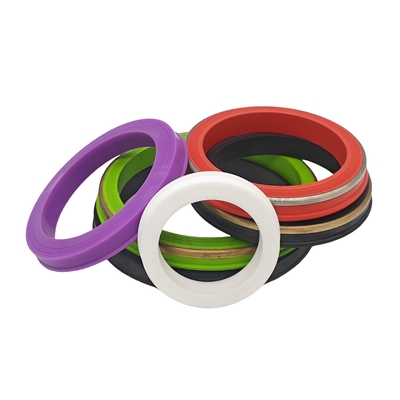

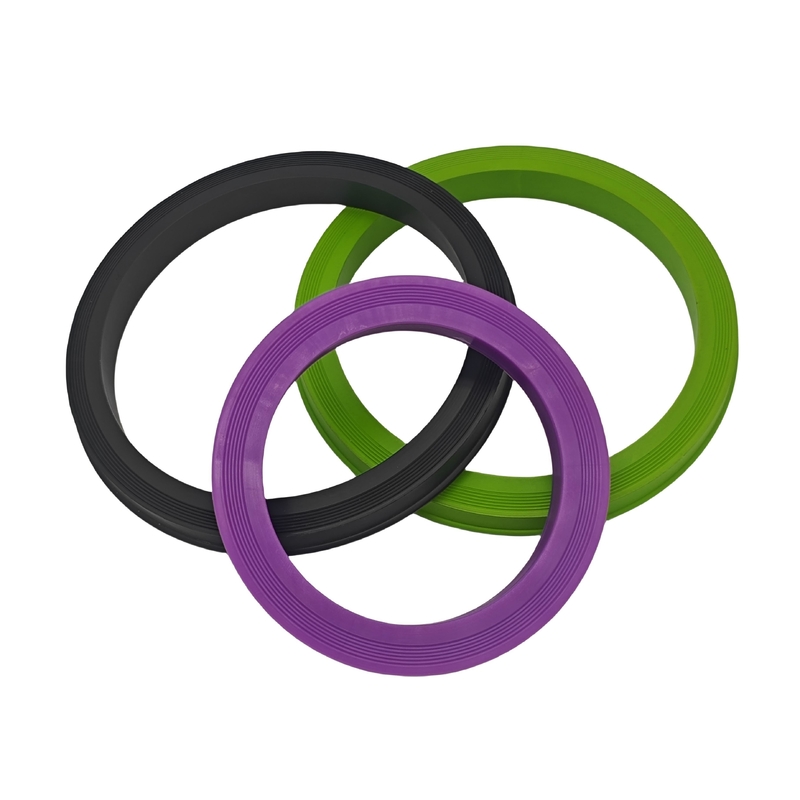

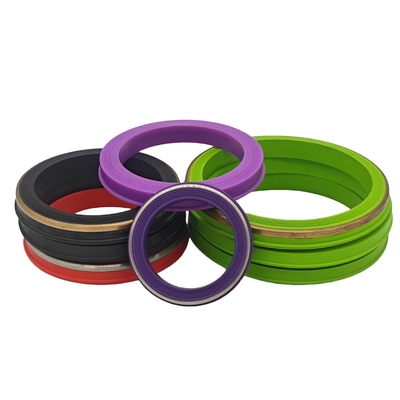

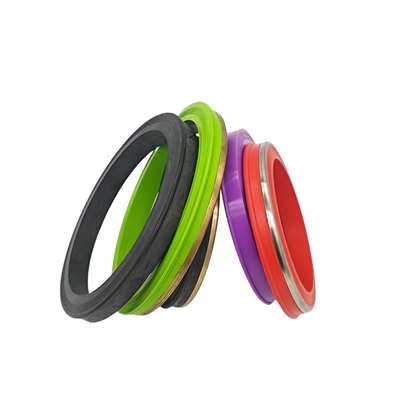

NBR HNBR FKM FFKM PTFE Weco Hammer Union Sealing Rings For Oil Field

Product Description:

Hammer union seals are used in the connections between flexible hoses or pipes used in the oil drilling industry. The

seal provides a critical fluid tight connection within the union hardware. Hammer unions consist of a thread end, a nut

end, and a hammer nut that when tightened seal the assembly with the assistance of an elastomeric seal. The seal is

matched to the union seat and seal profile; confirm the retention design for the specified hardware.

Durability in Harsh Environments


Hammer union sealing rings are selected for the specific union configuration and operating fluid.

Identify drilling mud composition, hydrocarbons and abrasive solids exposure when requesting a compound recommendation.

Seal profile, compound grade and any backup element must match the union seat and service requirements.

For offshore or onshore flowline service, provide the union manufacturer, figure, nominal size and operating conditions.

Inspect the complete union hardware and follow the applicable installation and test procedure.

Seal replacement alone does not establish the condition or pressure rating of the complete connection.

Features:

Technical Parameters:

Advantage:

High Pressure Tolerance: Pressure suitability depends on the complete union rating, matched seal profile and qualified material.

Temperature Resistance: Confirm continuous and excursion temperature limits for the actual material grade and fluid.

Chemical Compatibility: Chemical compatibility is reviewed for the specific fluid, concentration, temperature and exposure duration.

Durability: Service life depends on compound selection, hardware condition, installation and actual operating conditions.

Versatility: Available in multiple sizes and materials to suit a variety of hammer union types and industrial requirements.

Hammer Union Sealing Rings: Specify Material Grade and Matched Backup

NBR, HNBR, FKM, FFKM and PTFE are separate material options to review against the actual union and service conditions. The material family alone does not establish a shared temperature range, chemical rating or working pressure. Ask for the exact grade, component dimensions and any qualification requirements before substitution.

• Provide the union manufacturer, figure designation, nominal size and seal drawing or existing part reference.
• State fluid composition, concentration, temperature, pressure, solids content and gas or H2S exposure.
• Specify elastomer-only, brass-backed or stainless-steel-backed configuration according to the union design; review backup material compatibility separately.
• Request compound-specific elastomer hardness. PTFE components need their own material specification rather than a universal Shore A range.
• Identify the required color and identification markings separately from the compound grade; color alone does not establish material performance.

The listed nominal sizes are separate matched configurations. FIG 602, 1002 and 1502 identify union configurations and do not provide a pressure value in psi. FFKM inquiries require confirmation of the exact grade and matched profile. Provide the requirements and quantity for a material-specific quotation.

Packing and Shipping:

Product Packaging:

Shipping:

Company Profile:

Shanghai Qinuo Industry Co., Ltd was established in the year of 2013 at Shanghai Free Trade Zone, we are a

professional rubber seal manufactory specialized in the Oil & Gas field, Qinuo is a new and high-tech enterprise

integrating R&D, production and sales. Since its inception, we adhering to the "Quality for Survival, Innovation Competes

For Development " concept, continuous development and innovation, we won a good reputation at home and abroad,

we are current using Royal Way & SHQN two brands to do the marketing in the energy industry.
