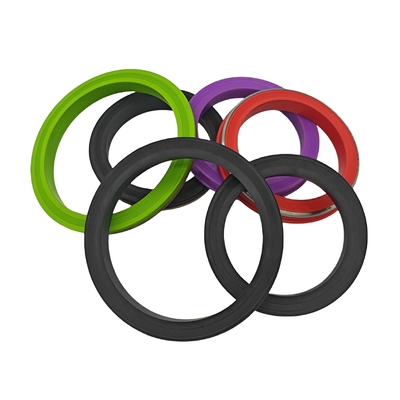

FIG 602/ 1002/ 1502 Hammer Union Seals Coupling Seals For Oilfield

Product Description:

FIG 602 / 1002 / 1502 Hammer Union Coupling Seal Selection


Hammer union seal rings for FIG 602, 1002 and 1502 replacement inquiries must be matched to the specific union

manufacturer, figure, nominal size and seal seat. Oilfield flowline and pipeline applications require the approved seal configuration for the actual

connection and service conditions. Listed material families include nitrile rubber (NBR), fluorocarbon

(FKM) and polyurethane (PU); review the selected grade against fluid composition, solids exposure and operating temperature. For

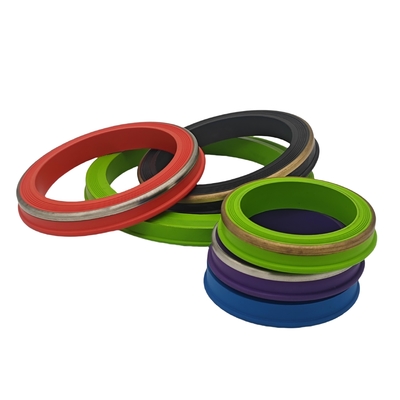

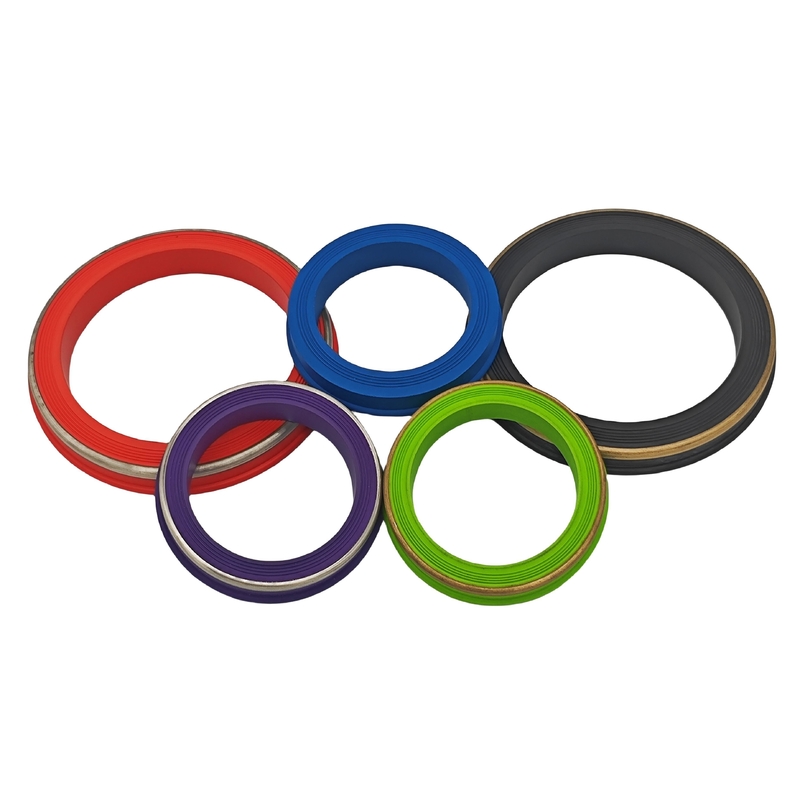

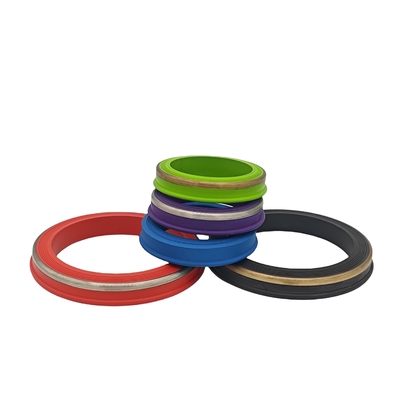

drilling operations or fluid transfer, identify the seal part number, rubber profile and any brass or stainless steel back-up ring before requesting

a replacement. Figure numbers and nominal sizes alone do not establish interchangeability or the working-pressure rating of a complete union.

Features:

• Product Name: Hammer Union Seal
• Replacement Selection: Match union figure, nominal size and seal part number
• Available Size: 1,1.5,2,3,4 Inch
• Payment Method: T/T, Paypal
• Shape: O Shape
• Application: Oil And Gas Industry
• FIG 602 / 1002 / 1502: confirm manufacturer-specific seal dimensions and configuration
• Made with NBR/FKM/HNBR materials
• Essential component for Hammer Union Seals

Technical Parameters:

Advantage:

High Pressure Tolerance: Use the approved rating of the complete union assembly with its specified seal. Do not derive a seal pressure rating from the figure number.

Temperature Resistance: Compare normal, peak and startup temperatures with the selected compound limits and assembly requirements.

Chemical Compatibility: Provide process fluid composition, additives and cleaning media for a compound-specific compatibility review.

Durability: Inspect the union seat and hardware condition before replacement, and follow the equipment maintenance and test requirements.

Versatility: The listed sizes and materials are selection options; confirm each option against the exact union drawing and required service.

Ordering FIG 602, 1002 and 1502 Seals without Mixing Part Configurations

For mixed flowline inventories, identify each seal by union manufacturer, figure number, nominal size and seal part number. Send separate line items for each configuration, including material, back-up ring arrangement and quantity. A common nominal size across different figures does not establish that the seal profile or retaining arrangement is the same.

If a part number is unavailable, provide the drawing or a reference sample with inner diameter, outer diameter, cross-section and any metal ring dimensions. State the fluid, operating temperatures, maximum working pressure and pressure-cycle conditions. Request package identification by the confirmed part configuration so replacement rings can be matched to the correct union during maintenance.
