Red Hammer Union Seals Coupling Seals For Oil And Gas Industry

Red Hammer Union Coupling Seals for Oilfield Replacement:

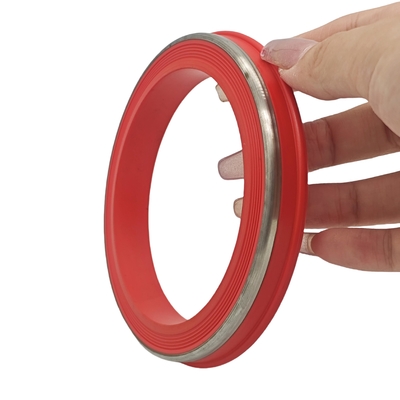

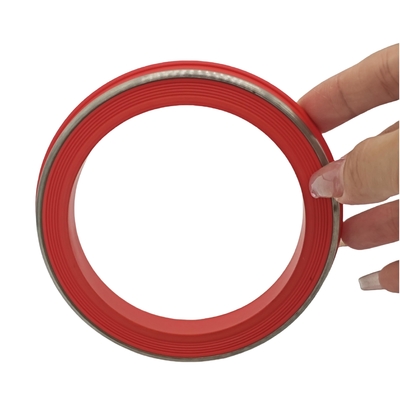

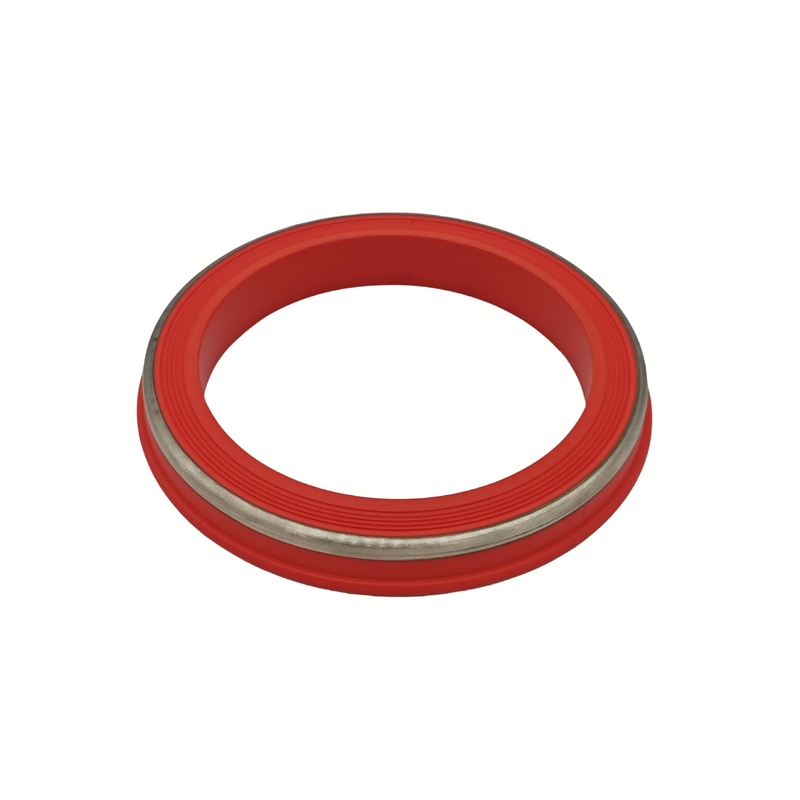

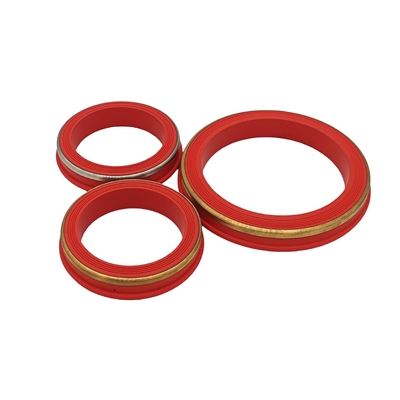

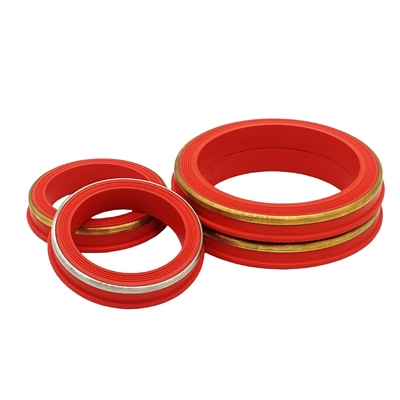

Red hammer union seals are replacement sealing components for specified oil and gas union connections. Match the red seal to the approved part number, compound and drawing.

The seal profile, nominal connection size and any metal back-up ring must match the union manufacturer and figure. These connections are

used in flowlines and fluid-transfer systems. Specify pressure cycles, process fluids and operating temperatures when selecting a replacement

rather than relying on color to identify pressure capability, material grade or sour-service suitability.

Features:

• Product Name: Hammer Union Seal
• Color Identification: Red; confirm the specified compound and part number
• Available Size: 1,1.5,2,3,4 Inch
• Payment Method: T/T, Paypal
• Shape: O Shape
• Application: Oil And Gas Industry
• FIG 1502 / Weco-type inquiries: match manufacturer-specific part number and seal geometry
• Made with NBR/FKM/HNBR materials
• Essential component for Hammer Union Seals

Technical Parameters:

Advantage:

High Pressure Tolerance: Use the approved rating of the complete union assembly with its specified seal. Do not derive a seal pressure rating from the figure number.

Temperature Resistance: Compare normal, peak and startup temperatures with the selected compound limits and assembly requirements.

Chemical Compatibility: Provide process fluid composition, additives and cleaning media for a compound-specific compatibility review.

Durability: Inspect the union seat and hardware condition before replacement, and follow the equipment maintenance and test requirements.

Versatility: The listed sizes and materials are selection options; confirm each option against the exact union drawing and required service.

Red Seal Identification: Confirm Material before Replacement

A red finish helps identify a ring visually, but it is not a universal material or pressure code. Specify the required NBR, HNBR, FKM or other approved grade independently of color. If red is used as an internal stock identifier, include the agreed part number and material designation on the package label.

For repeat orders, send the previous part reference or a drawing showing inner diameter, outer diameter, cross-section and back-up ring arrangement. Include nominal union size, manufacturer and figure, compound hardness, service fluid and quantity. Confirm the selected red compound against the same operating requirements as the original seal; visual similarity alone does not establish an equivalent replacement.

Packing and Shipping:

Product Packaging:

Shipping:

Company Profile:

Shanghai Qinuo Industry Co., Ltd was established in the year of 2013 at Shanghai Free Trade Zone, we are a

professional rubber seal manufactory specialized in the Oil & Gas field, Qinuo is a new and high-tech enterprise

integrating R&D, production and sales. Since its inception, we adhering to the "Quality for Survival, Innovation Competes

For Development " concept, continuous development and innovation, we won a good reputation at home and abroad,

we are current using Royal Way & SHQN two brands to do the marketing in the energy industry.
